POE Texas Lighting Denton Lighting Control Panel - 8 x 0-10V Relays
POE Texas Lighting Denton Lighting Control Panel - 8 x 0-10V Relays
POE Texas Lighting Denton Lighting Control Panel - 8 x 0-10V Relays
POE Texas Lighting Denton Lighting Control Panel - 8 x 0-10V Relays
  • SKU: AF-LCP-8-Z
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

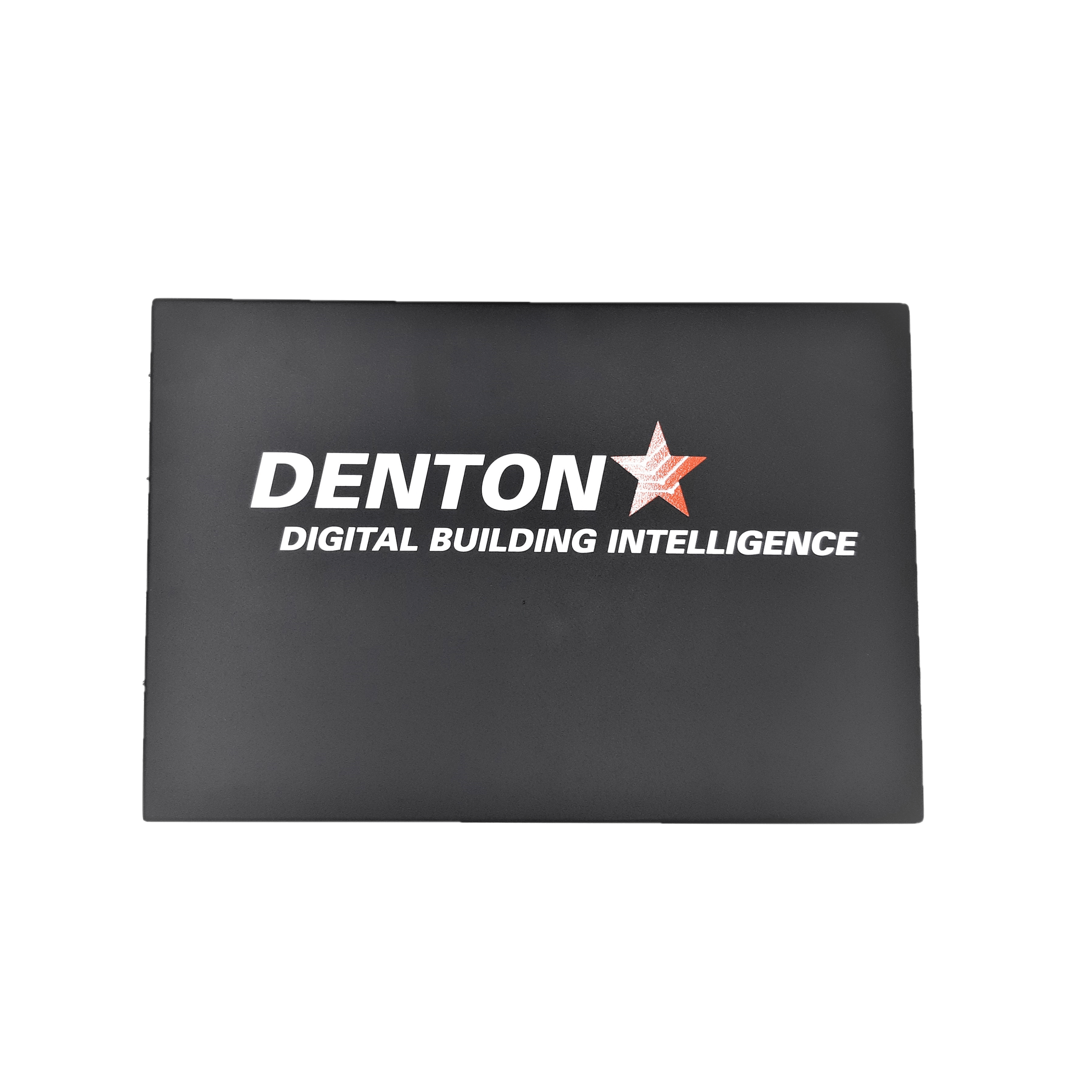

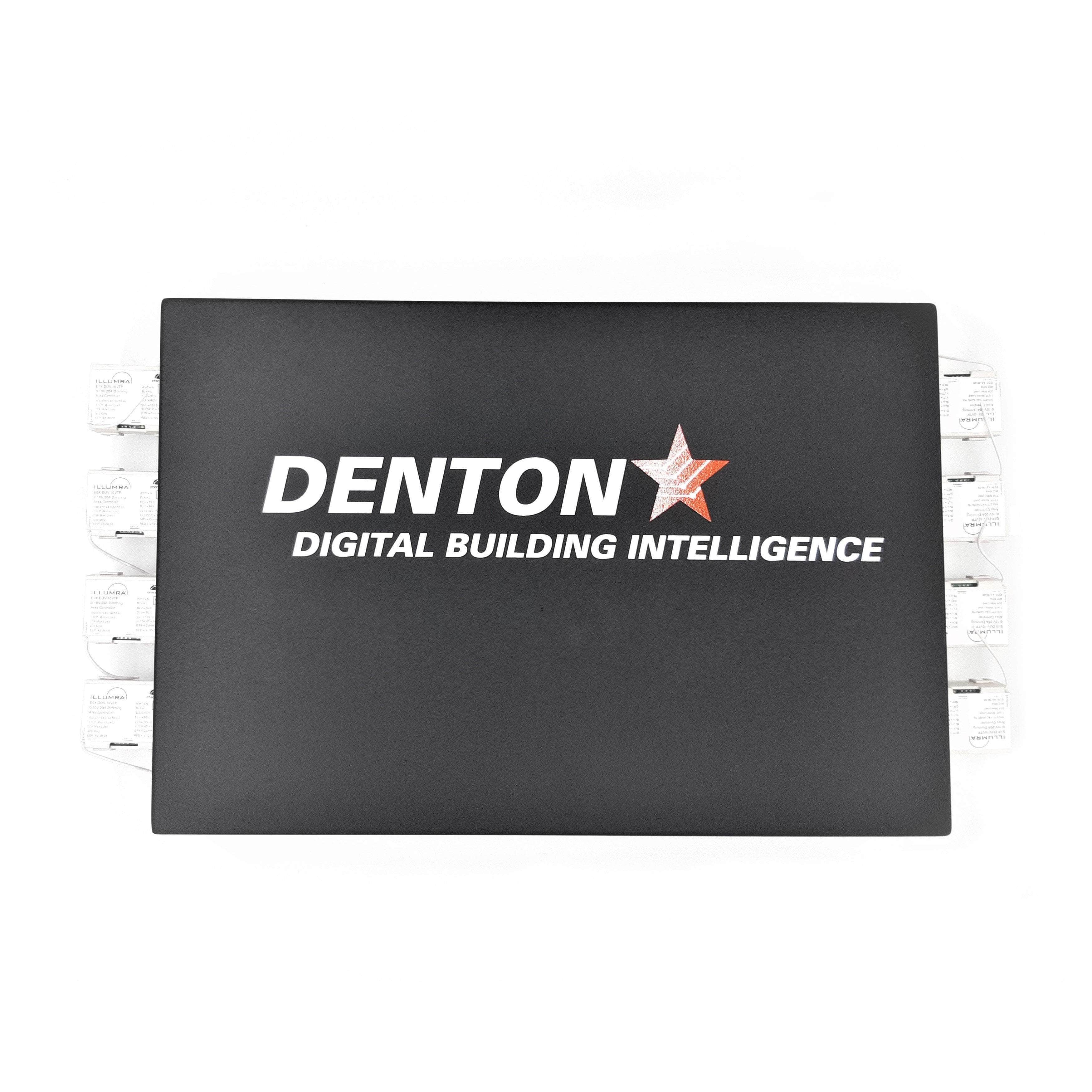

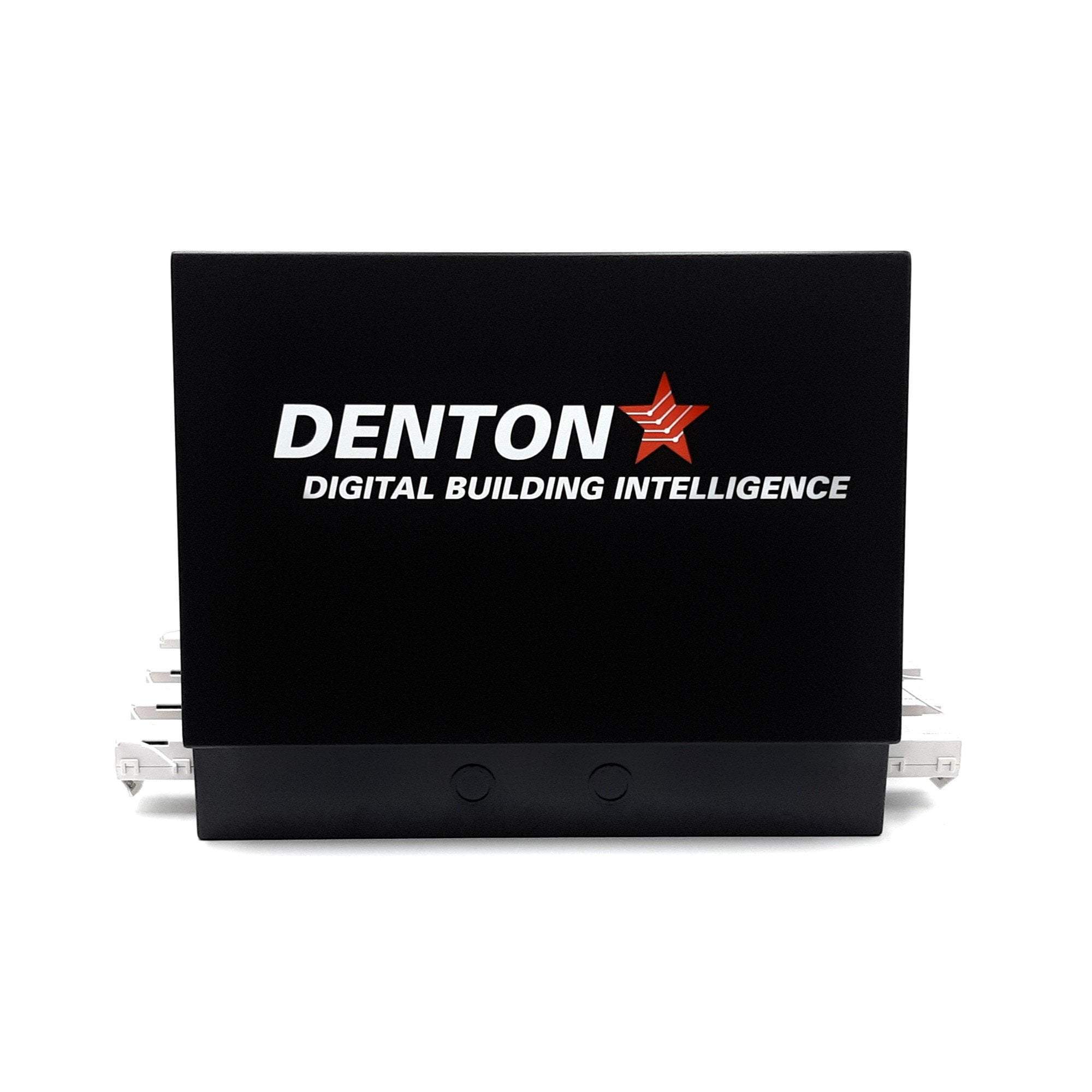

Denton Lighting Control Panel - 8 x 0-10V Relays

$1,399.99
DESCRIPTION

Please email success@poetexas for lead times as they vary based on quantity and timing.

This product is a Lighting Control Panel that controls 8 circuits, each up to 20A. It has a wireless gateway (rPi+enocean USB stick) at its core in close proximity of up to 8 wireless 0-10V relays or phase dimmers. The gateway is preconfigured to have the 8 IDs paired at the factory to minimize in-field support. The rPi hosts a PoE Hat so only a cat5 cable is required. The LCPs can be networked together with other gateways and LCPs and support a Touchscreen tablet on the network to control the independent circuits. Local enocean wireless switches can also be added for local invocation of scenes, or control of one or more circuits.

The Denton AF-LCP Lighting Control Panel hosts a Linux based high-performance server, tightly coupled to either eight 0-10V relays or six 120 or 277 V phase dimmers. It hosts an astronomical time clock enabling it to be used both indoors and outdoors by simply entering your zip code. It is compatible with all the DENTON Building Automation technology and can be networked together with other wired and wireless devices through a PoE backbone. Connection to touch screen tablets or remote access is easy to set up for expanded control options. When connected to other PoE technology such as touchscreen tablets, it is an ideal retrofit for existing lighting control panels.

Online Product Manual
