PoE Texas Splitter Single Inline 10/100 Mode B Splitter and Injector Kit - 2.1 mm DC Barrel
PoE Texas Splitter Single Inline 10/100 Mode B Splitter and Injector Kit - 2.1 mm DC Barrel
PoE Texas Splitter Single Inline 10/100 Mode B Splitter and Injector Kit - 2.1 mm DC Barrel
  • SKU: POE-IO-21

Single Inline 10/100 Mode B Splitter and Injector Kit - 2.1 mm DC Barrel

$4.19 $5.99
Shipping calculated at checkout.
DESCRIPTION

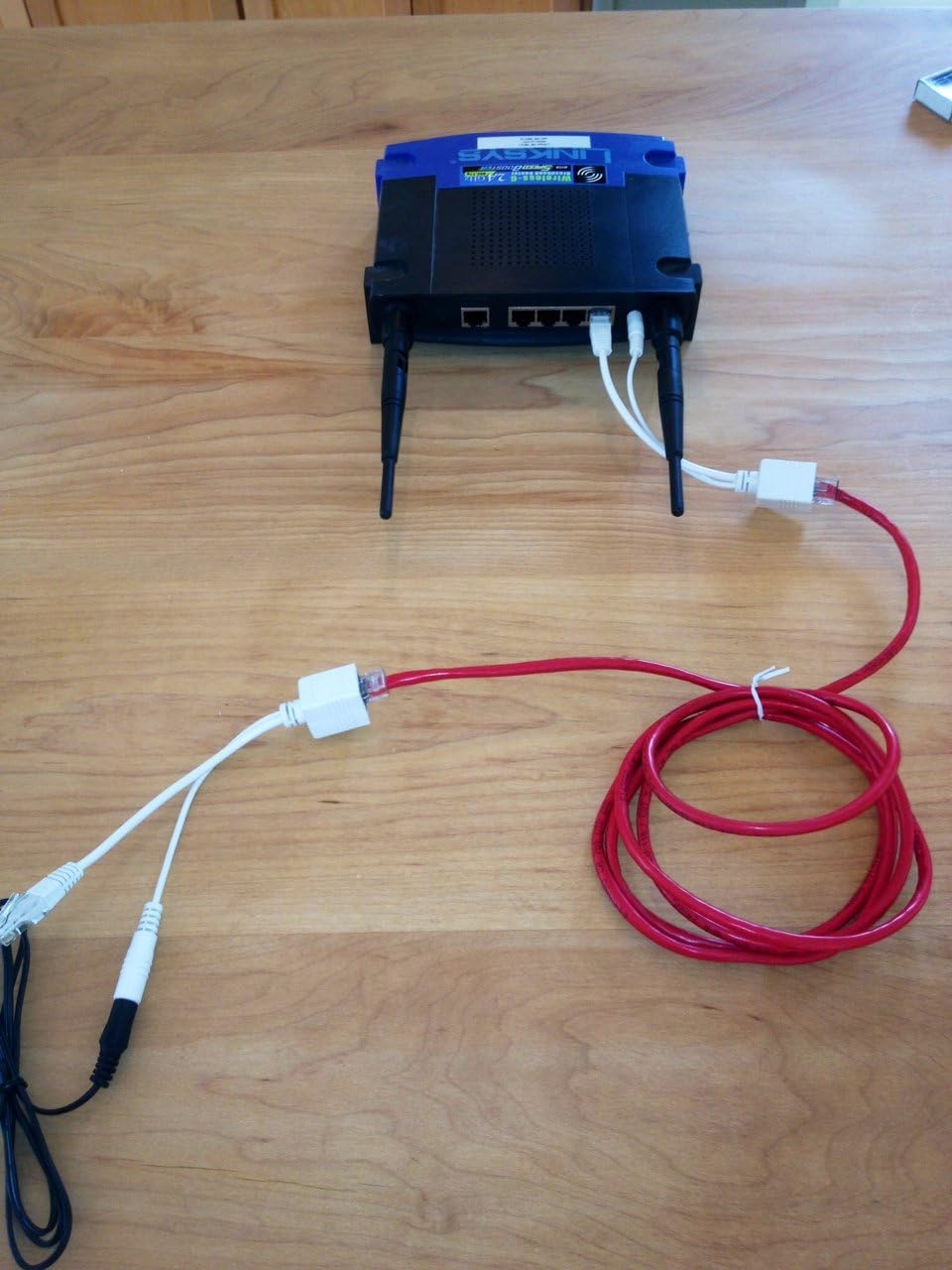

Plug and Play PoE. Use this Inline PoE Splitter/Injector Kit to instantly upgrade your network router or switch to PoE. Use with a 12-24 volt DC power supply to extend passive power to one device via a Cat 5, Cat 5e or Cat 6 Ethernet cable. The 2.1 x 5.5 mm DC barrel fits most 12 volt cameras and devices

Product Features:

  • Simple, low-cost solution for Passive PoE
  • Passive Mode B PoE is "always on" / PoE will output the same input voltage
  • Kit will combine power and data; carry over Ethernet cable; then "split" power and data off on to corresponding adapter
  • Use for 12v and other applications
  • Allows you to extend Power further distances via PoE to non-PoE devices

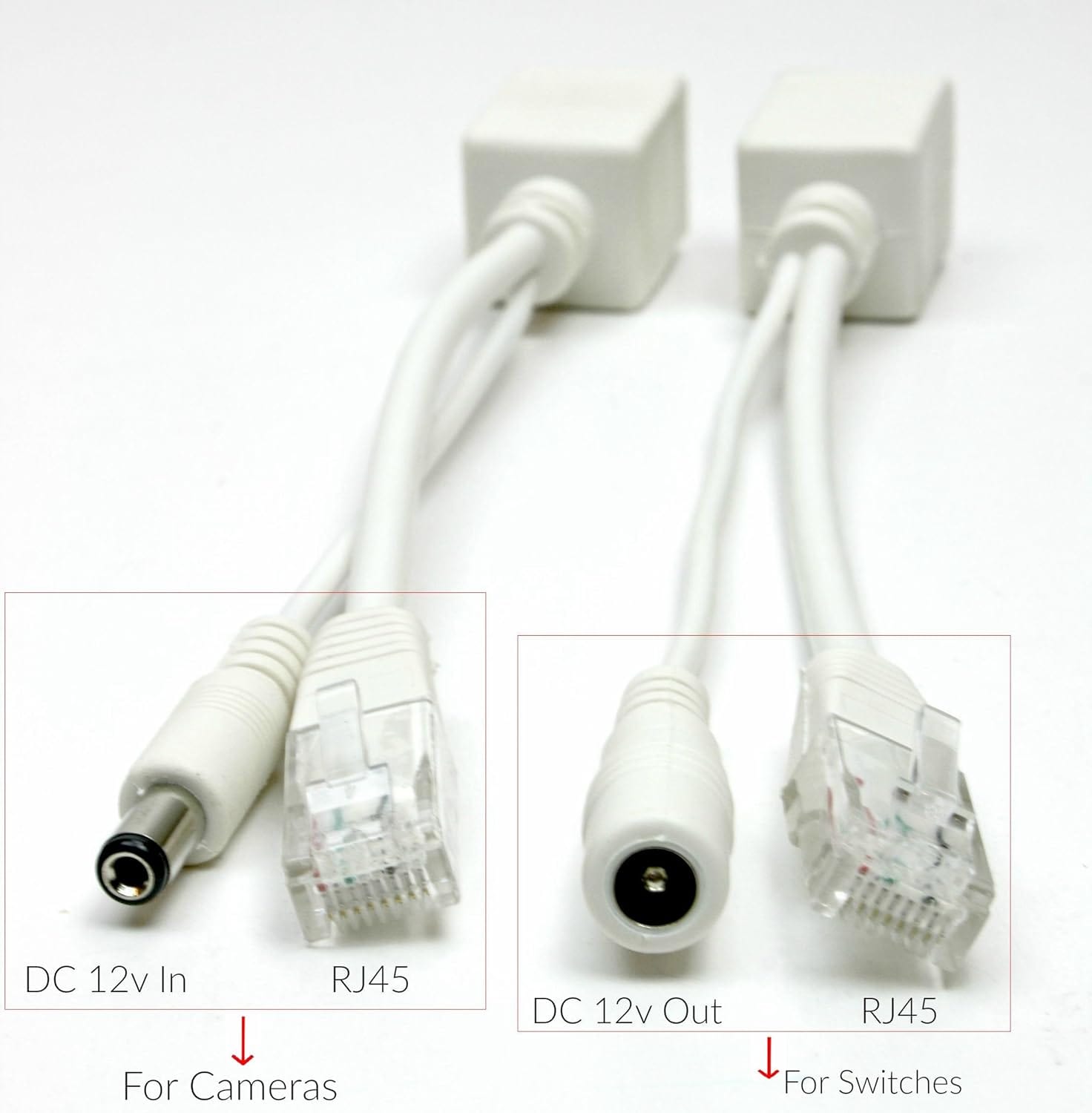

  • The 2.1 mm x 5.5 mm DC connector fits most device
  • Compatible with 12-24 volt UL approved DC power supplies (sold separately)

Product Specifications

Data + PoE Ports 1
Data Ports 1
Data Rate 10/100
Dimensions 9x2x1 in.
LEDs Per Port 1
Operating Humidity 5% to 90%
Operating Temperature Range -10 -60C
PoE Method Passive
PoE Standard N/A
Power Input 2.1mm DC
Weight 1oz

QUESTIONS & ANSWERS

Ask a Question
  • Are these in stock?

    Yes, these are in stock.

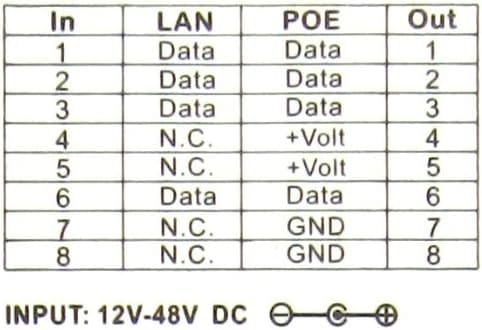

  • Which pins are the +/- DC voltage applied to on the female RJ45 port?

    (4+,5+,7-8-)
