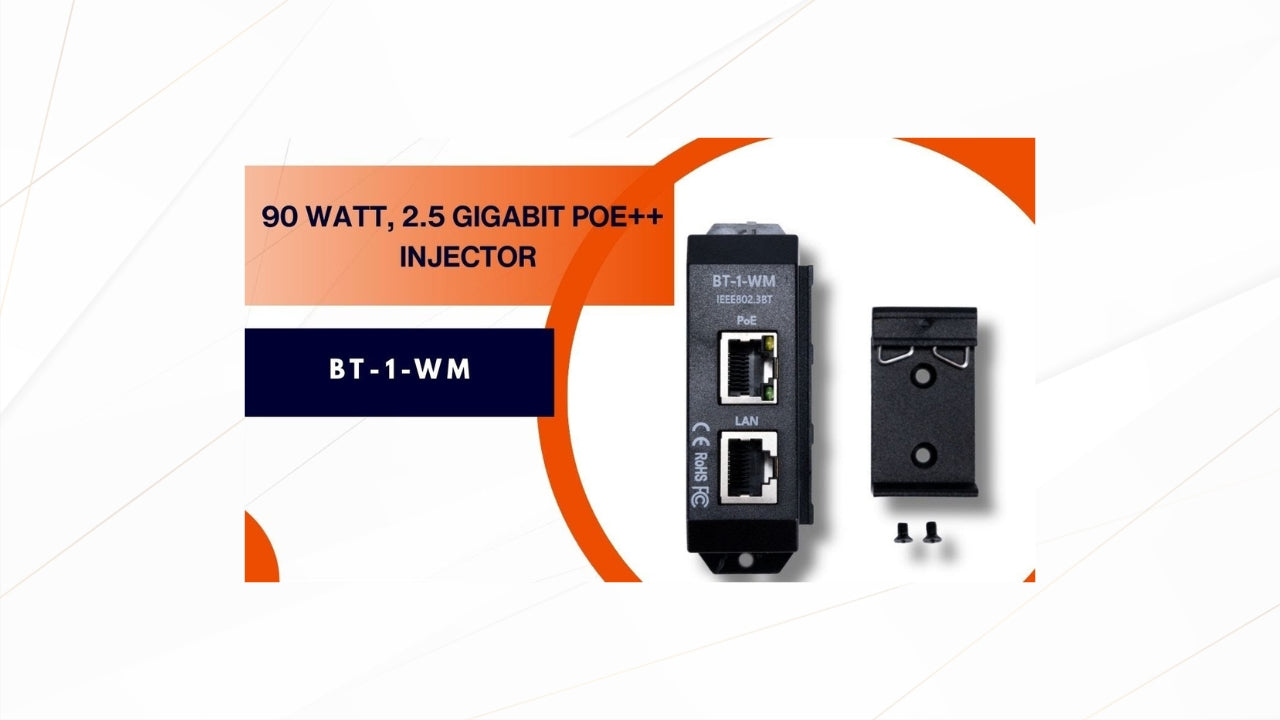

How to Upgrade Your Network With a 2.5 Gigabit PoE++ Injector: A Practical Technical Guide

What Is a PoE++ Injector?

A Power over Ethernet PoE injector is a small networking device that adds electrical power to an Ethernet cable while still carrying data from your switch or router. The “++” refers to higher power delivery standards, typically IEEE 802.3bt, meaning it can supply more watts than earlier PoE versions. The 2.5 Gigabit label means the injector supports 2.5 Gbps network speeds, faster than standard gigabit while remaining compatible with modern networking equipment.

Why Use a 2.5 Gigabit PoE++ Injector?

1. Boosted Network Speeds

Many modern network devices, especially WiFi 6 and WiFi 6E access points, can operate above 1 Gbps. A 2.5 Gbps PoE injector ensures these devices perform at their full potential.

2. More Power With PoE++

Older PoE 802.3af delivers about 15 watts.
PoE+ 802.3at delivers about 30 watts.
PoE++ 802.3bt can deliver up to 90 watts or more.

This higher power capacity supports high performance devices without requiring separate power cables.

3. Simplified Wiring

Power and data travel over the same Ethernet cable. This reduces clutter and eliminates the need for a nearby electrical outlet at the device location.

What You Will Need

Before starting, gather the following:

• A PoE++ 802.3bt injector that supports 2.5 Gbps and up to 90 watts

• A network switch or router

• Ethernet cables Cat6 or better

• The PoE powered device such as a multi gig access point or high resolution camera

How to Install the Injector

Step 1: Connect to Your Network Source

Plug an Ethernet cable from your main switch or router into the data input port of the PoE++ injector.
This connection carries only data into the injector.

Step 2: Connect Your Powered Device

Run a second Ethernet cable from the PoE output port of the injector to the device you want to power and connect.
This cable now carries both power and data to the device.

Step 3: Power On and Check Indicators

Most PoE injectors include LED indicators that show:

• Power status

• Link and network activity

• Negotiated speed

If the indicators show normal operation, your device should power on and connect to the network.

Educational Overview of PoE Standards

Understanding PoE standards helps you select the correct equipment.

A 2.5 Gbps PoE++ injector typically supports 802.3bt and provides both higher power and increased bandwidth.

Tips for Better Performance

Use Cat6 or Cat6a cables
For 2.5 Gbps speeds, quality cables help maintain reliable performance over longer distances.

Check power budgets
If using multiple PoE devices on the same infrastructure, verify the total available power.

Test before permanent installation
Before mounting devices in ceilings or outdoor locations, confirm that both power and data are functioning correctly.

Troubleshooting Checklist

No power to the device

• Verify the injector is plugged into AC power

• Confirm it supports PoE++ 802.3bt

Network speed limited to 1 Gbps

• Ensure both injector and device support 2.5 Gbps

• Replace older Ethernet cables with Cat6 or better

Device powers on but no network connection

• Check link activity lights

• Test with a different Ethernet cable or switch port

Final Thoughts

A 2.5 Gigabit PoE++ injector combines higher data throughput with strong power delivery over a single Ethernet cable. It is ideal for modern networks where devices require both speed and energy without additional electrical wiring. Whether you are upgrading a wireless network or deploying advanced surveillance systems, this solution simplifies installation and prepares your infrastructure for future demands.
