Powering Your Raspberry Pi with PoE+, Simplifying Network and Power Setup

What Is PoE and Why It Matters

Power over Ethernet (PoE) is a technology that lets devices receive both power and network data through a single Ethernet cable. For tiny computers like the Raspberry Pi 3B+ or Raspberry Pi 4, this is a huge benefit.

• Fewer cables: No separate power adapter needed
• Cleaner setup: Especially useful for wall-mounted or remote projects
• Reliable power delivery: PoE+ can supply enough energy for typical Pi setups

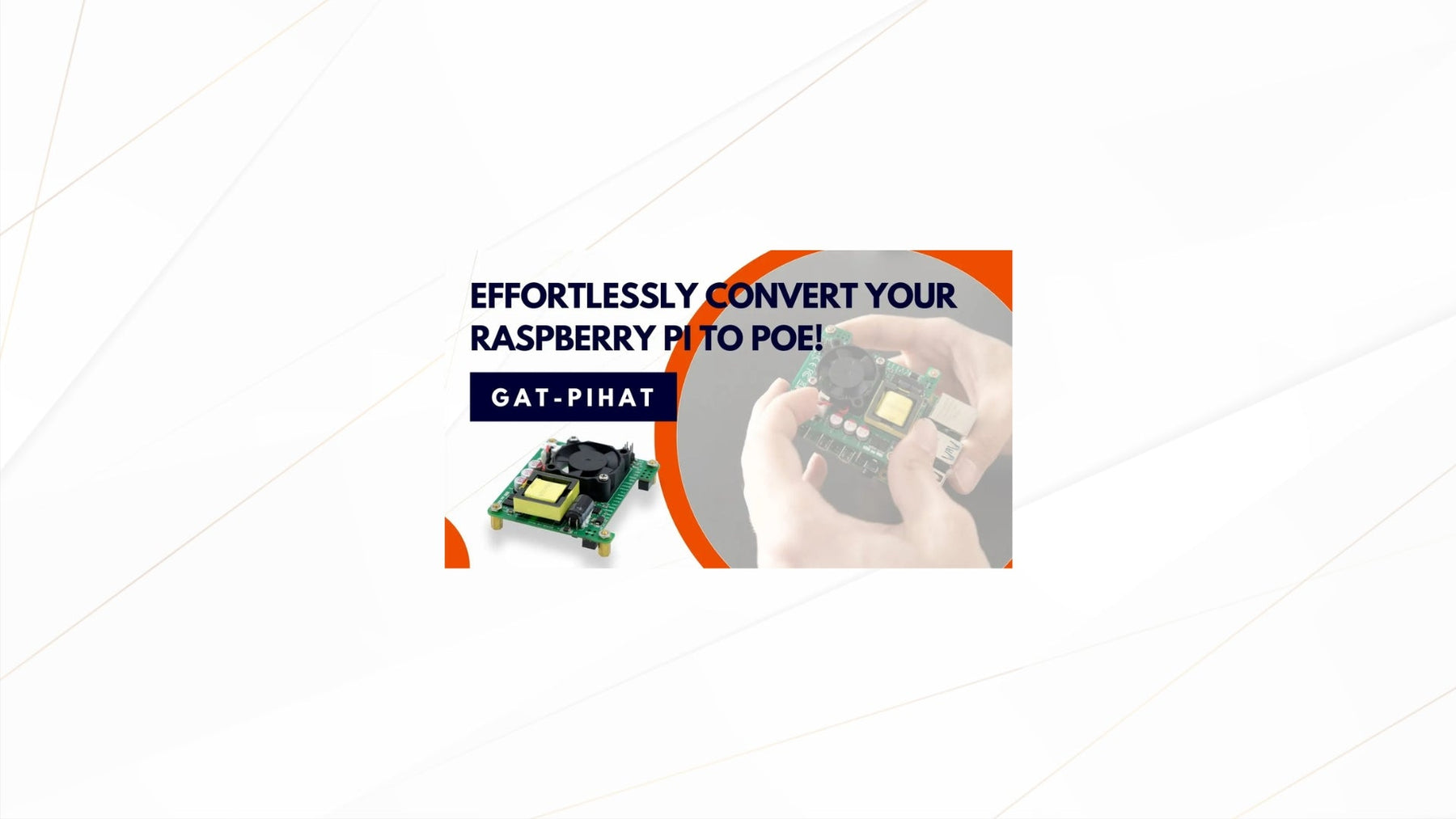

The video showcases a special add-on board, a type of PoE+ HAT, that makes this possible.

What Is a PoE+ HAT?

A HAT (Hardware Attached on Top) is a small expansion board that plugs into the Raspberry Pi’s 40-pin header. A PoE+ HAT allows your Pi to:

• Receive power and Ethernet data over one cable
• Eliminate USB-C power adapters
• Stay compact for networked installations

The PoE+ standard (IEEE 802.3at) delivers more power than basic PoE (802.3af), typically allowing up to about 25W over CAT5 or better cables.

How It Works: Step by Step

1. Understand the Requirements

Before beginning, you must have a PoE+ capable Ethernet switch or a PoE+ injector. Ordinary network switches will not power the Pi.

2. Attach the PoE+ HAT to Your Pi

Mount the HAT carefully onto the Raspberry Pi’s GPIO pins until it seats securely.
• Support the board from underneath
• Use the provided spacers or screws to secure it

The PoE+ HAT will draw power from the Ethernet port instead of USB-C.

3. Connect Ethernet and Power

Connect an Ethernet cable from your PoE+ switch or injector to the Pi.
This single cable now carries both power and data.

4. Boot and Monitor

Once connected, the Raspberry Pi will power on. Check status LEDs or a connected display to confirm booting.

Practical Use Cases

• IoT devices and smart home projects
• Remote cameras or environmental sensors
• Media kiosks or public displays
• Server clusters and laboratory setups

PoE simplifies installations where running power cables would be difficult.

Helpful Tips

• Check compatibility before buying a PoE HAT or switch
• Use quality Ethernet cables such as CAT5e or better
• Monitor heat levels since PoE+ HATs can generate additional warmth during heavy processing

Final Thoughts

Power over Ethernet using a PoE+ HAT provides a simple and efficient way to power Raspberry Pi devices while maintaining reliable network connectivity. It is especially useful for clean, professional installations and remote deployments.
