Upgrading Your Network: A Deep Dive into the 24-Port Active PoE Injector

If you are expanding your network infrastructure, setting up advanced security cameras, or deploying enterprise-grade Wi-Fi, you have likely run into the challenge of powering all those devices. Running separate electrical wires to every single access point or camera is expensive, time-consuming, and often impractical.

Enter Power over Ethernet (PoE).

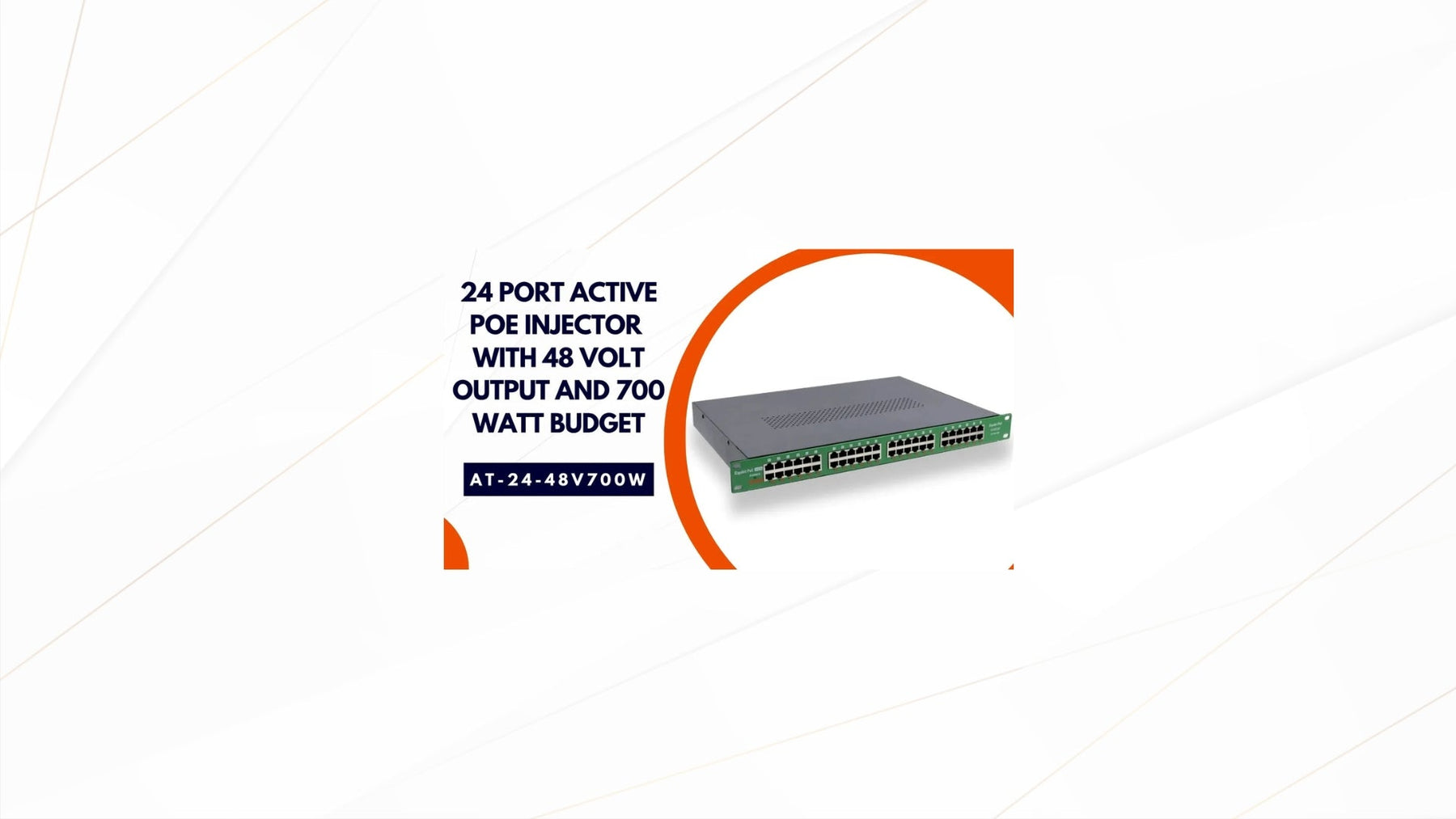

In this post, we’ll explore the ins and outs of using AT-24-48V 700W Active PoE Injector (like the popular model highlighted by PoE Texas) to power your high-demand devices safely and efficiently.

What is a PoE Injector?

A Power over Ethernet (PoE) injector is a device that seamlessly merges power and data into a single Ethernet cable (Cat5, Cat5e, or Cat6). It takes power from a DC power source and injects it into your data cables.

A 24-port midspan injector sits between your standard, non-PoE network switch and your end devices. This allows you to instantly upgrade your existing network switch to deliver PoE power without having to completely rip and replace your current switch infrastructure.

Why Go "Active"?

When shopping for PoE equipment, you'll hear the terms "Active" and "Passive."

An Active PoE Injector uses IEEE 802.3af/at standards to negotiate power delivery. Before it sends any power down the line, the injector performs a "handshake" with the connected device. It asks, "Do you need power? And if so, how much?" * If the device is a PoE-compatible camera, the injector sends the power.

• If the device is a non-PoE laptop or standard desktop, the injector will not send power, acting purely as a data pass-through.

Active negotiation is critical because it protects your non-PoE devices from being accidentally burned out by unwanted voltage.

Key Features of a Premium 24-Port Active PoE+ Injector

If you are looking at enterprise-grade injectors like the 24-Port 802.3at PoE+ injector from PoE Texas, here are the standout features that make it an infrastructural powerhouse:

• High Power Output (PoE+): Standard PoE (802.3af) delivers up to 15.4W per port. However, a PoE+ (802.3at) injector can deliver up to 30 Watts per port, making it ideal for power-hungry devices.

• Massive Power Budget: High-end models often feature dual power supplies (such as two UL-approved 48v, 350w power bricks) to offer a shared power budget of up to 700 watts across all 24 ports.

• Gigabit Data Capability: You shouldn't have to sacrifice speed for power. These injectors support 10/100/1000 Gigabit data speeds, ensuring zero bottlenecks for high-throughput devices.

• 1U Rackmountable: Designed for the server room, these kits are easily rack-mountable to keep your cable management clean and professional.

Ideal Use Cases: What Can You Power?

A 24-port PoE+ injector is designed for scalability and high-powered applications. It is the perfect solution for powering:

1. High-Powered Wi-Fi Access Points: Enterprise APs (like modern Cisco Aironet or Meraki devices) require significant power to broadcast dual-band signals to dozens of users simultaneously.

2. PTZ (Pan-Tilt-Zoom) Cameras: Security cameras with motorized physical movement and built-in heaters for outdoor use require the full 30W offered by PoE+.

3. VoIP Phone Networks: Deploying an office full of IP phones becomes incredibly simple when all power is handled centrally at the server rack.

4. Access Control Systems: Keypad and badge-swipe entry systems for smart buildings.
