POE+ to USB-C Power + Data with USB-A Port


Our Patented POE+ to USB Type C Power + Data Delivery with USB-A Port

U.S. Patent No. 11,627,004

Two-in-one function for point of sale, kiosks, check-in stations, and more!
Provide power and data to iPad Pro Gen 3, Microsoft Surface Go, Samsung Tab A*, Samsung Tab S, and Google Pixel while also communicating and powering a USB A device like card readers, storage devices, and ARM controllers.

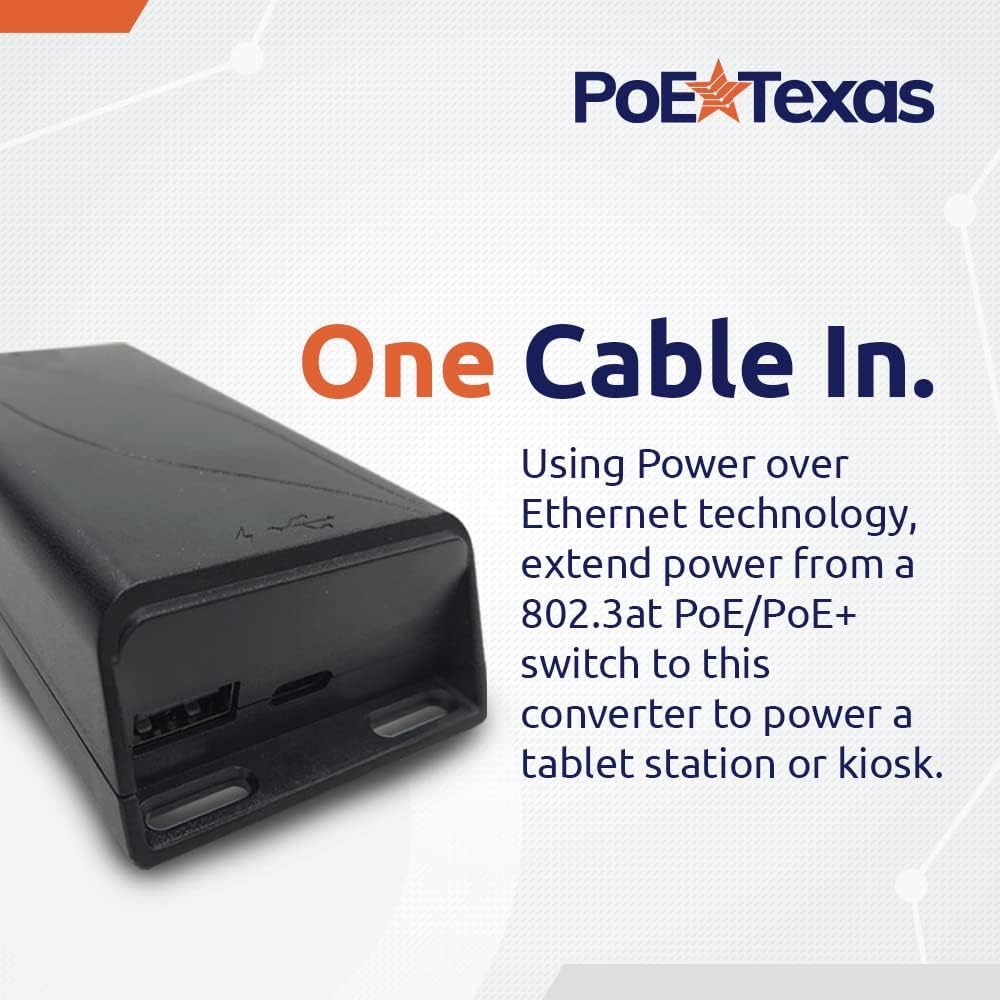

One Cable in. Using Power over Ethernet technology, you can extend power from your 802.3at PoE Switch to this converter to power your tablet station or kiosk.

Product Details

  • Delivers continuous USB-C power and data to your tablet on the USB-C connector
  • Delivers continuous USB power and data to your card reader, storage device, raspberry Pi, or other 5v devices.
  • Offers a working solution for installing tablet point of sale kiosks and check-in stations where you need them using PoE technology
  • Extends power and data up to 328 feet from the source
  • Delivers both USB Type C Power and 10/100 Fast Ethernet Data on one cable
  • Wired 10/100 Mbps data through the connector allows for greater network security
  • Plug-and-play design for easy installation
  • 2.0 USB Data Standard Output
  • 25 Watt Output** - (5V2.6A, 9V1.78A, 12V1.34A,15V1.37A, 20V1.15A)
  • Compatible with IEEE 802.3at PoE+ Switch or Injector

See the Online Technical Manual

* Samsung Tab compatibility may vary. 2020 Tab A7 models no longer have the ability to do concurrent power and data connections. Please check your specific model for compatibility with USB-C data tranfer.

**25 Watt budget for both ports, please check product specifications for compatibility

Product Cut Sheet

    Product Specifications

    Connector Types USB-C with Power Delivery and Data | USB-A
    Data Rate (Input) 10/100/1000 Gigabit / (Output) 10/100 Mbps
    Data Standard USB 2.0 (Output)
    Input voltage 48-56V
    LEDs Per Port Green (Connection) / Yellow (Activity)
    Max Power for Kit 25 Watts total
    Mount Type Wall or DIN rail (sold separately)
    Operating Humidity -10 - 60C

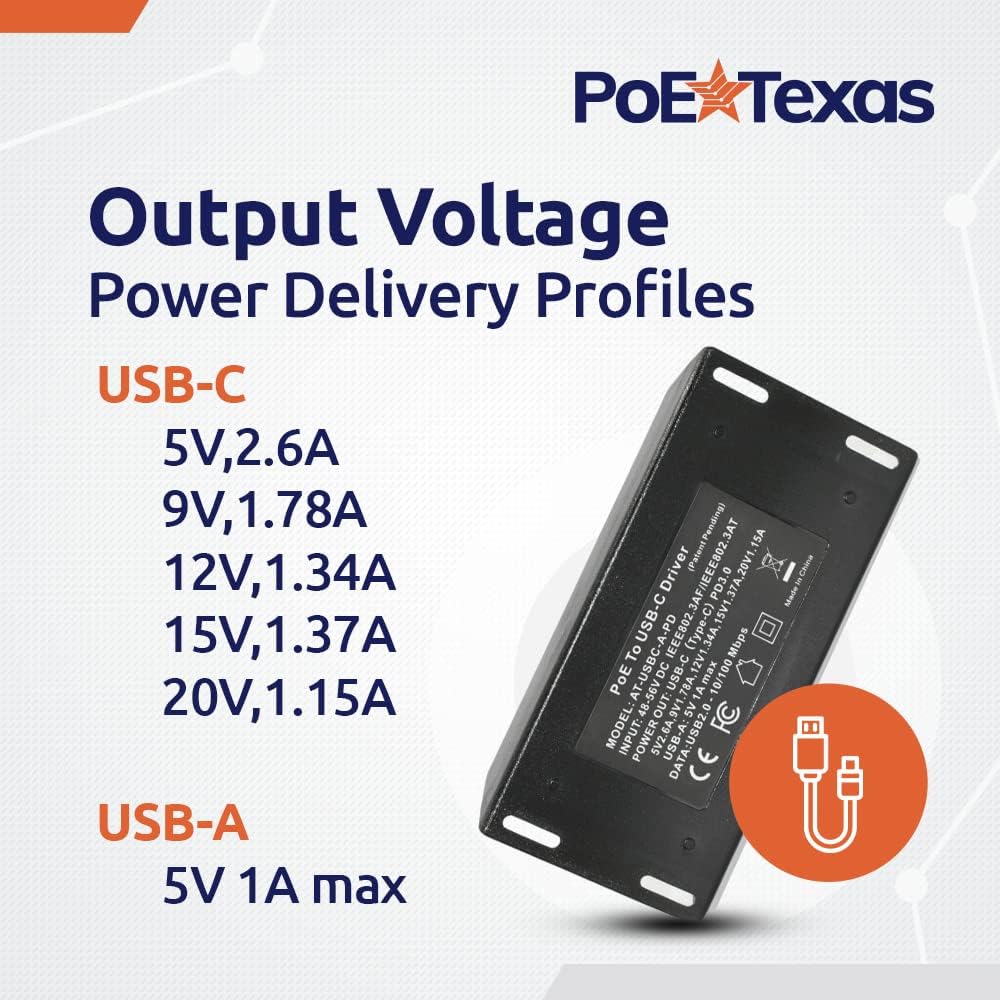

    Output Voltage USB-C: 5V,2.6A; 9V,1.78A; 12V,1.34A; 15V,1.37A; 20V,1.15A USB-A: 5V 1A max

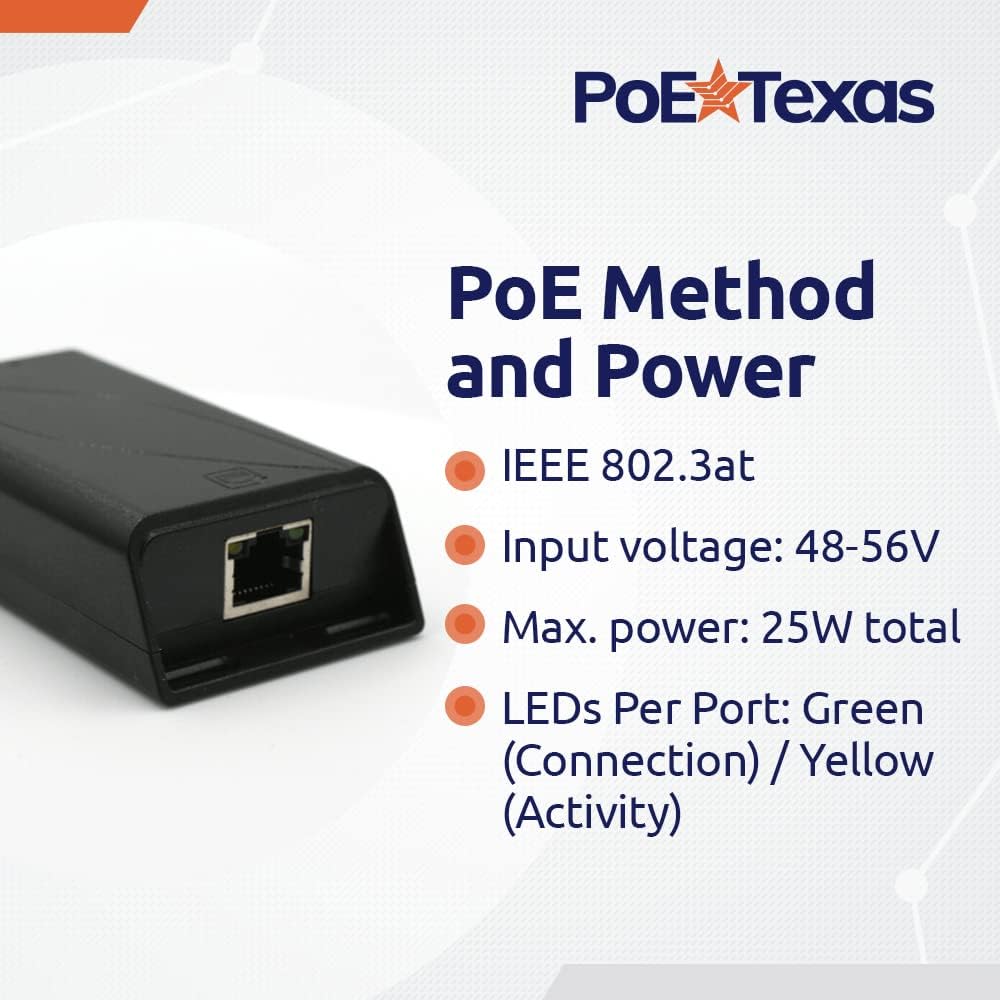

    PoE Method IEEE 802.3at
    PoE Standard IEEE 802.3at
    Weight 3 oz.
