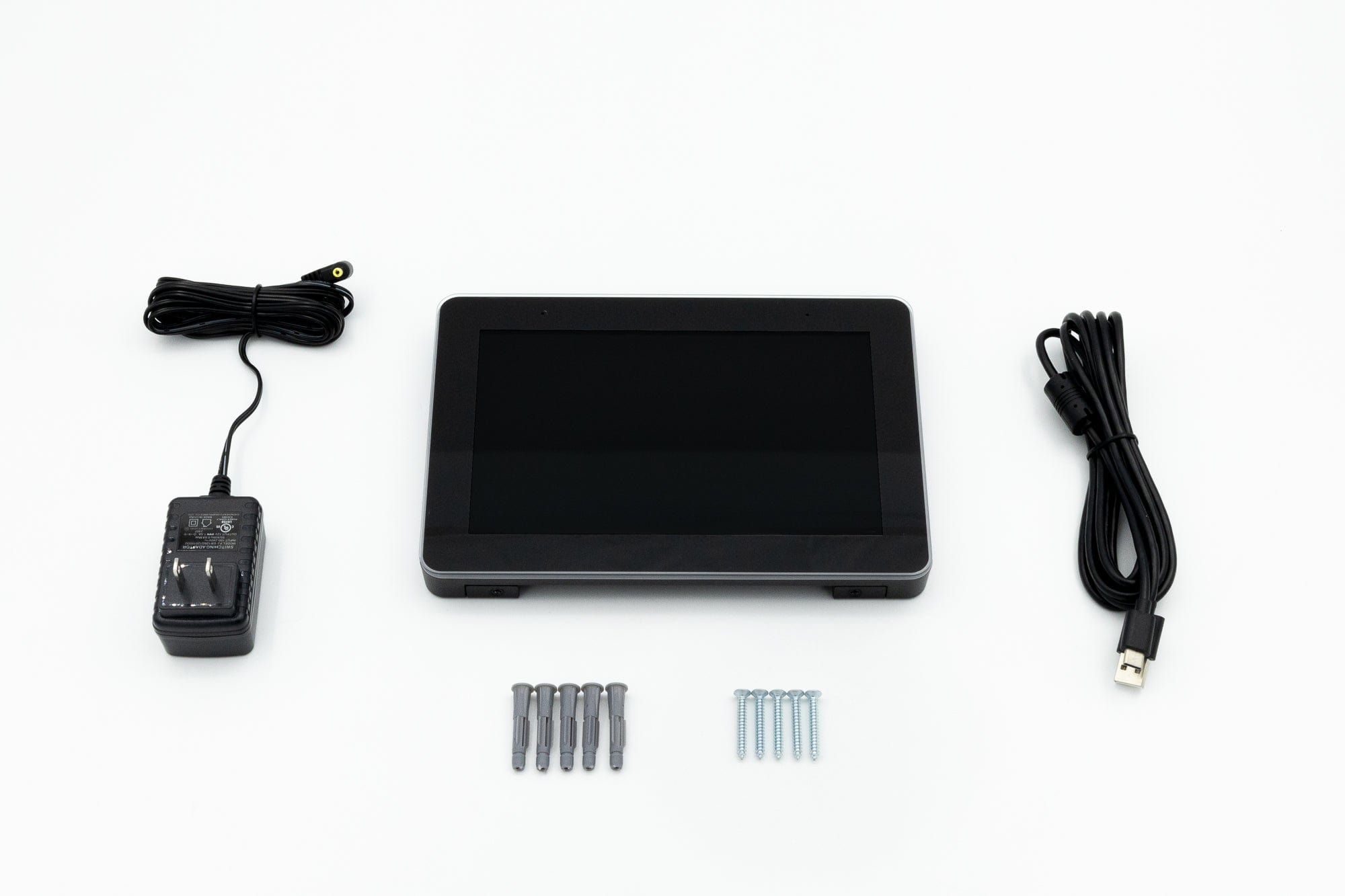

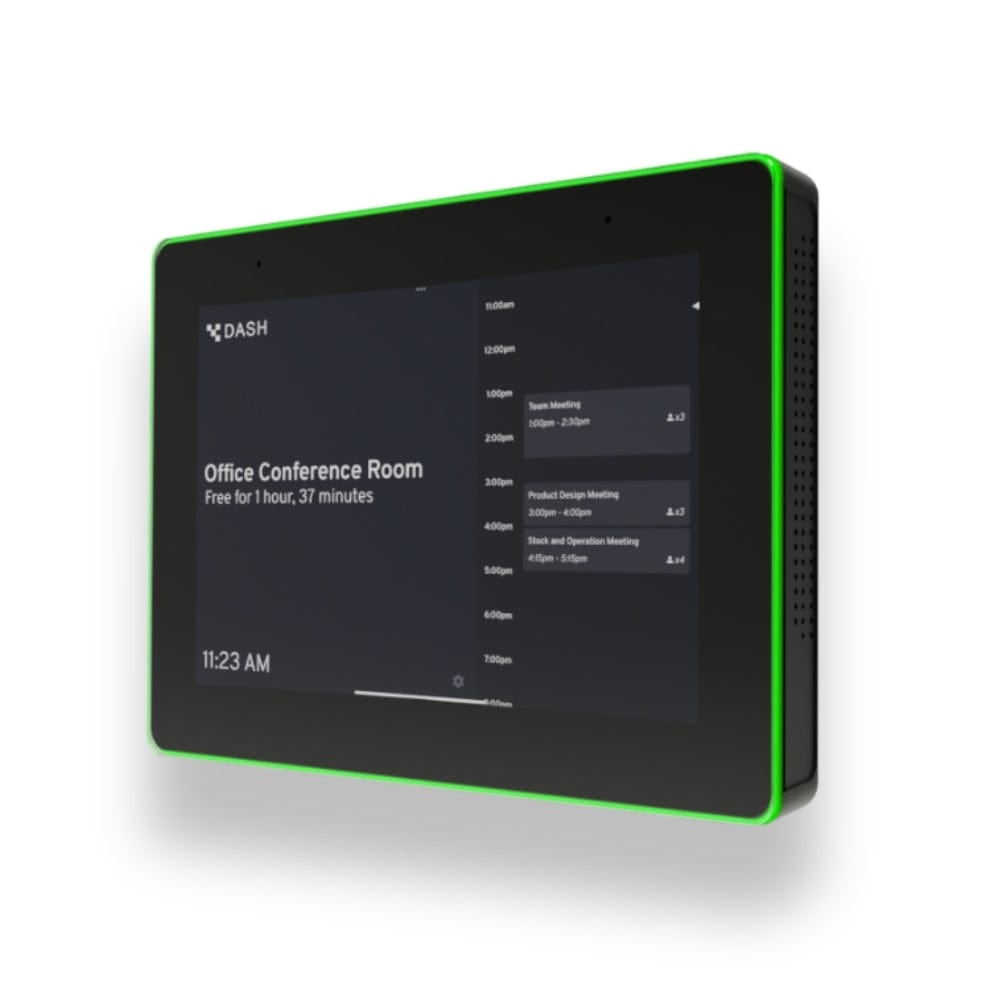

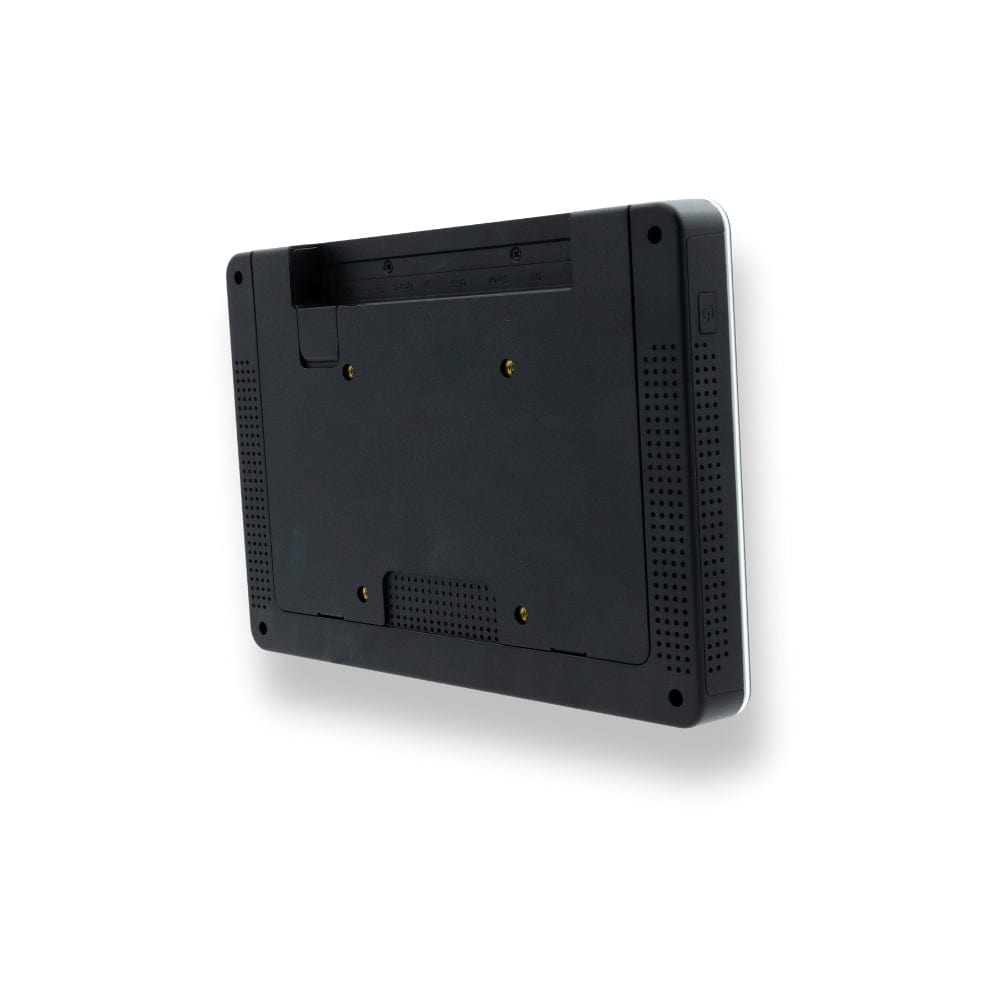

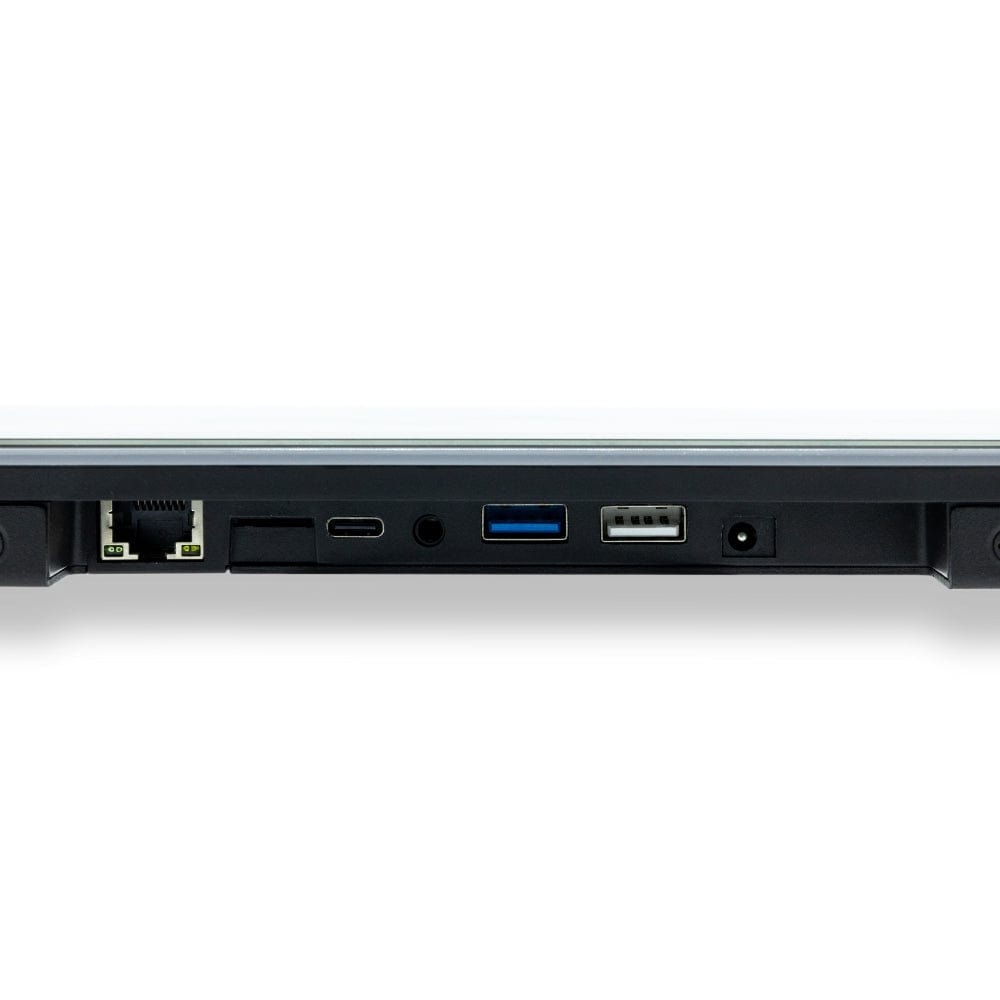

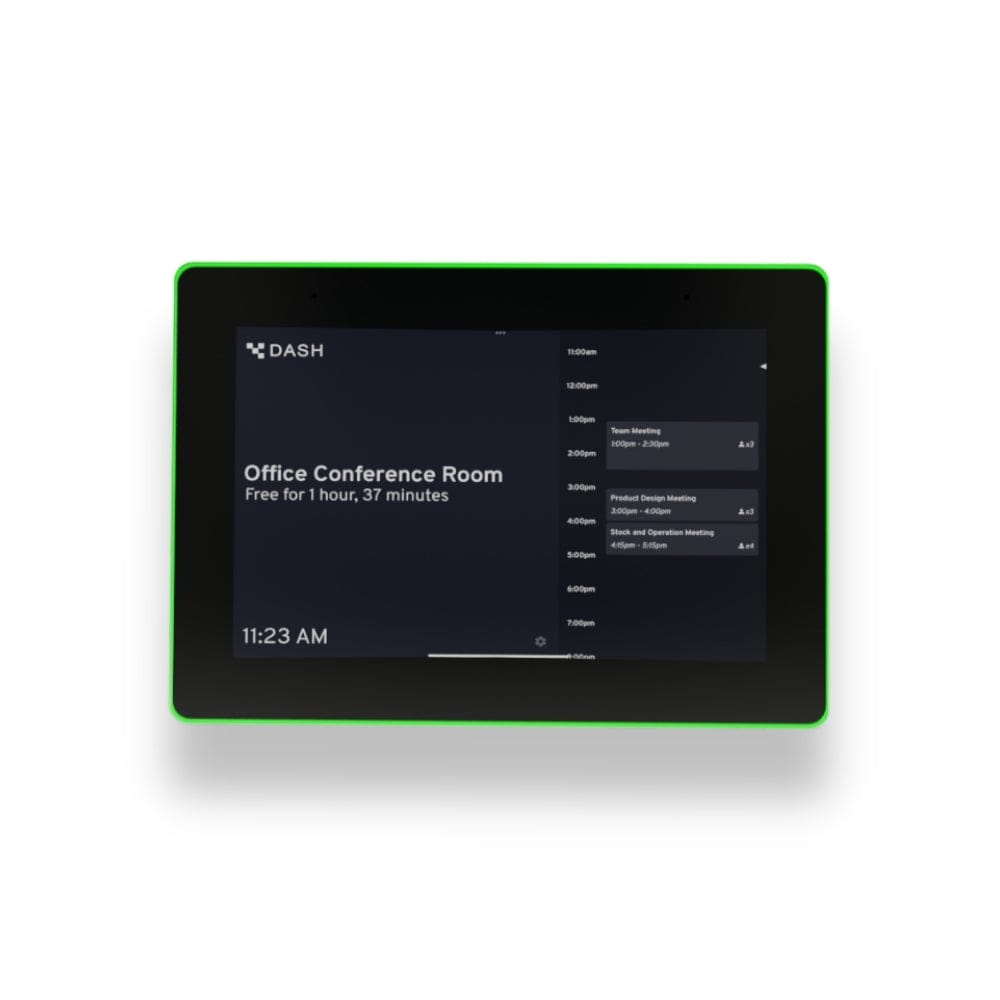

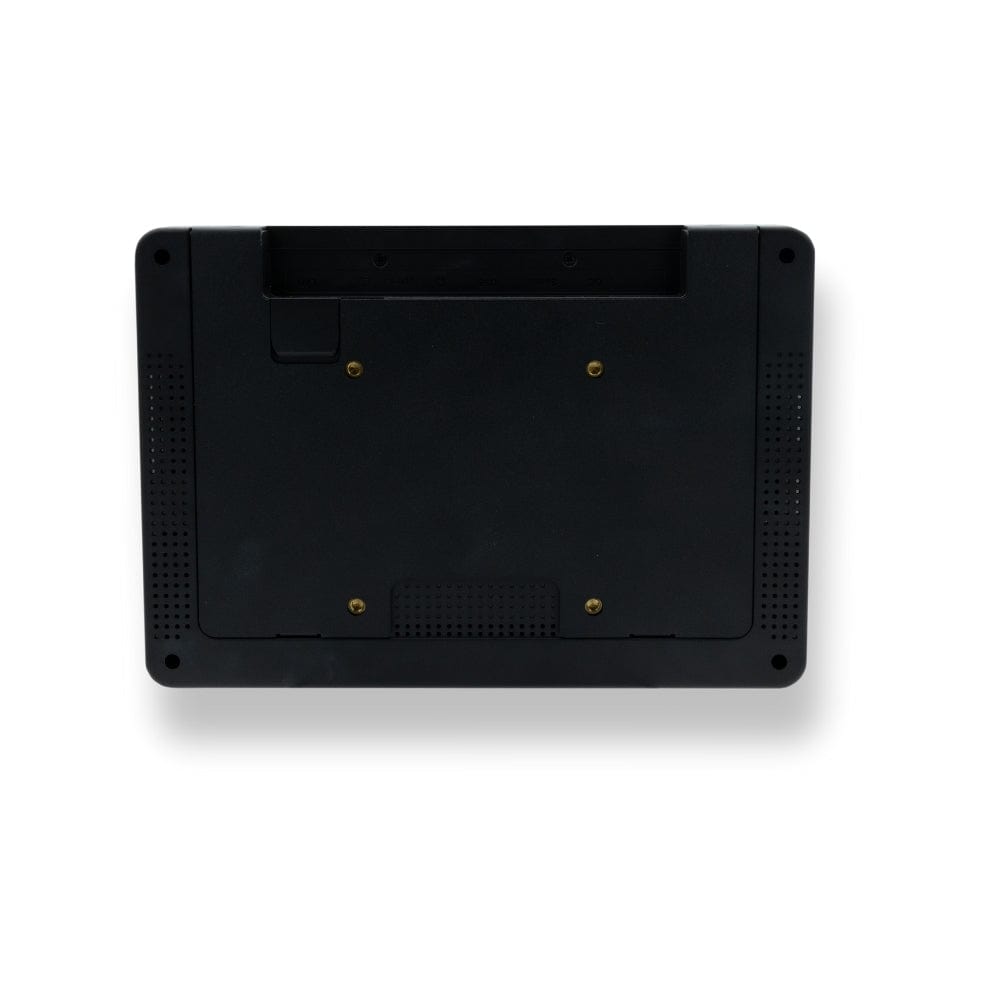

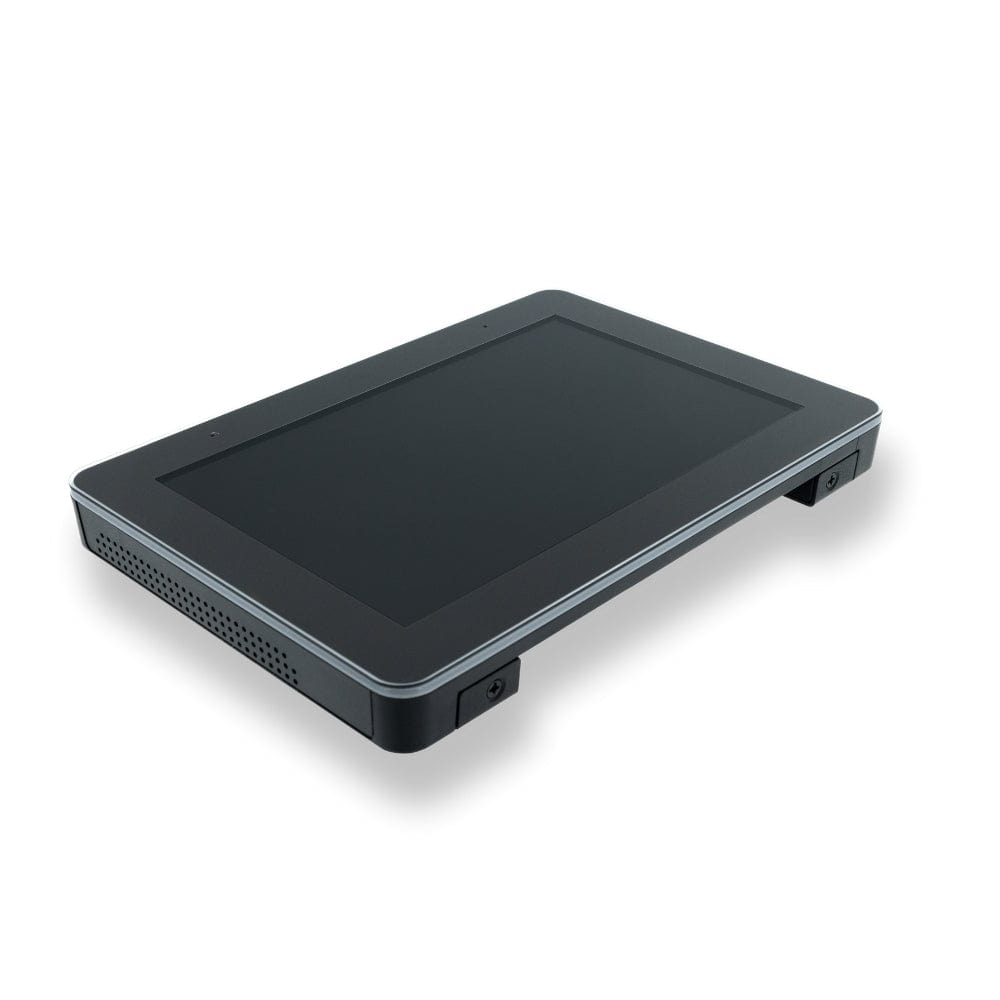

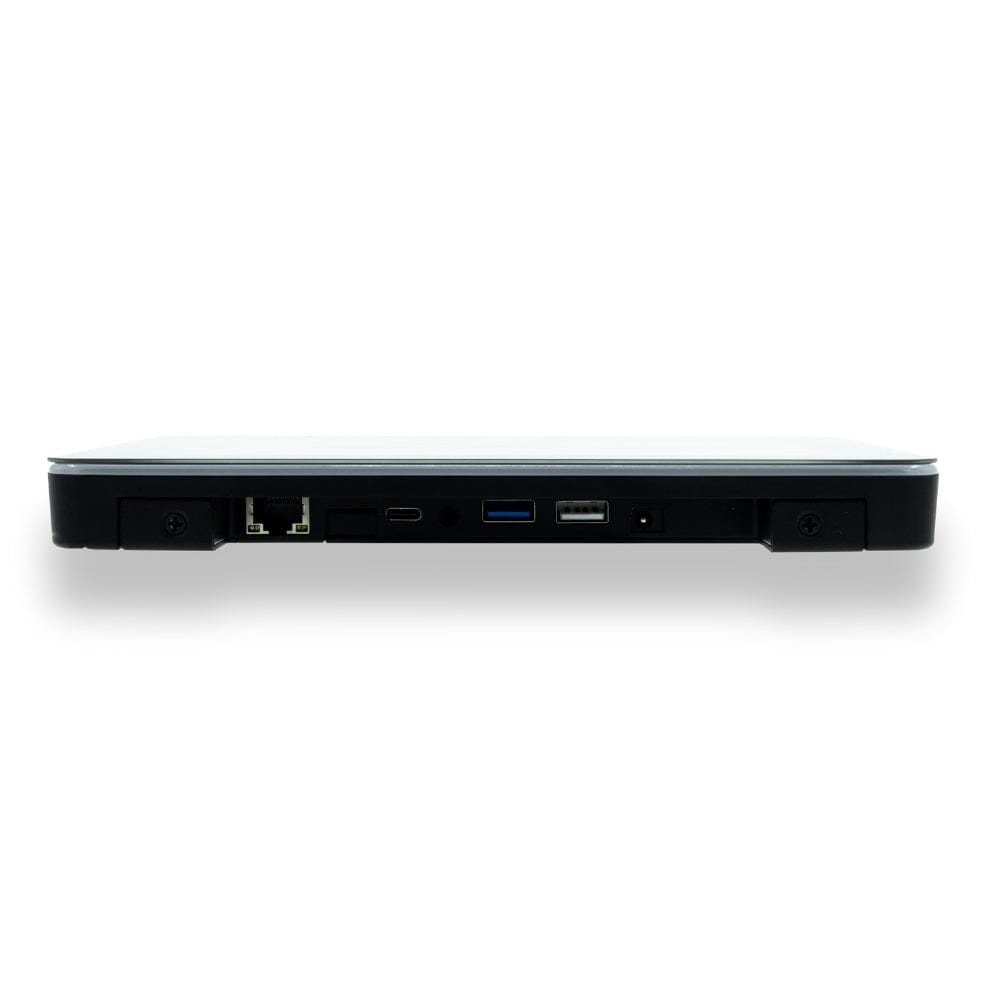

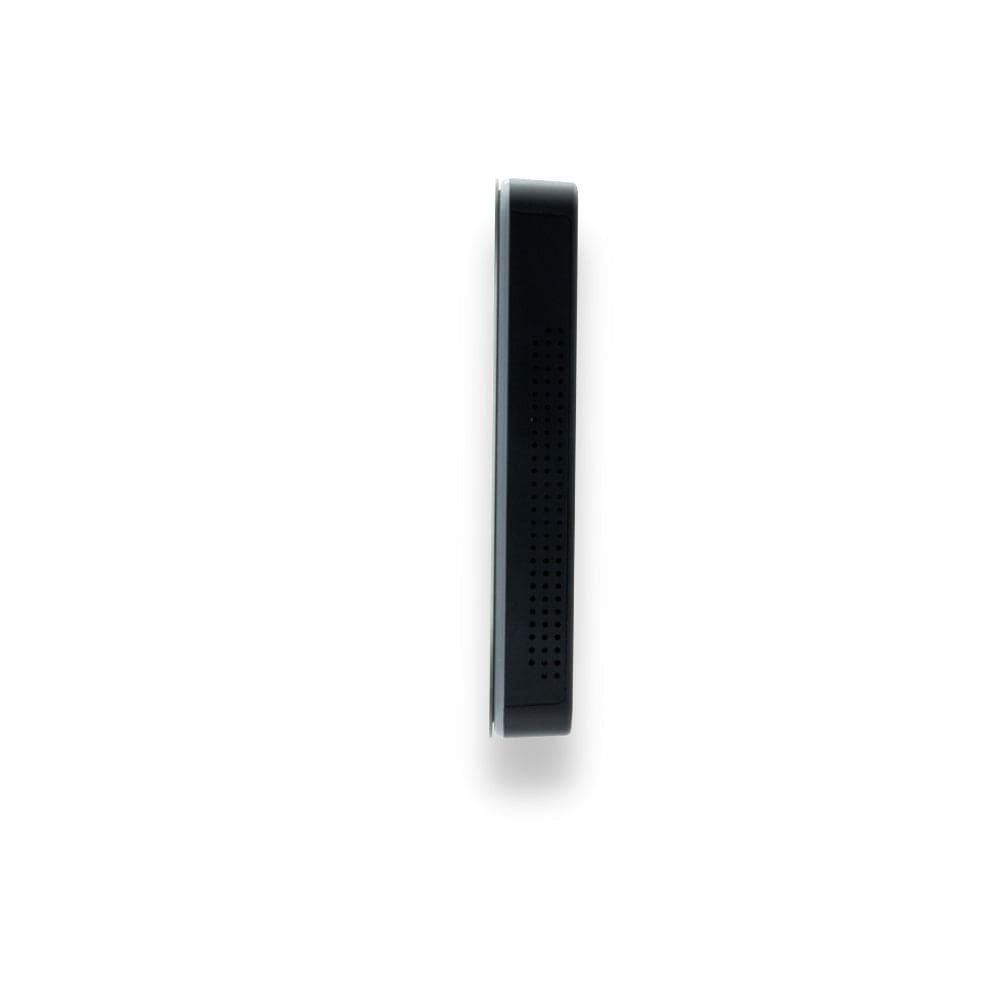

PoE Texas Display 8" Touchscreen Room Scheduler with Highly Visible LED Ring

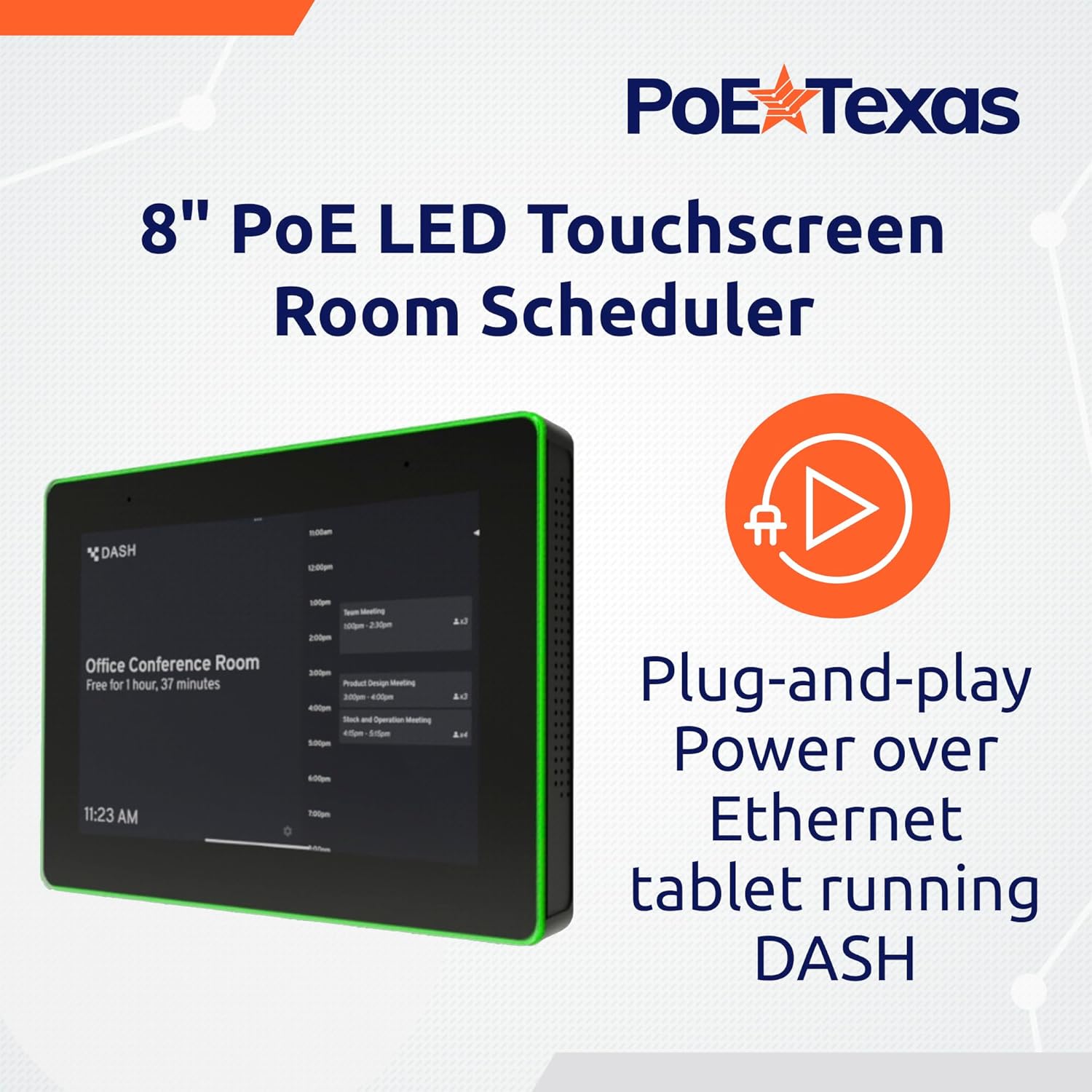

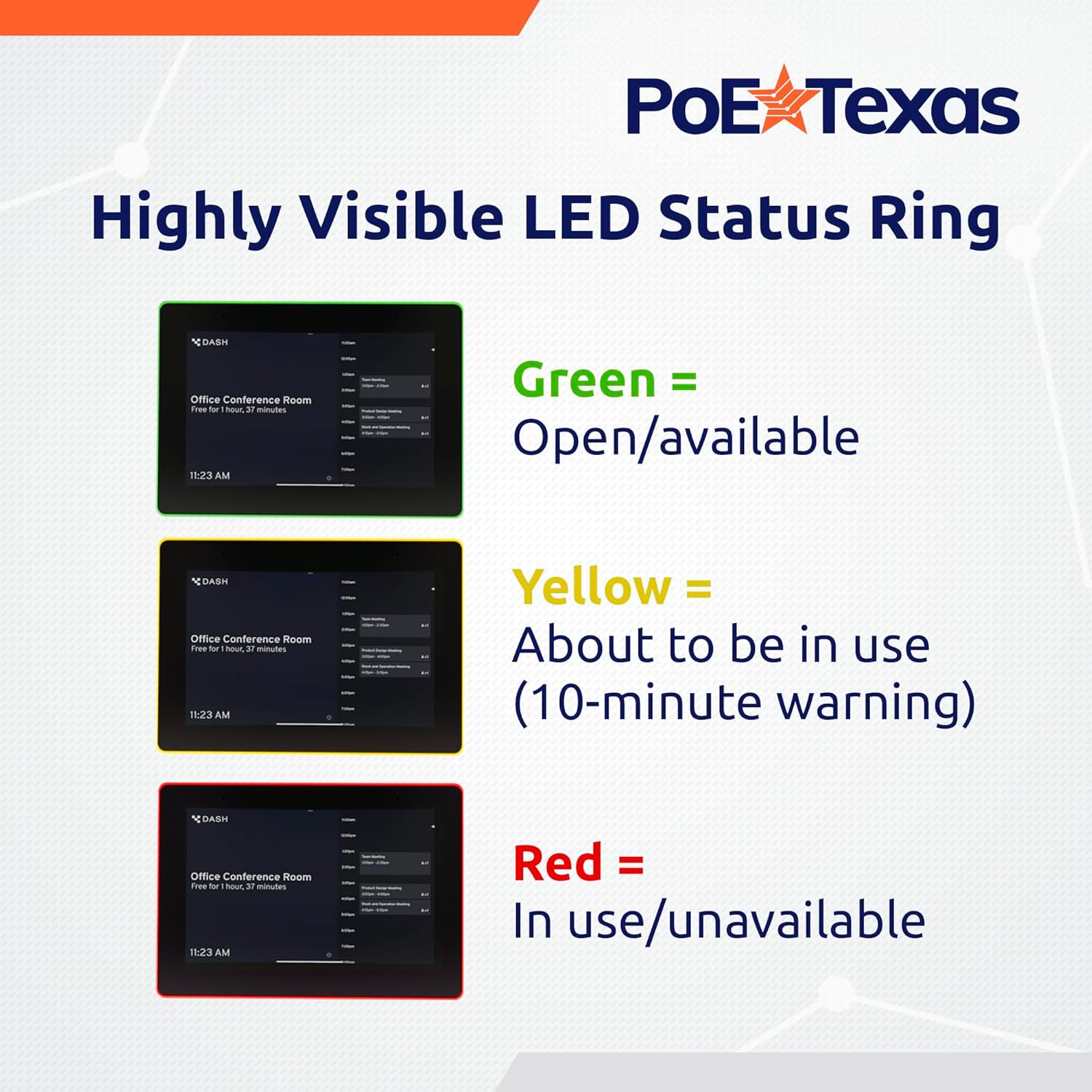

8" Touchscreen Room Scheduler with Highly Visible LED Ring

SKU TAB-8-LED-DASH
$279.99

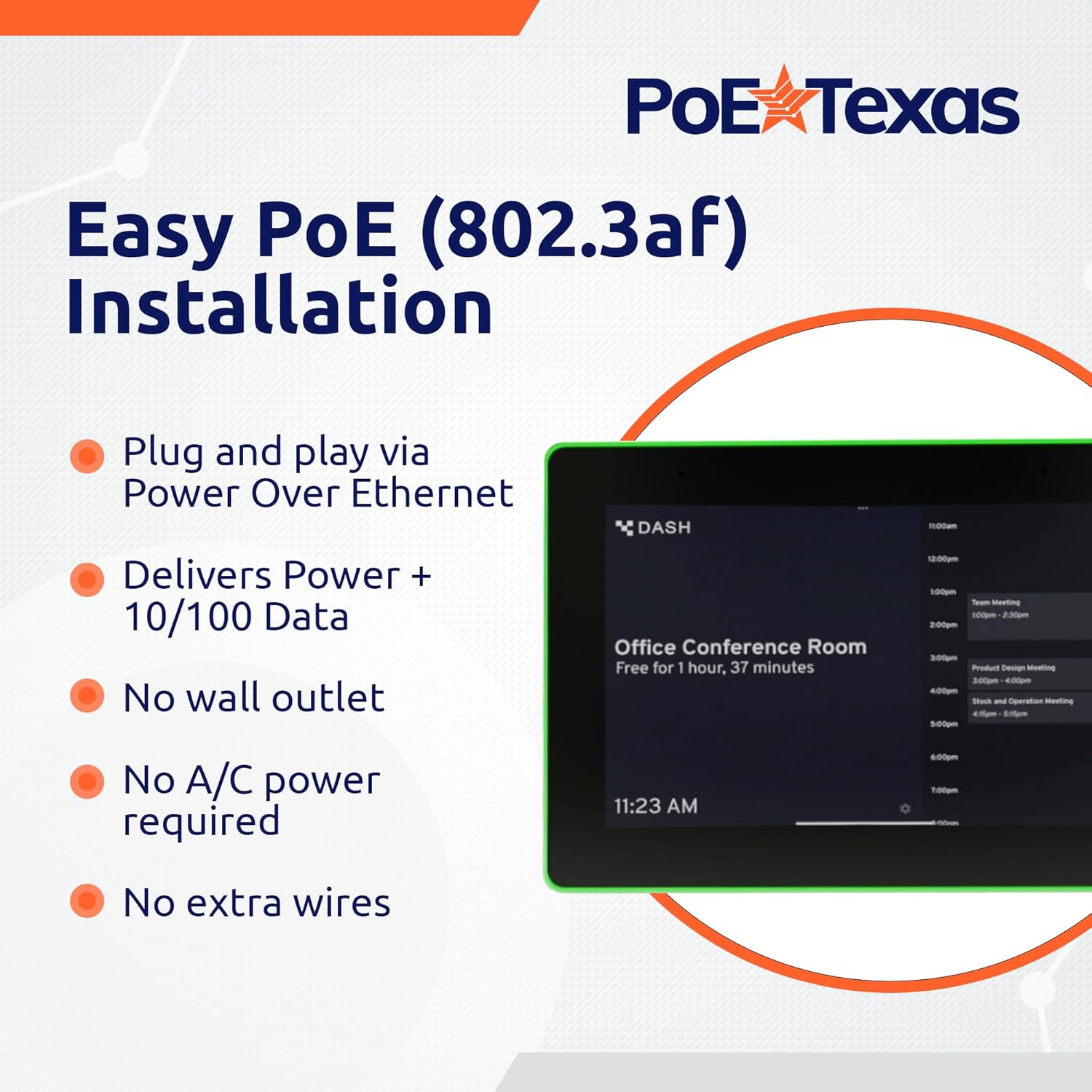

Install this Plug-and-Play Power over Ethernet room scheduler running Dash. Simply connect PoE (IEEE 802.3af), mount the display, and connect a calendar resource. You’ll have a highly visible room schedule display for a fraction of the cost of other solutions.

No costly, hard to reach programmers

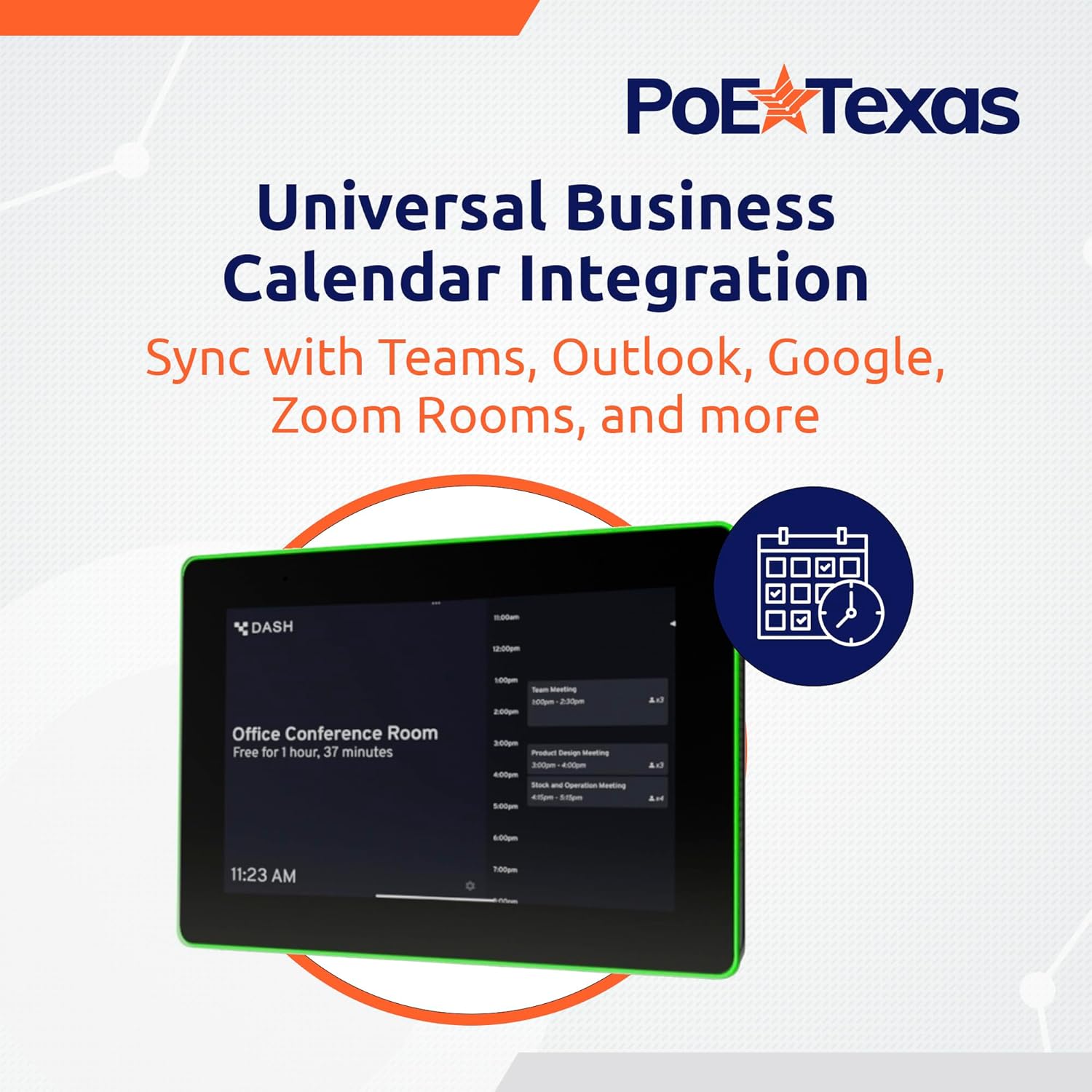

The Denton Tab-8-LED display comes with the Dash app pre-installed and ready to connect to your calendar.

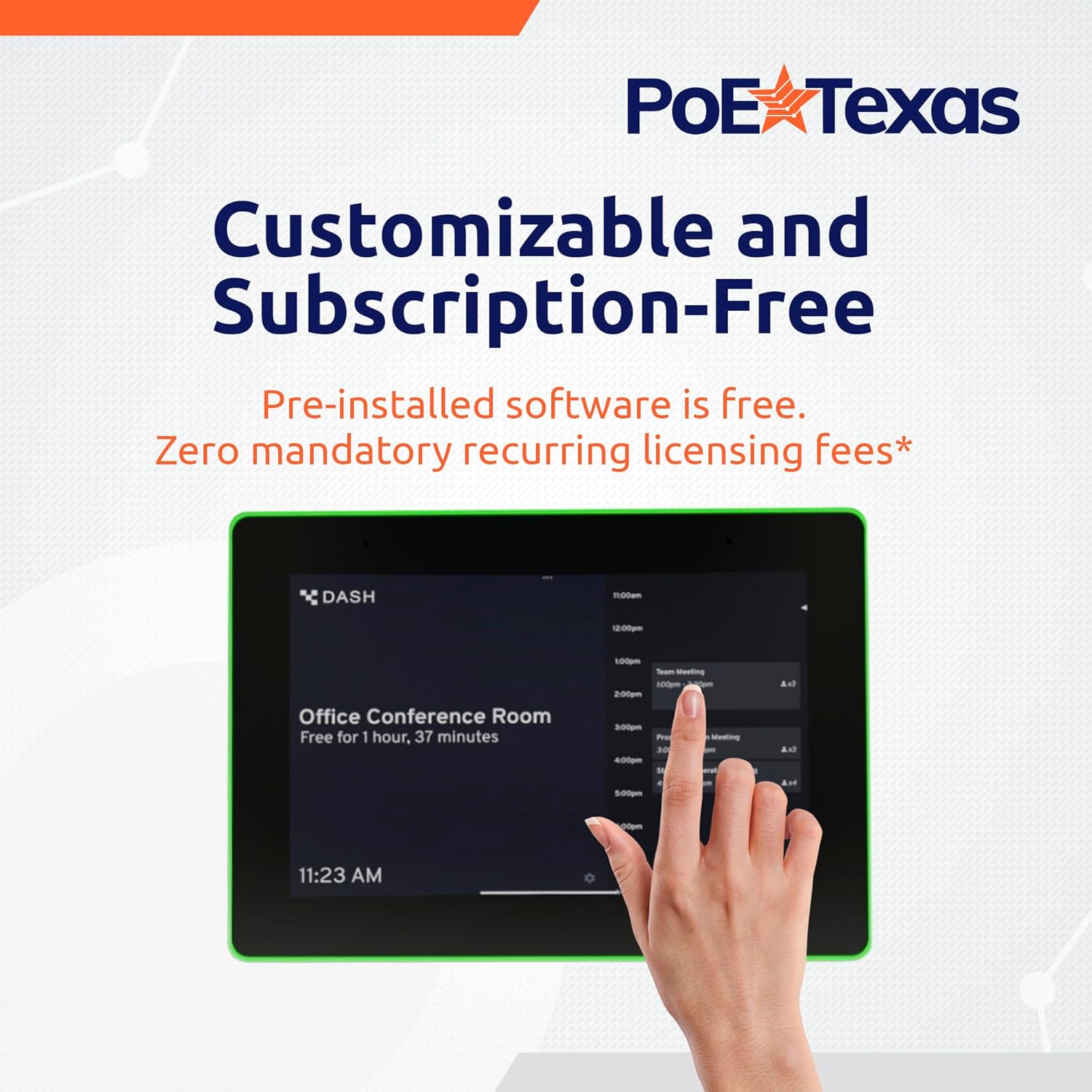

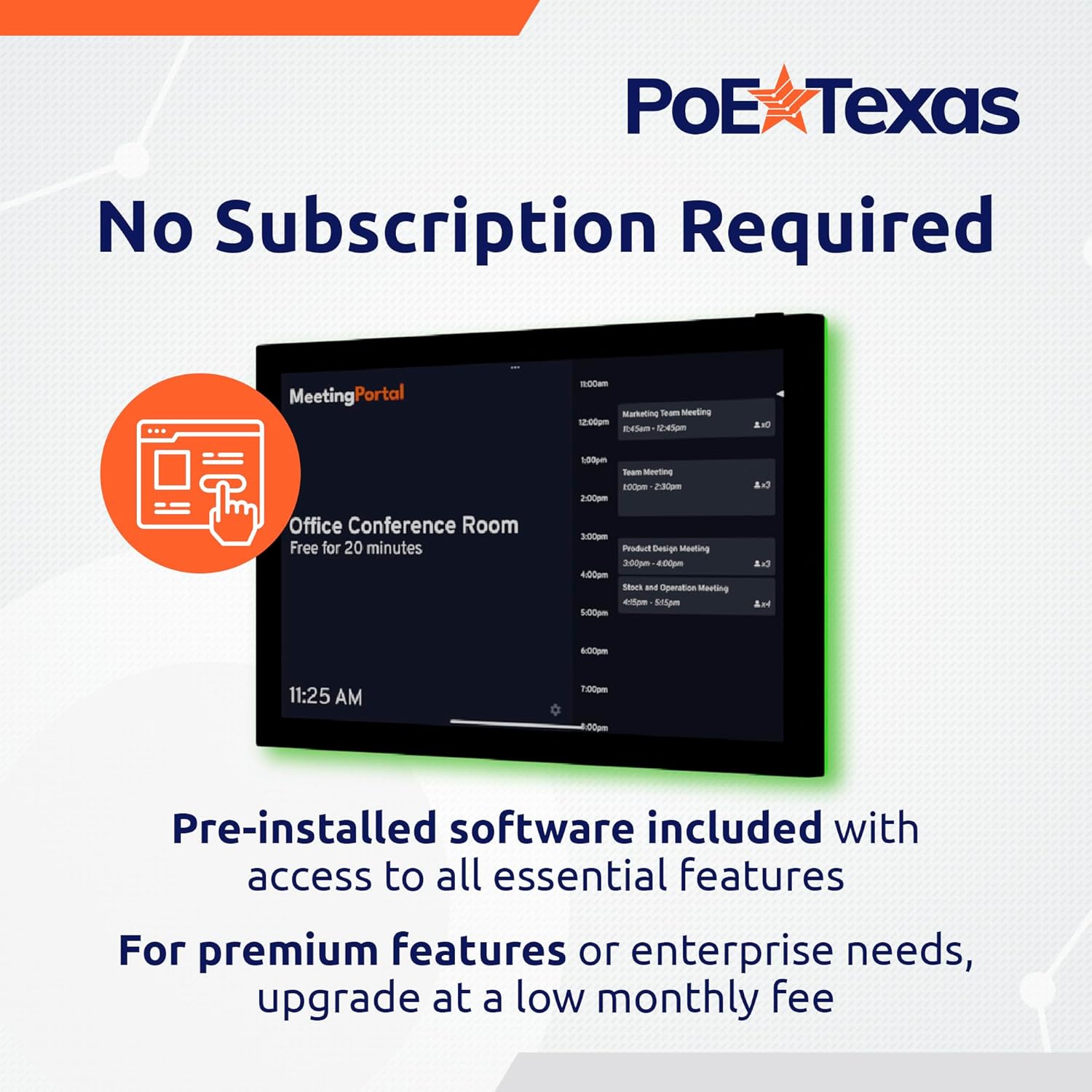

No Subscription Required

The Dash display has a fully functional default branded room display at no additional cost.

Ready to Customize?

For only $3.99 per device per month, you can customize and rebrand the Dash display as well as add booking right on the device.

Ready to Upgrade Now?  Buy Your Business License

Need an Enterprise Solution?

Ready to Upgrade Now?  Buy Your Enterprise License

See Our Online Technical Manual

Product Specifications

CPU 8 Core ARM Cortex A7 CPU, 1.2Ghz
Data Rate 10/100 Mbps
Dimensions 8.5" x 6" x 7/8"
Display Type 8 IPS Display, Resolution 1280x800, Brightness:350 nit, Capacitive Touch (5 point)
Flash 8 Gb
Input voltage 12 Volt/1500mA
Installation Wall-Mount
Max Power for Kit 12 watts
MDM Configurable Yes
Mount Type Wall-Mount
Operating System Android 11
PoE Standard IEEE 802.3af PoE
Standard and Protocols H.264 2160p video decoding, Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc. H.264 High Profile 1080p@30fps or 720@60fps encoding 3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols

QUESTIONS & ANSWERS

Ask a Question

  • Can this be affixed to a glass panel or will we need an additional mount?

    This model is not designed to be mullion mounted. Our 10" version can be, though.

  • Can this run other apps or be used as a browser kiosk? Love the form factor but need a poe touchscreen for something other than a room scheduler?

    This can access a browser and you are able to use some other apps. Please verify app compatibility with our customer success team before ordering.

  • I was looking for instructions on this as to how to connect it to an O365 Exchange environment. I did not see any or no information concerning compatibility. Can you please provide more information as to if this and how it would work with our calendar environment?

    We have a set up guide for Office 365 at the following link https://www.get-dash.com/guide/officeSetup. For further assistance, please reach out to us directly at success@poetexas.com

×





×

×
