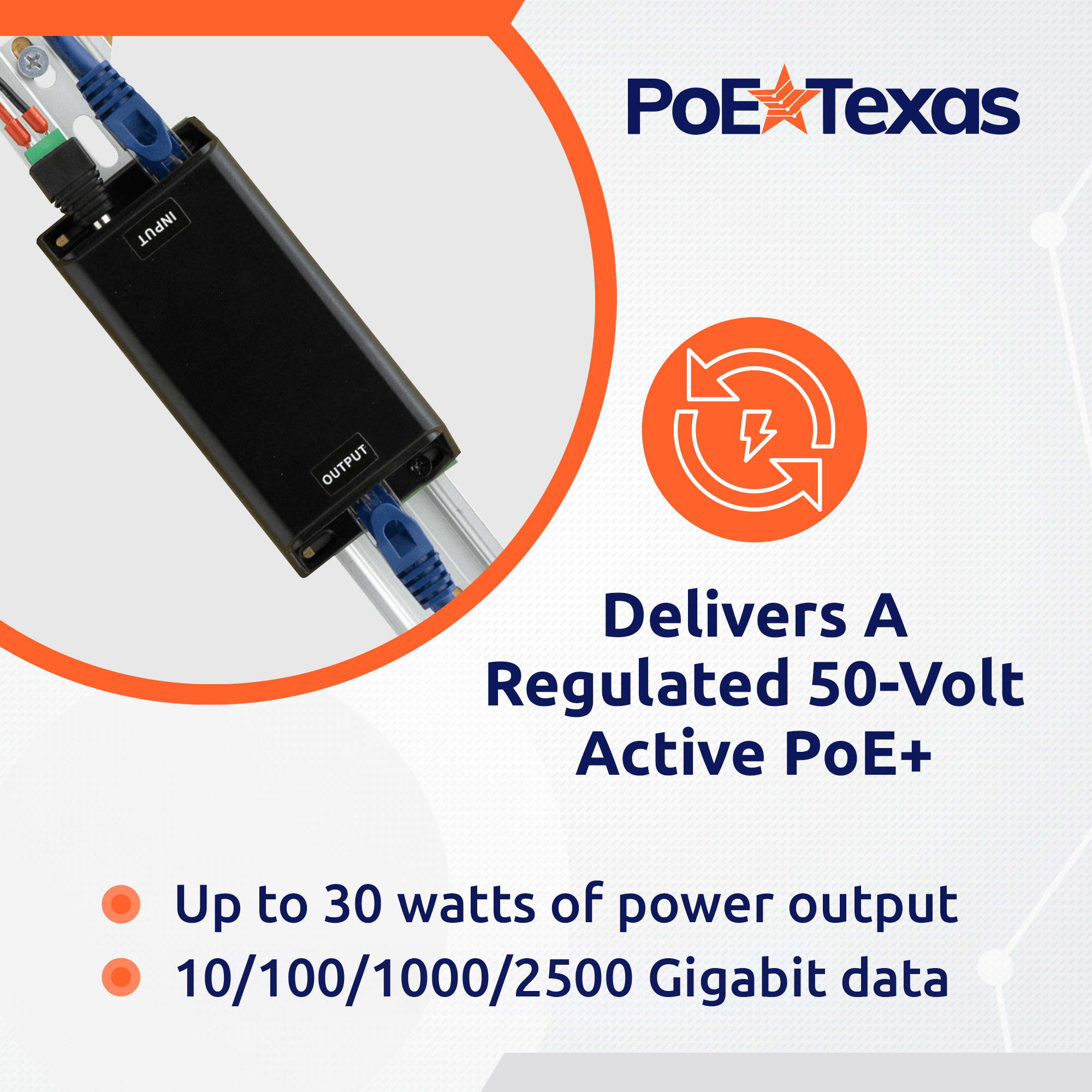

DC Powered PoE+ Gigabit Inline Injector that Converts 12-60V Volts to 50 Volt IEEE 802.3at PoE+

SKU GAT-50v30w
$21.99

Use 12-60 Volt DC Power to Deliver 50 Volt IEEE 802.3at PoE+

Use the GAT-50v30w with any unregulated DC power source from 12 volts up to 60 volts to deliver a regulated 50-volt Active PoE+ up to 30 watts of power for WiFi, Cameras, or PoE Devices.  Perfect for solar and Battery Applications

Product Description:

  • Instantly modify your 12-60 volt DC source to a regulated 50 volts active PoE+
  • Convert existing battery or 12-60 volt power sources to PoE for use with Power over Ethernet Cameras, Phones, and WiFi access points
  • Use scenario:
    • Input 12-60v on the DC barrel
  • Standard 2.1mm x 5.5mm DC female power input
  • 30 watts output – plenty for all IP Phones and most Cameras
  • Diodes isolate the RJ45 power input from the DC power input
  • Works with your existing power source - Solar, or DC

Product Use Scenarios:

  1. Convert 12-60v DC Power source to 50 volt Power over Ethernet. Male RJ45 for 10/100/1000 gigabit data is optional for direct data

    See the Online Technical Manual

    Product Specifications

    Certifications RoHS, CE
    Data + PoE Ports 2 - Input & Output (When used for IEEE 802.3at PoE+)
    Data Ports 1 - Ouput (When using the DC output)
    Data Rate 10/100/1000
    DC connector 5.5 x 2.1 mm DC Female
    Dimensions 4.5 x 2 x 1 in
    Efficiency 90%
    Input voltage 12 to 60 volts
    Max Current 0.65 mA
    Operating Humidity 10 - 90% non condensing
    Operating Temperature Range 0 - 40C
    Output Voltage 50 volts
    PoE Mode/Pinout Mode A/B
    PoE Standard IEEE 802.3at
    Weight 3.0 oz
