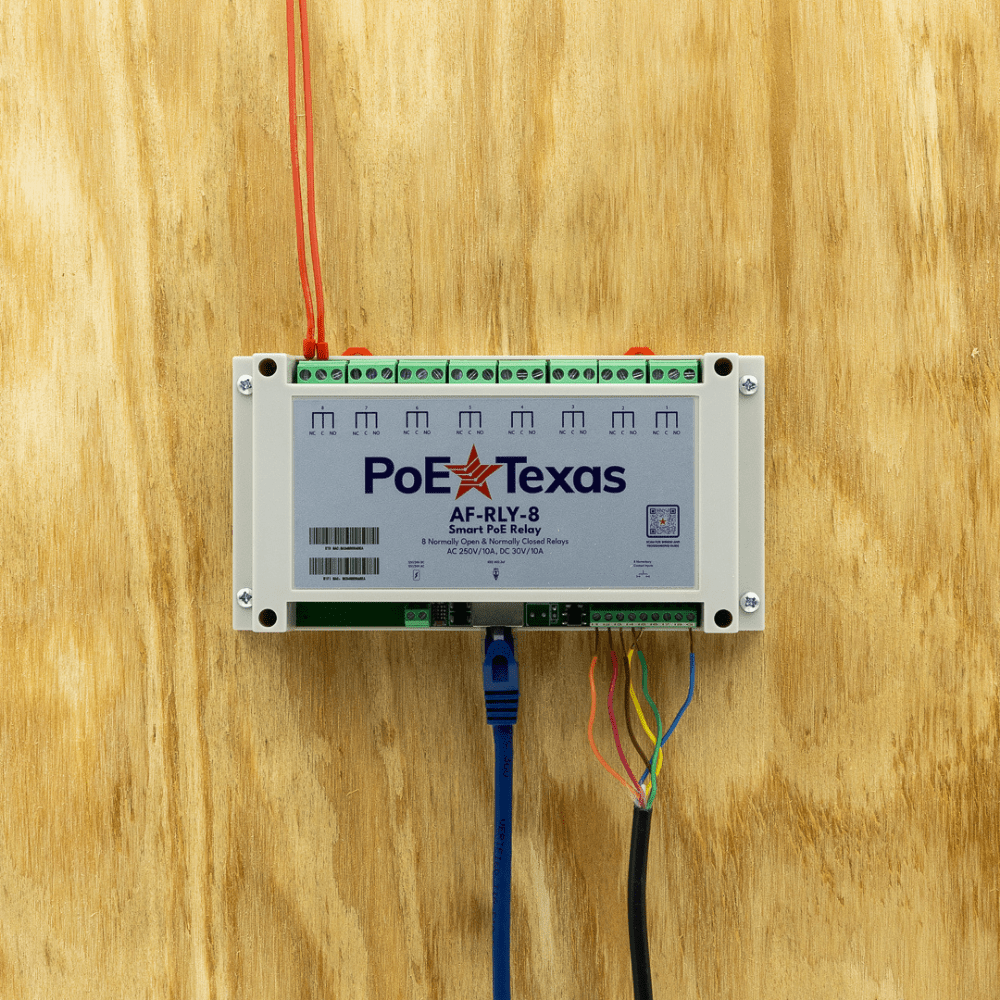

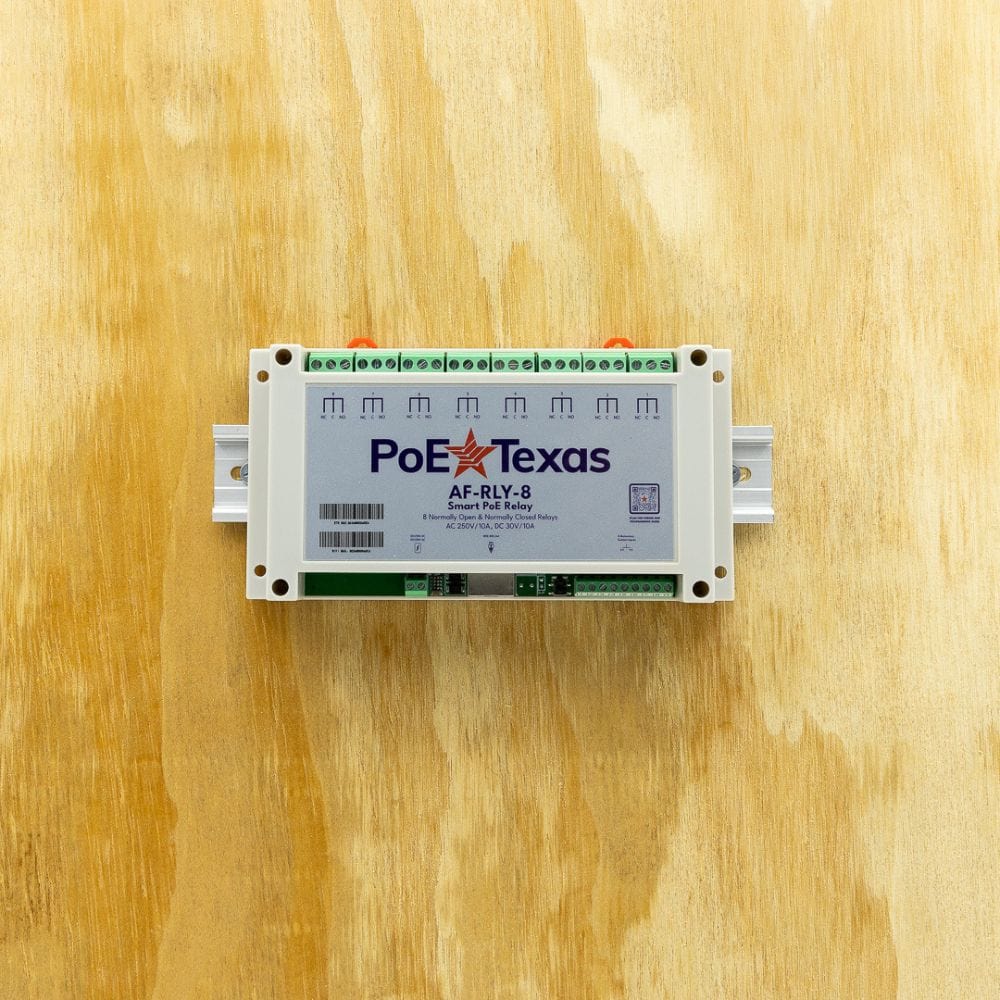

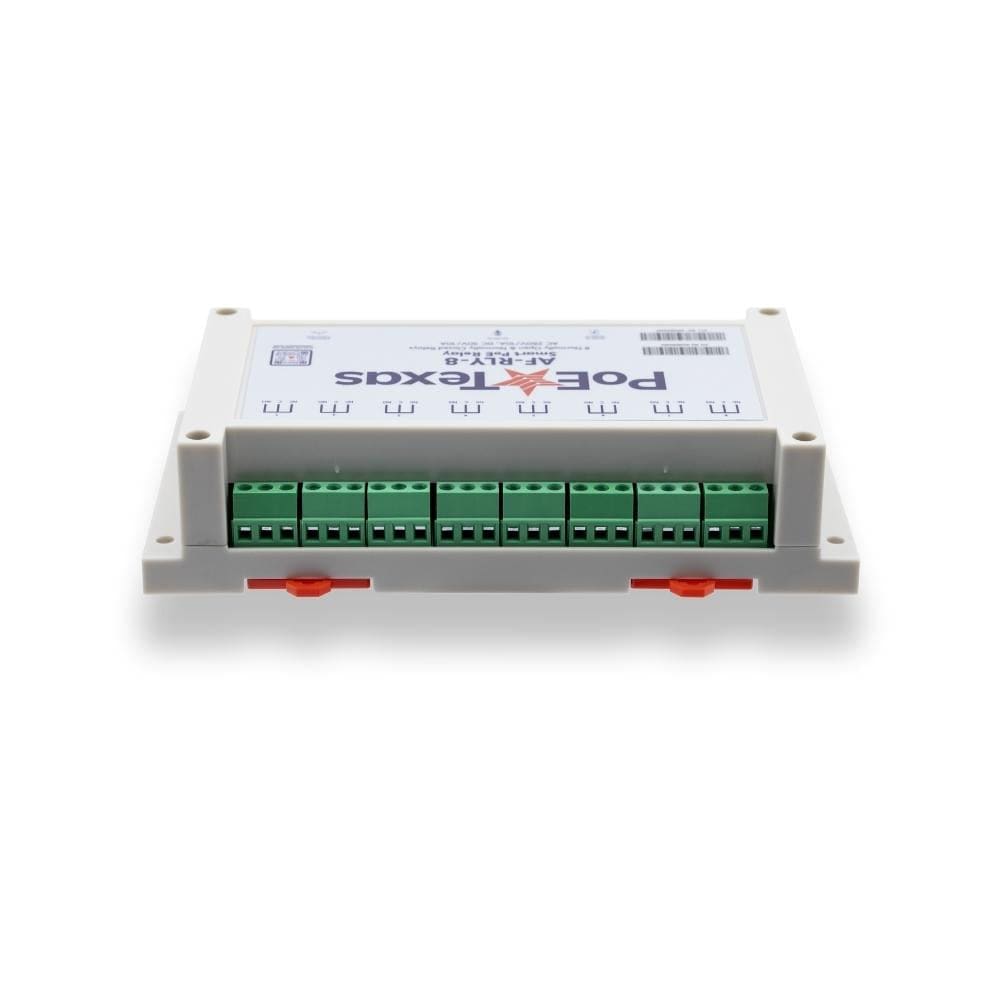

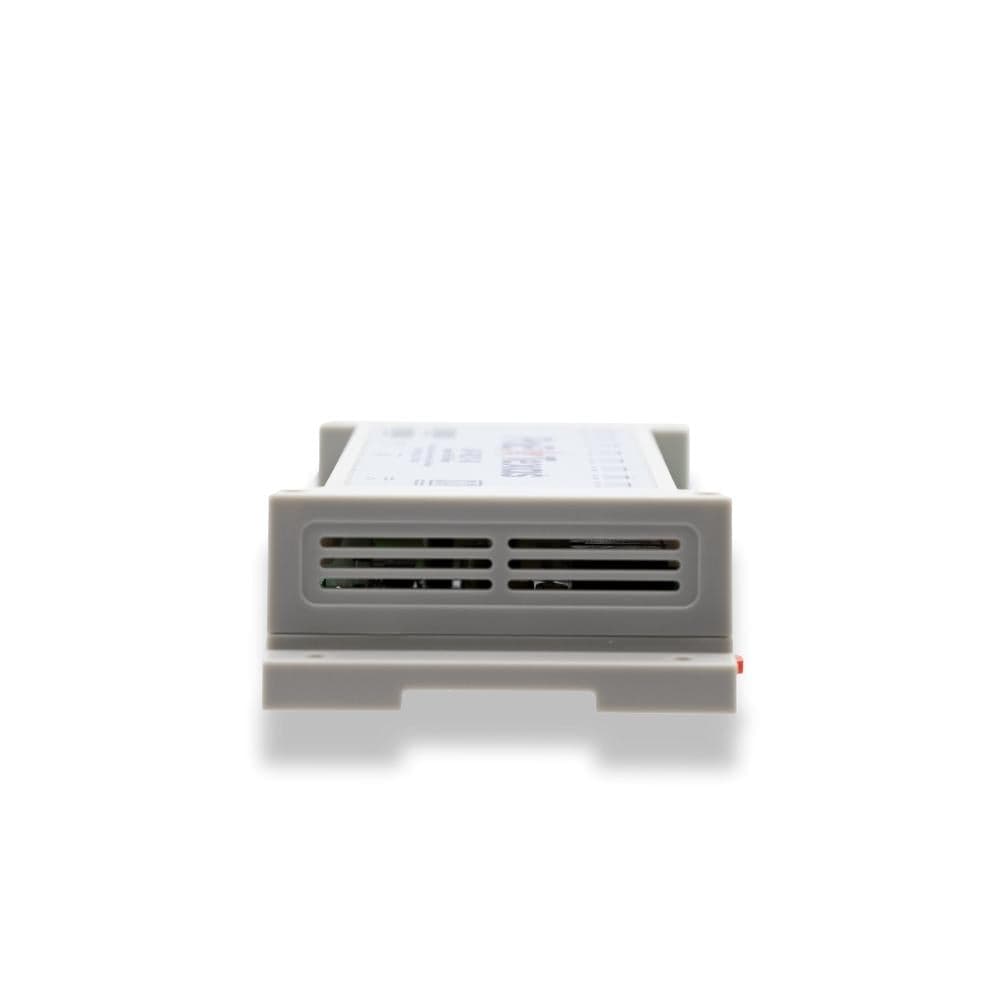

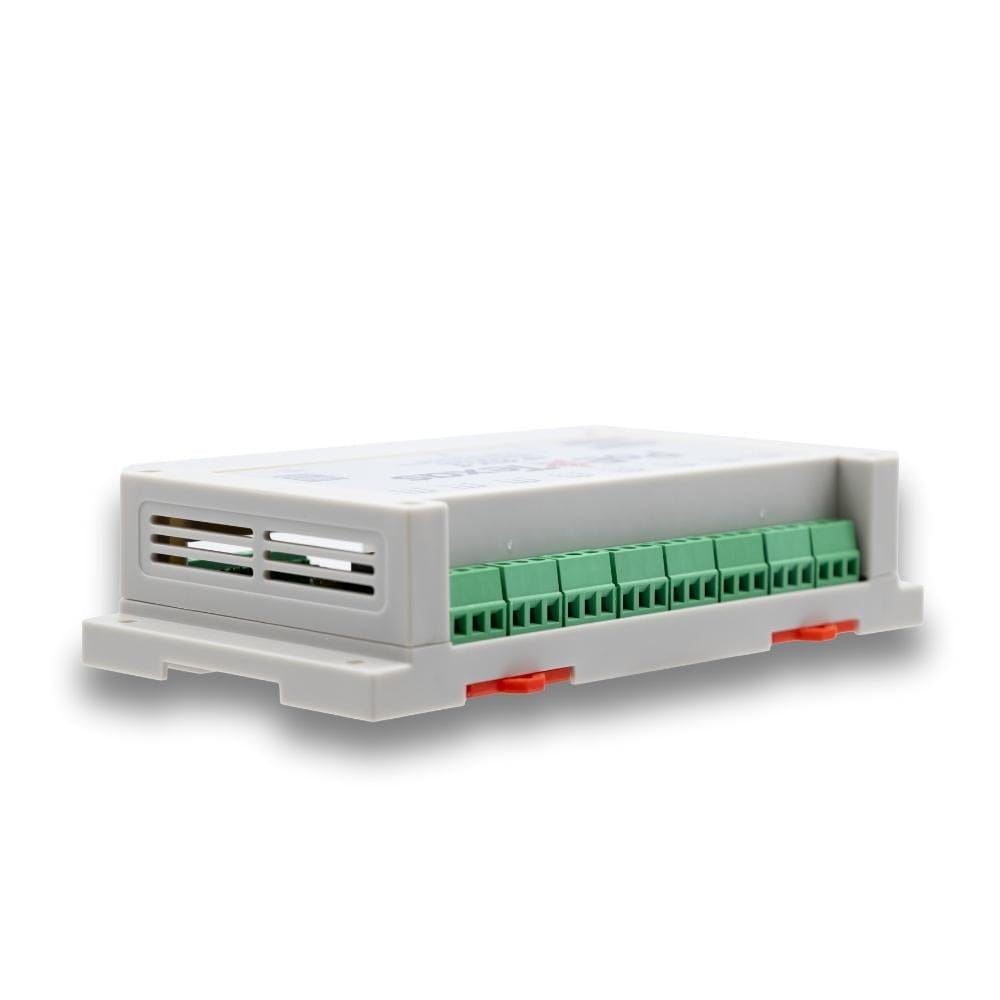

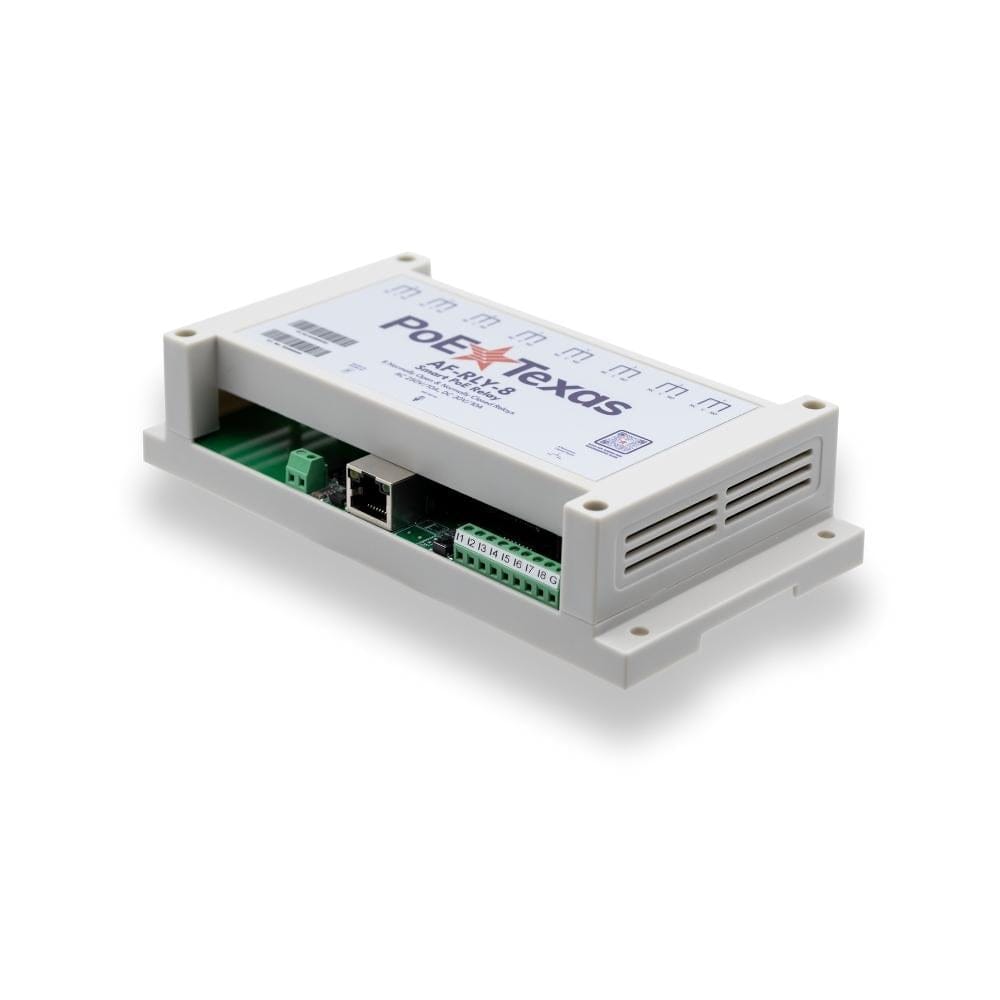

AF-RLY-8 - 8 Channel Output + 8 Channel Input Network PoE Powered Relay Module

SKU AF-RLY-8
$199.99

Use this powerful, easy-to-program relay controller for Home or Office Automation for both AC and DC circuits.

Product Features:

  • Six WORKING MODES:  Connecting through Local wifi and ethernet communication. Through the provided configuration software, you can configure five working modes: TCP server, TCP client, UDP server, UDP client, and DNS domain name.
  • STRONG ANTI-INTERFERENCE ABILITY: The 8-channel relay module can be connected to an external high-current AC contactor and relay, will not crash under strong electromagnetic interference. The product is resistant to high temperatures and can work in an environment of -40 to 85 ° C.
  • EASY TO USE: The true 100M speed enables reliable communication with 0 delay commands. Support 10 TCP client connections under the TCP server. Industrial grade products. Support automatic acquisition of IP.

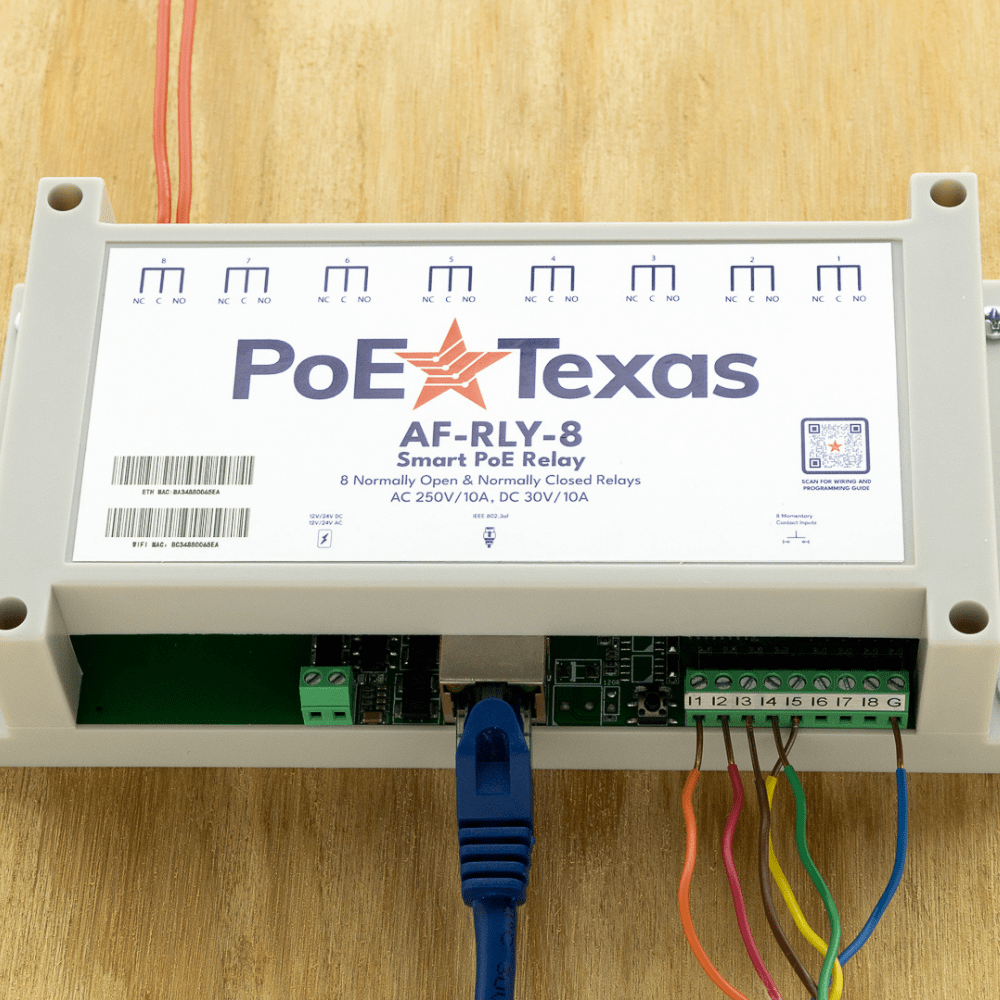

  • POWER-DOWN SAVE FUNCTION: 8-way relay, 8-channel digital input with full-open and full-off input. With power-down save function (save relay status).
  • PRODUCT PARAMETERS: IEEE 802.3af PoE or Power Supply: DC7~24V(DC socket or wiring terminal can be selected to input power.); DC Connector Size:5.5 x 2.1mm / 0.22 x 0.08in (Outer Diameter - Inner Diameter)

See Our Online Technical Manual


Need more control?

See our DENT-COR-TAP-Lite for an onsite control server

Product Specifications

Adapter length 6.5 inches
Cable connectors RJ45 Female
Certifications CE, RoHS
Data Rate 10/100 Mbps
Dimensions 7x3.625x1.625 in.
Input voltage 44 to 56 volts, 24 VDC, 120 VAC, or 240 VAC
LED Indicator Red - Power On, Green - Connection, Amber - Activity
LEDs Per Port 2
Load Regulation 10 amp Relay
Max Current 10 amp
Operating Humidity 5% to 90%
Operating Temperature Range -10 - 60C
PoE Mode/Pinout Mode A (-1,2 +3,6)
PoE Standard IEEE 802.3af
Standard and Protocols MQTT, SSH
Weight 1 lb
