POE to USB-C Power and Data Delivery with 15 Watt Output for iPad Air, Surface Go, Galaxy Tab and More - 10/100 Mbps

SKU AF-USBC-JB
Save 13%
Original Price $78.99
Current Price $68.99

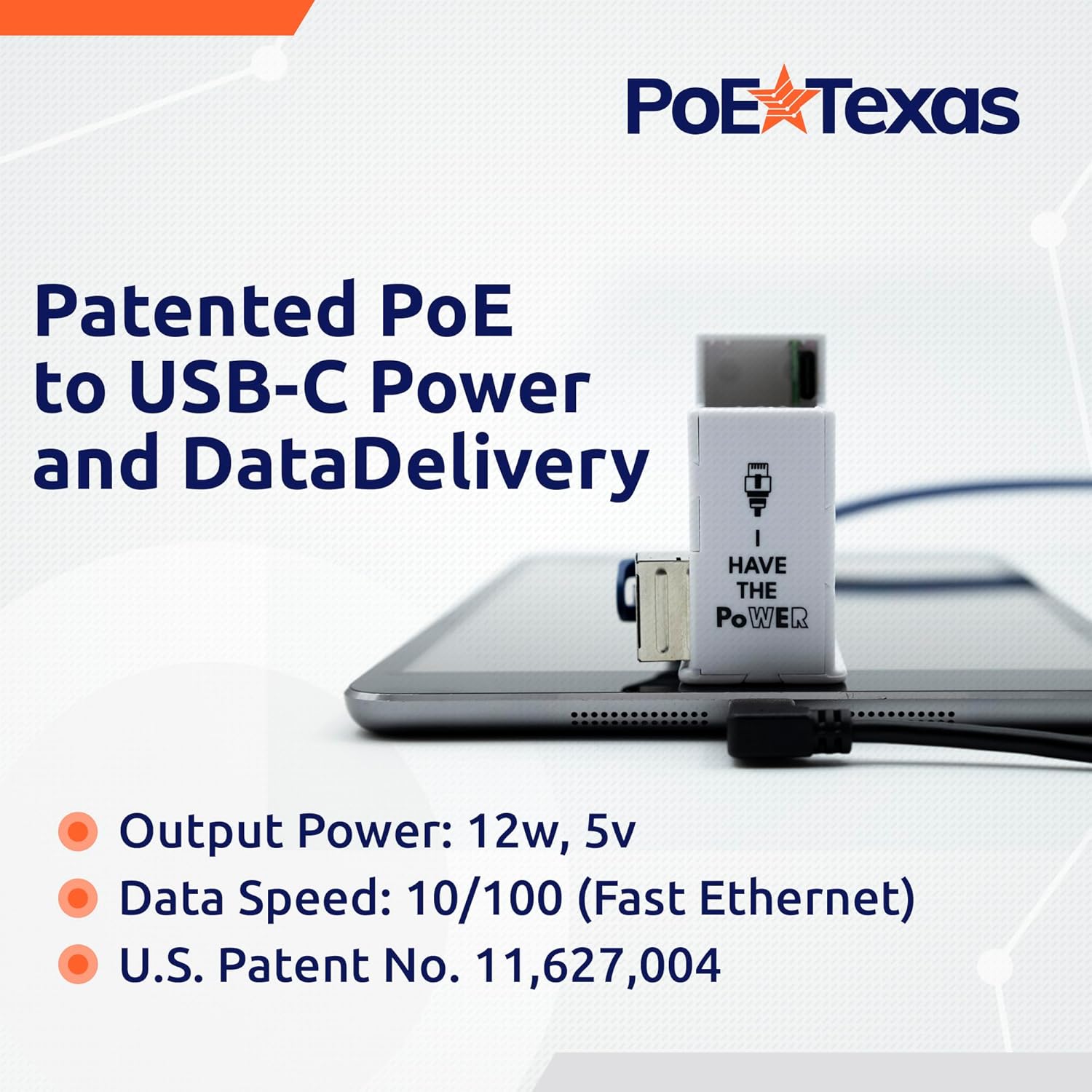

Our Patented PoE to USB-C Power Delivery and 10/100 Data Combined

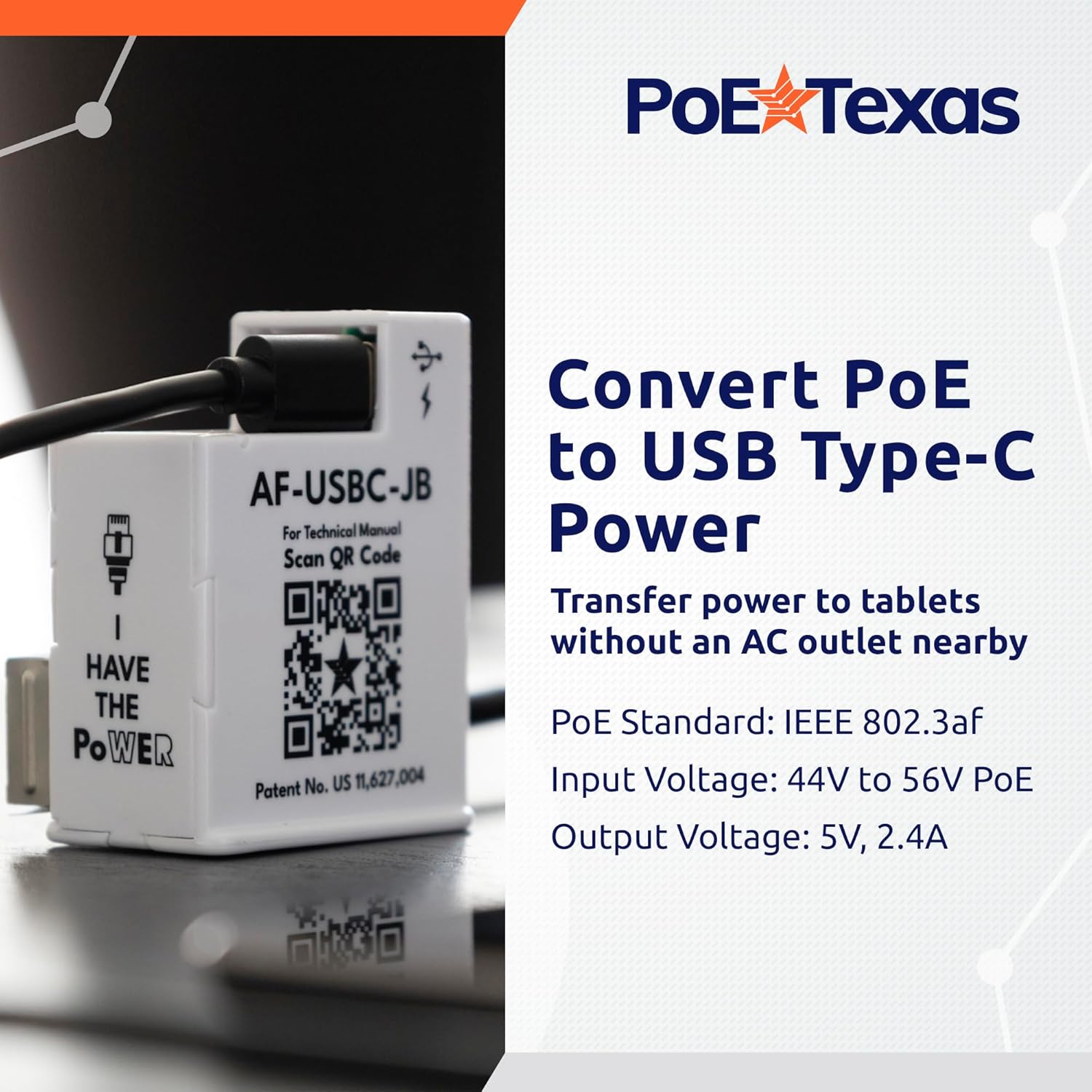

Connect to USB-C PD Enabled Devices like iPad Mini 6, iPad Air, Samsung Tab S7 Lite, and more with both power and data.  This rugged, affordable device converts normal, IEEE 802.3af PoE into USB-C power delivery (PD) and data.

*No accessories to buy, this device fits into almost any junction box and works with any PoE switch.

U.S Patent No. 11,627,004

Product Features:

  • Designed to fit in junction boxes and designer tablet enclosures including Heckler, Viveroo, ArmurActive, and More
  • Place your iPad or Samsung Tab where you want even without an AC outlet nearby
  • Works with USB-C Power Delivery (not just legacy 5-volt USB-C devices)
  • Delivers up to 95 Mbps (Fast Ethernet) wired data to your device
  • Input voltage range 44v to 56v POE
  • Output voltage 5 volts 2 amp - Tested with iPad Air, iPad Mini 6, Samsung Tab A 8, and more
  • Standard USB-C plug fits any USB-C device
  • Compatible with your existing IEEE 802.3af PoE switch or injector (sold separately)

See Our Online Technical Manual

For consistent performance, be sure to have a high-quality USB cable. Low-quality USB cables (including some Apple cables) are inconsistent.



Product Specifications

Adapters included See Dropdown Options for USB-C Options
Cable connector length Various
Connector Types USB-C Power + Data (Power Delivery)
Data + PoE Ports 1 (Input) / 1 (Output)
Data Rate 10/100 Mbps
Data Standard USB 2.0 (Output)

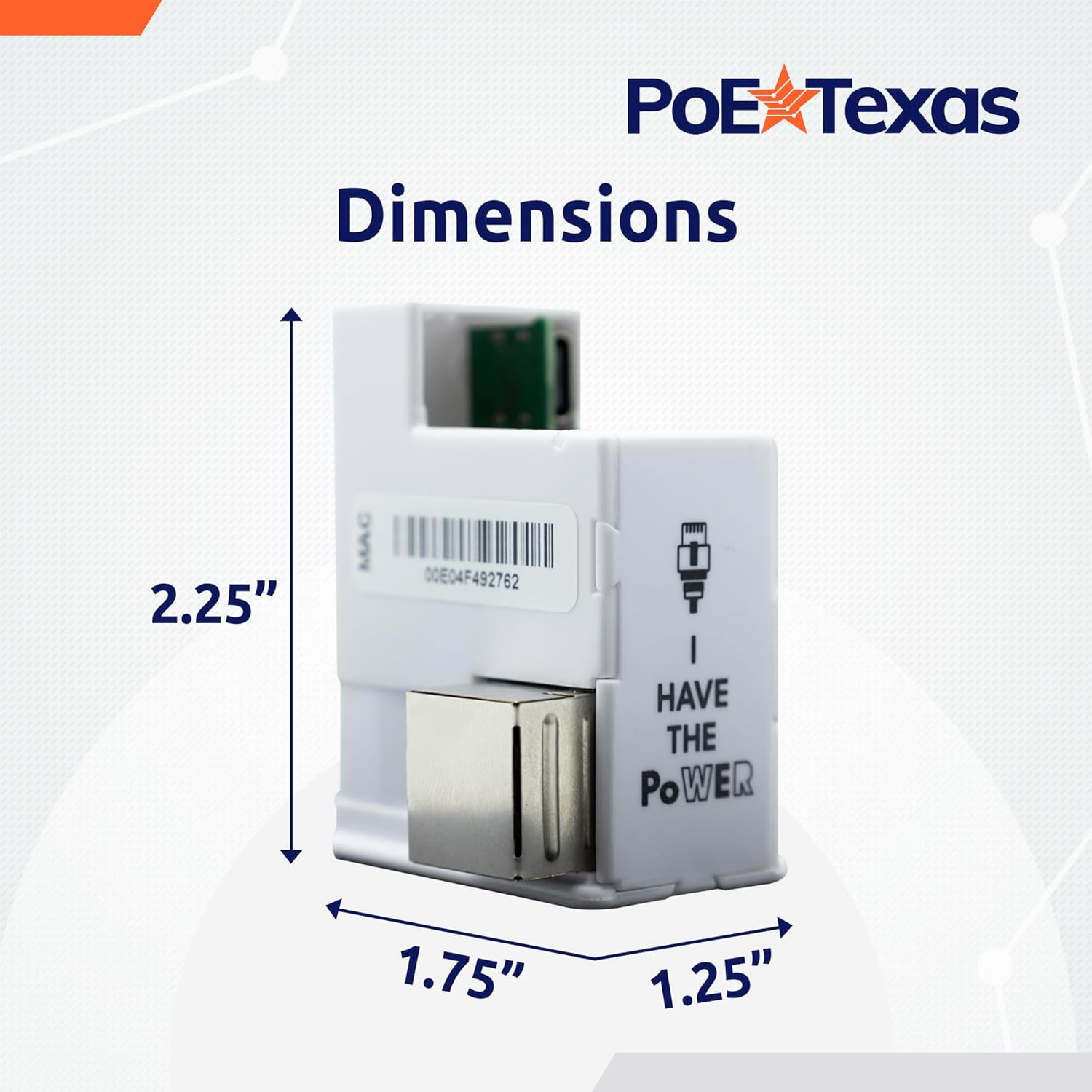

Dimensions 2.25x1.75x1.25 in
Input Voltage Range 44-57v PoE
Max Power for Kit 12 Watts / USBC negotiations (5V2A)
Mount Type Junction Box Receptacle
Operating Humidity 10 - 90%
Operating Temperature Range -10 to 40℃
Output Voltage USB-C (5V2A)
PoE Method IEEE 802.3af; PoE
PoE Mode/Pinout Mode A/B
PoE Standard IEEE 802.3af
Storage Temperature -30 to 70℃
Weight 1.75 oz.

QUESTIONS & ANSWERS

Ask a Question
  • Do you sell a compatible cable to use this with older iPad Air with lightning connector that would pass network data and power? I'm aware that you have a PoE device GAF-LIGHTNING-PD that is specifically intended for this, but my use case requires a longer 6ft removable cable and I also wanted to have the option to swap in a USB-C tablet later on.

    Yes, our USB-C to lightning cables can be found here. We have 30cm and 250cm available. Both are designed to pass through power + data.
