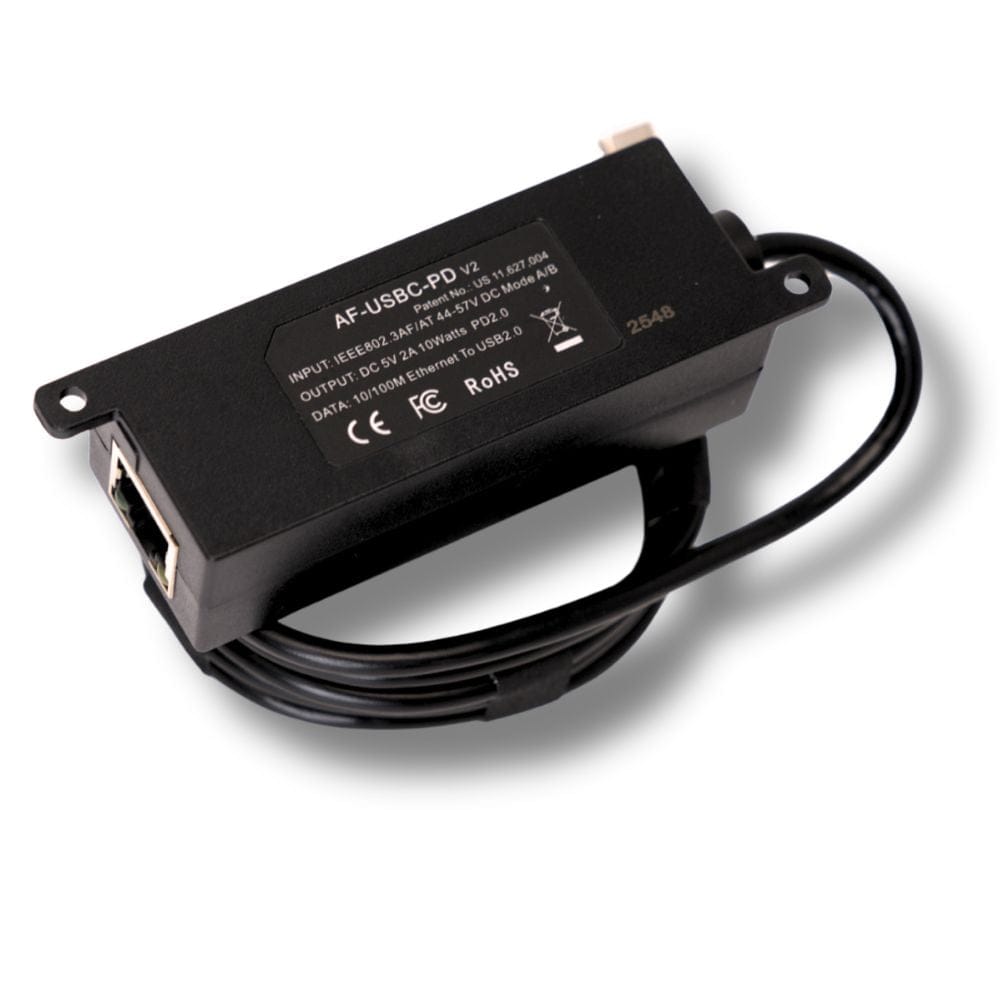

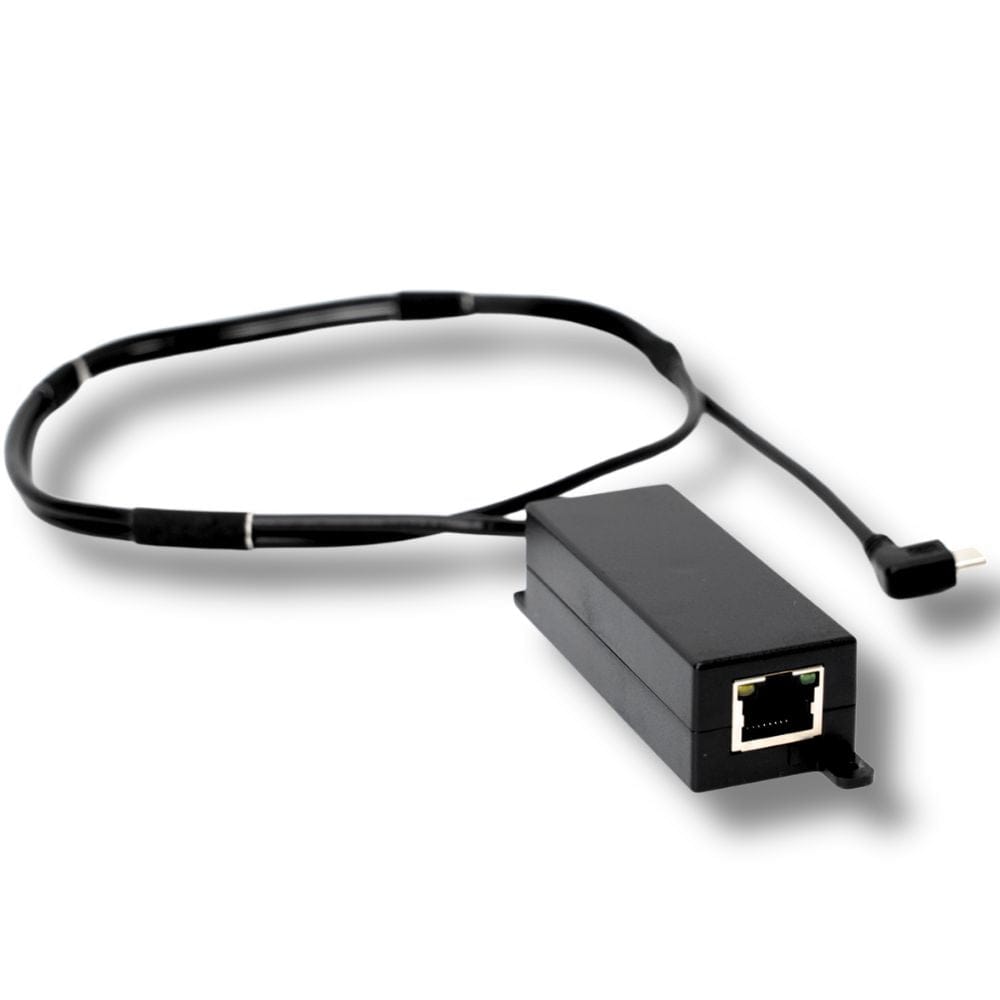

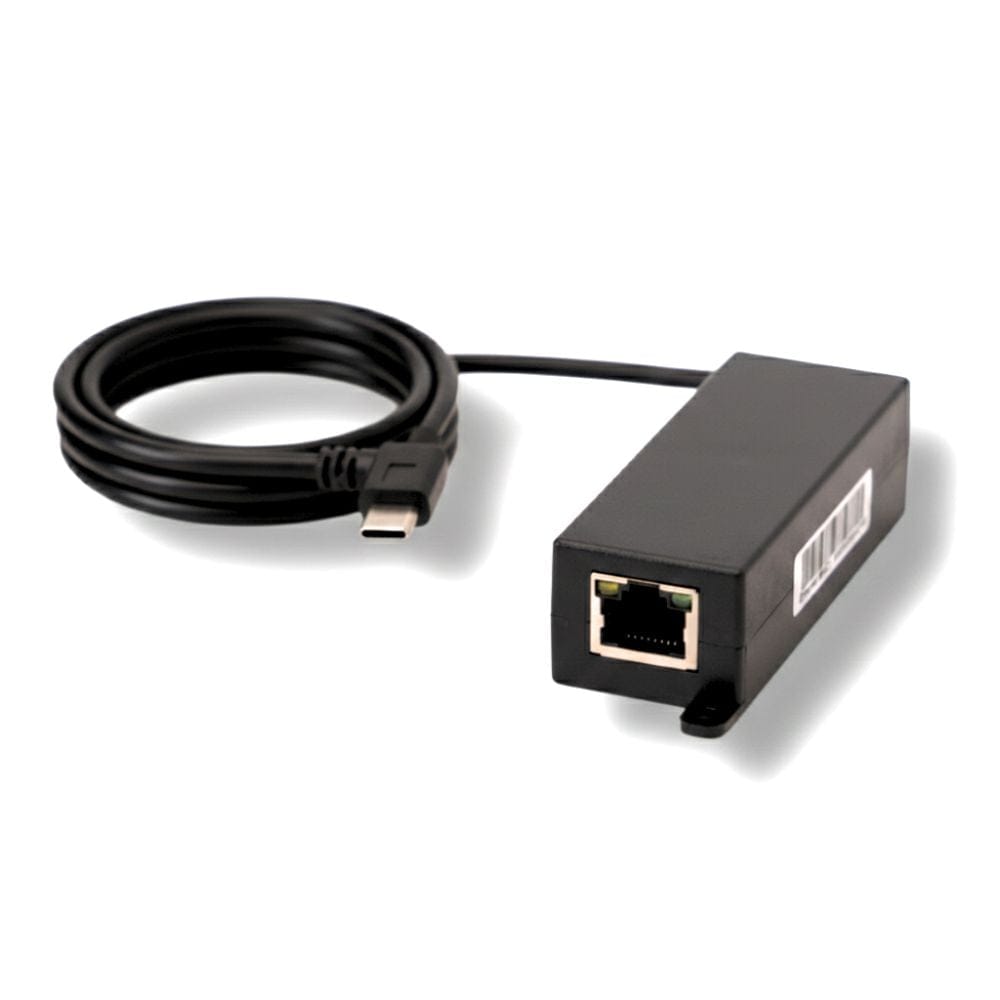

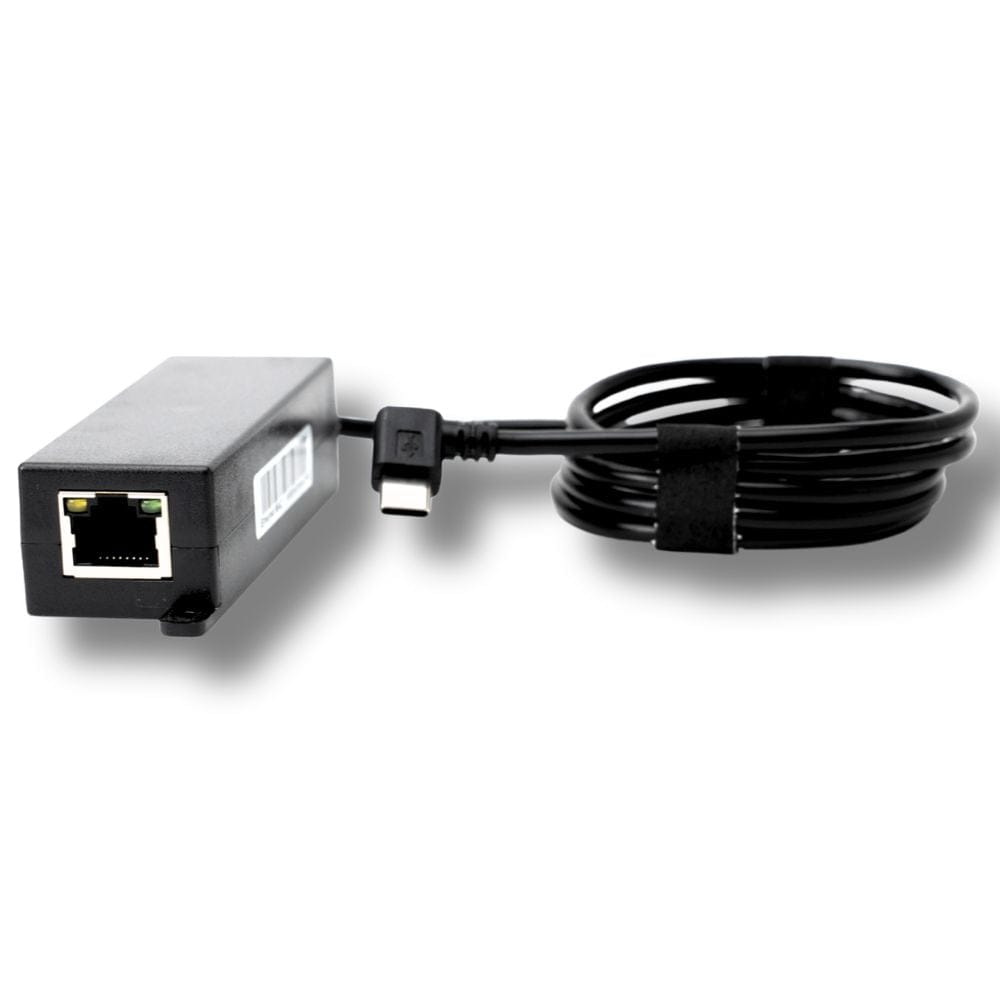

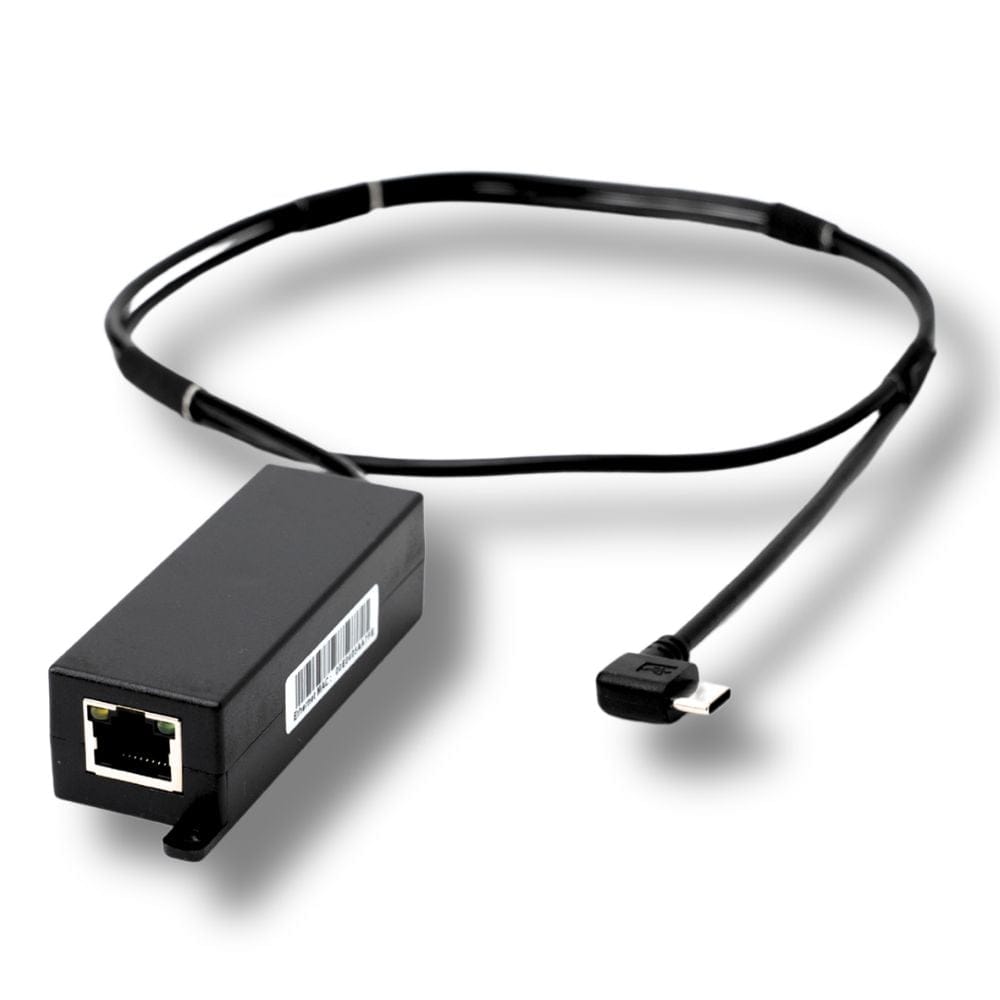

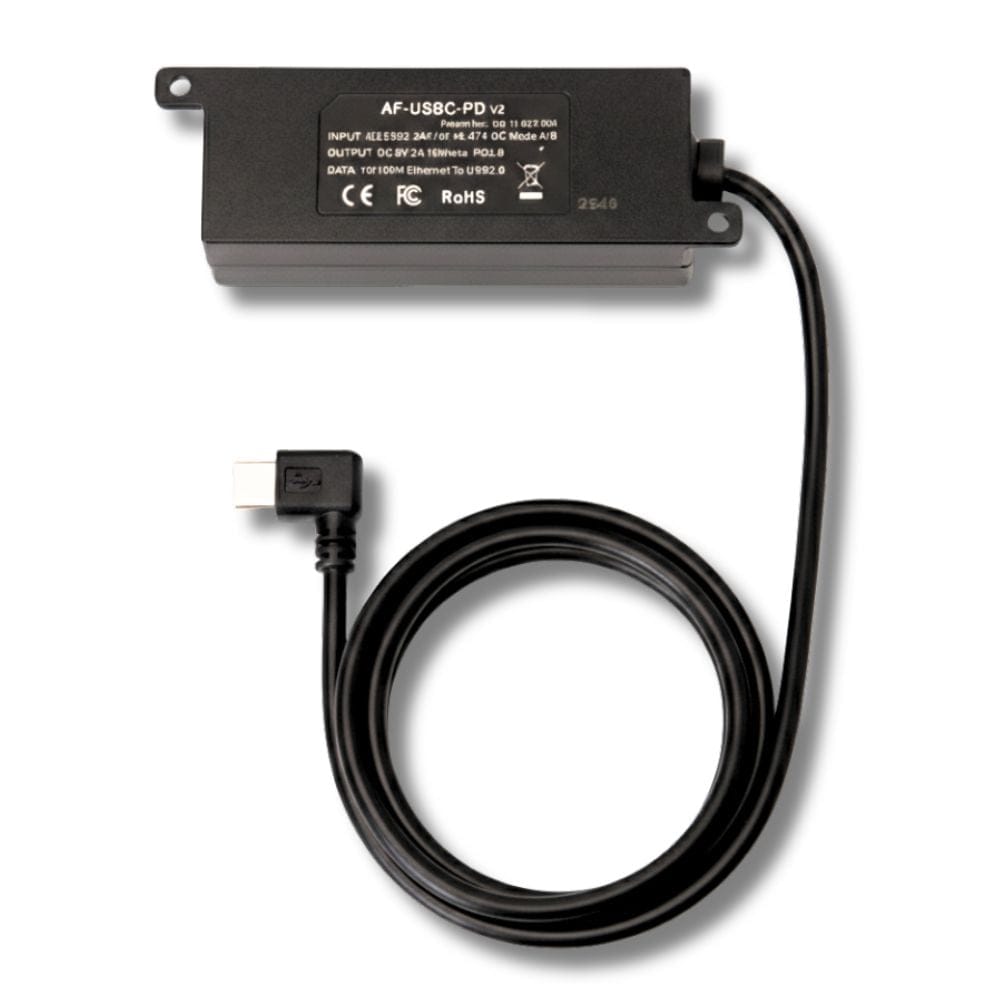

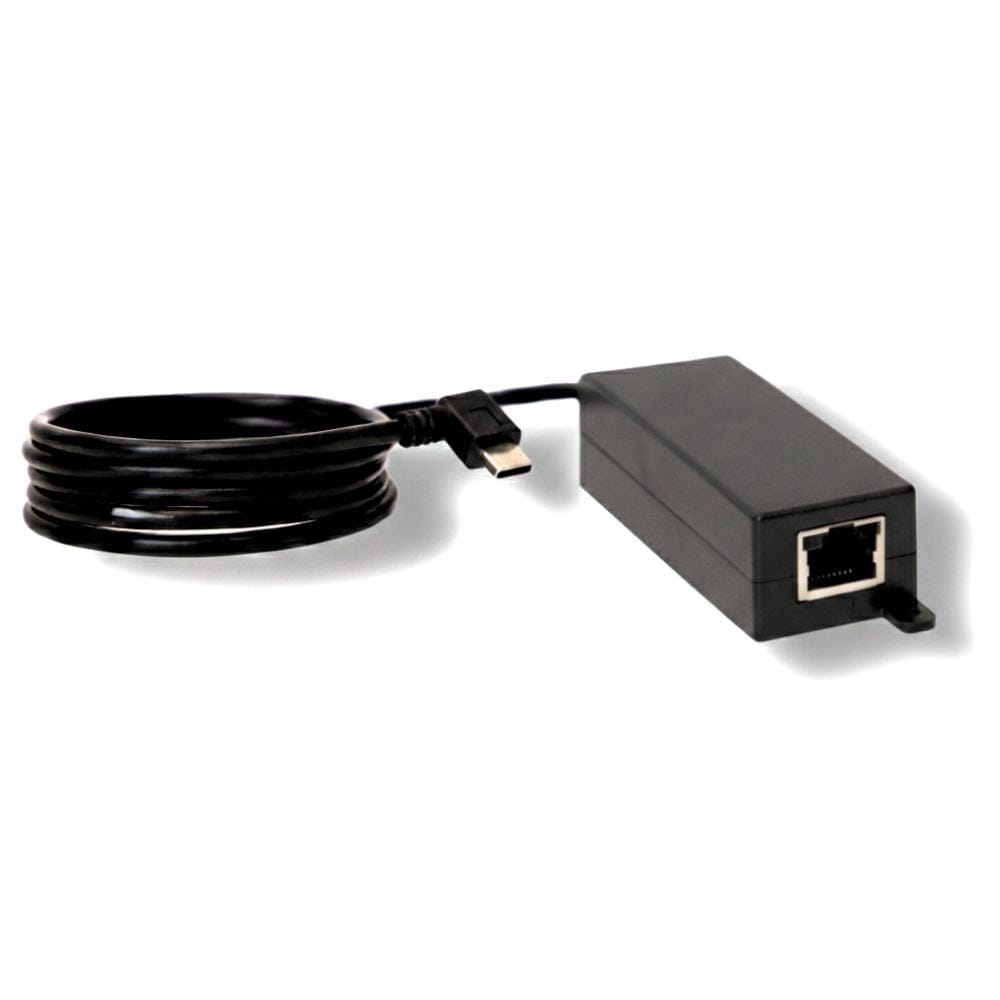

PoE Texas Splitter IEEE 802.3af PoE to USB-C Power and Data with Power Delivery

IEEE 802.3af PoE to USB-C Power and Data with Power Delivery

SKU AF-USBC-PD
Save 21%
$86.99
$68.99

Our Patented PoE to USB-C Power Delivery and 10/100 Data Combined

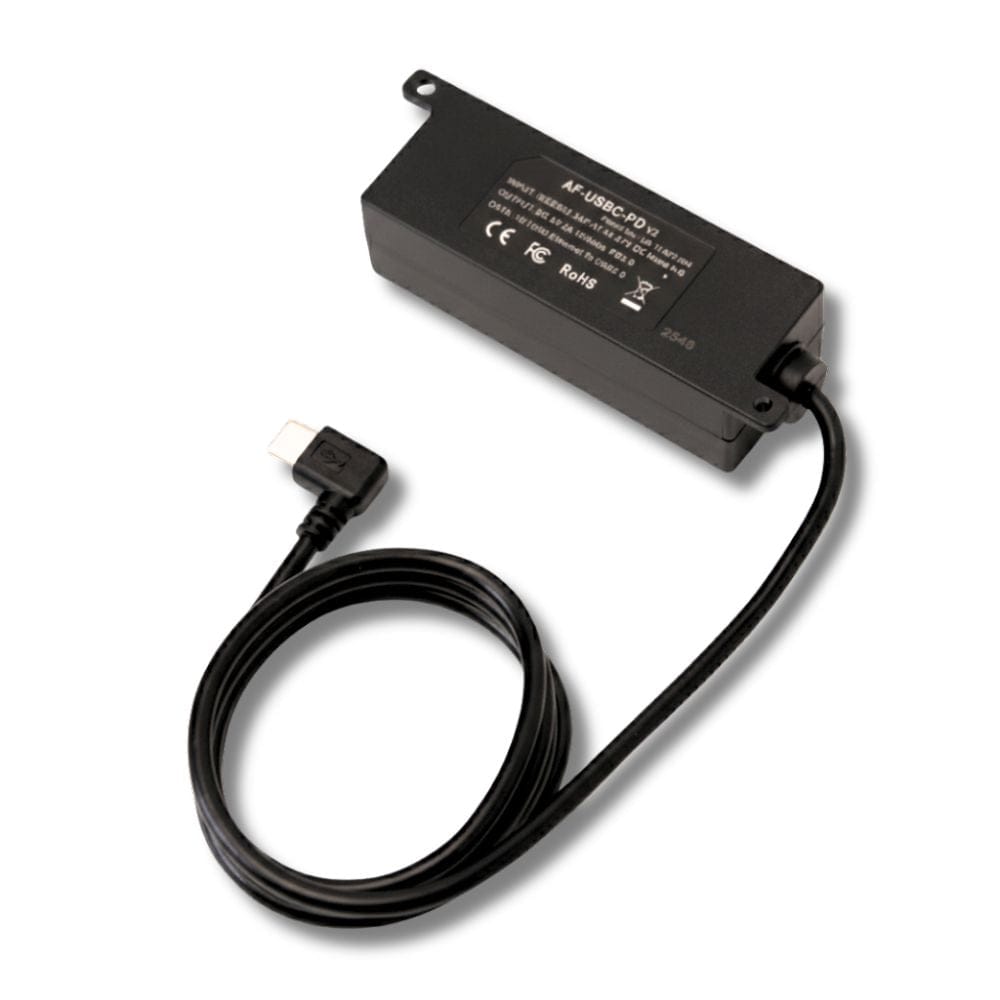

Connect to USB-C PD Enabled Devices like iPad Mini 6, iPad Air, Samsung Tab S7 Lite, and more with both power and data.  This rugged, affordable device converts normal, IEEE 802.3af PoE into USB-C power delivery (PD) and data with an integrated USB-C right angle cable.  No accessories to buy, this device fits into almost any tablet enclosure and works with any PoE switch.

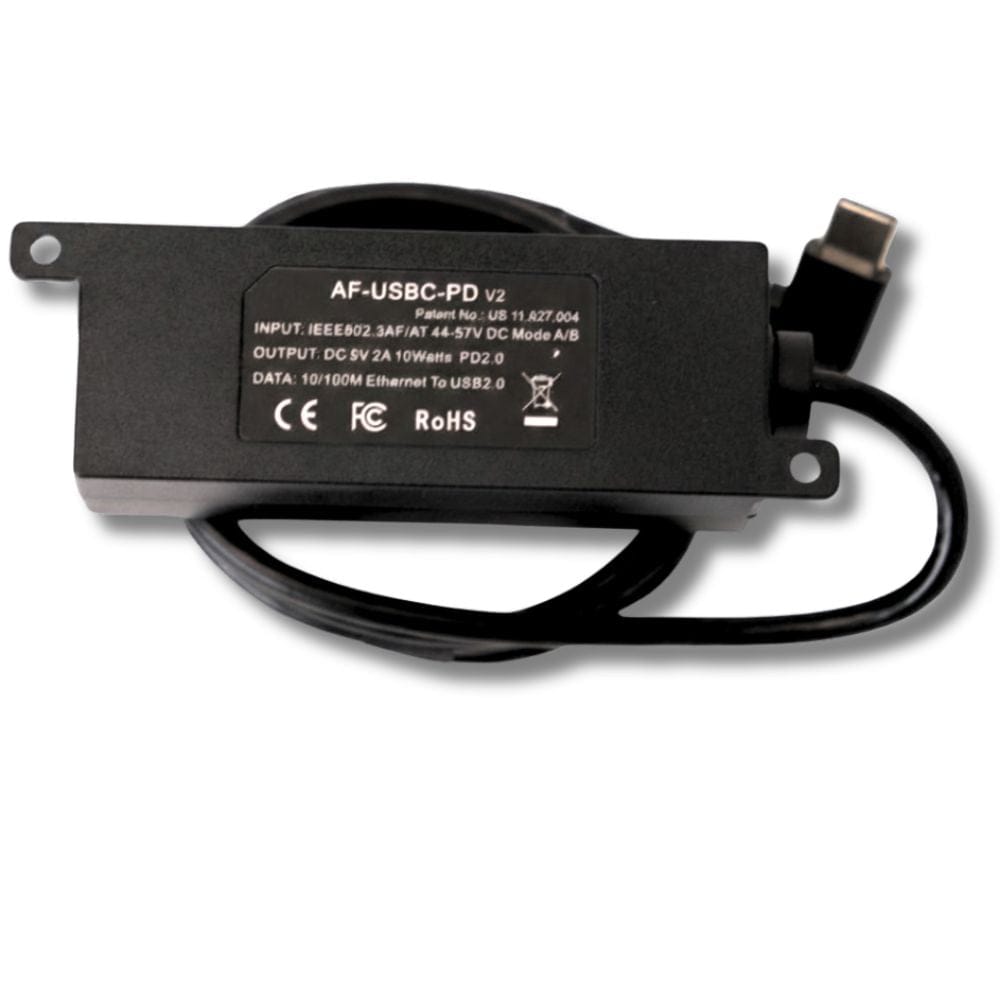

U.S Patent No. 11,627,004

Product Features:

  • Designed to fit designer tablet enclosures including: Heckler, Vidabox, Viveroo, ArmurActive, and More
  • Place your iPad or Samsung Tab where you want even without an AC outlet nearby
  • Works with USB-C Power Delivery (not just legacy 5 volt USB-C devices)
  • Delivers up to 95 Mbps (Fast Ethernet) wired data to your device
  • Input voltage range 44v to 56v POE
  • Output voltage 5 volts 2 amp - Tested with iPad Air, iPad Mini 6, Samsung Tab A 8, and more
  • Standard USB-C plug fits any USB-C device
  • Compatible with your existing IEEE 802.3af PoE switch or injector (sold separately)

See Our Online Technical Manual

Compatibility

For Apple iPad 10th gen, Mini, and iPhone

    For Microsoft Surface Go

    • Works with Microsoft Surface Go, Google Pixel & Samsung Galaxy Tab Active 2

    *Samsung Tab compatibility may vary. 2020 Tab A7 SMT500 models no longer have the ability to do concurrent power and data connections, though SMT510 and SMT515 still do have compatibility. Please check your specific model for compatibility with USB-C data transfer.

    Product Specifications

    Adapter length 3 inches

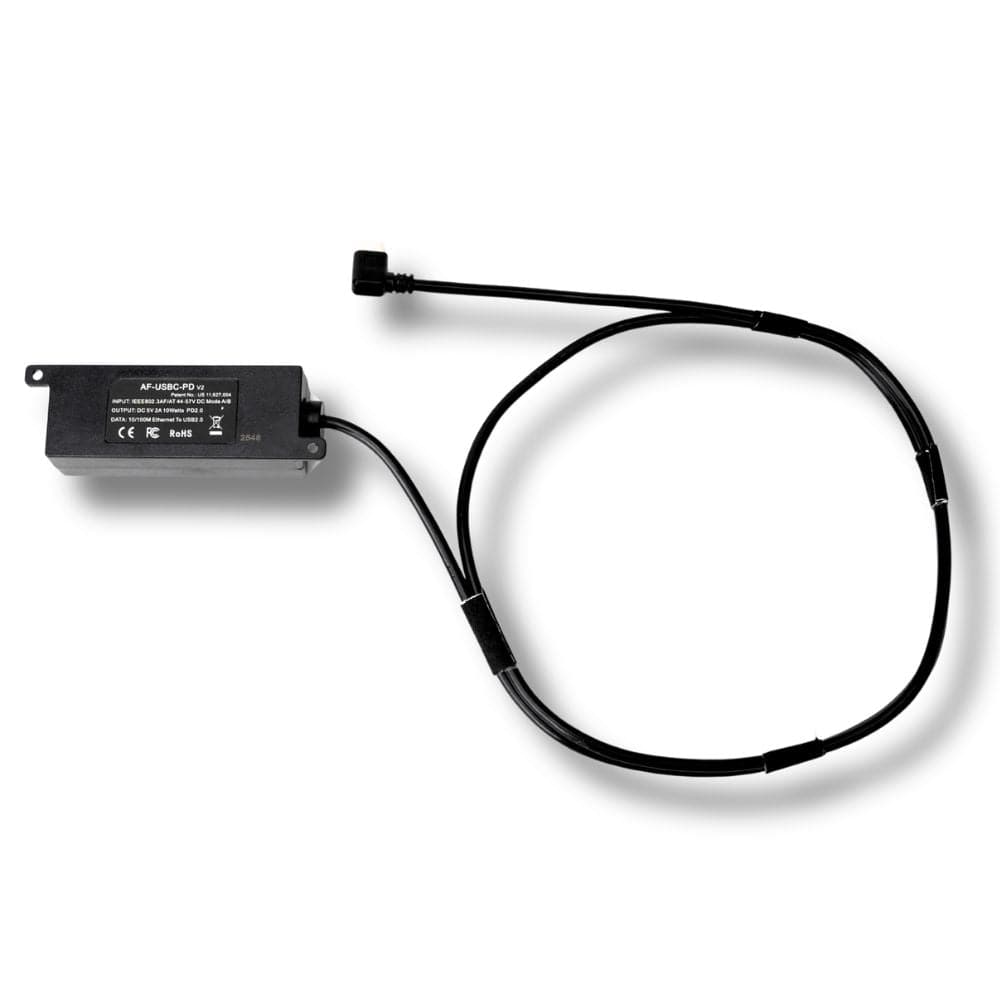

    Cable connector length 36 inches
    Cable connectors USB-C Male - Integrated
    Certifications CE, RoHS
    Data Rate 10/100 Mbps
    Dimensions 3x1x1.5 in.
    Input voltage 44 to 56 volts

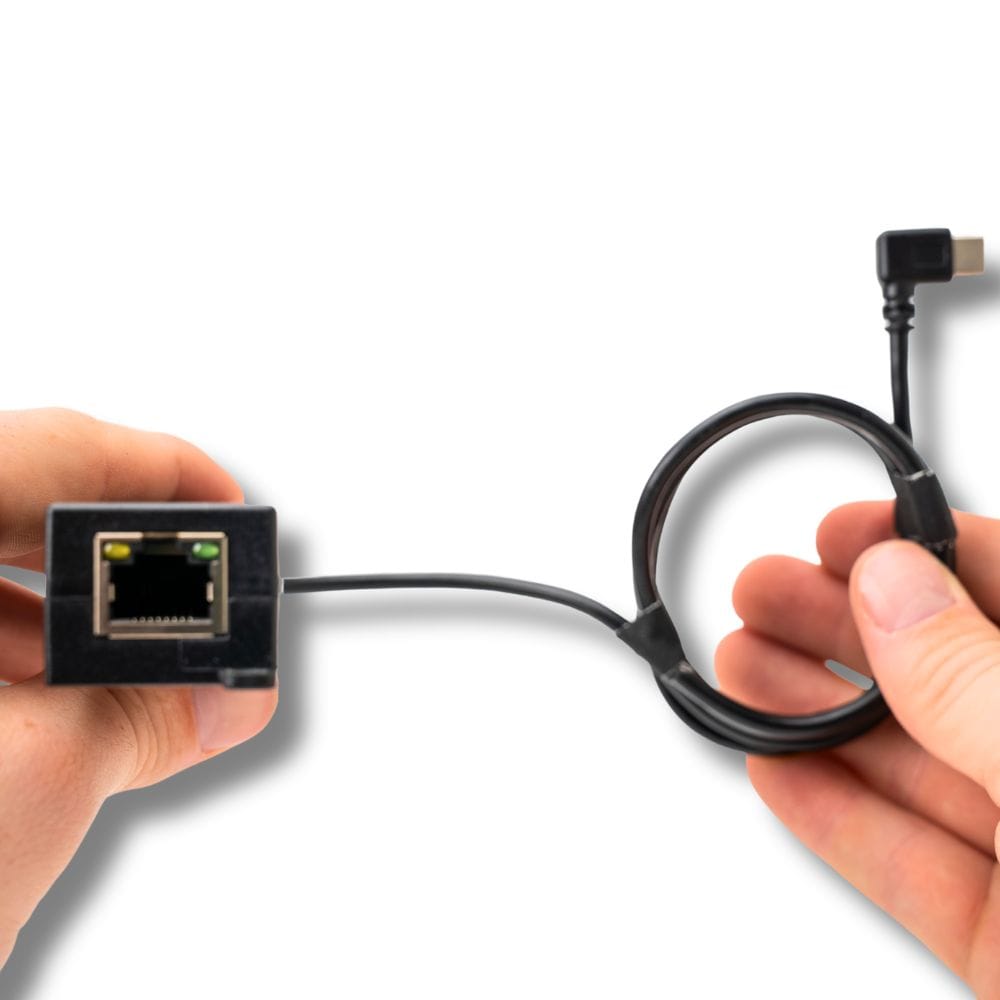

    LED Indicator Green - PoE; Yellow - Activity
    Max Voltage 5 volts
    Max. Amps Per Port 2 amp (PD Profile)
    Operating Humidity 5% to 90%
    Operating Temperature Range -10 - 60C
    PoE Mode/Pinout Mode A (-1,2 +3,6)/Mode B (+4,5 -7,8)

    QUESTIONS & ANSWERS

    Ask a Question

    • Will this work with a Fire HD 10 (11th gen) tablet?

      It should work for power to charge the tablet, but the specs don't show if it can take simultaneous power + data over USB-C. They both follow USB 2.0, though.

    • Is there a similar adapter your company offers for networks with a minimum of 1 GB/s?

      Hi, we have the GAT-USBC-PD-V3 that supports 10/100/1000 gigabit data and power over USBC cable. This is compatible with an IEEE 802.3at rated switch or injector.

      https://shop.poetexas.com/collections/splitters/products/gat-usbc-pd-v3

    • Is the input PoE power required to be 44-56V? Can I use this device in conjunction with any wattage PoE switch?

      Yes, the AF-USBC-PD is rated for 802.3af POE input (44-56V). It can be used with any 802.3af/at POE switch or injector.

    • Will this work with a streaming stick device, such as; Amazon FireTV; Roku; Google Chromecast; to deliver both, power and data?

      We haven't tested the AF-USBC-PD on streaming devices to confirm. If the streaming devices are desinged to accept wired data over USB-C and match the power delivery profiles, it should be compatible.

    ×





    ×

    ×
