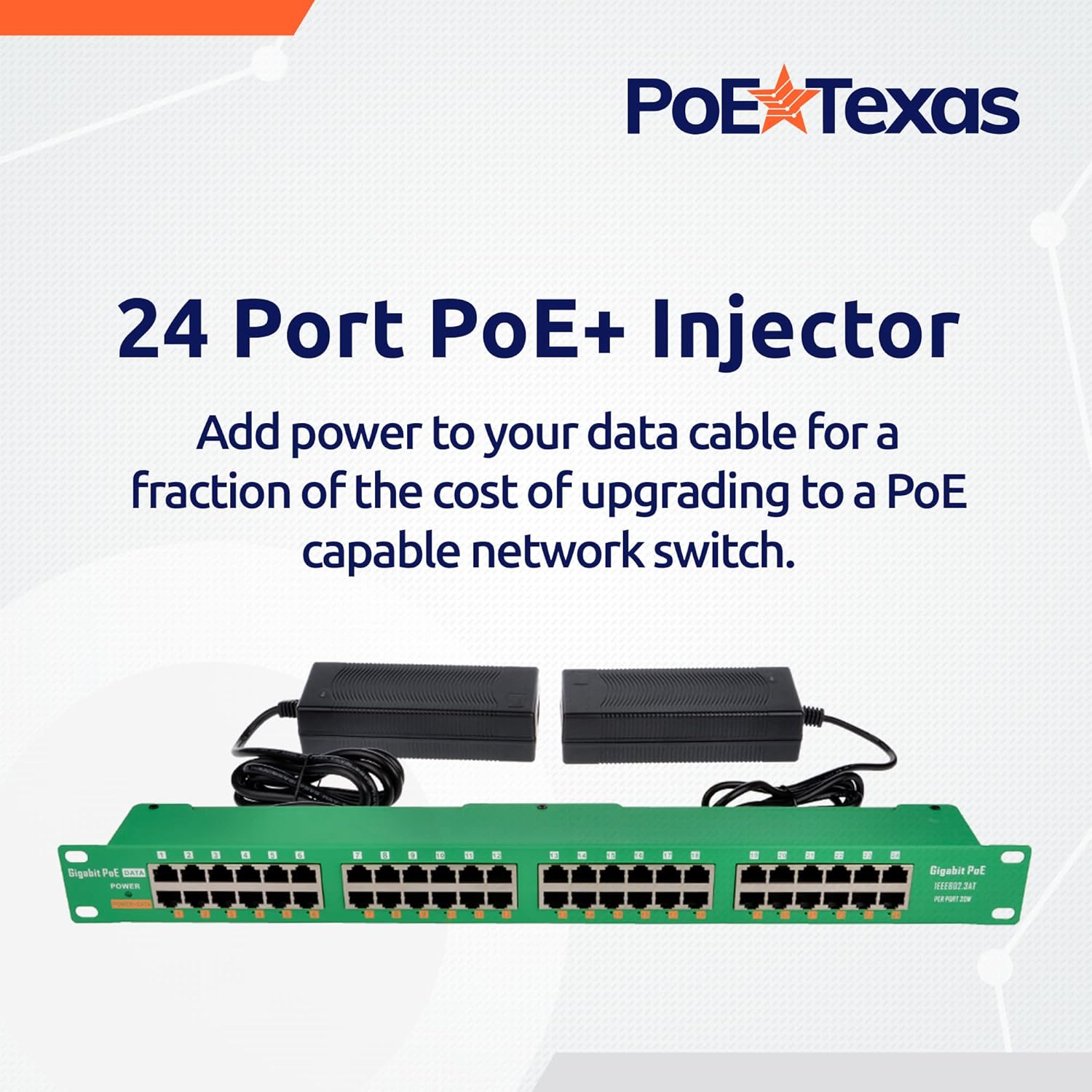

24 Port Active PoE Injector with 56 Volt Output and 240 Watt Budget

SKU AT-24-56V240W

Power High Powered Devices like Cisco WiFi APs, PTZ Cameras and more. This 802.3af/at compliant Power over Ethernet (PoE) injector takes power from the DC power source and adds it to a Cat5, Cat5e, or Cat6 Ethernet data cable to power your PoE devices.

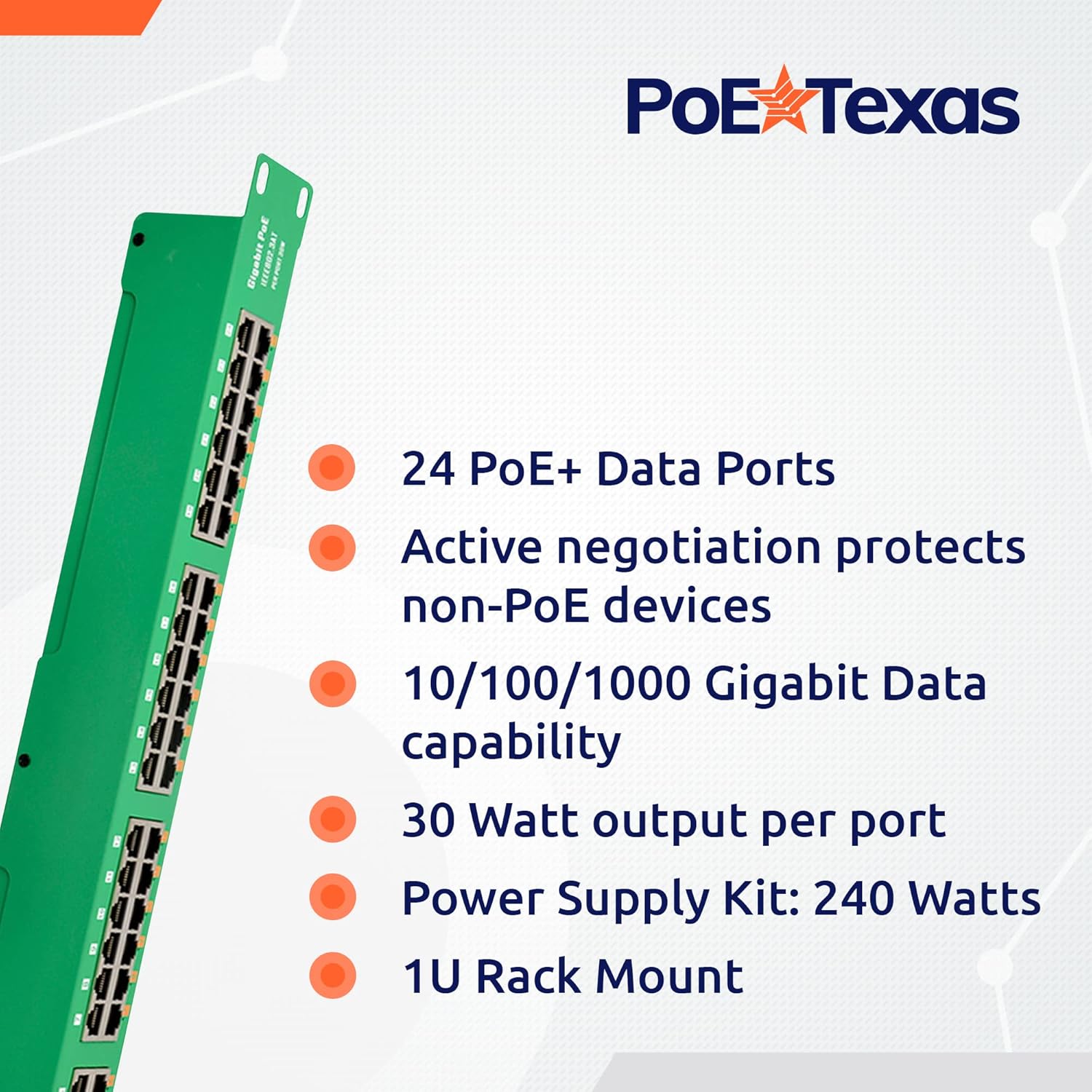

Product Features:

  • Instantly upgrade your network switch to IEEE 802.3at PoE+
  • 24 PoE + Data Ports
  • Active negotiation protects non-PoE Devices
  • 10/100/1000 Gigabit Data capability
  • 30 Watt output per port with Max 240 watts shared total

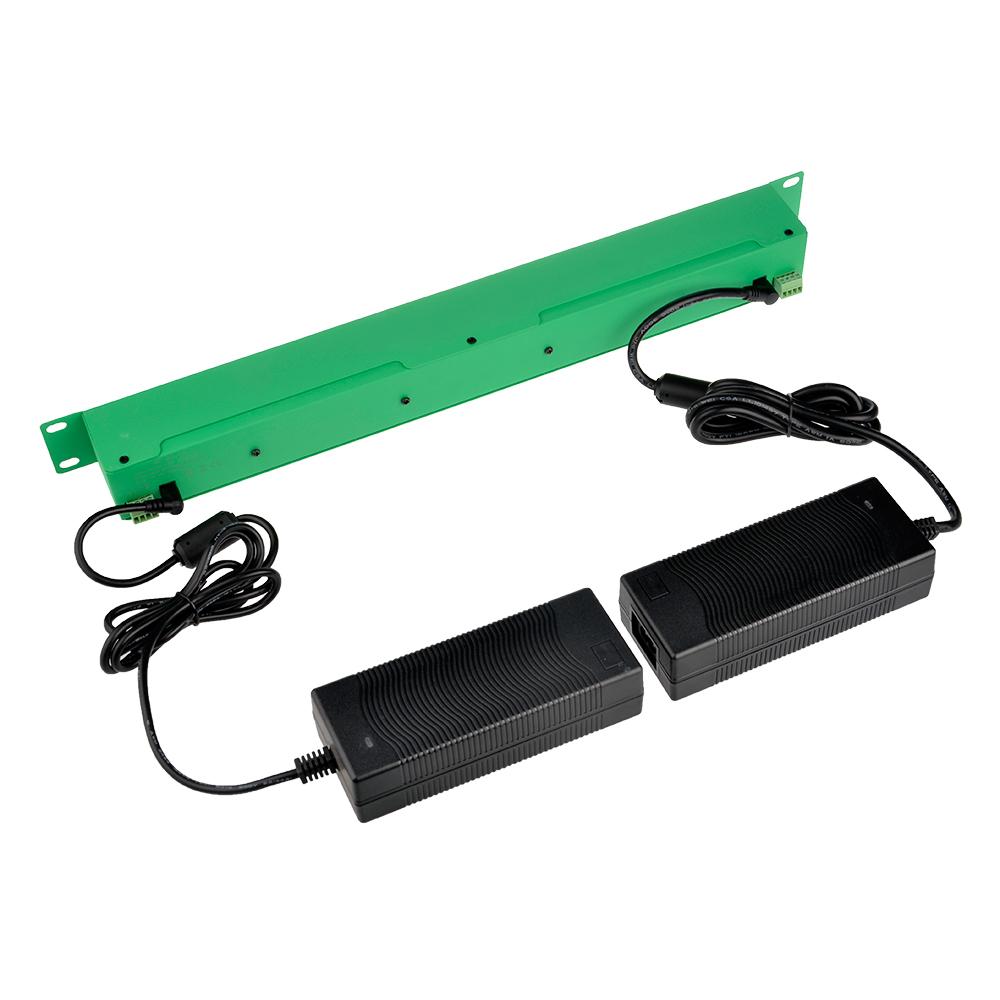

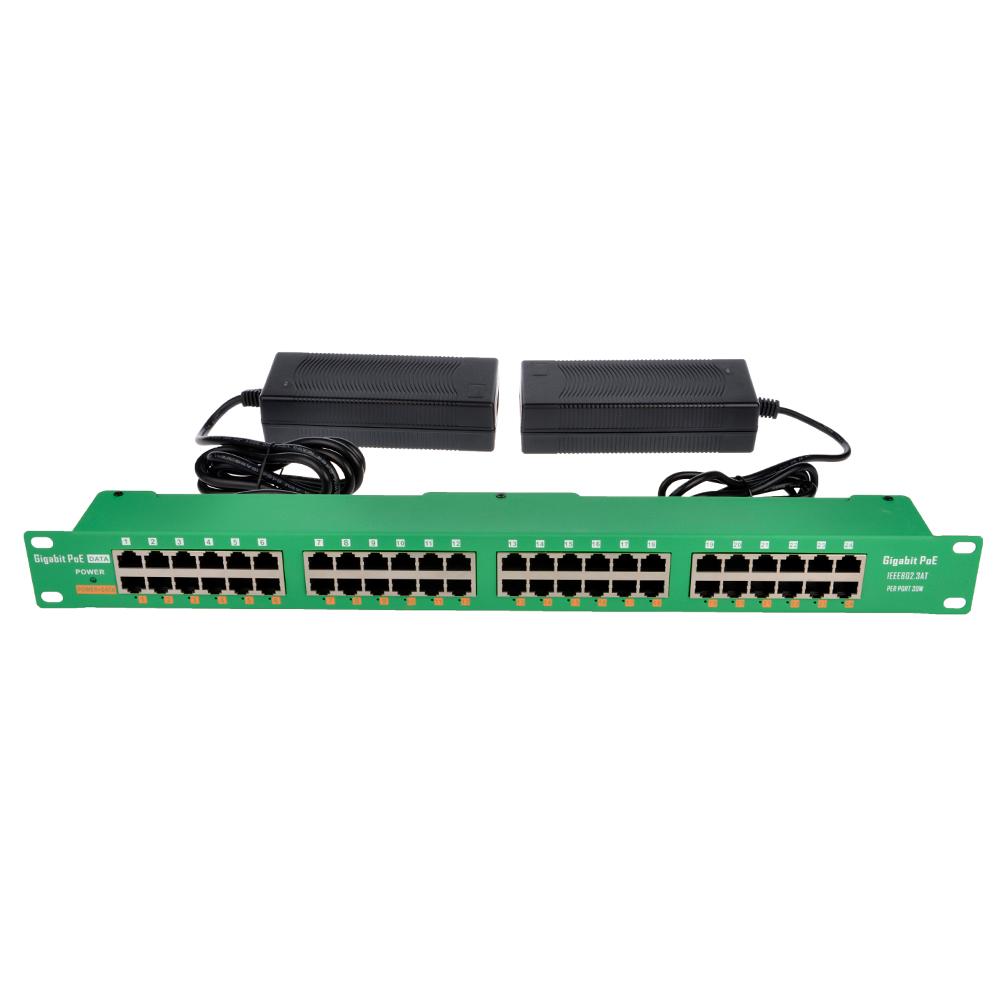

  • Includes two UL approved 56v 120w power supplies
  • 2.1 DC power connector
  • 1U Rackmountable injector
See the Online Technical Manual

    Active PoE means the right power at the right time. An active PoE injector negotiates with the powered device to deliver the voltage needed, so there are no concerns about accidentally burning out lower powered or non-PoE devices. Power is only added to the data cable when an 802.3af or 802.3at device is connected.

    Product Specifications

    Certifications CE, FCC, RoHS, UL (power supply)
    Data + PoE Ports 24
    Data Ports 24
    Data Rate Gigabit
    Dimensions 19 x 2 x 1.75 in.
    Input voltage 56 Volts DC
    LEDs Per Port 1
    Max Power for Kit 240 Watts
    Max. Amps Per Port 650mA
    Mount Type 1U Rack
    Operating Humidity 5% to 90%
    Operating Temperature Range -10 - 60C
    Output Voltage 56 Volts
    PoE Configurable Per Port No
    PoE Method Active
    PoE Mode/Pinout Mode A (-1,2 +3,6)
    PoE Standard IEEE 802.3at

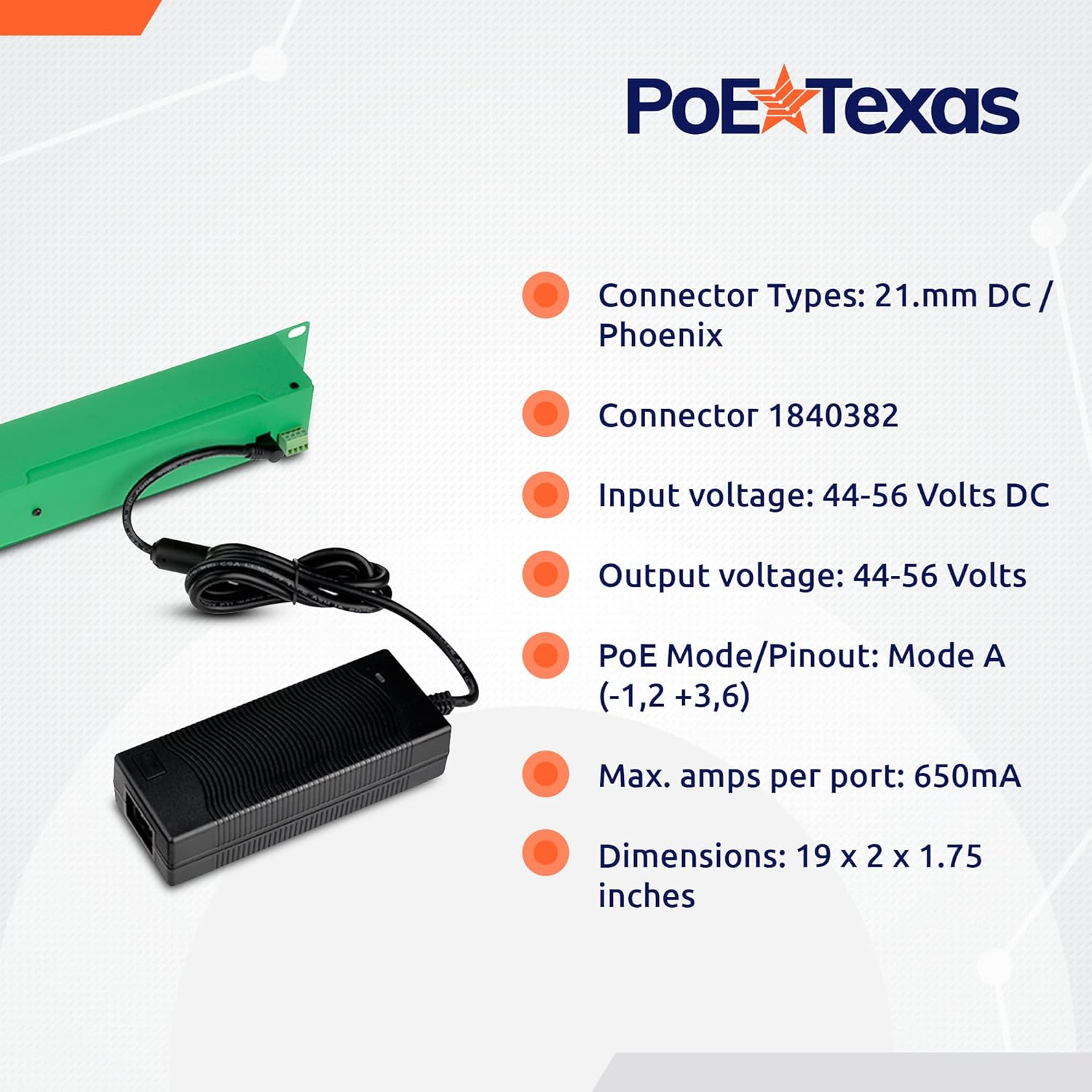

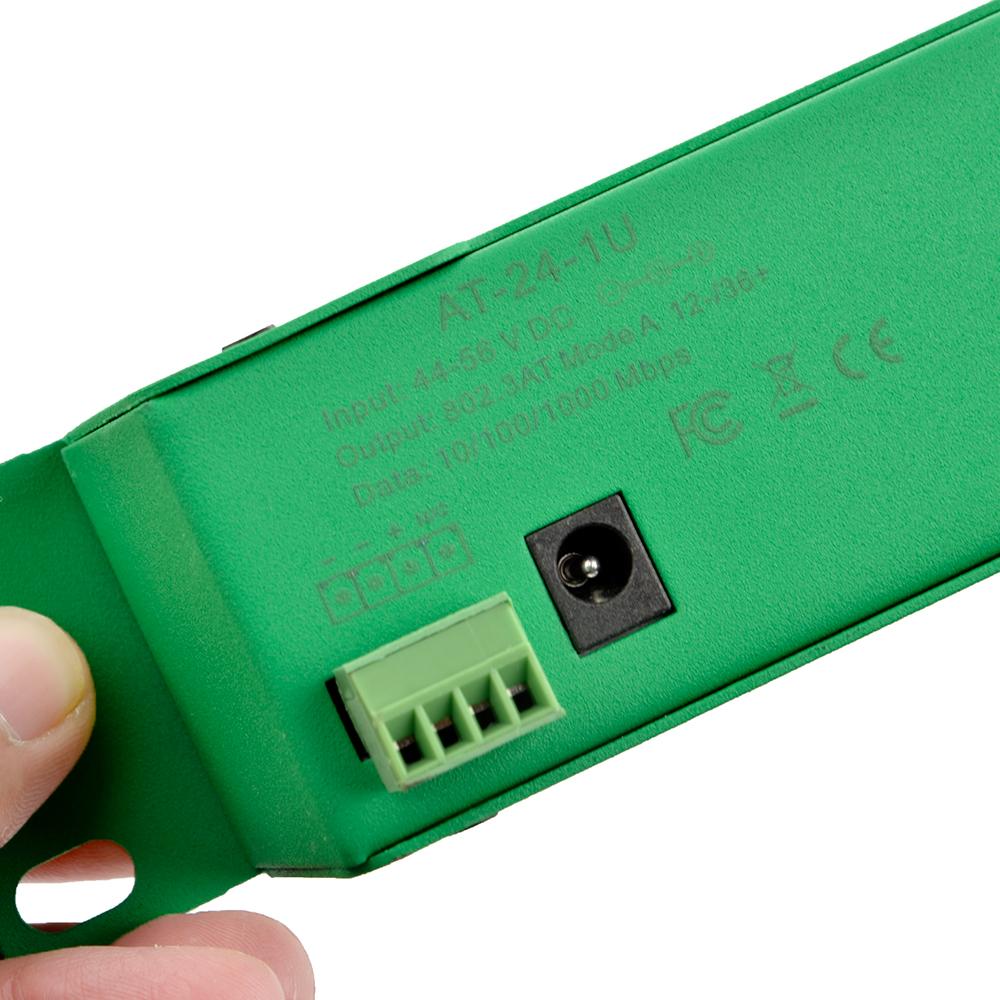

    Power Input 2.1 mm DC and Phoenix Connector 1840382

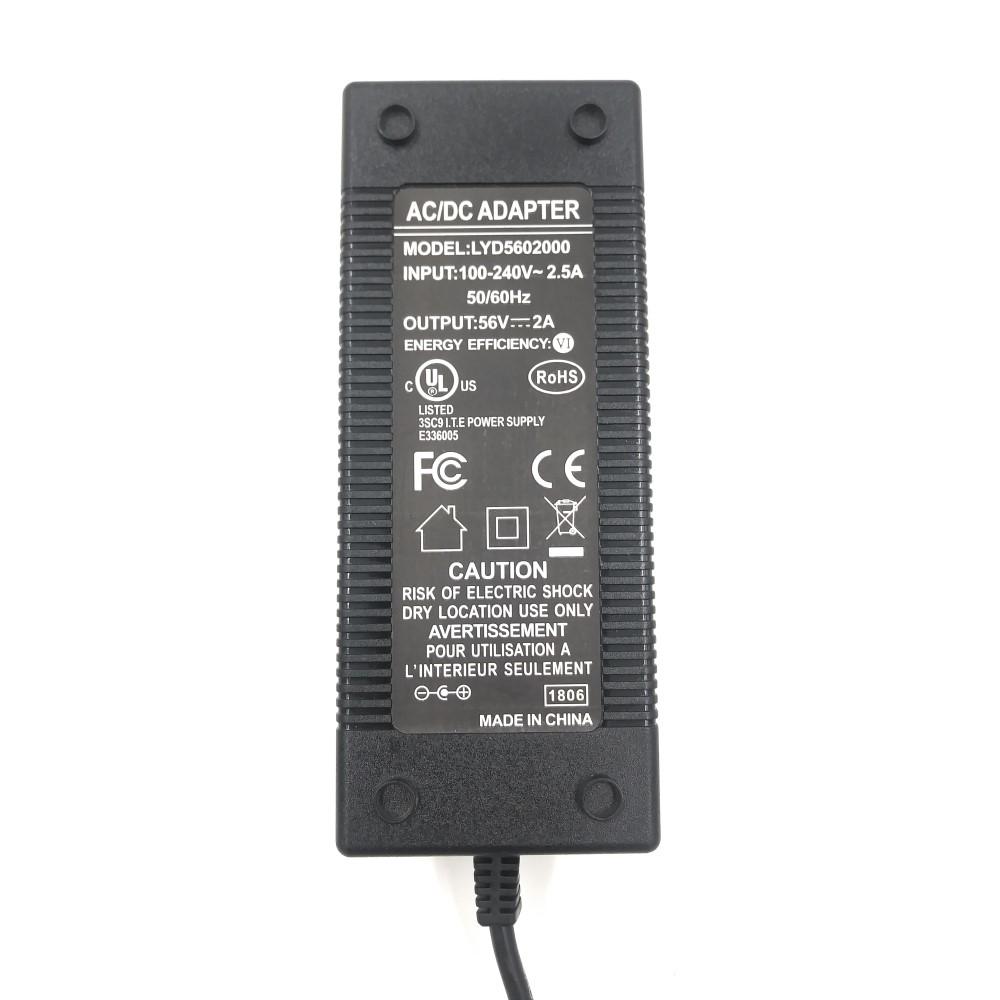

    Power Supplies 2 x UL Rated 56v 120w DC (PS-56V120w)
    Weight 2.1 lbs


    Ask a Question
    • What country is this device manufactured?

      It is designed in the US and manufactured in China.
