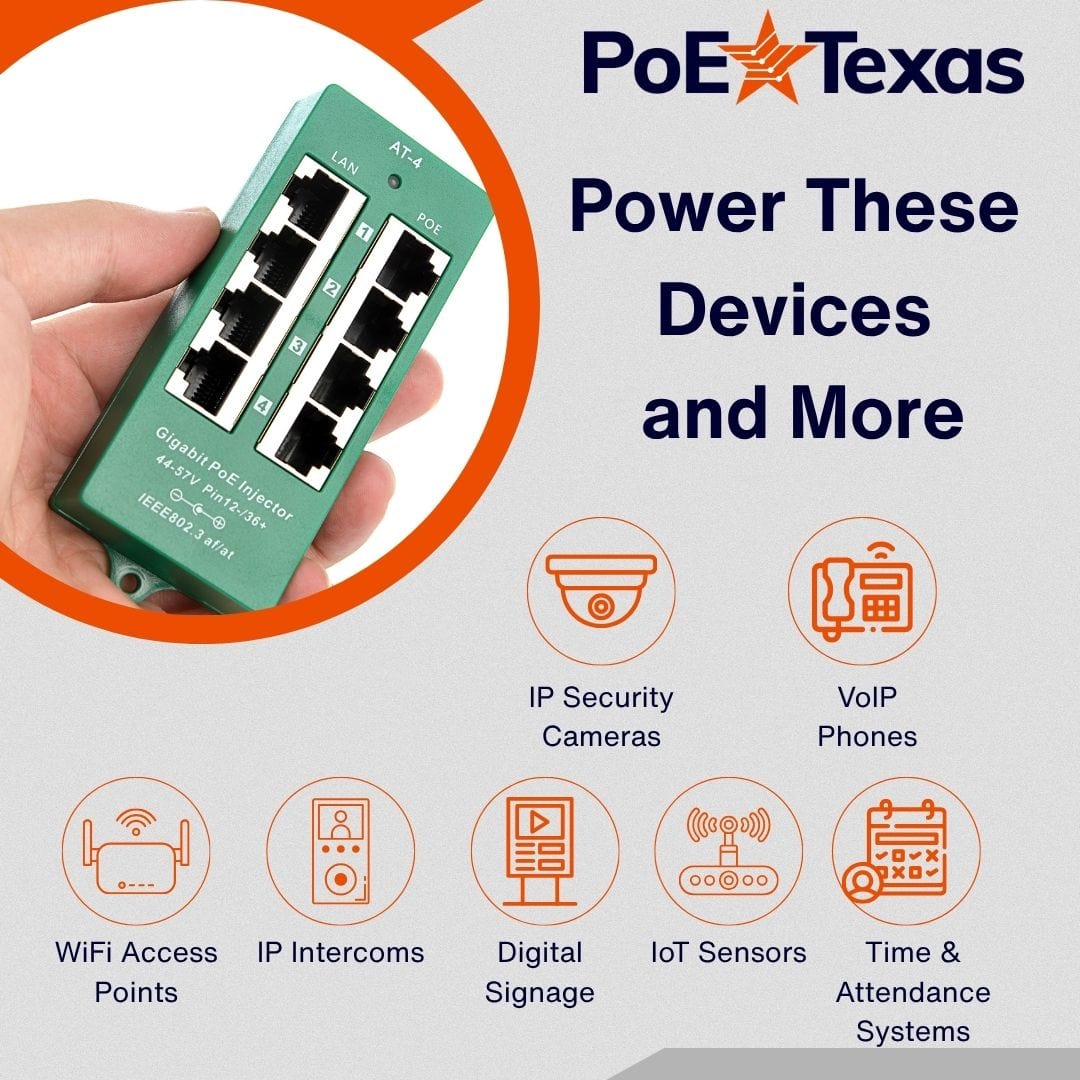

PoE Texas Injector 4 Port Active Gigabit Mode A PoE Injector (Power Supply Not Included)
PoE Texas Injector 4 Port Active Gigabit Mode A PoE Injector (Power Supply Not Included)
PoE Texas Injector 4 Port Active Gigabit Mode A PoE Injector (Power Supply Not Included)
  • SKU: AT-4

4 Port Active Gigabit Mode A PoE Injector (Power Supply Not Included)

$42.99
DESCRIPTION

Active PoE means the right power at the right time. An active PoE injector negotiates with the powered device to deliver the voltage needed, so there are no concerns about accidentally burning out lower powered or non-PoE devices. Power is only added to the data cable when an 802.3af or 802.3at device is connected.

Product Features:

  • Fully IEEE 802.3at compliant; works with Cisco products
  • Active negotiation protects non-PoE devices
  • Mode A power delivery on pins 1,2- / 3,6+
  • Input voltage range 44-57v DC
  • Shielded RJ45 ports
  • 650mA self-resetting fuse / 30 watts per port

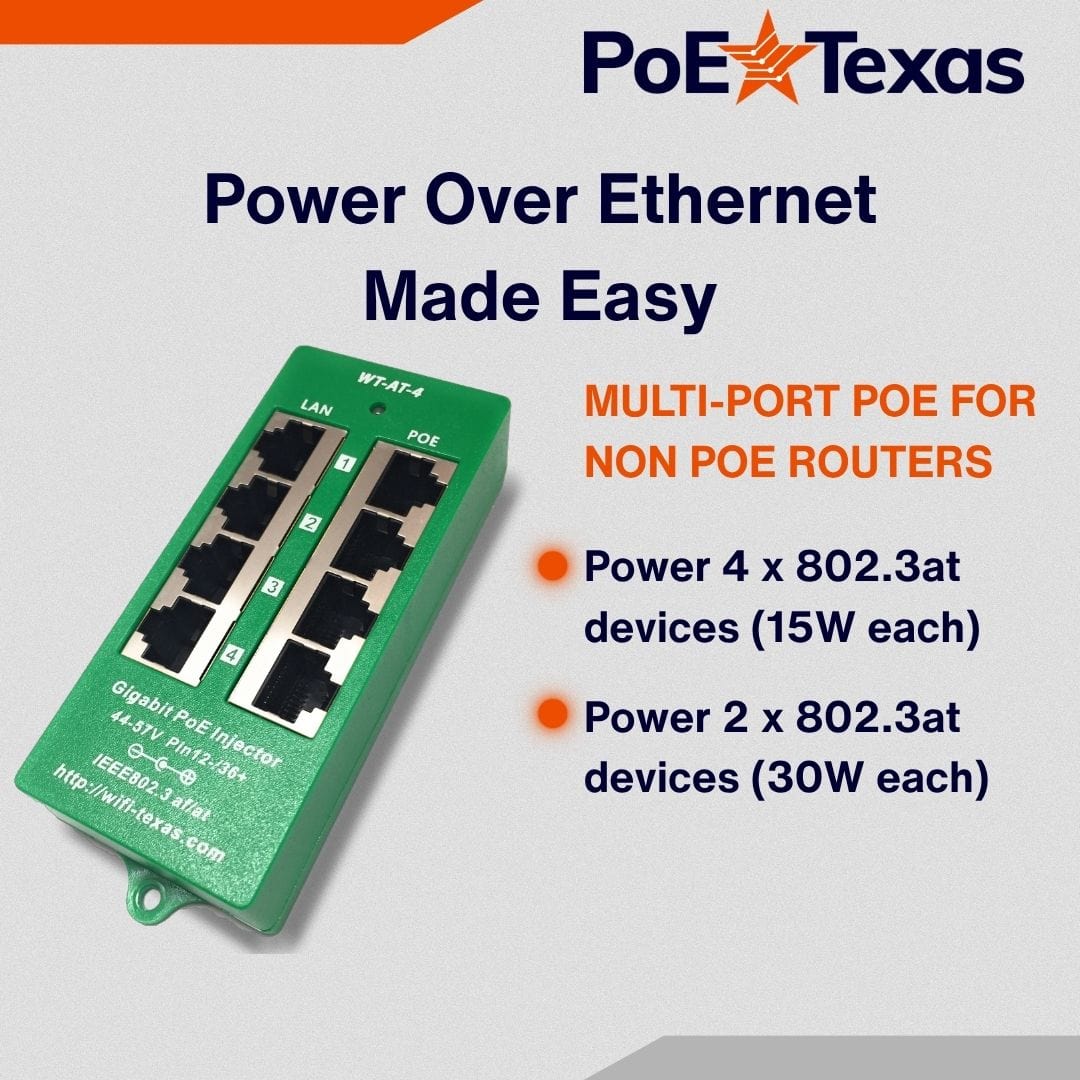

  • Supports 4 x 802.3af devices (up to 15 watts each) or 2 x 802.3at devices (up to 30 watts each)
See the Online Technical Manual

Product Specifications

Certifications CE, FCC, RoHS
Data + PoE Ports 4
Data Rate Gigabit
Dimensions 4 x 3 x 1 in.
Input Voltage Range 44-57 Volts DC
LED Indicator 1
Max. Amps Per Port 550 mA
Mount Type Wall
Operating Humidity 5% to 90%
Operating Temperature Range -10 - 60C
PoE Method Active
PoE Mode/Pinout Mode A (-1,2 +3,6)
PoE Standard IEEE 802.3at

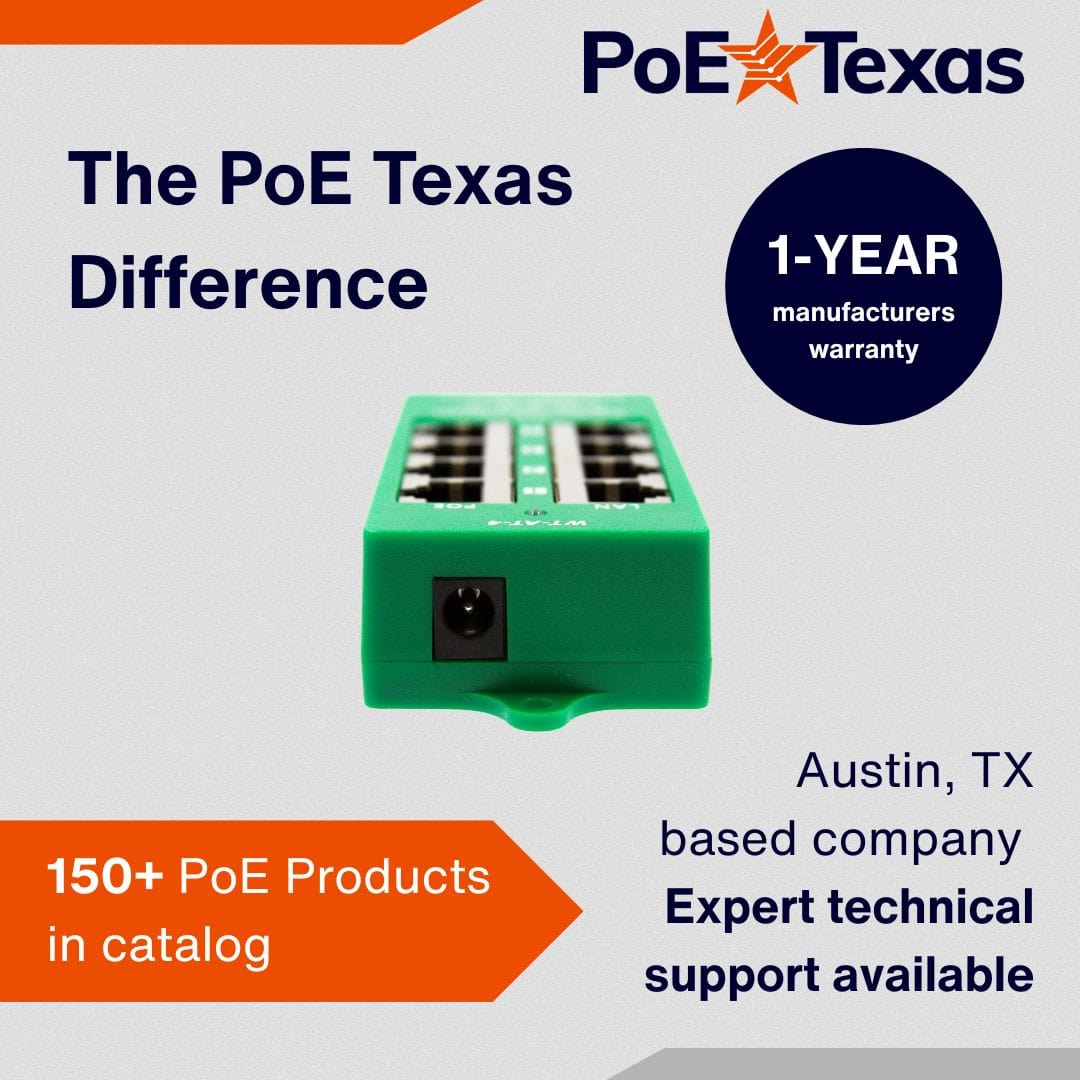

Power Input 2.1mm x 5.5mm DC

QUESTIONS & ANSWERS

Ask a Question
  • Will the WT-AT-4 work with Proxim 81xx series radios and deliver Gigabit Ethernet speeds?

    Yes, the WT-AT-4 delivers Gigabit data speeds and is 802.3af/at compliant. It will work with the Proxim ORiNOCO AP-8100; with a max power draw of 12watts, I would recommend using a 48 volt, 60 watt power supply.

  • Does the WT-AT-4 have the 4-Position Phoenix contact for power input like the WT-AT-8?

    The WT-AT-4 does not have the Phoenix contact option available. Typically, 120 watts should be enough to support all 4 ports.  Please feel free to contact our customer support, we would be happy to find a solution for your specific set up.

  • Can I use this with a 24 volt power supply?

    No, this active injector only takes voltage inputs of 44-56volts. If you are looking for a passive injector supplying 24 volts POE similar to this, I recommend our WT-GPOE-4-B-24v60w

  • Whats the difference between active and passive?

    Active means this Power Supplying Equipment (PSE) sends a very short signal to your Power Device (PD) as soon as it is connected to determine how much power it needs, then this PSE sends only that power. The most common case for this is when you have a PoE port someone could plug a laptop into by accident. The laptop isn't PoE and could be damaged by it, so, if you have an active PSE like this one, it won't send any power to the laptop accidentally connected to it. Passive sends PoE power all the time, which works great for most PoE specific applications like cameras, wifi access points, or a port you know only PoE devices are attached to. Both work great for the right application.

  • What is the difference between WT-AT-4 and simply AT-4? The image of the device indicates WT-AT-4 whereas the description states only AT-4. Searching the internet I see devices with same specs sometimes labelled as WT-AT-4 or AT-4. If ordered will I receive a device labelled WT-AT-4 or AT-4?

    They are both the same device. Last year we changed our products and skus. This device was changed from WT-AT-4 to just AT-4.
