AT-8-48V60W

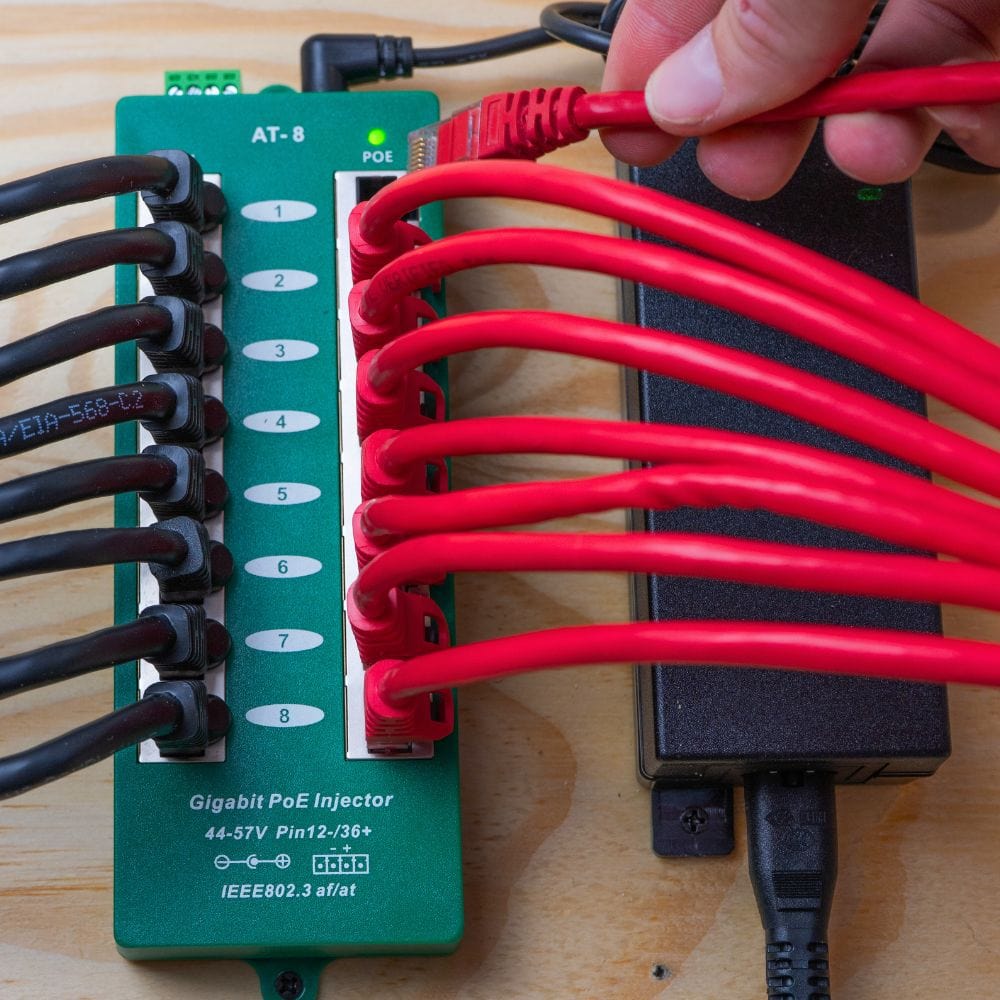

8 Port Active Gigabit Mode A PoE Injector With a 48 Volt 60 Watt Power Supply

Active PoE means the right power at the right time. An active PoE injector negotiates with the powered device to deliver the voltage needed, so there are no concerns about accidentally burning out lower powered or non-PoE devices. Power is only added to the data cable when an 802.3af or 802.3at device is connected.

Product Features:

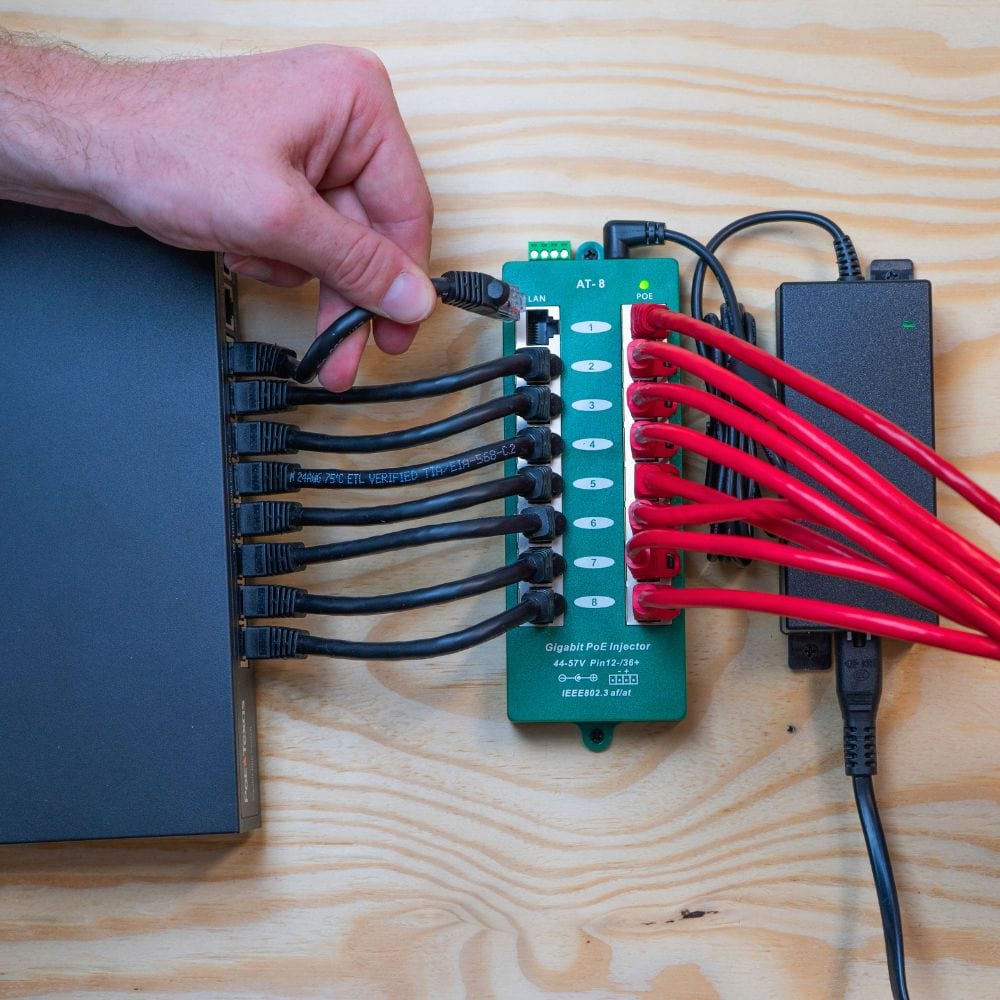

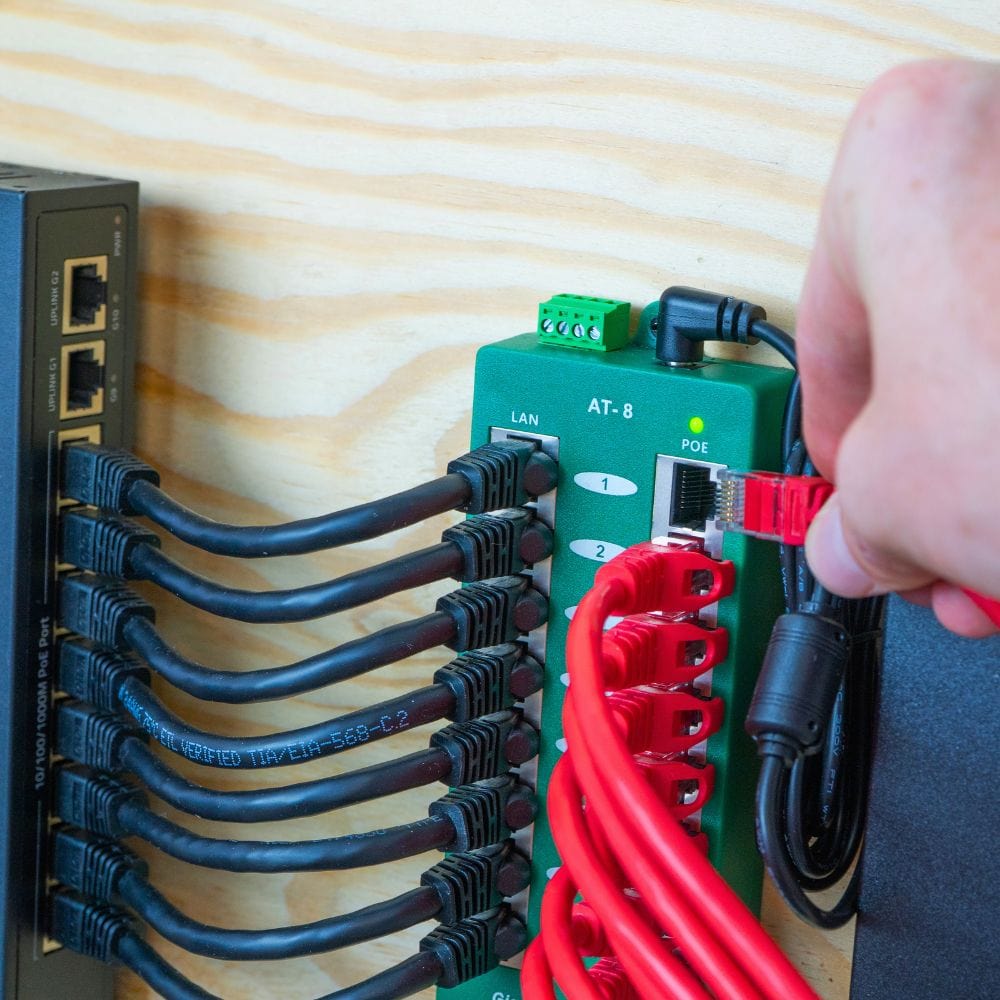

Instantly upgrade your network switch to PoE+ for 802.3at devices like VOIP phones, WiFi Access Points, Cameras and More
Active negotiation protects non-PoE devices
Mode A power delivery (pins 1,2- / 3,6+)

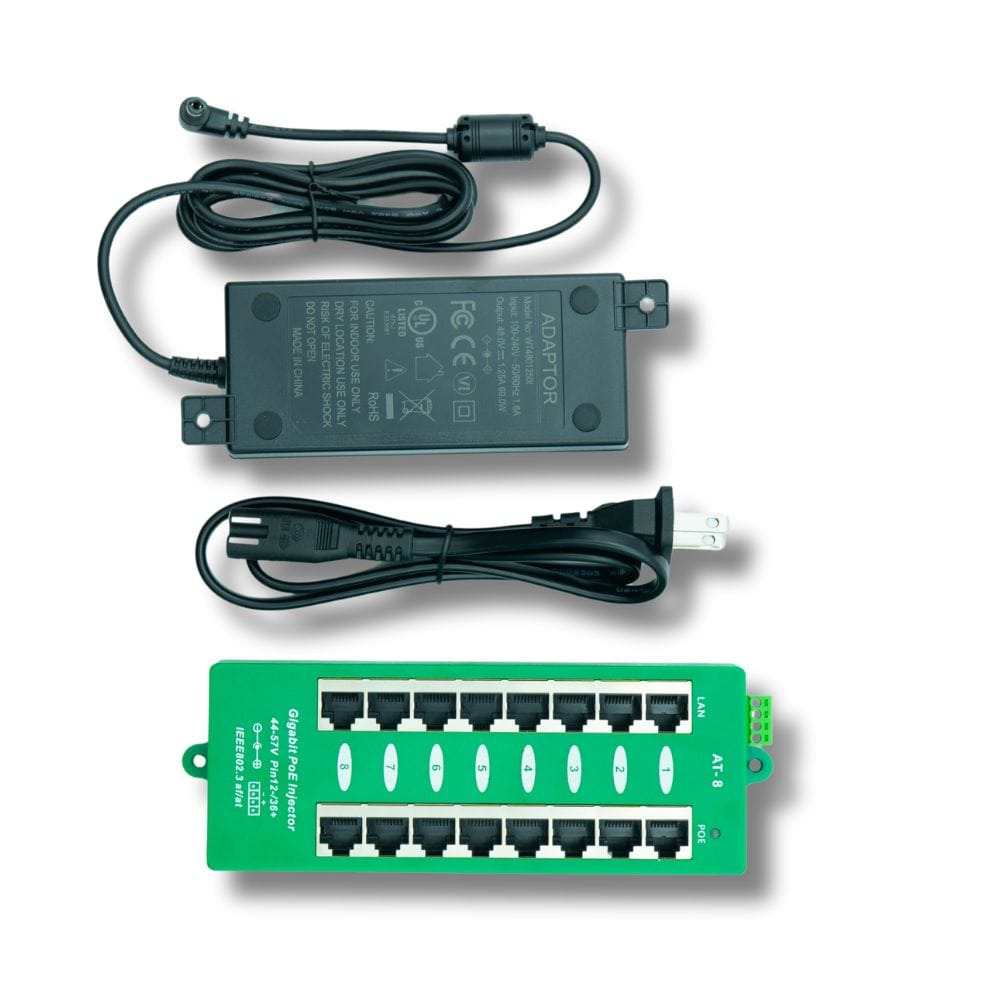

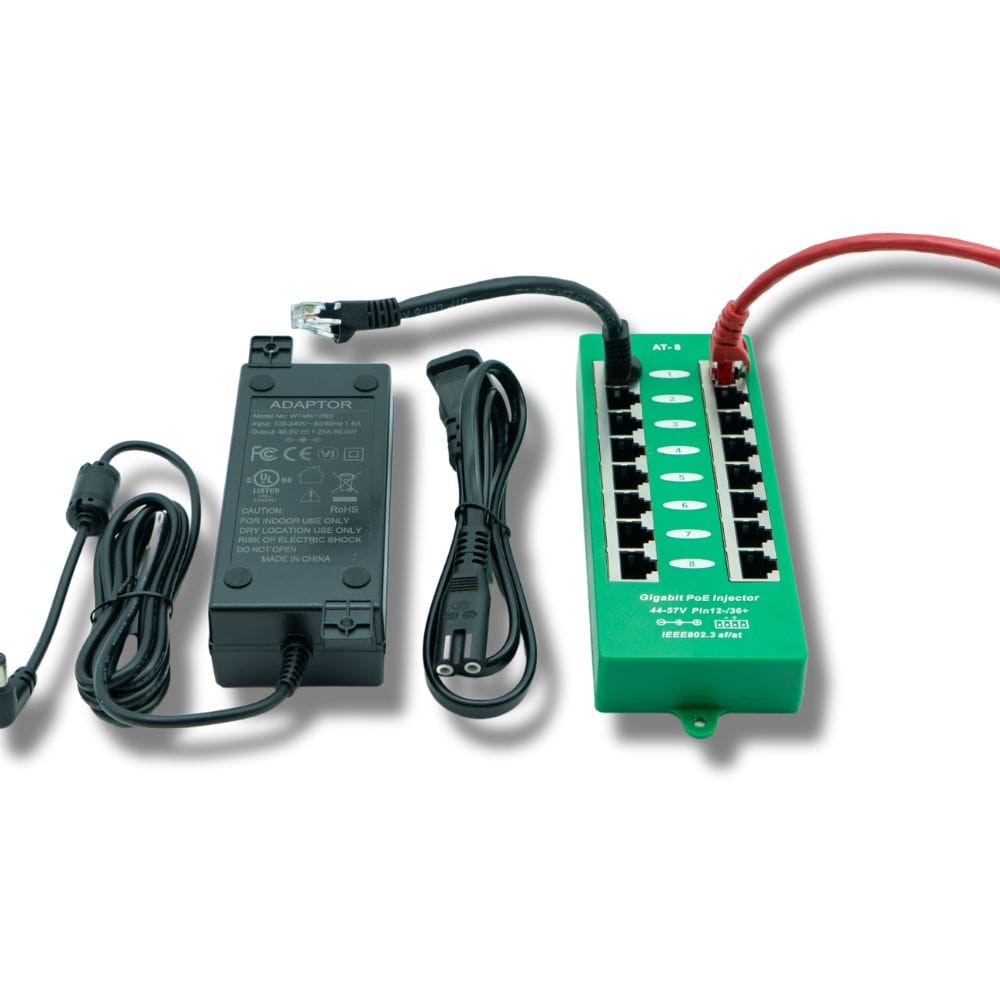

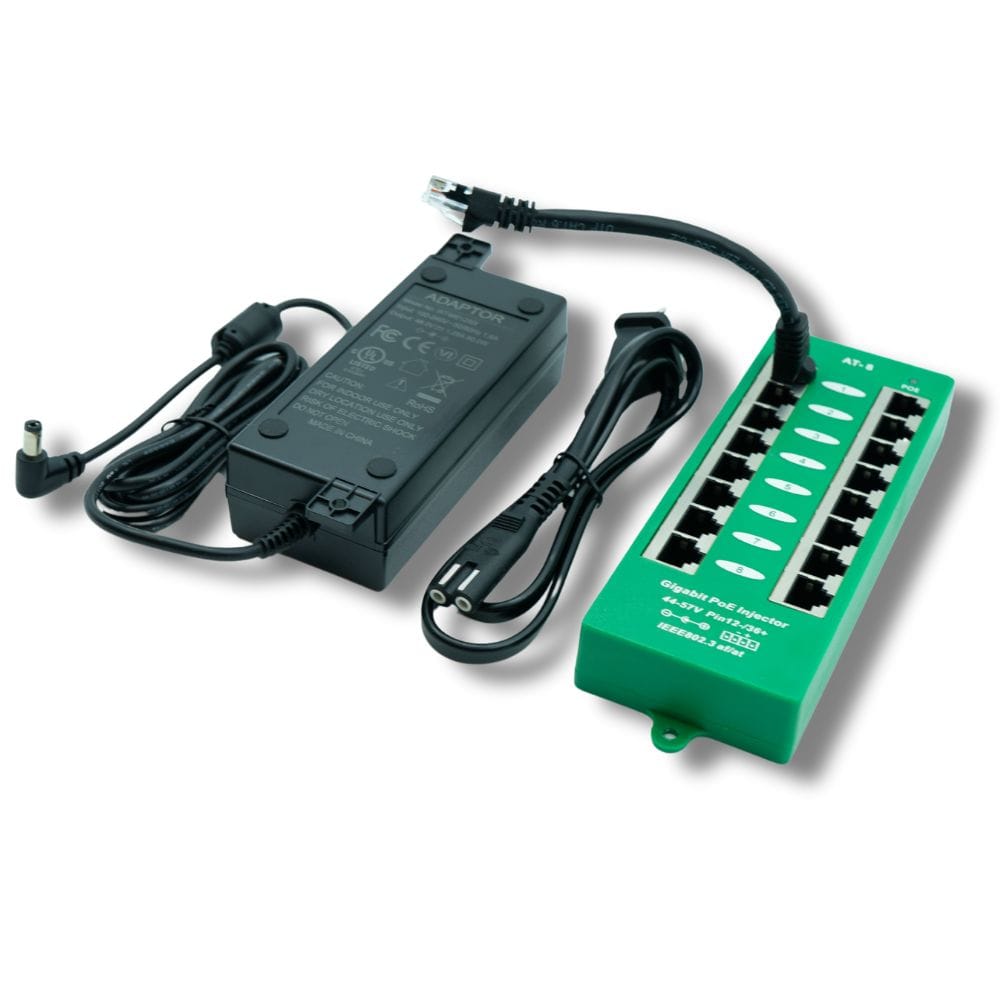

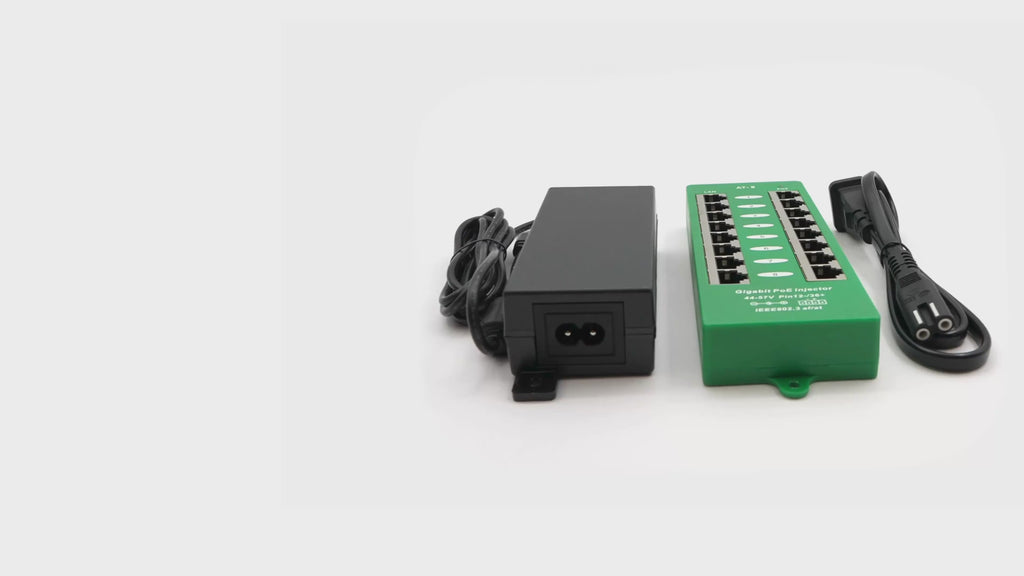

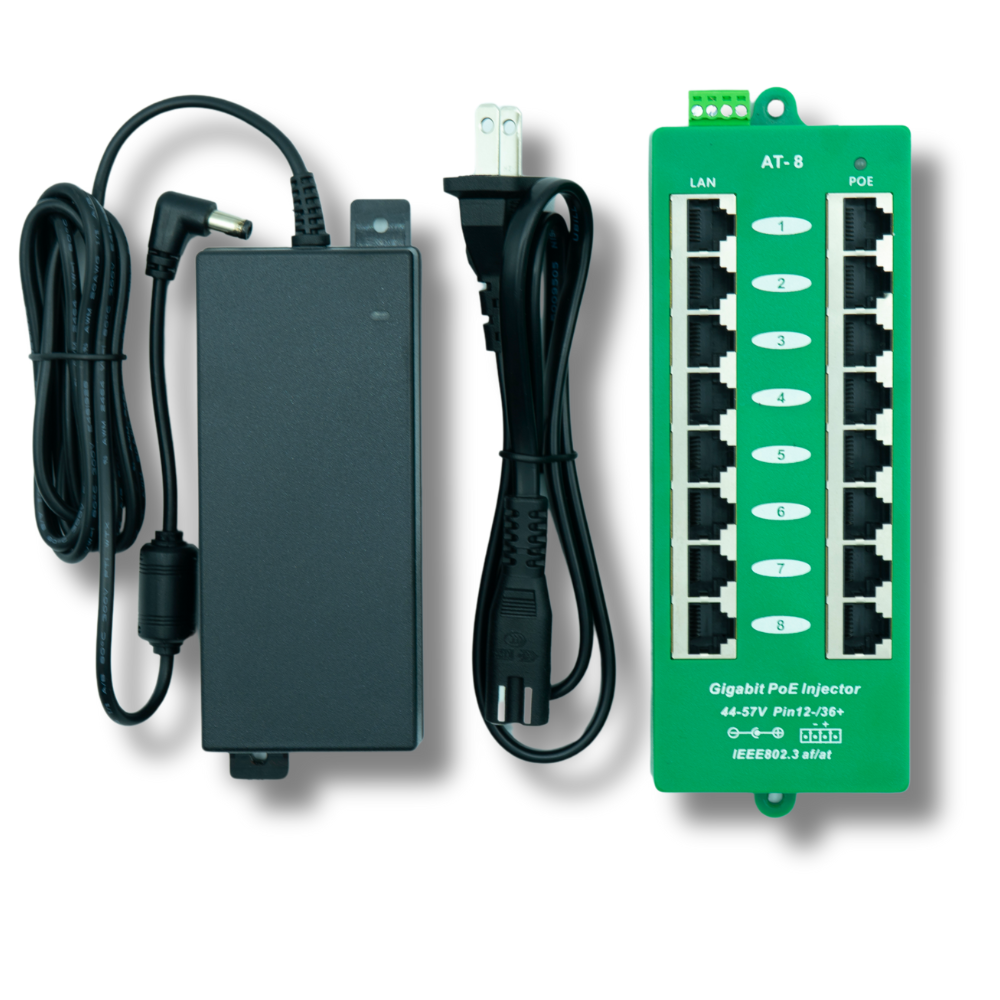

Includes a 48 volt, 60 watt power supply
Shielded RJ45 ports
650mA self-resetting fuse / 30 watts per port
Supports 8 x 802.3af devices (up to 7 watts each); 4 x 802.3af devices (up to 15 watts each) or 2 x 802.3at devices (up to 30 watts each)
Online Product Manual

$99.99

Qty:

8 Port Active Gigabit Mode A PoE Injector With a 48 Volt 60 Watt Power Supply

Product Features:

Instantly upgrade your network switch to PoE+ for 802.3at devices like VOIP phones, WiFi Access Points, Cameras and More
Active negotiation protects non-PoE devices
Mode A power delivery (pins 1,2- / 3,6+)
Includes a 48 volt, 60 watt power supply
Shielded RJ45 ports
650mA self-resetting fuse / 30 watts per port
Supports 8 x 802.3af devices (up to 7 watts each); 4 x 802.3af devices (up to 15 watts each) or 2 x 802.3at devices (up to 30 watts each)
Online Product Manual

Tech Info

Product Specifications

Certifications	UL/CE/FCC
Data + PoE Ports	8
Data Ports	8
Data Rate	Gigabit
Dimensions	7 x 2.5 x 1 inches
Max Amps Per Kit	1.25 Amps
Max Power for Kit	60 Watts
Max. Amps Per Port	650 mA
Mount Type	Wall
Operating Humidity	5% to 90%
Operating Temperature Range	-10 - 60C
Output Voltage	48 volts
PoE Method	Active
PoE Mode/Pinout	Mode A (-1,2 +3,6)
PoE Standard	802.3af, 802.3at
Power Input	2.1 mm DC and Phoenix Connector 1840382
Power Supplies	PS-48v60w

Questions

Ask a Question

What is the max output wattage per pport

Each port has a fuse limit of .65 amps. Using a 48 volt power supply would allow you to get 30 watts out of the port.
