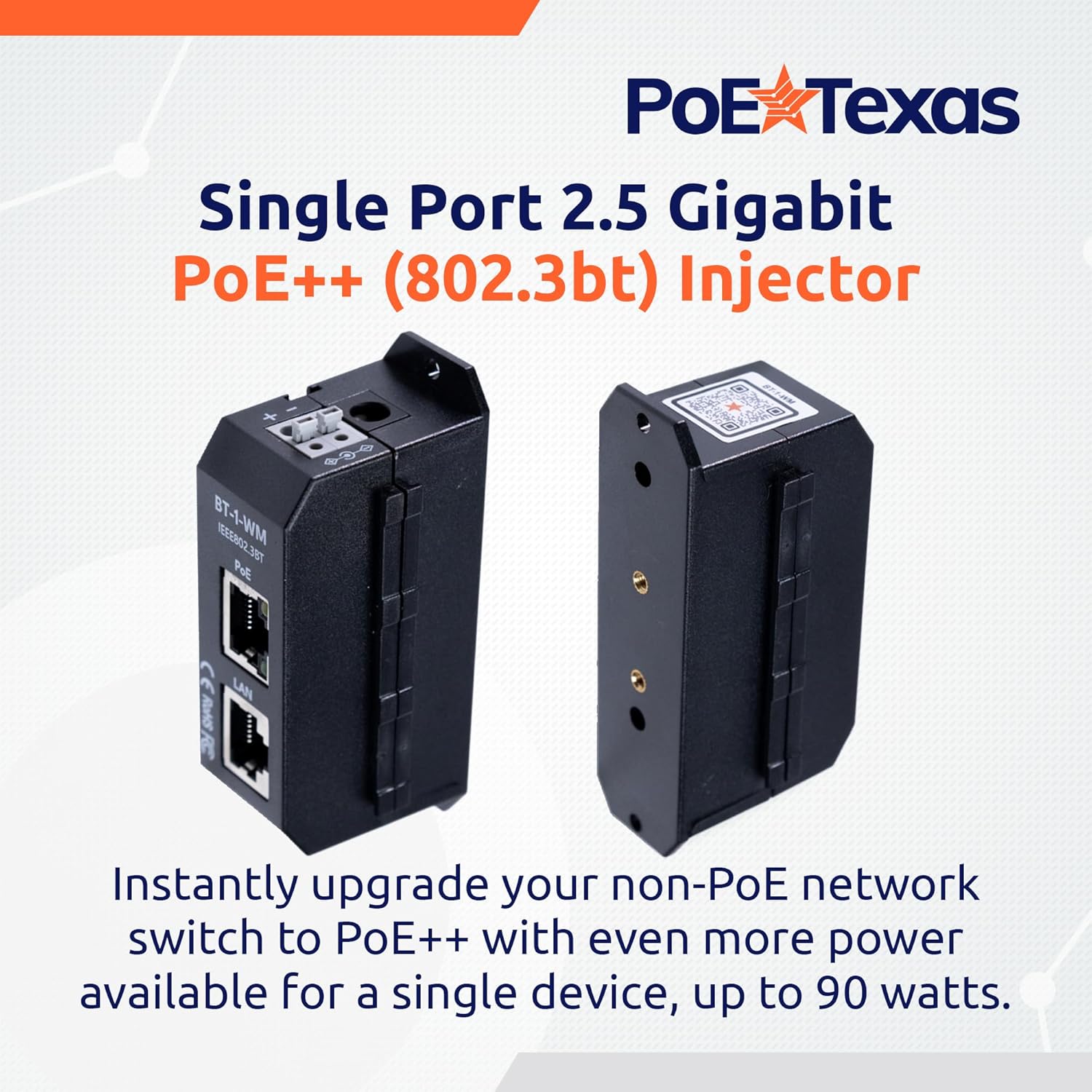

Single Port Gigabit PoE++ (802.3bt) Injector with 56 Volt 120 Watt Output with Power Supply

SKU BT-1-56V120W

BT Class Gigabit Injector - Power and Performance

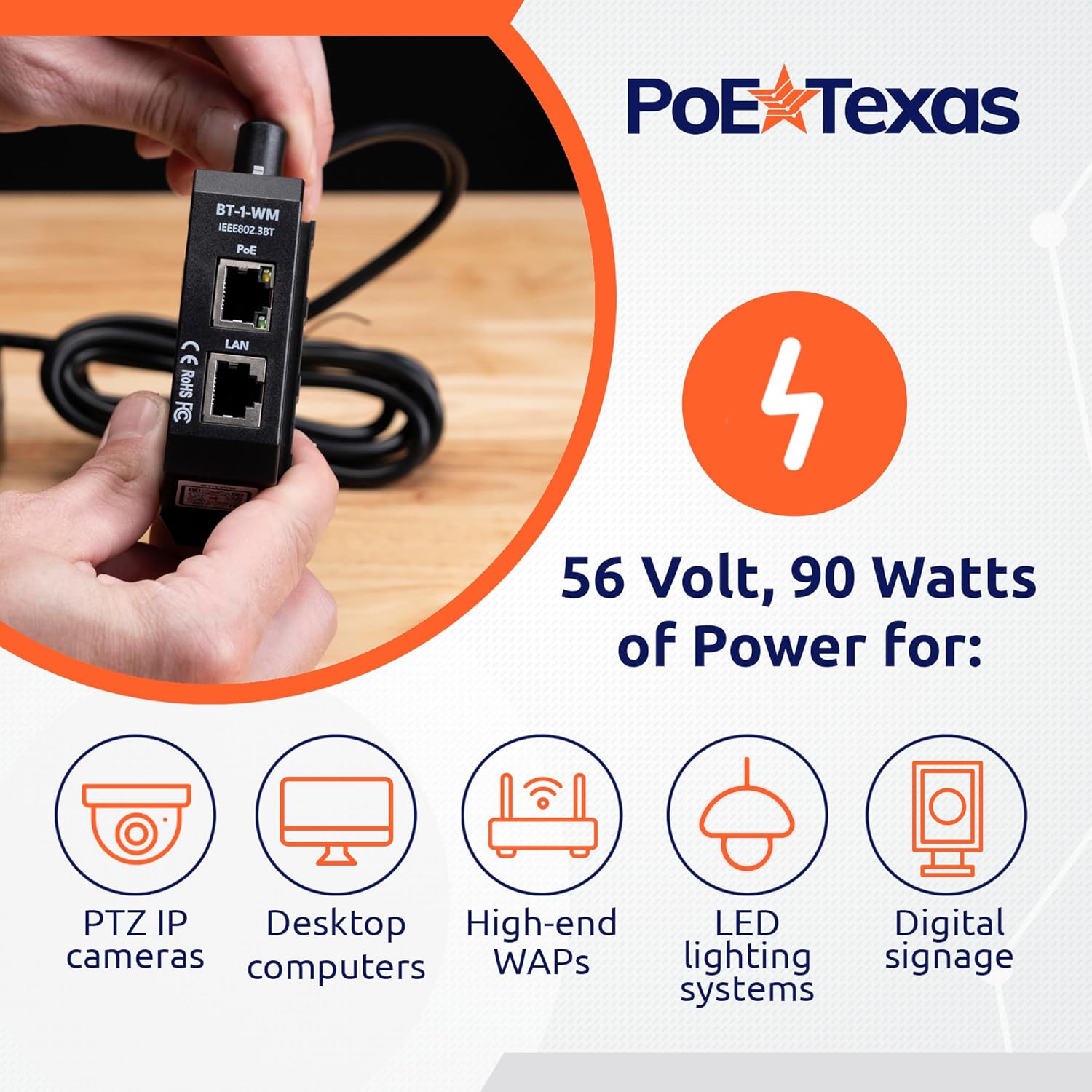

Upgrade your network infrastructure with the BT Class Gigabit Injector, engineered for high-speed data transmission and seamless integration. With DIN rail mounting and support for up to 90W per port, this injector provides the power and flexibility you need for your network expansion. Add PoE++ to your infrastructure and use it to power PTZ IP cameras, desktop computers, high-end Access Points, digital signage, LED lighting systems, and more.

With DIN rail mounting and support for up to 90W per port, this injector provides the power and flexibility you need for your network expansion.

Product Features

  • BT-1-WM Injector
  • Din Rail Mounting Bracket

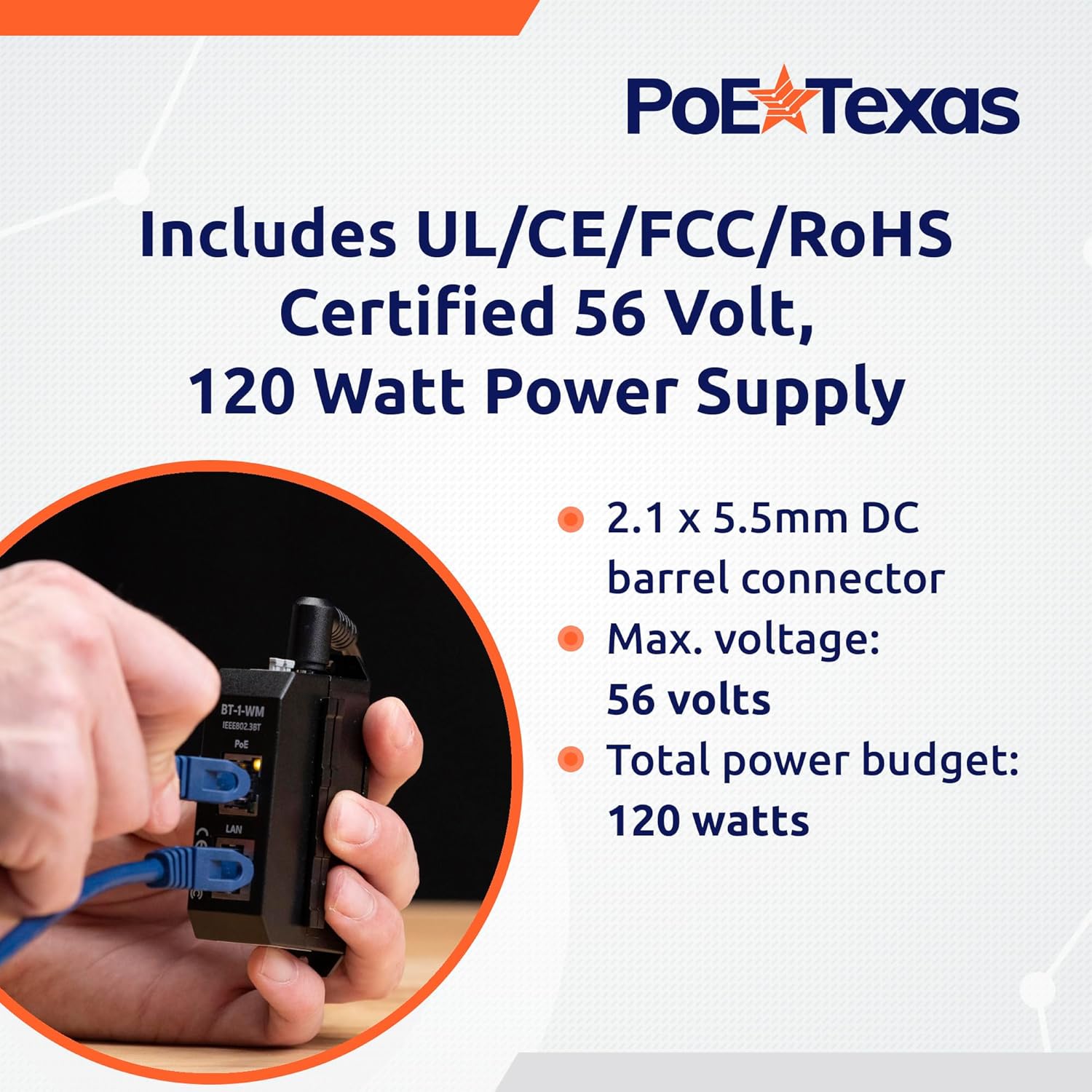

  • x1 56V 120W Power supply

Key Features:

  1. Gigabit Speed: Enjoy lightning-fast data transfer rates with support for 10/100/1000 Mbps.

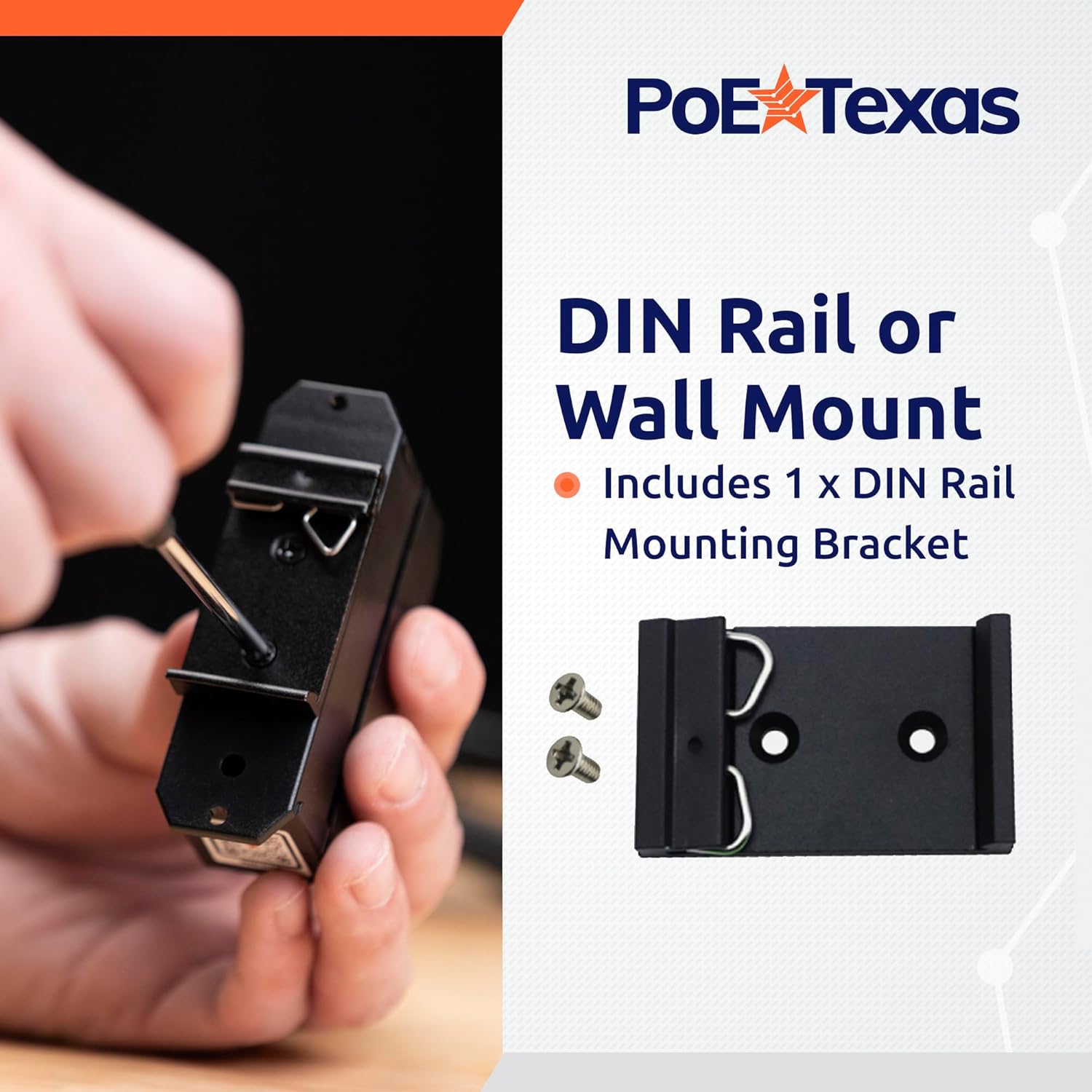

  2. DIN Rail or Wall Mount: Effortlessly install and secure the injector on DIN rails or mount on a wall, ideal for various industrial and commercial environments.
  3. High Power Output: Injects up to 90W per port.
  4. Cost-Effective Solution: Reduce installation costs with PoE Lighting solutions.
  5. Modular BT-Injector: Add more PoE++ injectors based on your project and power supply.
  6. External Power Supply: Requires an external power supply for operation, ensuring compatibility with existing setups.
  7. Certifications: CE, FCC, and RoHS certified for reliable performance and compliance with industry standards.
  8. Versatile Connectors: Features 2-pin 5mm connectors and 1 x 2.15.510mm DC female socket for easy connectivity.
  9. Output Standards: Supports IEEE 802.3af/at/bt Type 3 and Type 4 standards with multiple PoE modes (Mode A, Mode B, and Mode A + B).
  10. Efficient Design: Boasts 99% efficiency for optimal power utilization and reduced energy consumption.


  • Input Voltage: 120-240 Volt AC
  • Output Voltage: 50-55 Volt DC
  • Max Output Current: 2A
  • Dimensions: 88 x 30 x 50mm
  • Operating Temperature: 0-40°C
  • Mounting Options: Wall mount and DIN Rail mount (DIN Rail accessory included)

Upgrade Your Network Today with our  PoE++ BT Class Gigabit Injector!

See Our Online Technical Product Manual

Product Specifications

AC Plug Connector Type C14
Adapter length 3 ft
Certifications UL/CE/FCC
Connector Types 5.5x2.1 Coaxial and 18 AWG push in
Data + PoE Ports 1
Data Ports 1
Data Rate Gigabit
Display Type LED - Amber (PoE Available) ; Green (PoE Negotiated)
Input Frequency Range 50/60 Hz
Input voltage 100 - 240 VAC
Max Current 1.61 Amps
Max Power for Kit 90 Watts
Max Voltage 56 volts
Mount Type Wall
Operating Humidity 20% to 80%
Operating Temperature Range 0 - 50C
Output Voltage 56 volts
PoE Method IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
PoE Mode/Pinout Mode A (-1,2 +3,6)/Mode B (+4,5 -7,8)
