GAF-PTZOptics

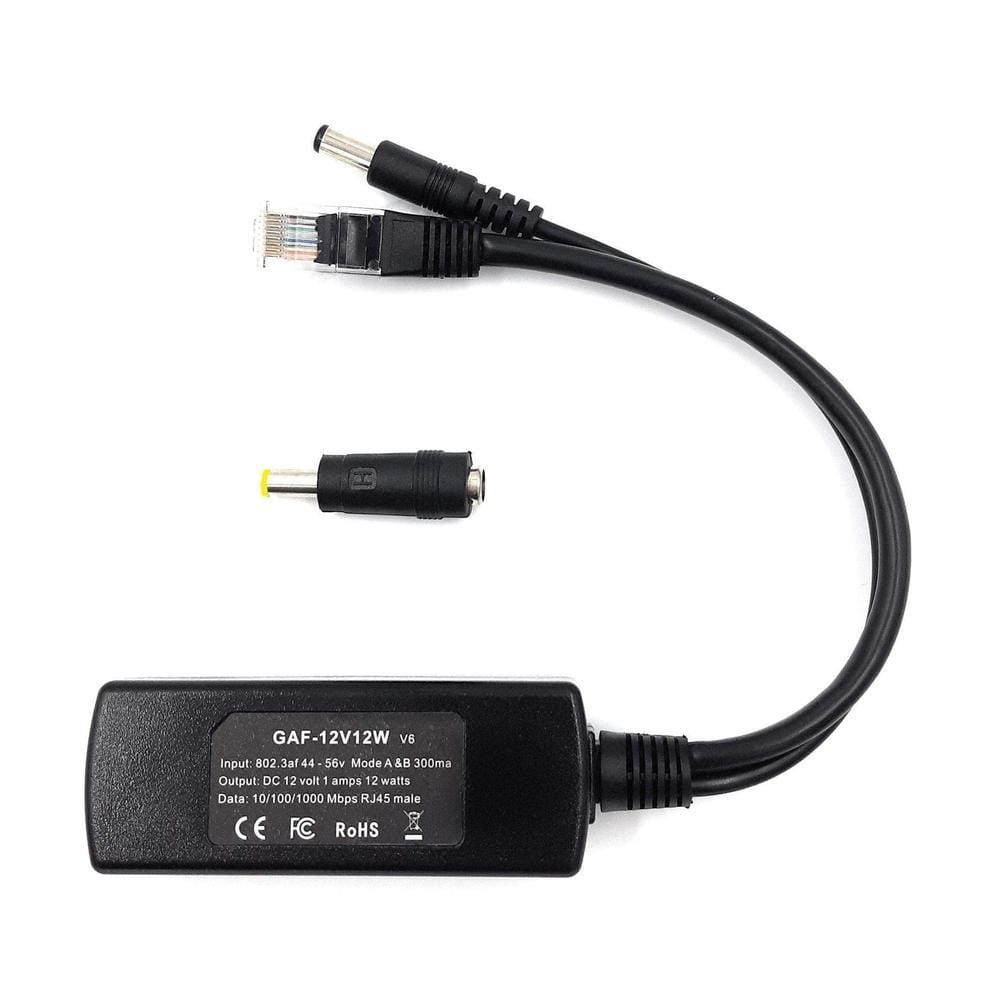

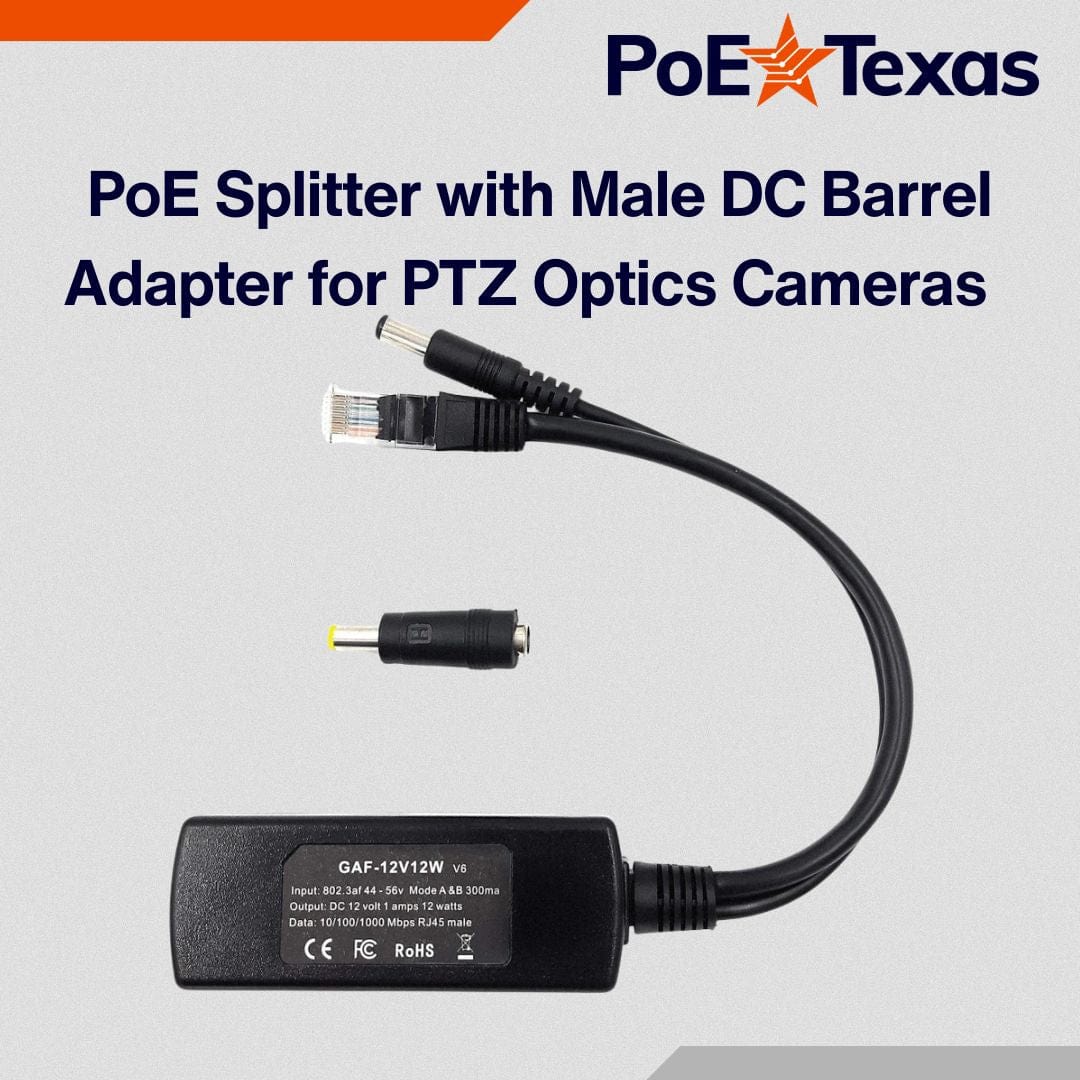

GAF-12v12w Splitter With a Male DC EIAJ-04 Barrel Adapter for PTZ Optics Cameras

The GAF-PTZOptics splitter works with 802.3af PoE to provide 12 watts of continuous 12 volt power. Use with your existing PoE Switch or 48v PoE Injector to power 12 volt devices such as HuddleCam HD or PTZOptics 12X-USB.

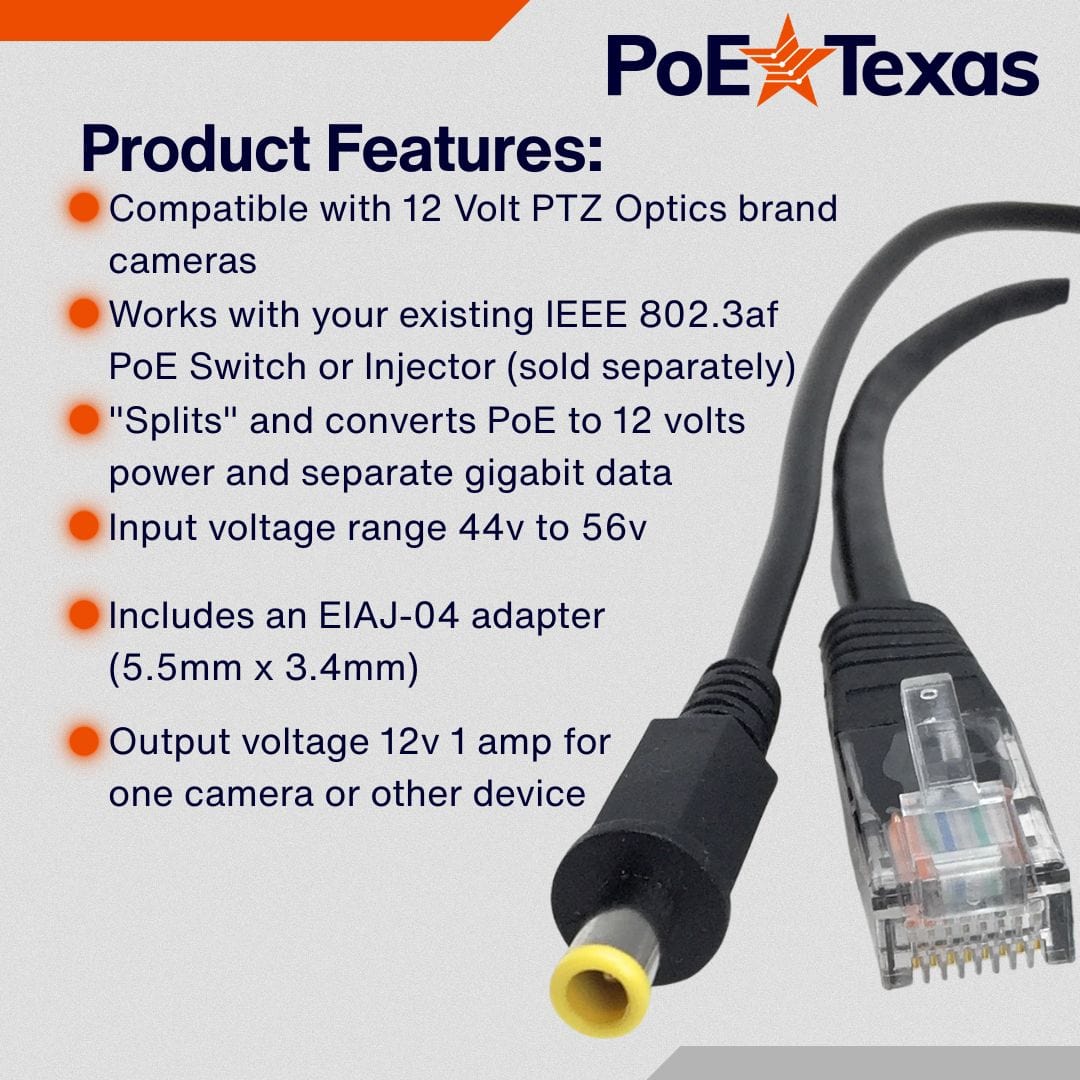

Product Features

Compatible with 12 Volt PTZ Optics brand cameras
Works with your existing IEEE 802.3af PoE Switch or Injector (sold separately)
"Splits" and converts PoE to 12 volts power and separate gigabit data
Input voltage range 44v to 56v
Includes an EIAJ-04 adapter (5.5mm x 3.4mm)
Output voltage 12v 1amp for one camera or other device

Other Options

GAT-12v25w for 25w Power (no cable adapter included)

See Our Online Technical Manual

$19.99

Qty:

GAF-12v12w Splitter With a Male DC EIAJ-04 Barrel Adapter for PTZ Optics Cameras

Product Features

Compatible with 12 Volt PTZ Optics brand cameras
Works with your existing IEEE 802.3af PoE Switch or Injector (sold separately)
"Splits" and converts PoE to 12 volts power and separate gigabit data
Input voltage range 44v to 56v
Includes an EIAJ-04 adapter (5.5mm x 3.4mm)
Output voltage 12v 1amp for one camera or other device

Other Options

GAT-12v25w for 25w Power (no cable adapter included)

See Our Online Technical Manual

Tech Info

Product Specifications

Adapters included	EIAJ-04
Cable connector length	8.5 inches
Cable connectors	RJ45 Male, 2.1mm DC Male
Data Rate	Gigabit
Dimensions	6x1x1.5 in.
Max. Amps Per Port	1
Operating Humidity	5% to 90%
Operating Temperature Range	-10 - 60C
Output Voltage	12 Volts
PoE Mode/Pinout	Mode A (-1,2 +3,6)/Mode B (+4,5 -7,8)
PoE Standard	IEEE 802.3af
Power Input	44-56 Volts POE

Questions

Ask a Question

What power Injector do you recommend for these?

You can use any 802.3af or 802.3at injector or switch (44-57 volts POE). How many units are you trying to power up? We offer 4,6,8,12 and 16 port units that are compatible with the WT-GAF-PTZOPTICS
Is a barrel adapter needed when using WT-GAF-PTZOptics on a PTZoptics 20X SDI camera?

The WT-GAF-PTZOptics is a 12 volt PoE Splitter designed with a EIAJ-04 DC Barrel. This DC barrel is specific to PTZ Optics brand cameras which use the JEITA Standard RC-5321 on the power supply interface.
