PoE Texas Splitter 802.3af PoE to USB Splitter with Gigabit Data on RJ45 Output

802.3af PoE to USB Splitter with Gigabit Data on RJ45 Output

SKU GAF-USB
$22.99

Perfect for extending 5 volts of power to charge USB devices. Power your 5 volt USB and micro-USB devices from your existing PoE switch with this 5 volt Power over Ethernet splitter/converter. The GAF-USB Mode A/B inline step down splitter converts 44-56 volt PoE to 5 volts. The included female USB adapter is specially designed for Apple Fast Charge but may be used with any USB cable.

Product Features:

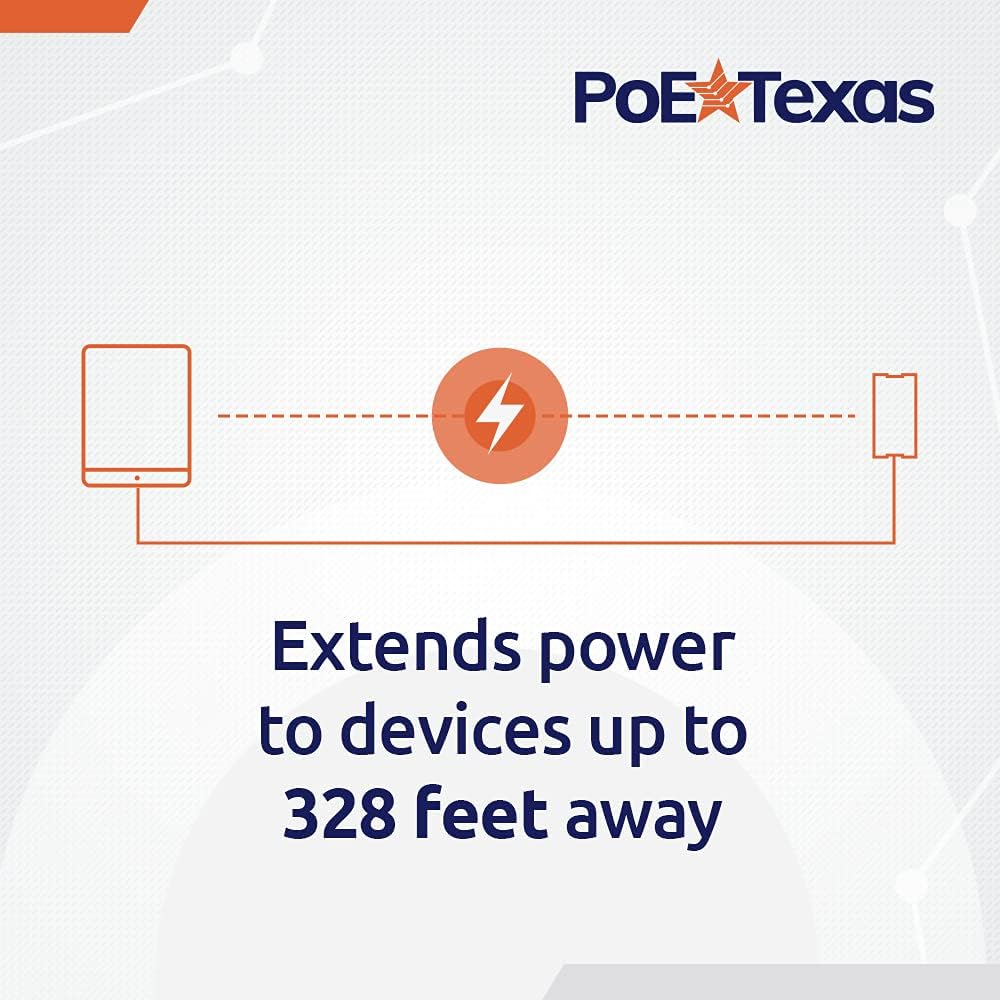

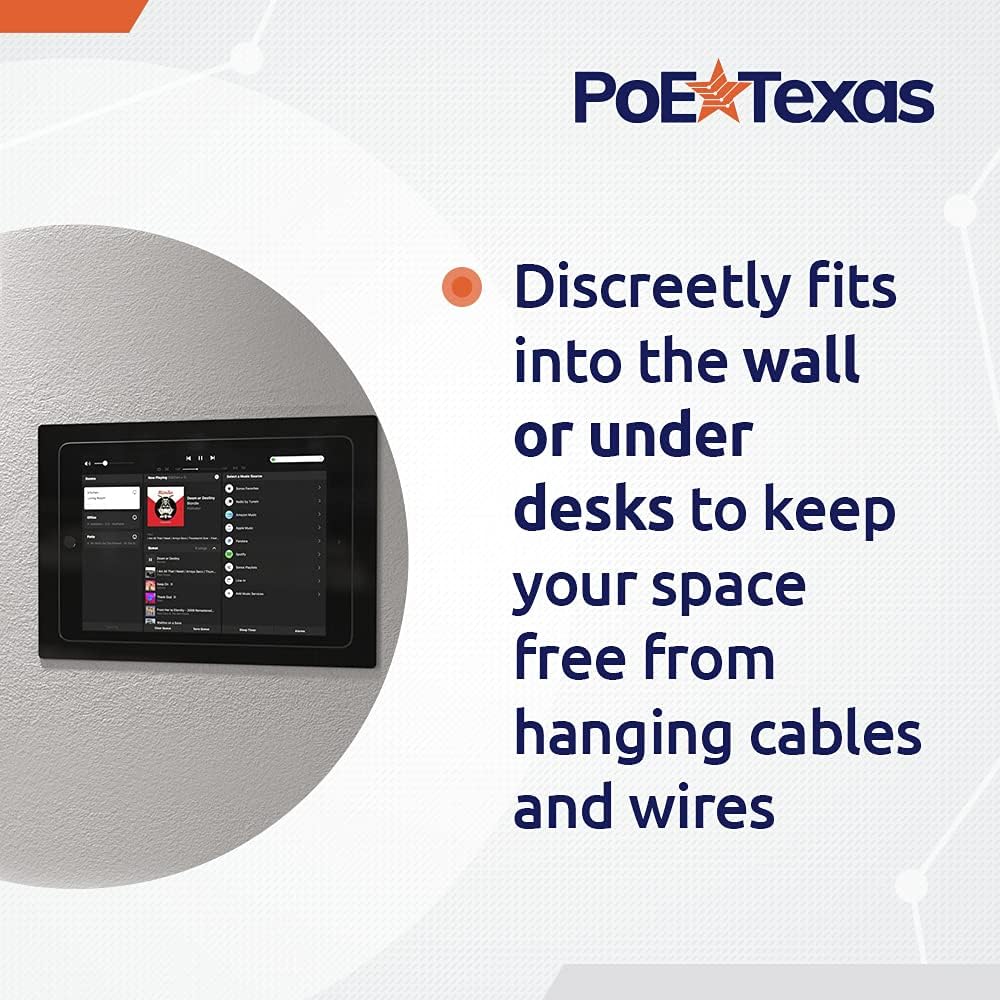

  • Place your touchscreen display where you want, not where the charging adapter can reach - up to 328 feet from the source
  • "Splits" and converts PoE to 5 volts 10 watts of power and separate gigabit data
  • Input voltage range 44v to 56v POE
  • Output voltage 5 volts 2 amp for one camera or other device

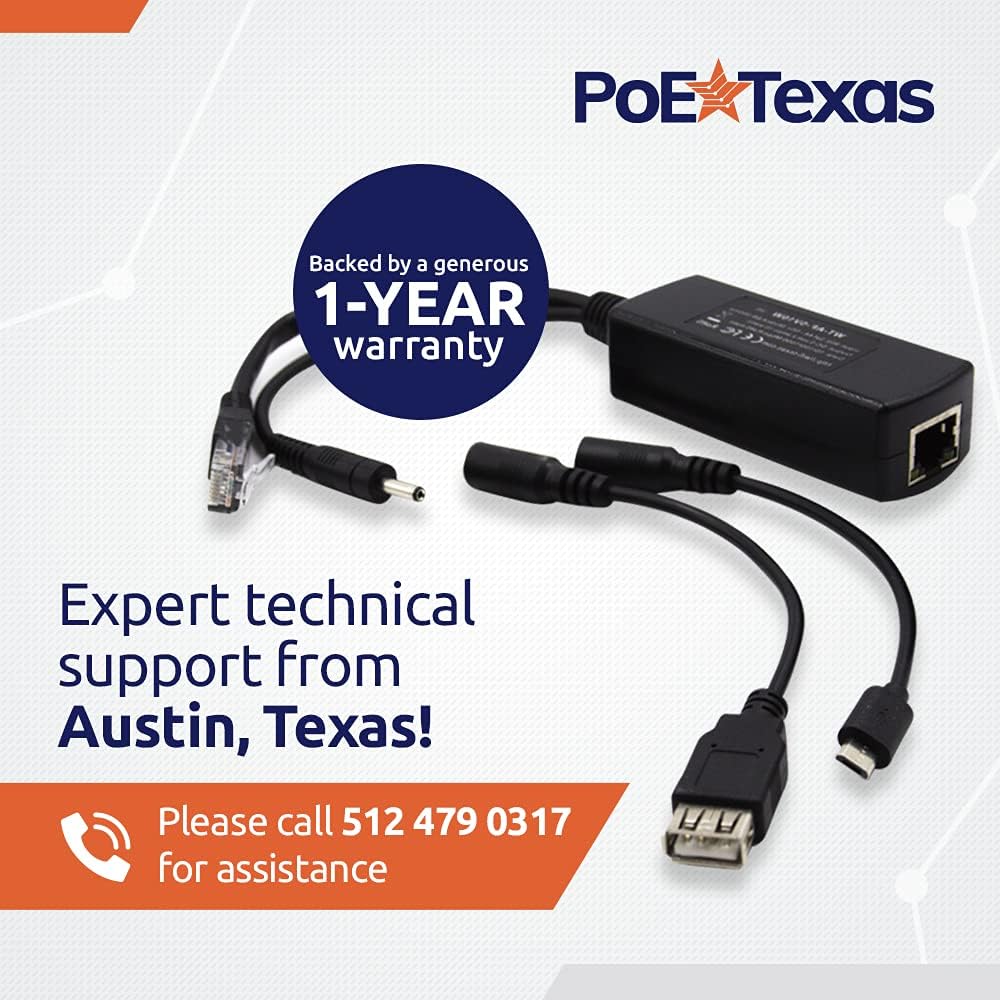

  • Includes a Micro-USB and a Female USB (designed specially for Apple fast charging) adapters. The standard 1.35mm x 3.5mm DC power plug fits most devices
  • Compatible with your existing IEEE 802.3af PoE switch or injector (sold separately)

See Our Online Technical Manual

Product Specifications

Adapter length 6.5 inches
Adapters included 1.35mm to female USB & 1.35mm to male Micro-USB
Cable connector length 8.5 inches
Cable connectors RJ45 Male, 1.35mm Male DC
Data + PoE Ports 1 (input)
Data Ports 1
Data Rate Gigabit
DC connector 1.35mm male (power out)
Dimensions 6x1x1.5 in.
Input voltage 44 volts to 56 volts
Max. Amps Per Port 2
Operating Humidity 5% to 90%
Operating Temperature Range -10 to 60°C
Output Voltage 5 volts
PoE Method Active
PoE Mode/Pinout Mode A (-1,2 +3,6)/Mode B (+4,5 -7,8)
Power Input Female RJ45
Weight 1 oz

QUESTIONS & ANSWERS

Ask a Question

  • Do you have a POE Adapter with micro usb for android tablet with both power and data?

    Check out our blog: Android Tablet Power and Data with Power over Ethernet which gives a full explaination on how to provide power and data to an Android using our WT-AF-5v-MicroUSB splitter.

  • Do you have a poe splitter that gives 5v out AND is poe pass through on the Data out?

    Sorry, we don't have a splitter that will pass through PoE.  However, if you can handle a data rate of 100 Mbps, which is still screaming, and you want a 5 volt splitter and a second PoE line, I recommend our WT-MMF-RJ45 kit.  It allows you to combine two 10/100 PoE signals on one Ethernet cable and split it out on the other end.  The only thing you need to make sure is that you have PoE and data on the Mode A wires.  What's Mode A? - Read this blog.

  • Hello, please does this POE splitter ( WT-AF-5V-USB ) also work with passive poe? We wanto to use POE pannel but we don't know if it will work. Thank you

    Yes, this splitter will work with 802.3af passive PoE. This splitter requires an input voltage of 44-56 volts, so it is not compatible with 24V passive PoE.

  • Do you have an USB to Ethernet adapter that also provides 5V separate output?

    We do not sell a USB to Ethernet adapter. You may reference our blog about Apple iPad PoE with Wired Ethernet Data - Updated!

  • Will this work with one of your POE switches to power a Google nest cam indoor (wired)? https://store.google.com/us/product/nest_cam_indoor?sku=_nest_indoor_camera_snow&hl=en-US

    Yes, the GAF-USB is compatible to provide 7.5W over USB-A to the Nest Cam, with an 802.3af POE switch or injector.

×





×

×
