PoE Texas Splitter In-Wall PoE Splitter with Gigabit Data + Two USB Charging Ports

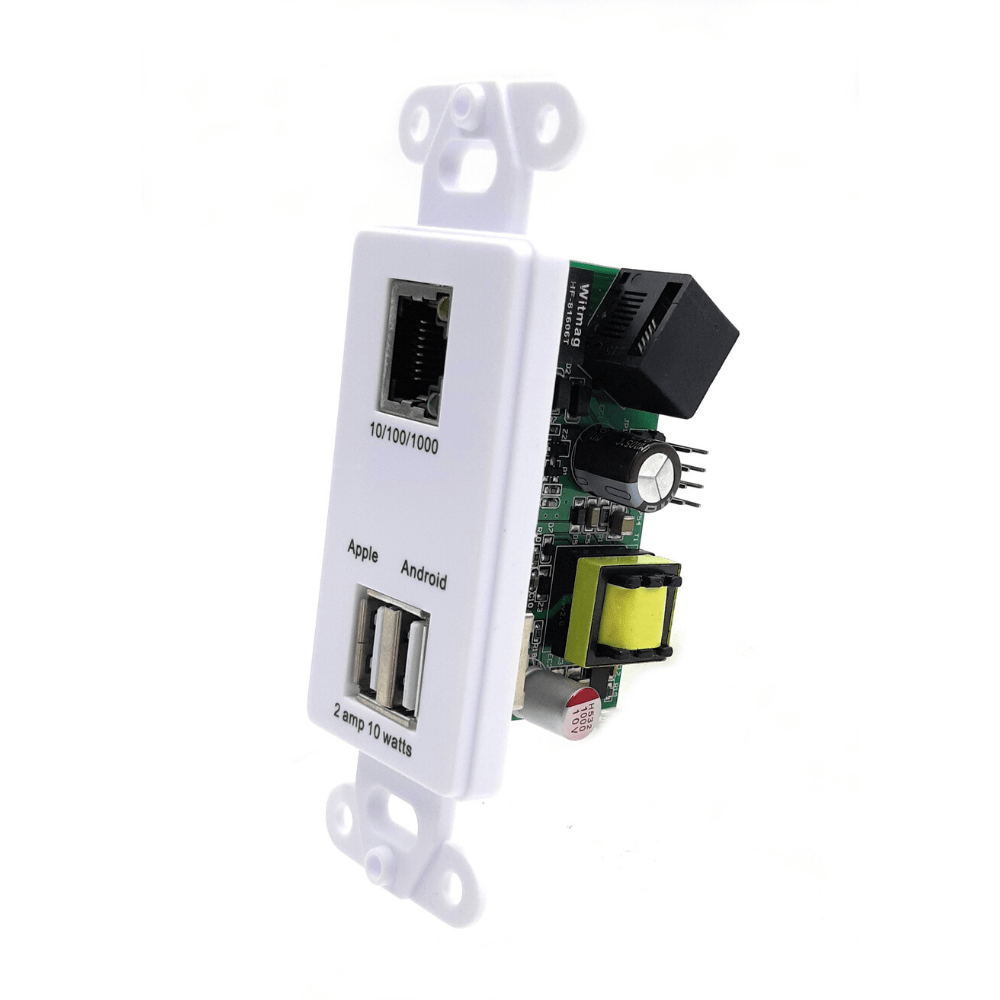

In-Wall PoE Splitter with Gigabit Data + Two USB Charging Ports

SKU GAF-USB2
$32.99

Perfect for Integrating USB Charging into Your Home or Office

Easily convert a regular outlet into a USB charging and network data outlet. Utilize Power over Ethernet technology to extend power to this 5 volt wall outlet near your office desk, in your kitchen or living areas, or anywhere you need a convenient charging station. Save money by using the GAF-USB2 in-wall outlet; it can easily be integrated into your space for a fraction of the cost of installing a traditional 120 VAC outlet.

Product Features:

  • Simple, cost effective solution for installing a USB charging station where you need it
  • In-Wall option provides a clean look and integrates into your home or office space
  • Power the outlet via PoE from up to 328 feet away
  • Output 5 volts, 10 watts on the USB port - Apple and Android outlets configured for fast charging
  • 10/100/1000 Gigabit Data on the RJ45 outlet
  • Compatible with a Mode A* (pins -1,2 +3,6) IEEE 802.3af injector or switch (try GPOE-1A-48v15w-ONE or GPOE-4A-48v48w)

*The splitter comes pre-configured for Mode A operation (What's Mode A?), however, you can reconfigure it for Mode B with a few board jumpers. Here's how to do it.

Product Specifications

Connector Types RJ45 x 2 / USB-A x 2
Data + PoE Ports 1 (input)
Data Ports 1
Data Rate Gigabit (on RJ45 only)
Dimensions 6x1x1.5 in.
Input voltage 44 volts to 57 volts
Max Voltage 5 Volts
Max. Amps Per Port 2
Operating Humidity 5% to 90%
Operating Temperature Range -10 - 60C
PoE Mode/Pinout Mode A (-1,2 +3,6). Can be converted to Mode B (+4,5 -7,8)

QUESTIONS & ANSWERS

Ask a Question

  • Can the network activity LEDs be disabled? I would like to use this to power an Axis M10 camera would like to disable the lights as they would be blinking at the top of the wall near the ceiling.

    The lights cannot be disabled as the board design has them wired into the battery on the board. You could get creative by covering them with white tape.

  • Can I power this with a 10/100 PoE midspan injector?

    Yes, you can power this with any of our WS-POE- . . . (10/100) injectors as long as you do the Mode B conversion on it.  Here's the blog on how to do it:
    https://www.poetexas.com/blogs/news/wt-gaf-usb2-conversion-to-mode-b

  • Will this work for a Google Wifi with USB to USB C cable?

    The WT-GAF-USB2 will work for the Google Wifi. The max power consumption of Google's WiFi is 9watts, well within the 5 volt 10 watt power limits of the WT-GAF-USB2

  • Will the data port supply power to a POE device?

    The data port only supplies Gigabit data 10/100/1000 and does not apply power to the port.

    We have a solution for that if you need to pass on POE.  You can use our WT-MMF-RJ-45 to send power and data to two devices over one ethernet cable.

  • I have an iPad 2nd gen wall mounted, my charging point is not working. The charging port is connected to POE port. Will this product solve my issue?

    Yes this will work to charge Ipad or Android devices. This is an internal wall mount poe injector. You will need to use your apple charging cable with this injector.

  • Will this work for two google mini? 2 amps both ports in the same time?

    No, this will only provide power to 1 devices at a time. If you'd like to contact our technical support we'd be happy to learn more about your project, and see if we have a better product for your application. 512-479-0317.

  • Can the USB power ports run a Raspberry Pi?

    The USB port is compatible for 5V10W. If you're looking for an option to power a Raspberry PI using POE, we recommend looking at our GAF-PIHAT or our GAT-PIHAT or POE-PIHAT.

×





×

×
