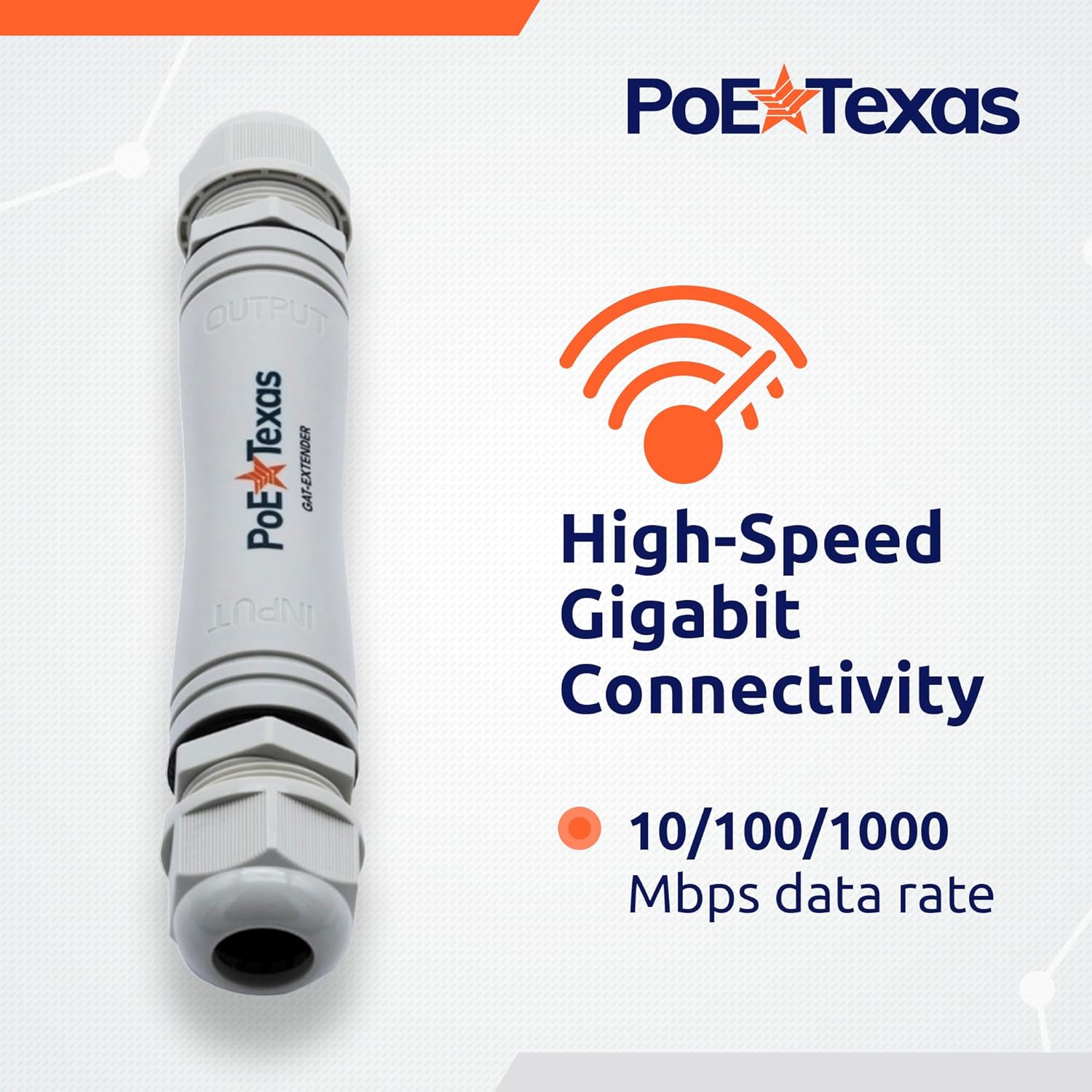

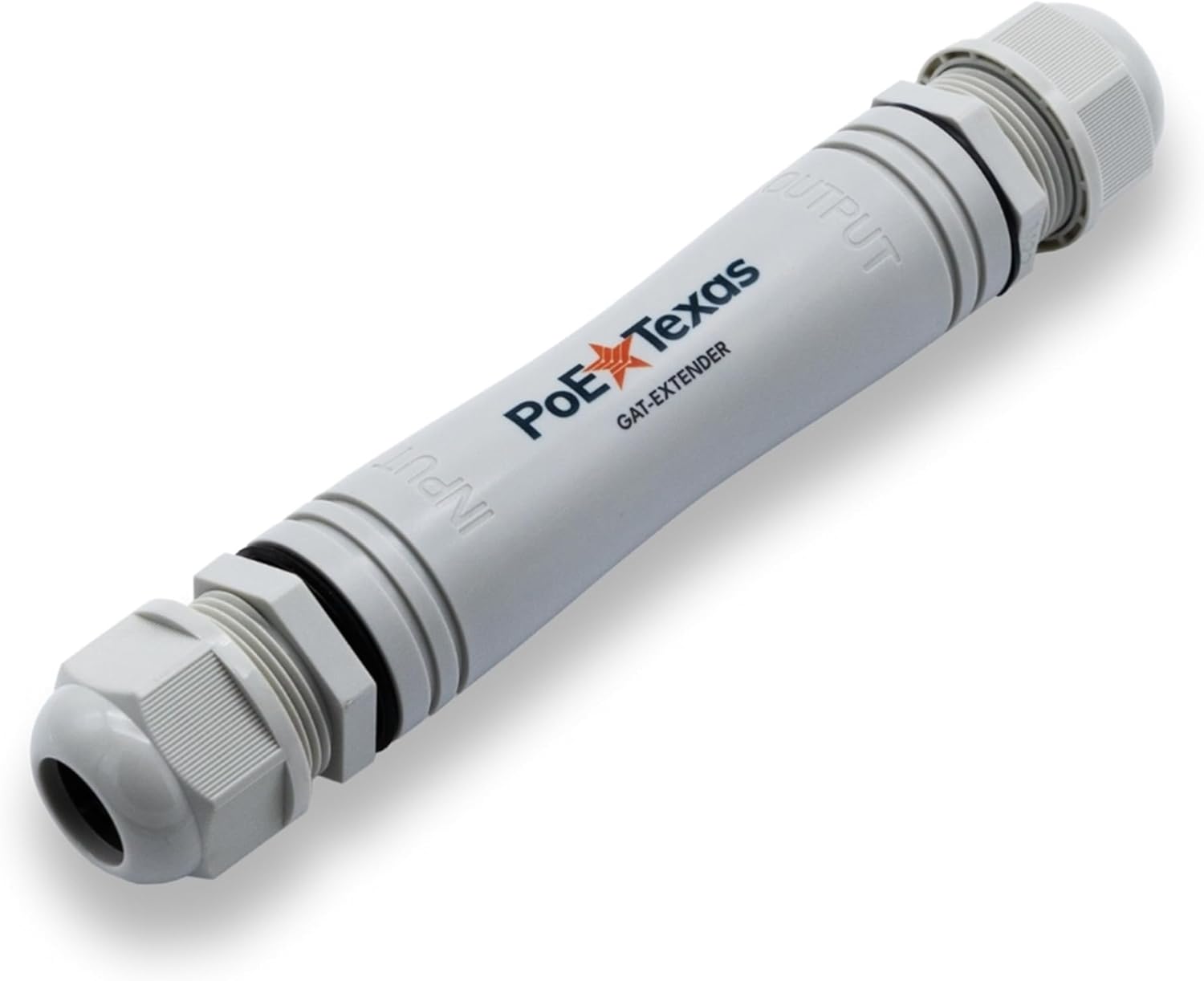

IEEE 802.3af/at Gigabit Outdoor Power Over Ethernet Extender IP67 Rated

SKU GAT-Extender
Save 2%
Original Price $38.79
Current Price $37.99

Go the distance! Deliver 30W via Power Over Ethernet with 22W to your end device- up to 330 feet away from the source. The inline PoE Extender allows you to power an IP camera, WiFi access point, backhaul, and other PoE devices through an exterior network data cable at up to 330 feet while carrying Gigabit data speeds through.

NOW WITH 802.3AT CAPABILITY. Use IEEE 802.3at power sourcing equipment (PSE) like the AT-16-55v60w to extend PoE power (44-57 volts) past the typical 100 meters.

Product Features:

  • Compatible with IEEE 802.3af/at switch or injector

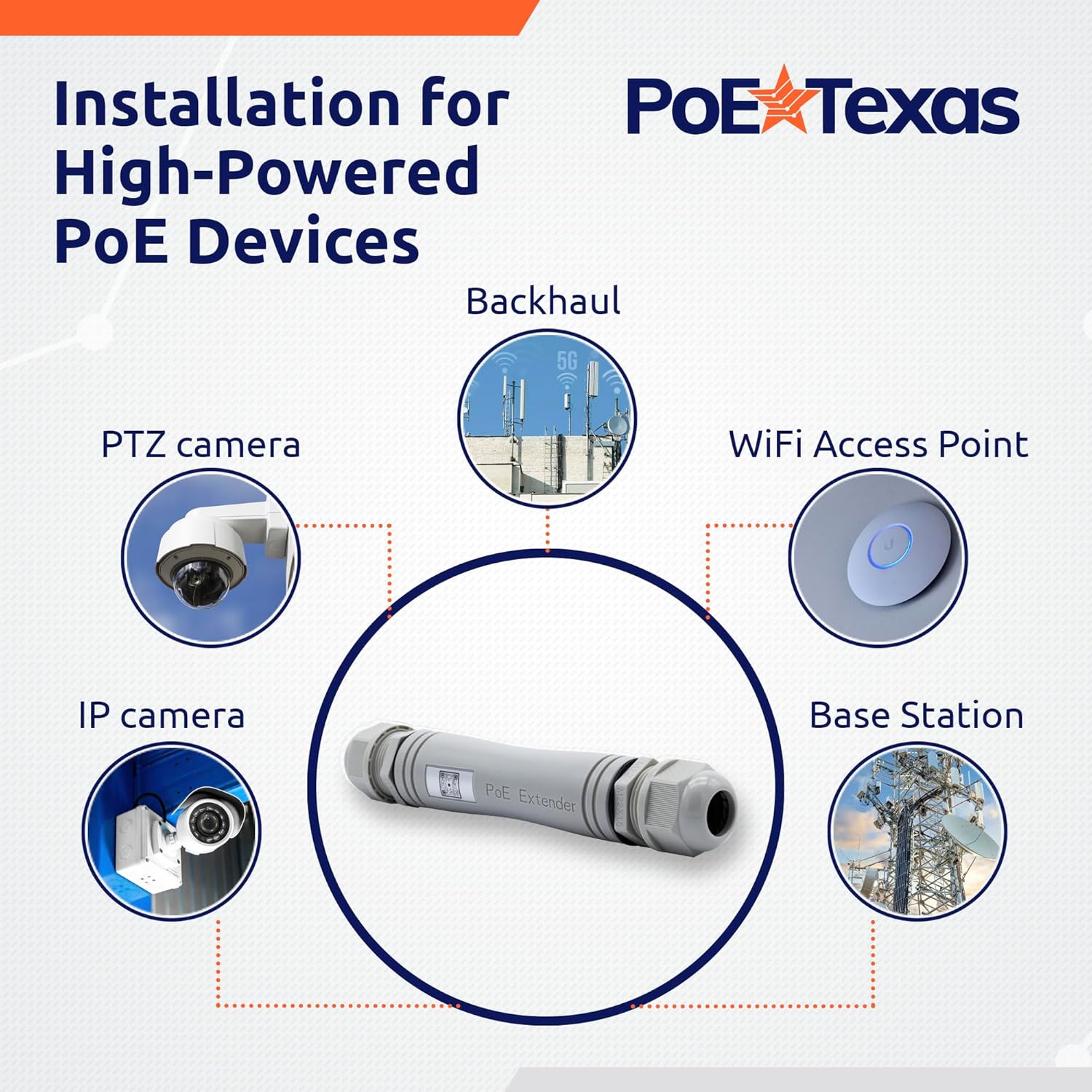

  • Use to power Wireless APs, Base Stations, Network Cameras, and other high-power devices
  • Delivers 55v 22w to your end device
  • Designed for outdoor use with IP67* (water resistant; do not submerge)
  • 10/100/1000 Gigabit data rate carries through

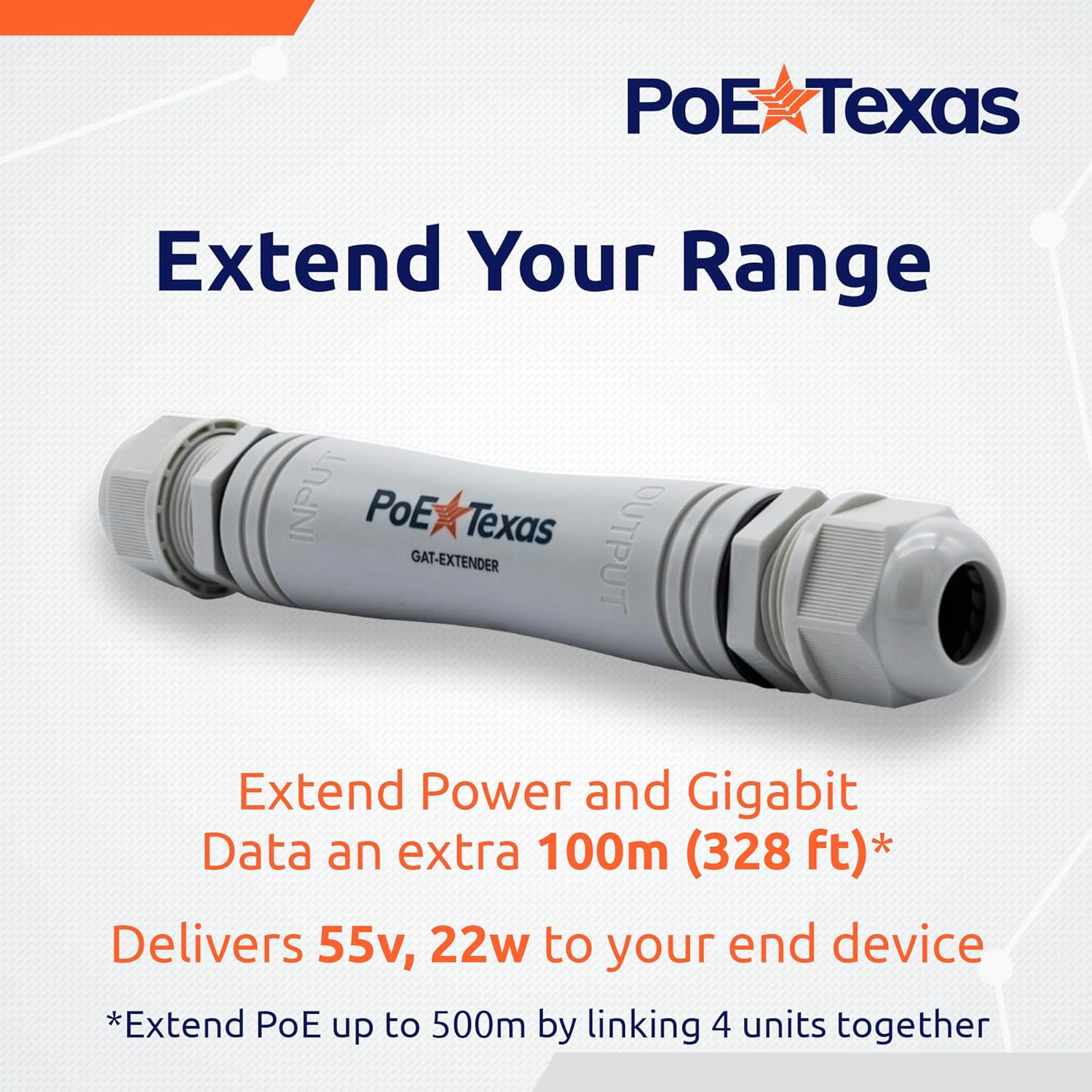

  • A single extender extends PoE power an additional 330 feet
  • PoE Powered - No power supply required
  • Uses Active PoE to protect non-PoE and low-voltage devices

See Our Online Technical Manual

*Extend PoE up to 500 meters by linking 4 units together

Product Specifications

Adapter length 6.5"
Certifications IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
Connector Types RJ45 Female
Data + PoE Ports 2
Data Rate 10/100/1000
Dimensions 156.5*29*29mm
Input Voltage Range 48v - 54v
IP Rating IP67
Jumbo Frame 9KByte
LED Indicator LNK/ACT (Green), PoE (Orange)
Load Regulation 6KV
MAC Address Table 2K, Auto-learning, Auto-update
Max Power for Kit 30 Watts
Max. Amps Per Port 1.1Amp
Mount Type inline
Operating Humidity 10% ~ 90% non-condensing
Operating Temperature Range -10°C ~ 50°C
Output Voltage 55v (Typical)
Packet Forwarding Rate 3Mbit
PoE Method IEEE 802.3af/at
PoE Mode/Pinout Mode A/B
PoE Output Power 30 watts
PoE Standard IEEE 802.3af/at
PoE Standards Supported IEEE 802.3af/at
Power Input 48 - 54 volts PoE
Power Output 22W
Power Supplies not included
Storage Temperature -40 °C ~ 70 °C
Weight 13.9 oz
