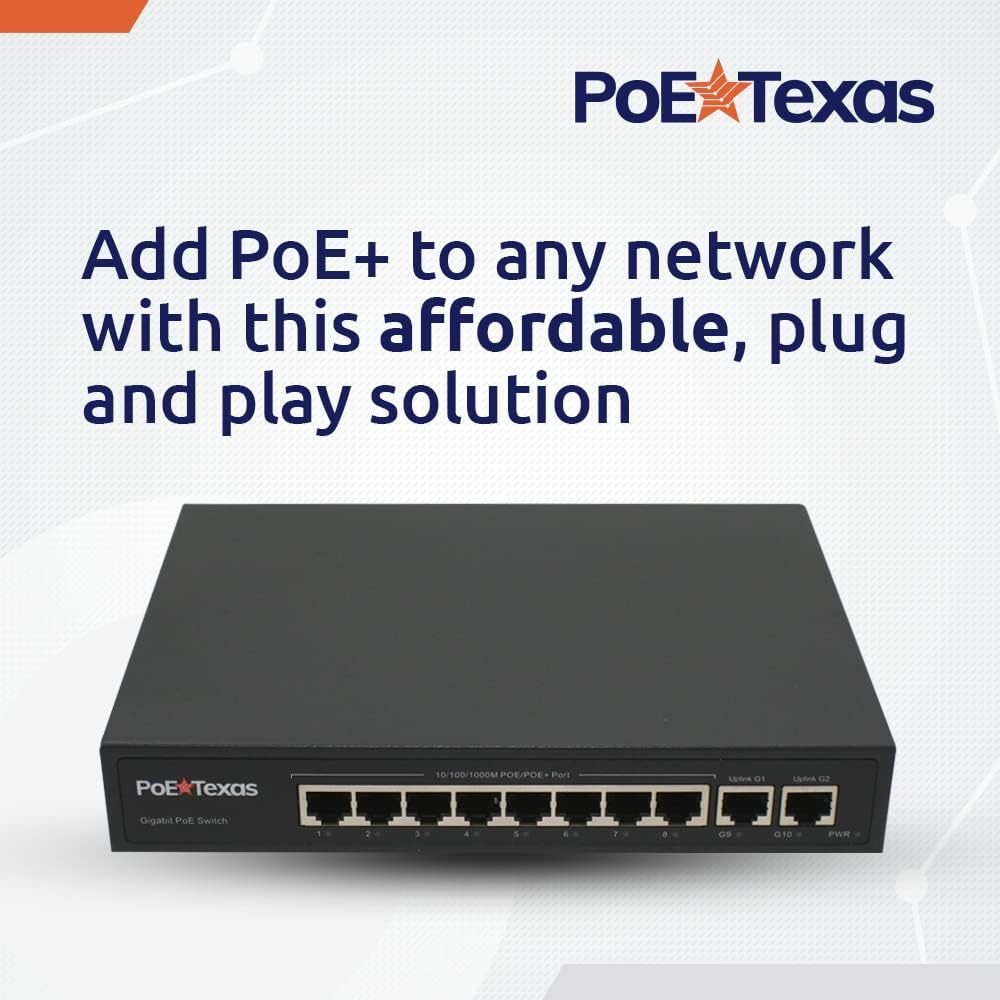

8-Port Gigabit 802.3af/at PoE Switch for Video, Tablet & Security Applications

SKU GATS-10-8-51v120w

Intuitive, Highly Visible PoE Control at Your Fingertips

Power up to four IEEE 802.3at standard IP cameras, desktop phones, WiFi access points, or other low voltage devices over 300 feet from PoE source. The GATS-10-8-51v120w can support up to eight devices with total power budget of 120 watts.

Upgrade to PoE+

PoE+ opens the door for you to add downstream node controllers saving on network cabling, multi-radio Wifi Access Points increasing your bandwidth, PTZ cameras for better security, and USB Type C devices such as tablets including the Microsoft Surface Go and iPad Pro 12.9" through our GAT-USB-C PoE splitter.

Dual LAN Ports for Redundancy

Two uplink ports for LAN allows you to add architecture security, so your critical systems aren't relying on a single network connection.

Simple, Reliable, and Supported By Experts

We design our Power over Ethernet solutions for simple installation and long life, but sometimes things go wrong. When that happens, expert help is only a phone call away. All of our PoE products are backed with a 1-year replacement warranty and a 30-day “no questions asked” return policy.

For more information, see our Product Manual

Product Specifications

AC Plug Connector Type C14
Adapters included Yes
Cable connector length 3 ft
Certifications CE, FCC, RoHS
Data + PoE Ports 8
Data Ports 2 Gigabit
Data Rate Gigabit
Dimensions 8.74" x 6.5" x 1.325" in.
Input Voltage Range 120 / 220 VAC
LEDs Per Port 1 - PoE, Activity
Max Power for Kit 120 watts
Mount Type wall and desk
Operating Humidity 10% to 90%
Operating Temperature Range -20 - 50 C
Output Voltage 51 volts
PoE Method IEEE 802.3af; IEEE 802.3at
PoE Mode/Pinout Mode A (-1,2 +3,6)
PoE Standards Supported IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3az, IEEE802.3x IEEE802.3af, IEEE802.3at
Storage Temperature -40-80 C


Ask a Question
  • country of origin

    While our designs are made in the U.S., we manufacture our products in China.

  • Are all 8 ports are capable of simultaneous POE, and they're gigabit ports?

    Yes, ports 1-8 support simultaneous POE, however they are rated for 10/100 mbps. The uplink ports are rated for gigabit.
