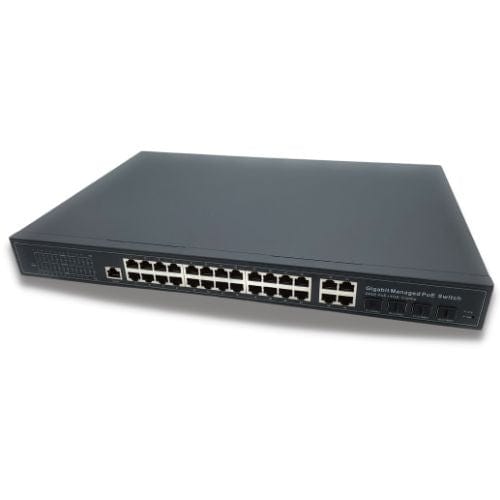

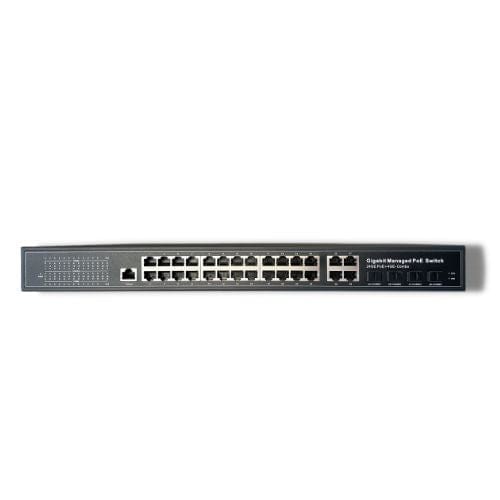

24-Port Gigabit Layer 2 Managed PoE+ (IEEE 802.3at) Switch

SKU GATS-M-TS8200-24P-4GCM
Sold out
$549.99

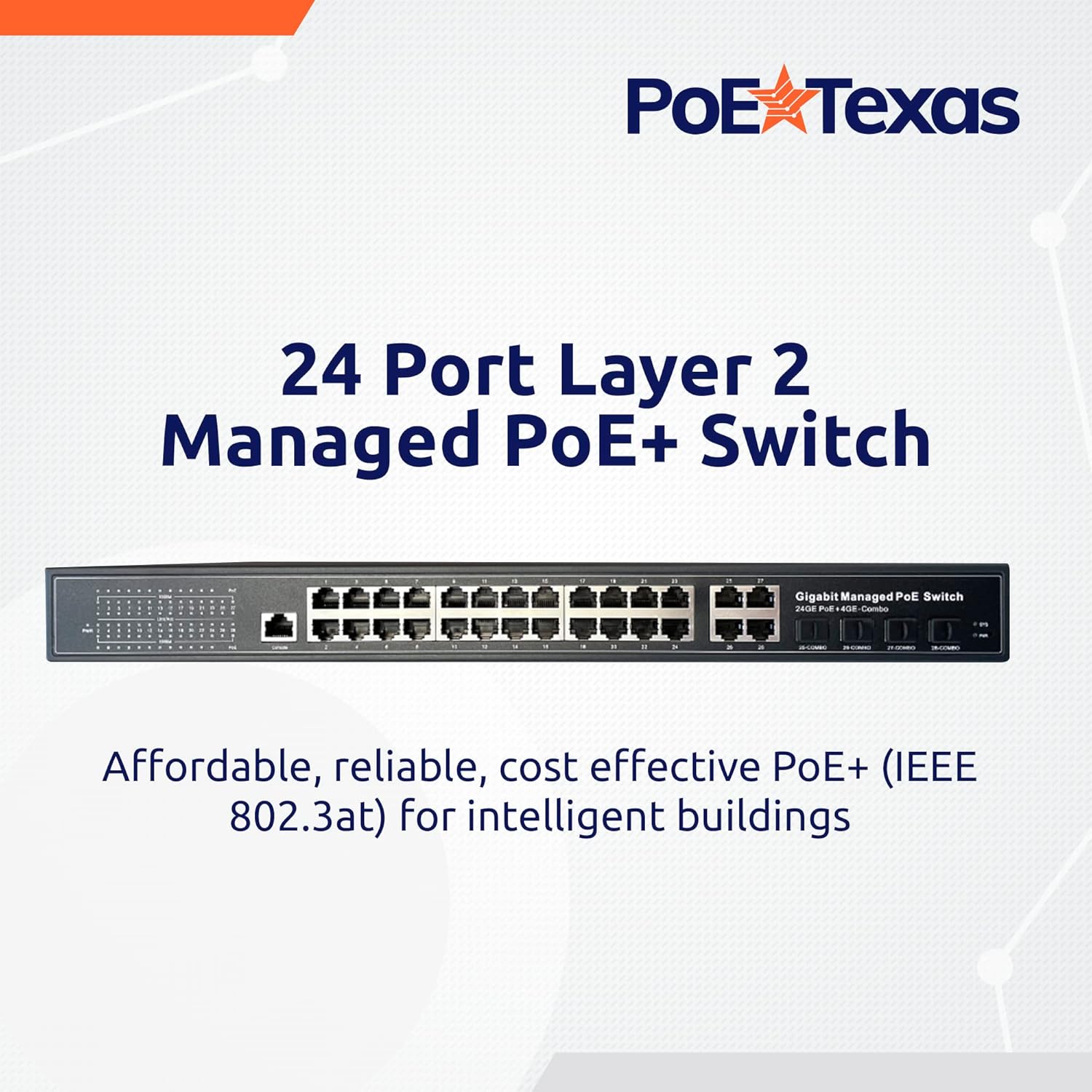

24 Port Layer 2 Managed PoE+ (IEEE 802.3at) Switch for Intelligent Buildings

The GATS-TS8200-24P-4GCM is a full gigabit Managed PoE+ switch delivering reliable, cost effective, PoE with web and local management. It features twenty four 10/100/1000Base-T Ethernet PoE ports, four 10/100/1000 Base-T Ethernet Uplink ports, and four 1000Base-X SFP Slots. The switch also includes HTML based L2 managed functions, including IGMP Snooping QVLAN, QoS, DHCP and Fast-ring and PoE control. This switch brings cost effective, ring networked technology to lighting, security monitor-ing, enterprise park and other applications.

Product Features:

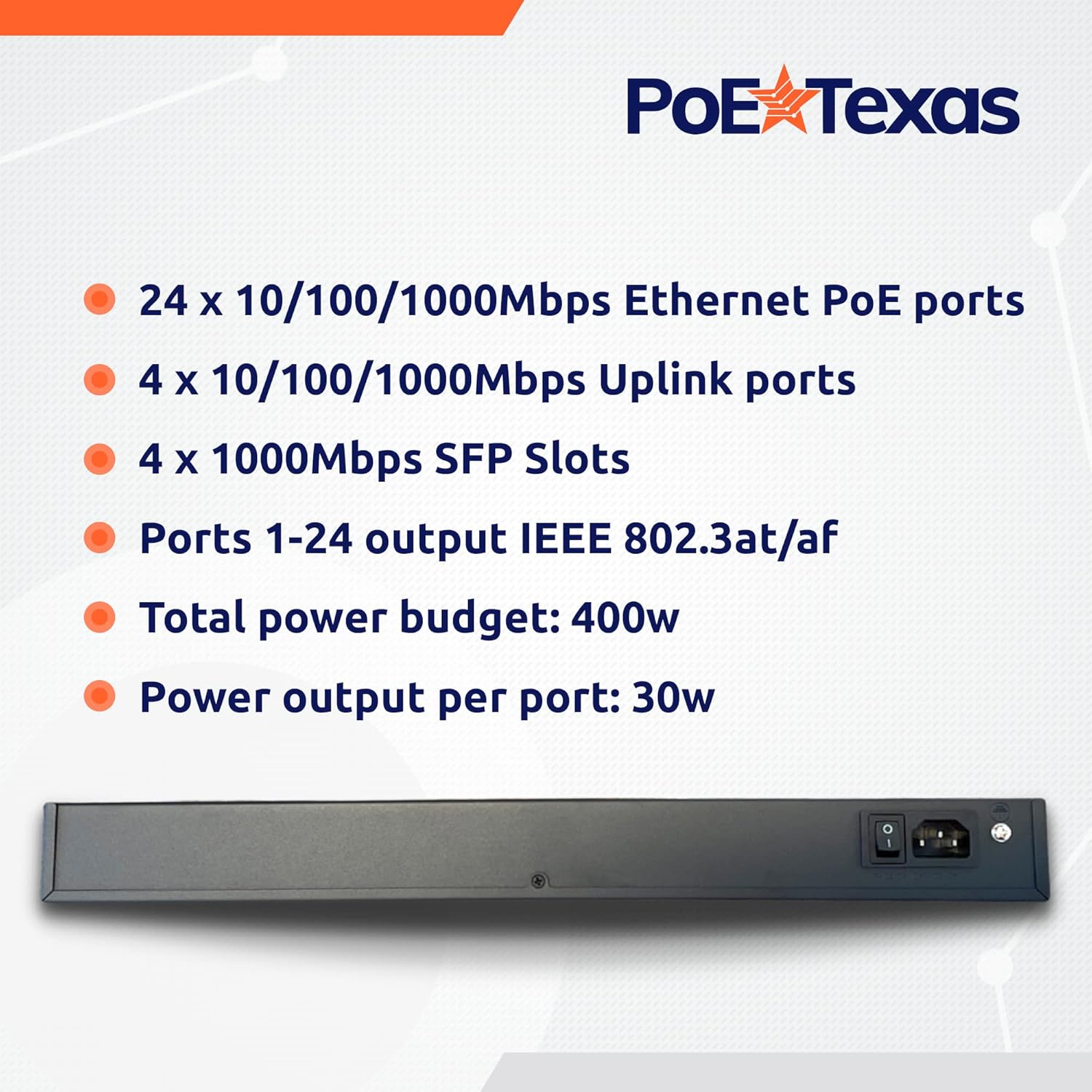

  • 24 x 10/100/1000Mbps Ethernet PoE ports
  • 4 x 10/100/1000Mbps Uplink ports
  • 4 x 1000Mbps SFP Slots
  • Ports 1-24 output IEEE802.3at/af
  • Features on-board Power Supply
  • Total PoE power budget is 400W, max PoE power for single port is 30W
  • Includes PoE watchdog and support

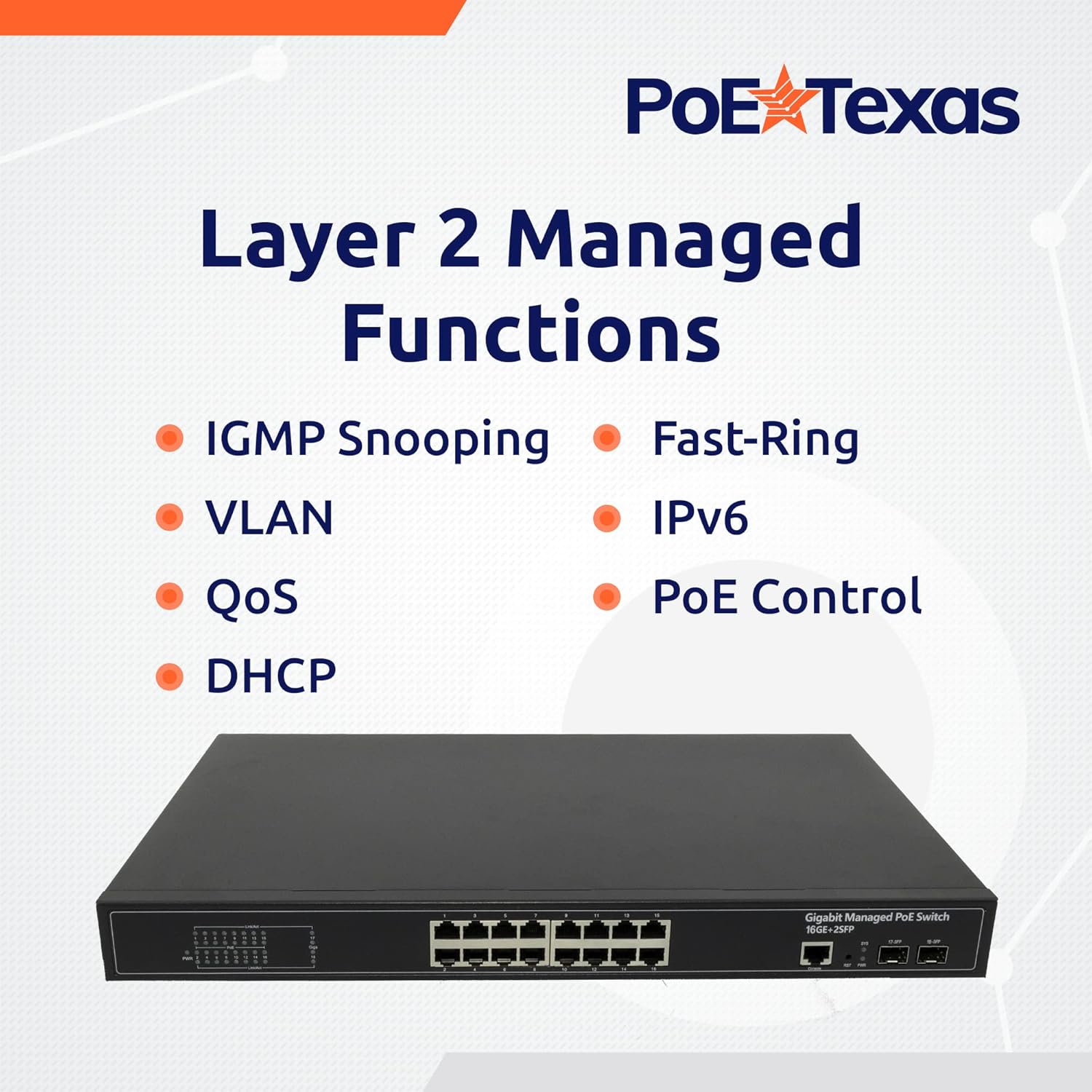

  • Supports Layer 2 managed functions includ-ing DHCP, Fast-Ring, IPv6, etc.
  • Sheet metal case with internal fan and effi-cient power design
  • Rack Mountable

Product Specifications

Buffer 4.1Mbit
Certifications CE, CB, PFC, FCC, RoHS
CPU 500Mhz
Data + PoE Ports 24
Data Rate Gigabit

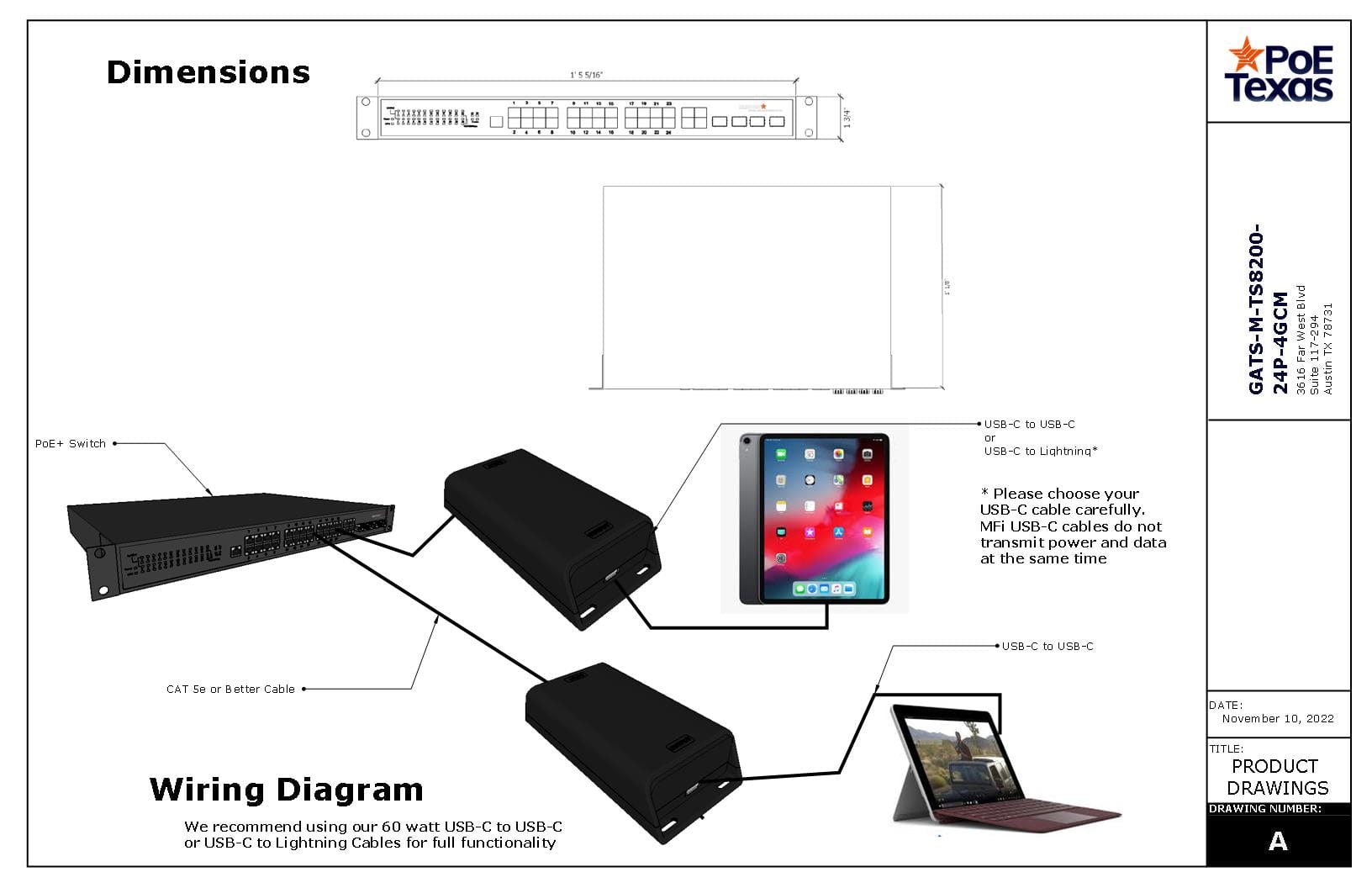

Dimensions 440(L)*290(W)*45(H)mm
Downlink Ports 24*10/100/1000Base-T (PoE)
Flash 16M
Frame Forward Rate 40.32 Mbps
Input Voltage 100-240 VAC 50/60 Hz
Installation Rack-mountable (1u)
IP Rating IP 30
LED Indicator 24*Link/Act (Green), 24*PoE (Orange), 1*PWR (Red)
MAC Address Table 8K
Management Port Yes
Max Power for Kit 400 Watts
Mount Type Rack Mount
Operating Humidity 5%-95% (Non-condensing)
Operating Temperature -10-55℃
Packet Forwarding Rate 40.32 Mbps
PoE Line Pair 1/2/4/5(+),3/6/7/8(-)
PoE Output Power PoE output power for single port≤30W, Total PoE power budget≤ 400kW
PoE Standard 802.3af/at/bt(PSE)
RAM 128M
Standard and Protocols IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.3ad, IEEE 802.3q, IEEE 802.3q/p, IEEE802.1w, IEEE 802.1D, IEEE 802.1s IEEE 802.1af/at/bt
Storage Temperature -40-75℃
Switching Capacity 128 Gbps
Uplink Ports 4*10/100/1000Base-T / 4*1000Base-X SFP Slots
