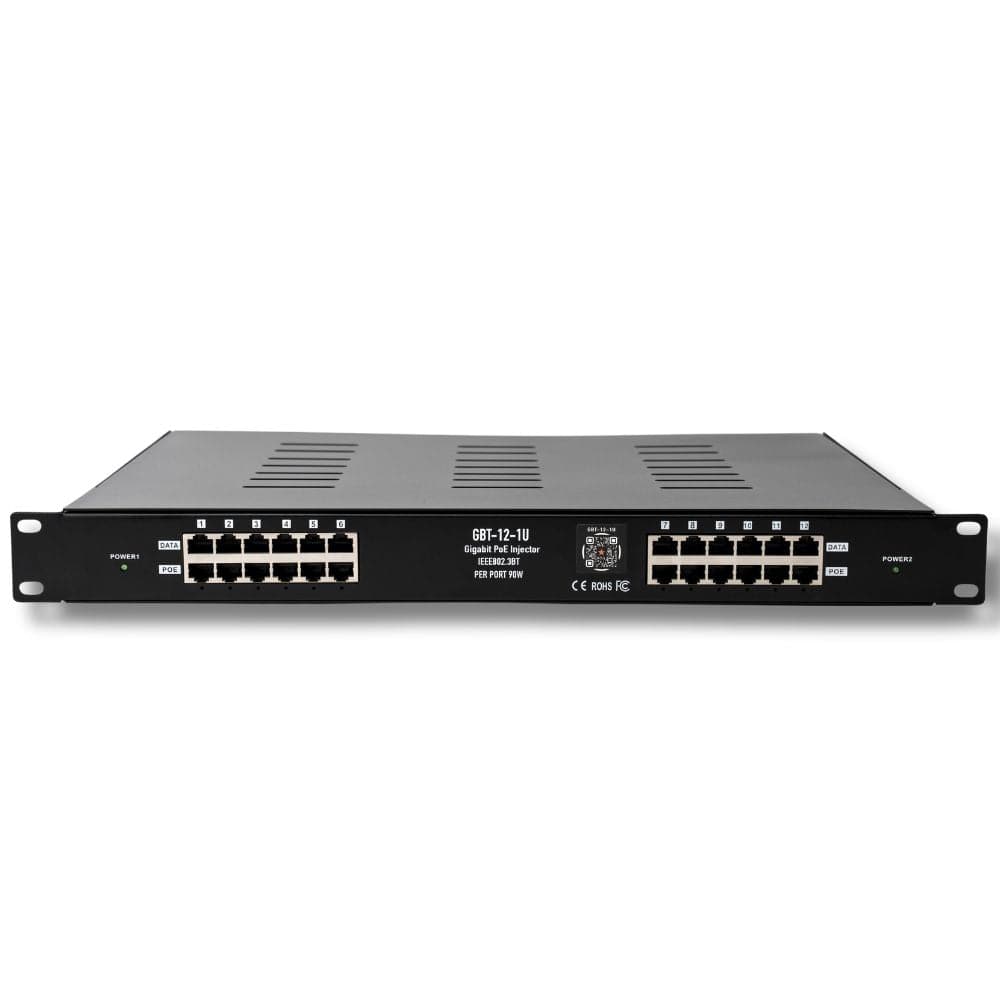

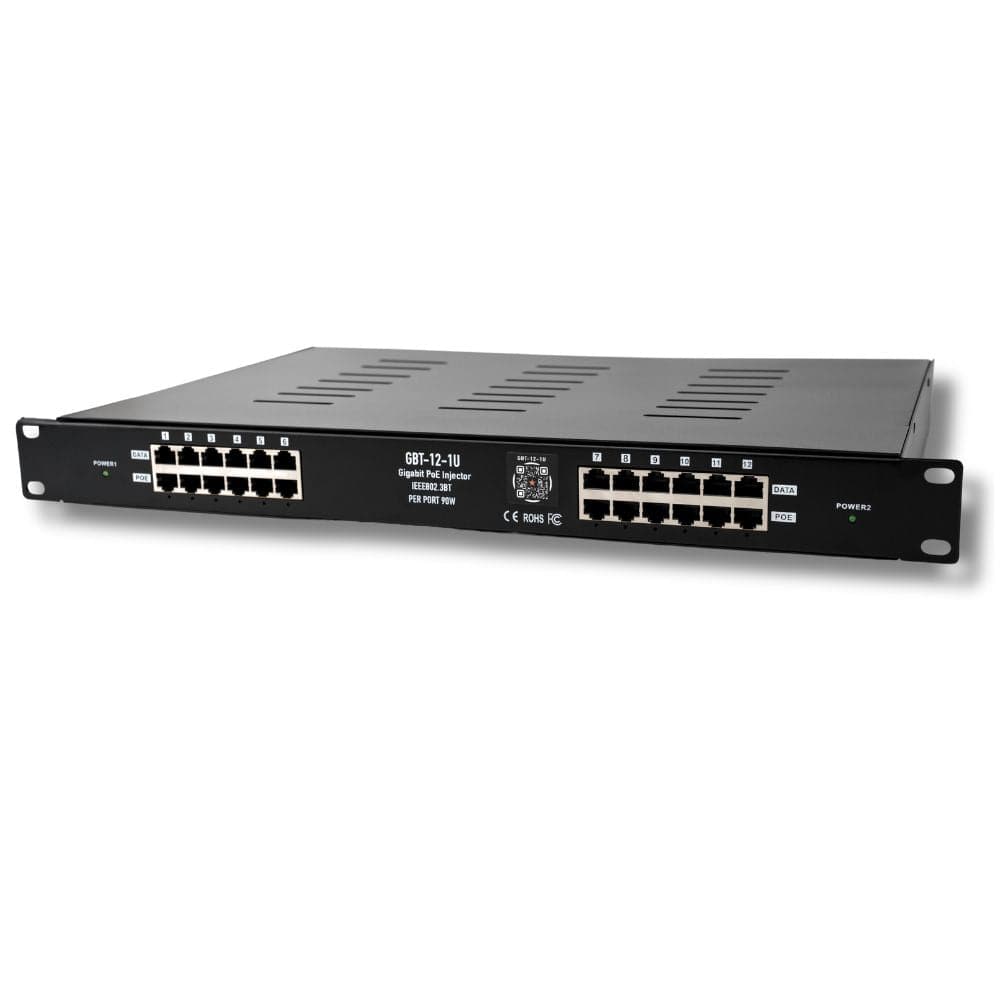

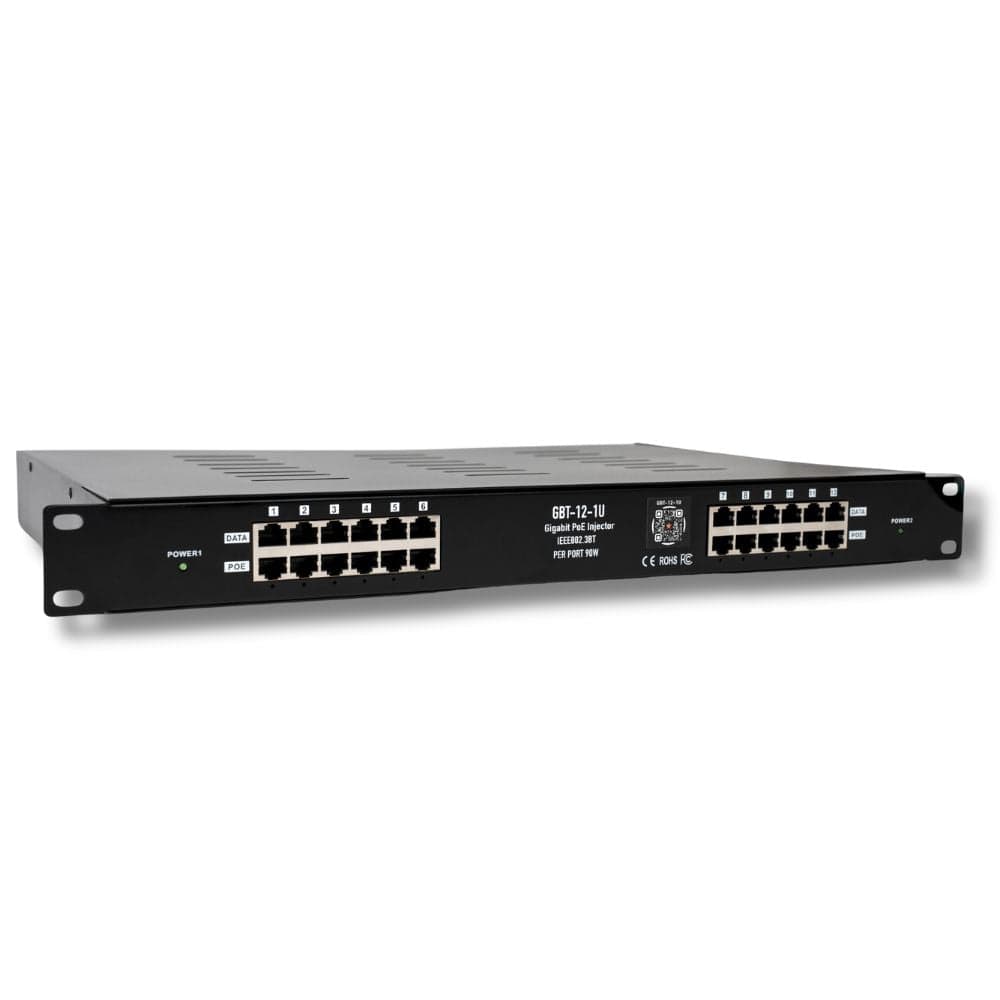

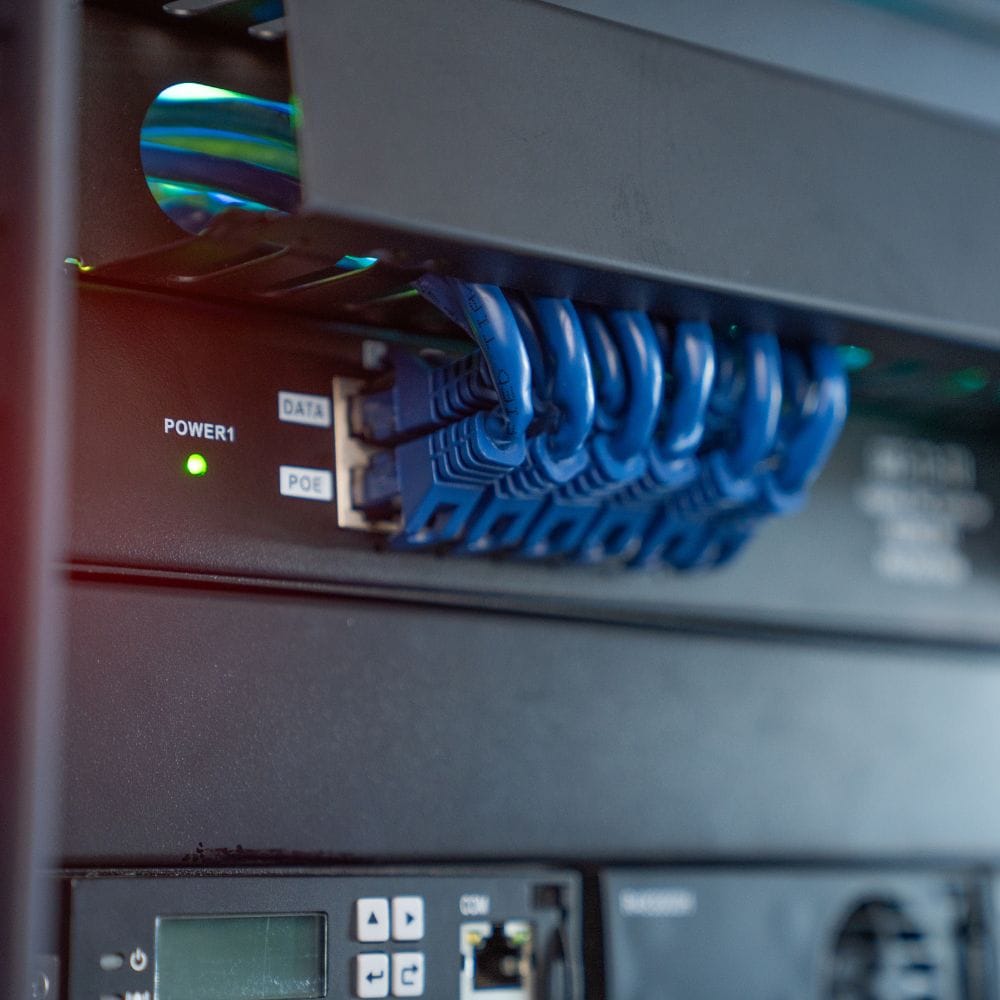

12 Port 2.5 Gigabit PoE++ Injector with a 53 Volt 1200 Watt Power Supply

SKU GBT-12-53v1200w
$399.99

12 Port 2.5Gigabit Active PoE++ Injector with 53V, 1200W Power Supply

The high-density midspan GBT-12-53V1200W injector converts any network switch or PoE switch into a 90 watt per port PoE++ (IEEE 802.3bt Type 4) Power Sourcing Equipment, ideal for PoE lighting, A/V applications, high-powered WiFi access points, PTZ cameras, and more.

This IEEE 802.3bt compliant Power over Ethernet (PoE++) injector takes power from the DC power source and adds it to an Ethernet cable to power your PoE++ devices.

Product Features:

  • Instantly upgrade your network switch to Type 4 IEEE 802.3bt PoE++
  • 90 Watt output per port with Max 1200 watts shared total
  • 12 PoE + Data Ports
  • Active negotiation protects non-PoE Devices
  • 10/100/1000/2500 Mbps (2.5G) Data capability
  • Includes two UL approved 53V, 600W power supplies for redundant power
  • 1U Rackmountable injector kit

Online Technical Manual Link

Product Specifications

AC Plug Connector Type C14
Adapter length 3 ft
Certifications UL, FCC, RoHS, CE
Data + PoE Ports 12
Data Ports 12
Data Rate 10/100/1000/2500 Mbps (2.5G)
Input Frequency Range 50/60 Hz
Input Voltage Range 53 Volts DC
Max Power for Kit 53 Volts
Mount Type Rackmount injector kit
Output Voltage 53 Volts
PoE Method Active
PoE Standard IEEE 802.3bt Type 4 PoE++
Power Supplies 2 × 53V 600W UL-approved power supplies
Weight 13.2
