802.3bt PoE++ to 12V Splitter with 60W Output

SKU GBT-12v60w

Bring the power of IEEE 802.3bt to a single port PoE splitter. Utilize PoE ++ to power 12 volt non-PoE devices at up to 60 watts.

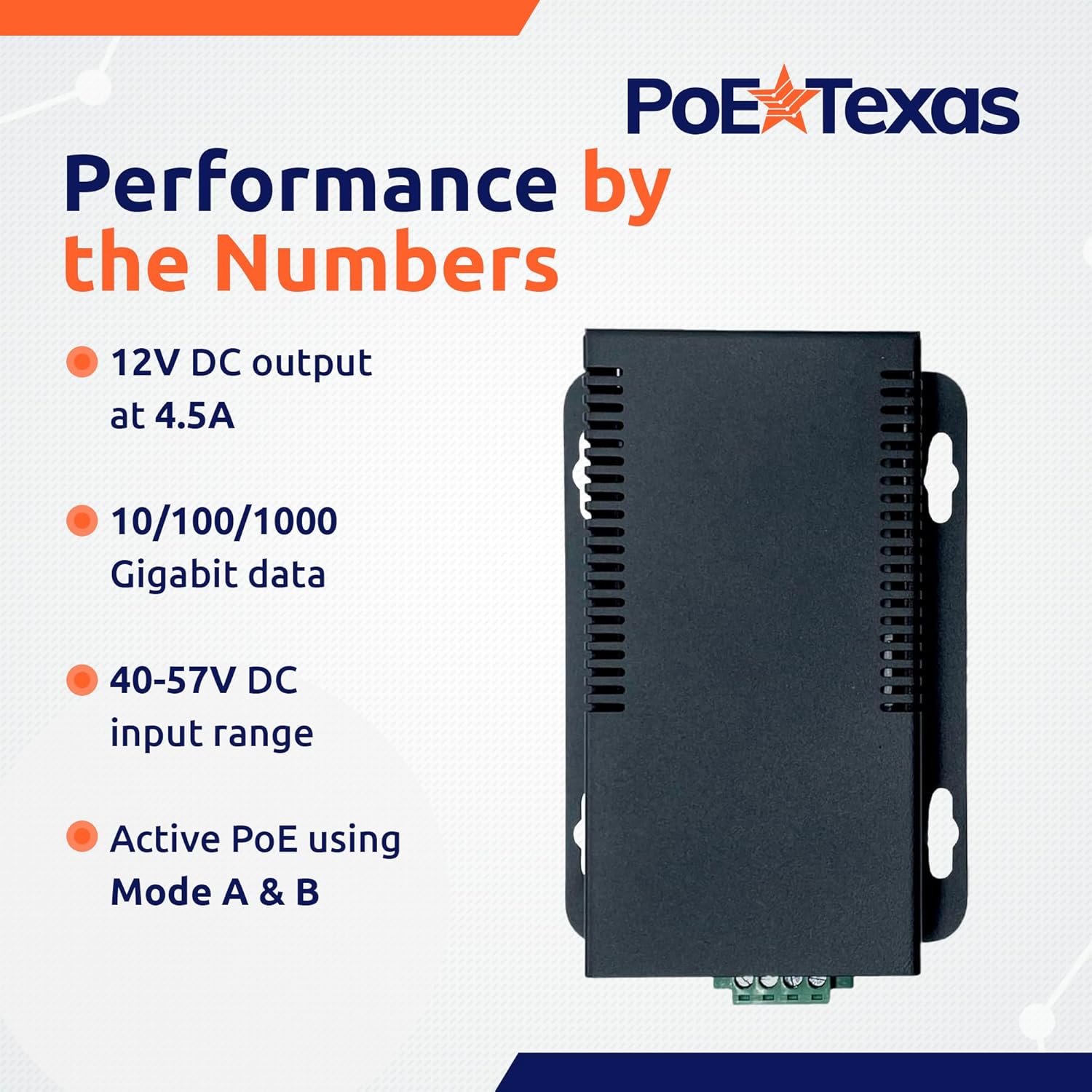

Product Features:

  • Converts PoE ++ or uPoE power and data from an IEEE 802.3bt PoE injector or switch (including Cisco switches) and divides 12v power and 10/100/1000 Gigabit data to power non-PoE devices
  • Use to Power compatible 12v non-PoE Devices like tablet computers, high power communication stations, wireless APs, network cameras and more
  • Outputs 12 Volts DC, 4.5 Amps and supports 10/100/1000 Gigabit data rates
  • For Indoor use
  • Effective distance is 328 feet (100 meters) over Cat5e/Cat6 cables. (At 60 watt power consumption, we recommend a Cat6 or Cat5 cable rated for 100 watt power transfer)

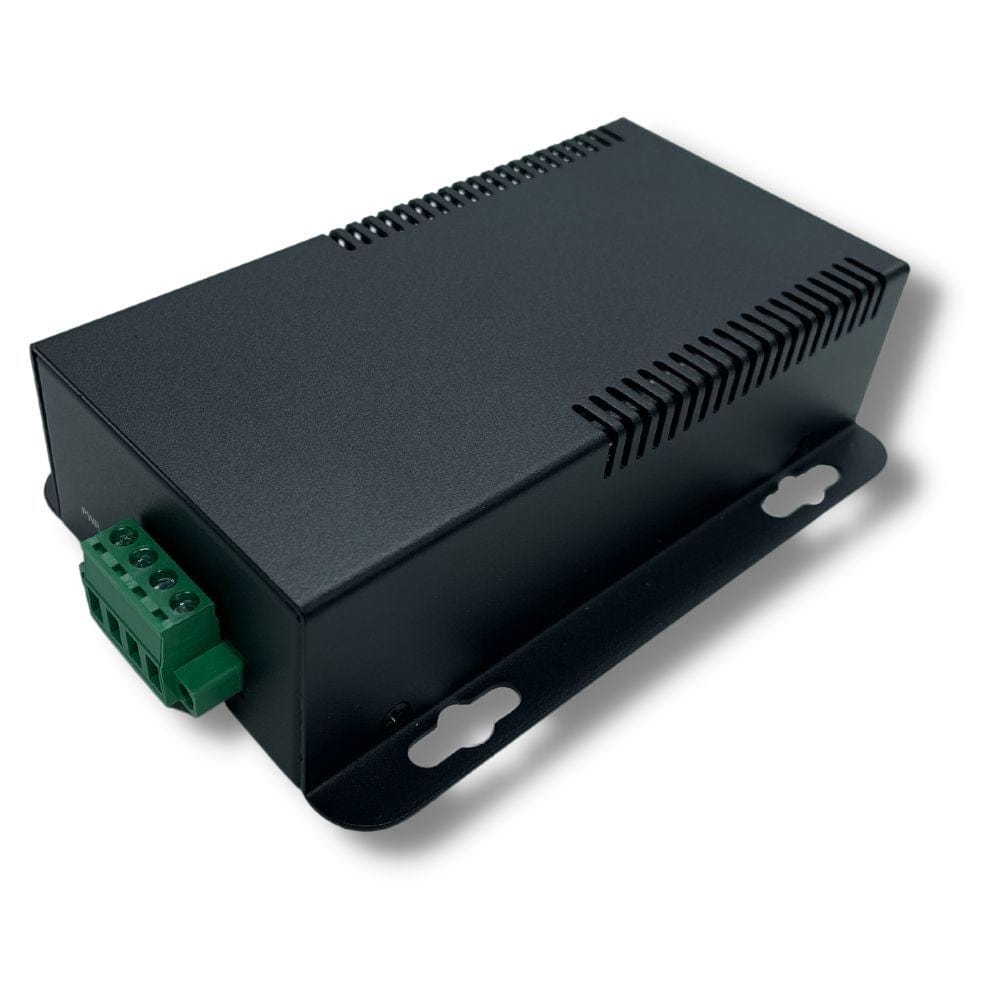

  • Designed with a durable, high-impact metal shell

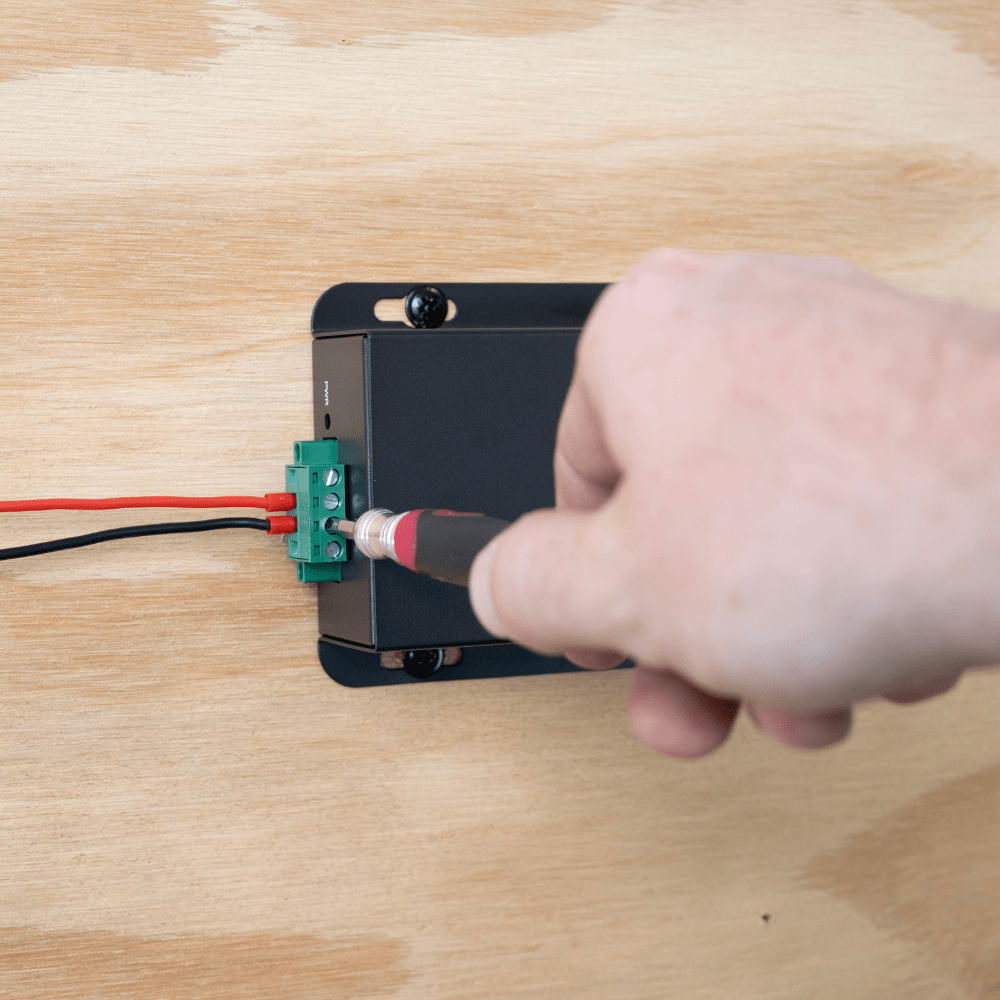

  • Includes a Phoenix connector for direct wiring

Visit Our Online Technical Manual


    Product Specifications

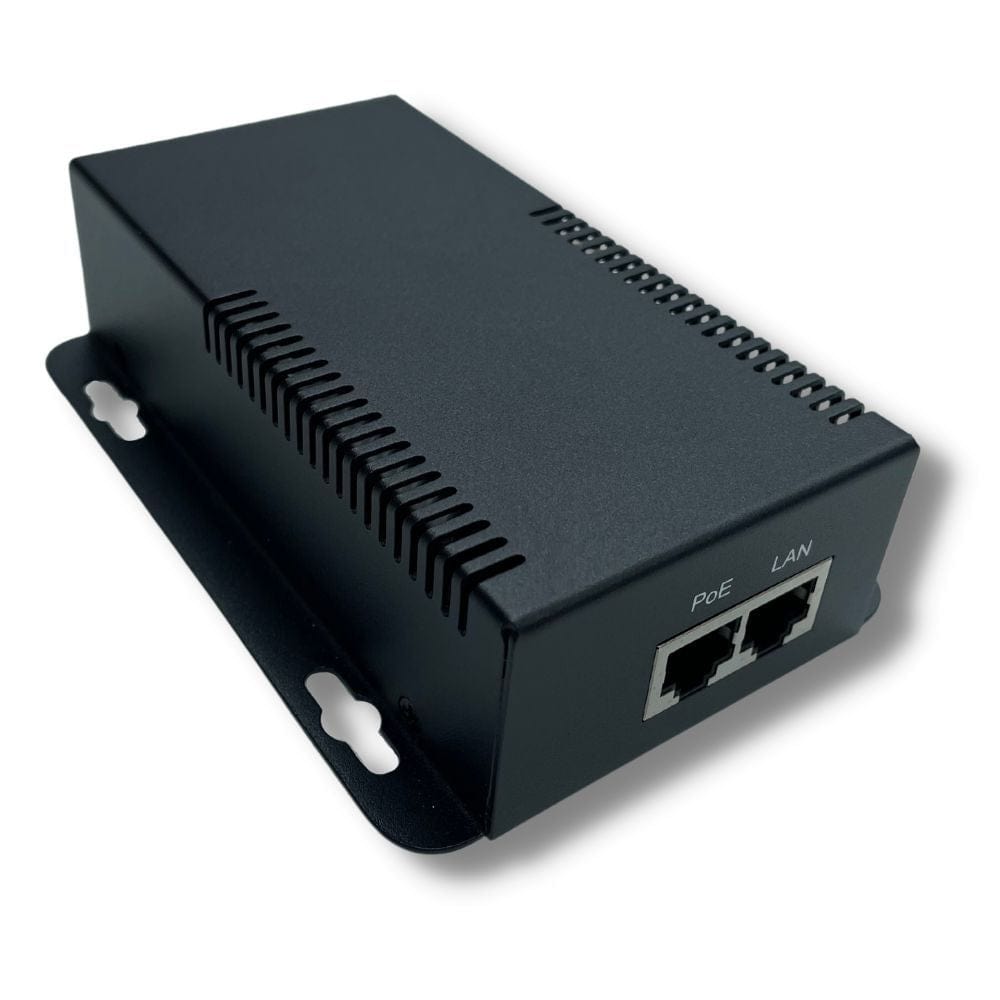

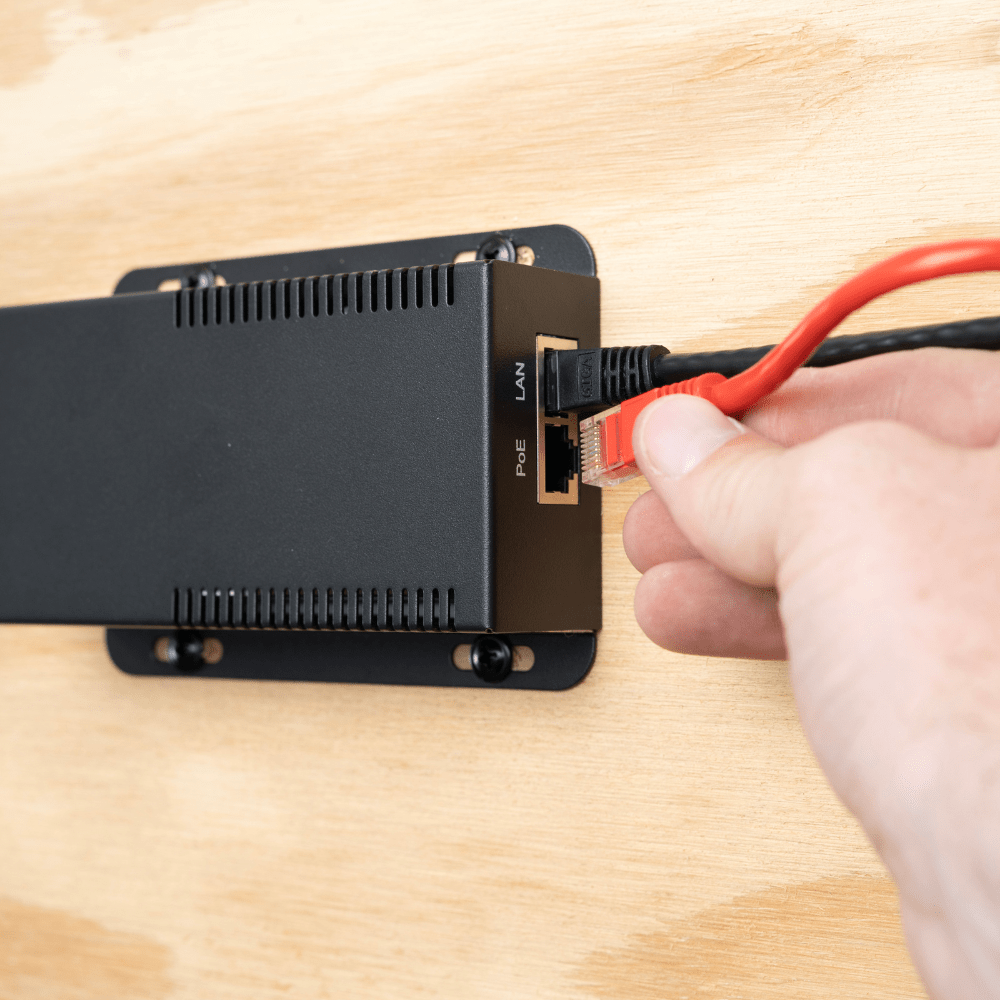

    Connector Types RJ45 x 2 (PoE In / Data Out); Phoenix Connector
    Data + PoE Ports 1 (Input)
    Data Ports 1 (Output)
    Data Rate 10/100/1000
    Dimensions 9.6 X 6.1 X 2.25 Inches
    Input Voltage Range 40-57v DC
    IP Rating IP20
    LEDs Per Port 2 (Power and Active Indicators)
    Max Amps Per Kit 4.5 Amps
    Max Power for Kit 60W
    Max Voltage 12V

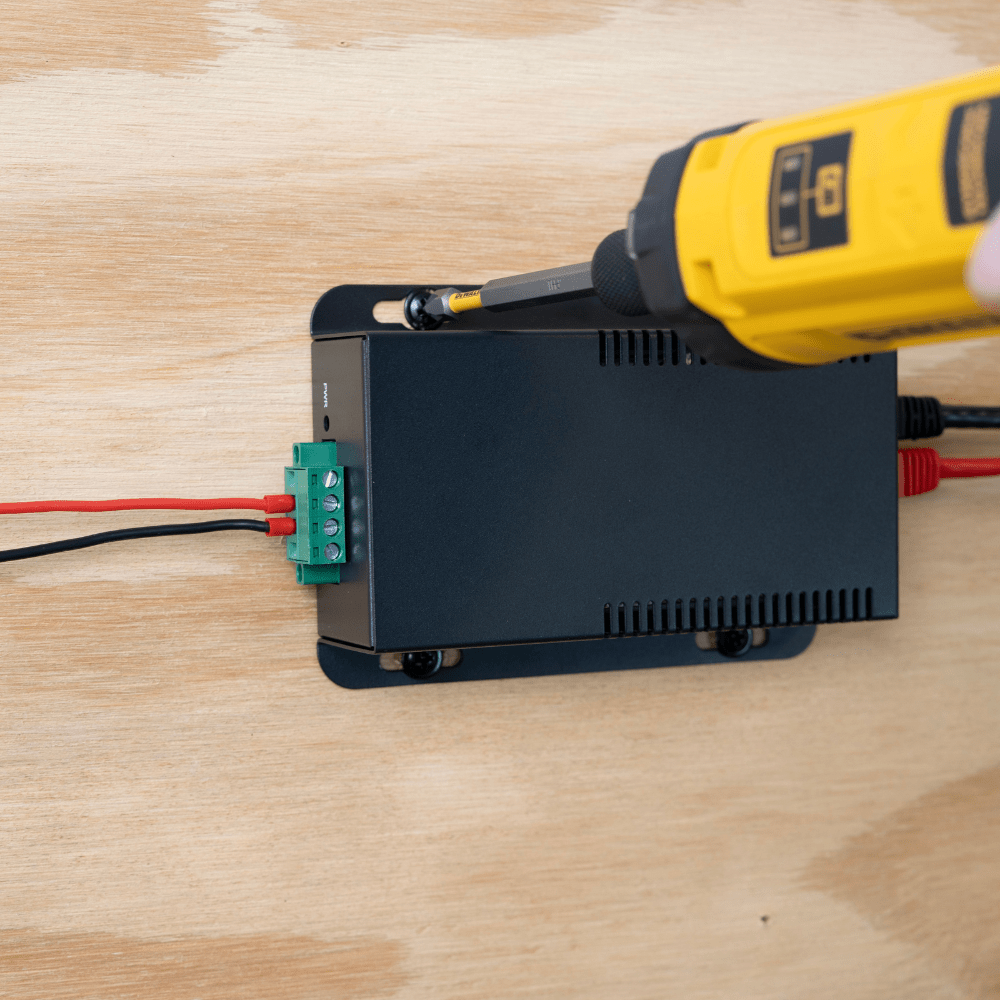

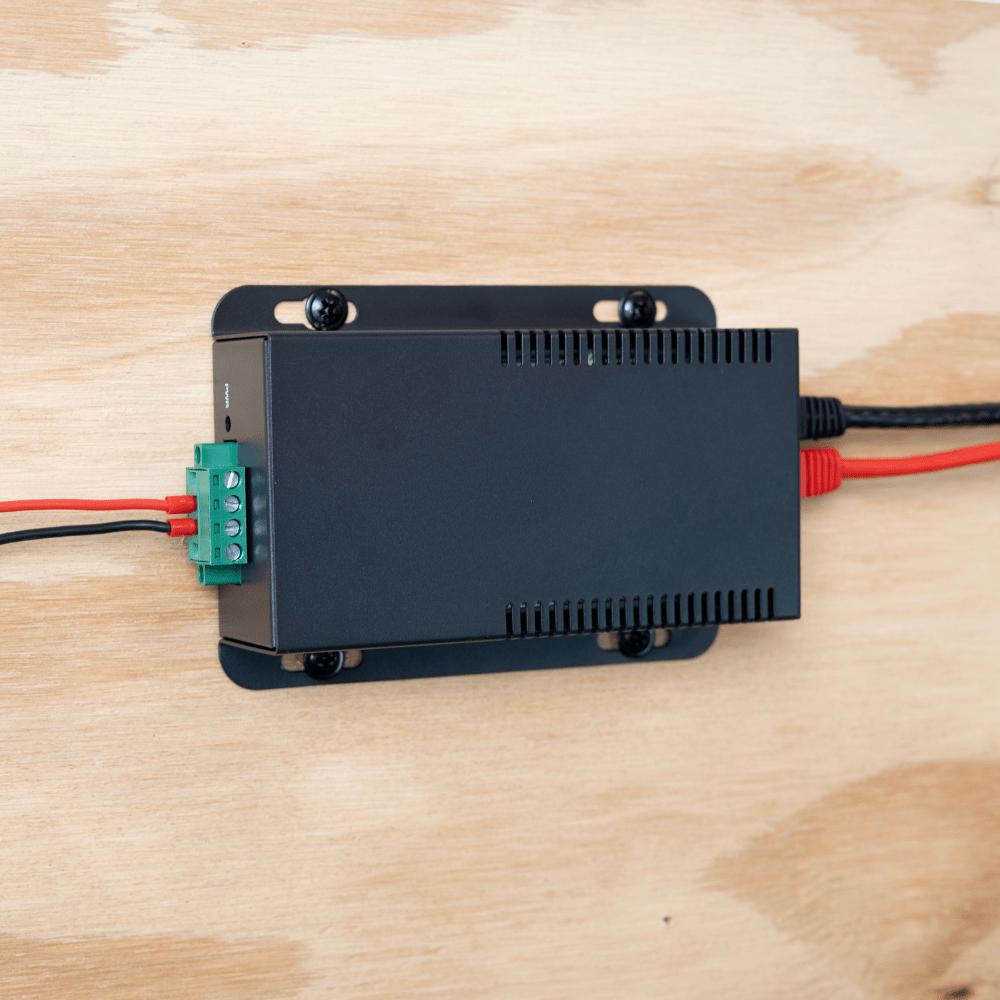

    Mount Type Wall Mount
    Operating Humidity 10% to 90% Non-Condensing
    Operating Temperature Range 0 to 40°C
    Output Voltage 12 volts
    PoE Method Active
    PoE Mode/Pinout Mode A (-1,2 +3,6) Mode B (+4,5 -7,8)
    PoE Standard IEEE 802.3bt
    Power Input 40-57v PoE
    Storage Temperature -20C to 70C
    UPC 696305323113
    Weight 1.12 lb.


    Ask a Question
    • Hi PoE Texas, What are the dimensions of the gbt-12v60w splitter? Thank you, Aaron Mechanical Engineering Dexai Robotics

      The dimensions of the GBT-12v60w are 9.6 x 6.1 x 2.25 inches.
