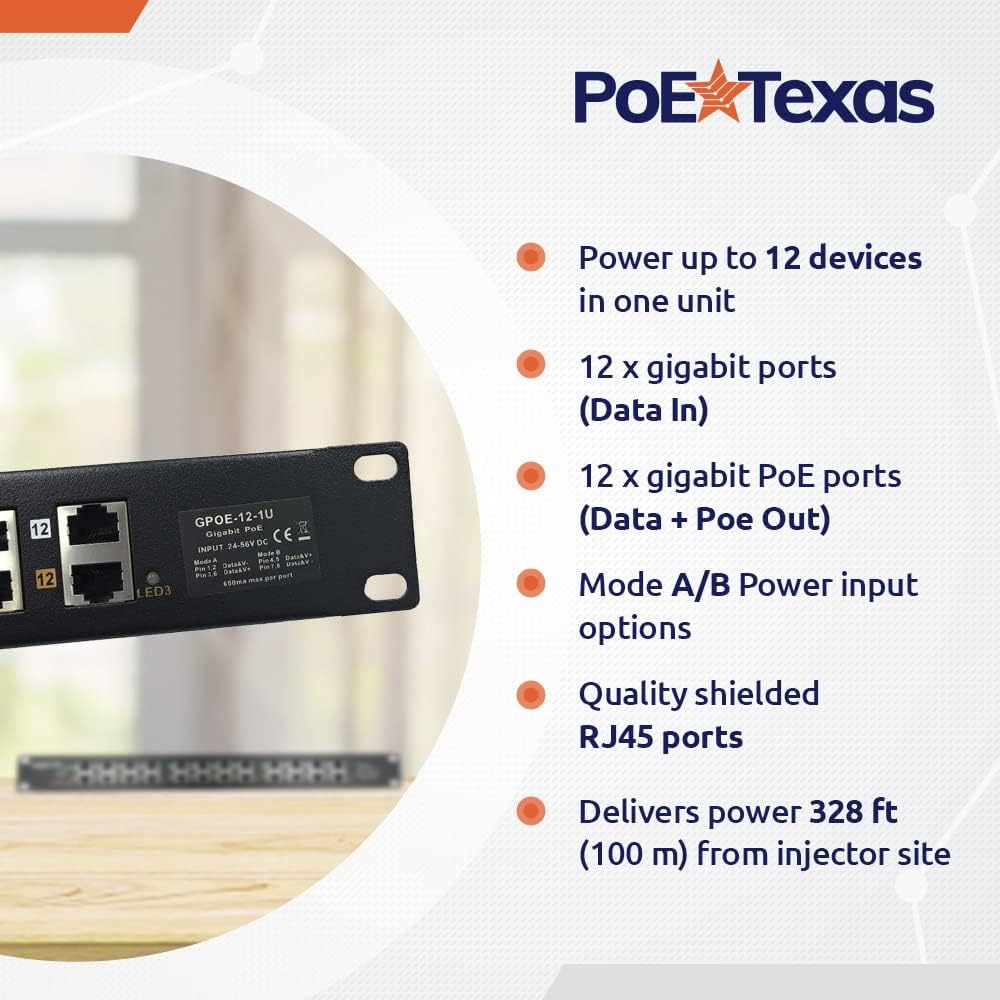

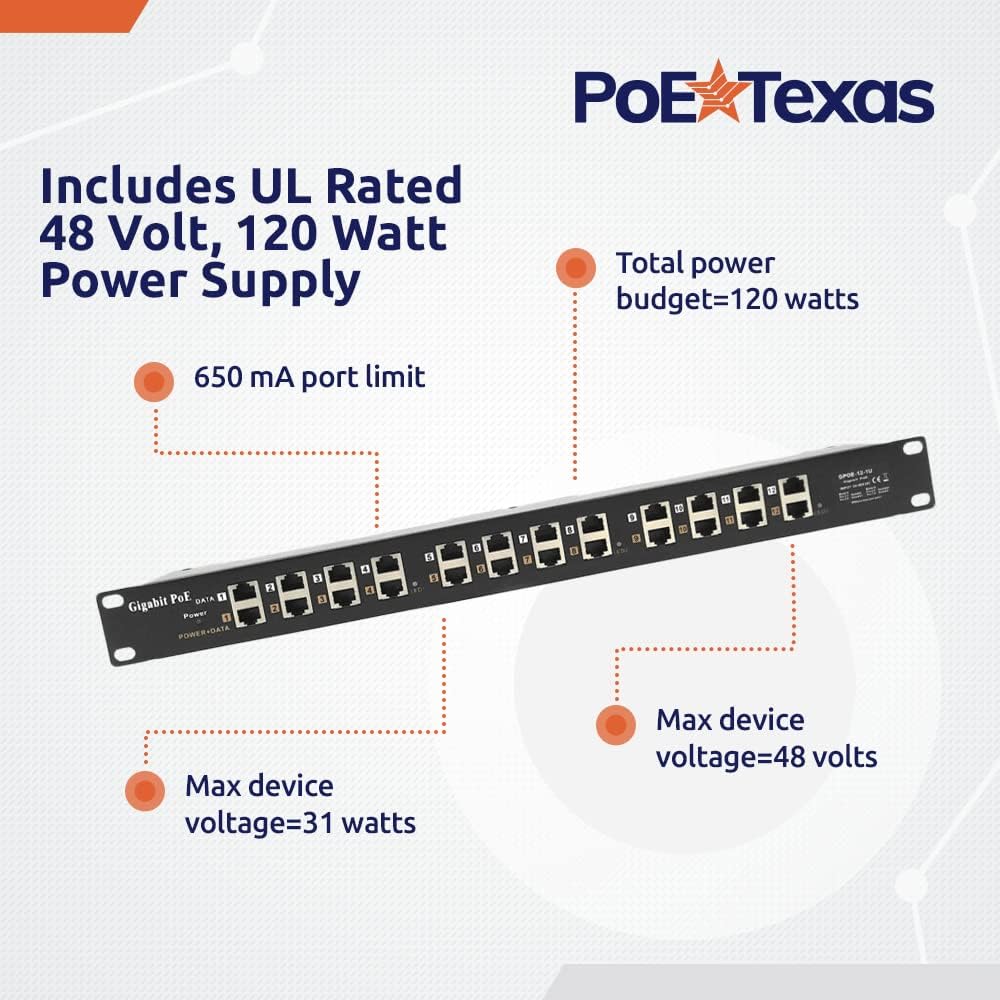

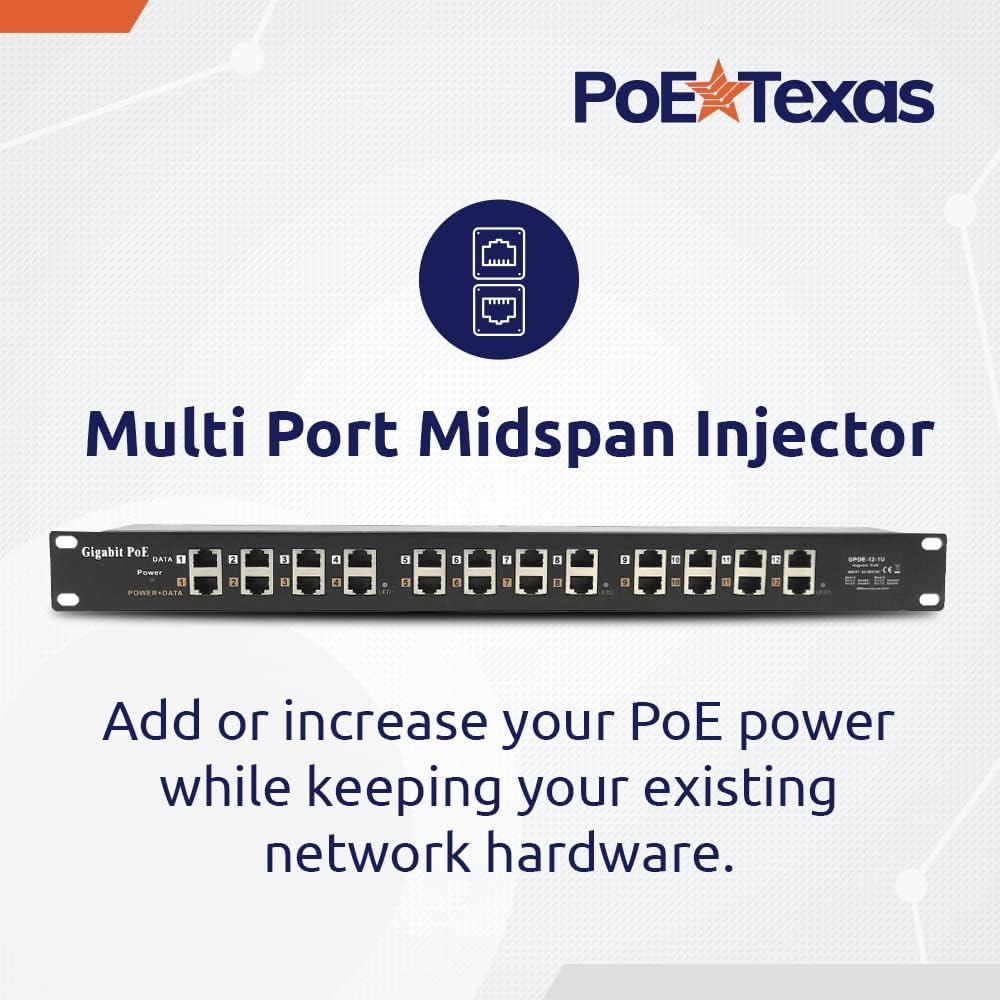

Simplify installations with a multi-port midspan injector. Power up to twelve IP cameras, desktop phones, WiFi access points, or other low voltage devices through a network data cable using this Power over Ethernet (PoE) injector. A Passive PoE injector always delivers the same voltage as its power source. This kit includes a 48 volt, 120 watt power supply to use with IEEE 802.3af PoE devices.
Save big on network upgrades and device installations. Power over Ethernet delivers power 328 feet from the PoE Injector, eliminating the expense and hassle of installing AC power near your powered device.
|Data + PoE Ports||12|
|Dimensions||19 x 2 x 1.75 in.|
|LEDs Per Port||1|
|Max Amps Per Kit||2.5 Amps|
|Max Power for Kit||120 Watts|
|Max. Amps Per Port||650 mA|
|Operating Humidity||5% to 90%|
|Operating Temperature Range||0-65C|
|Output Voltage||48 volts|
|PoE Mode/Pinout||Mode A (-1,2 +3,6)/Mode B (+4,5 -7,8)|
|Power Input||2.1mm DC x2|
Hi guys! I just purchased this to power 5 PoE Vivotek cameras and Unifi access points/Cloud Key. Although it says 802.3af it seems I can’t power the cameras which are 12V (e.g. my IB8369 bullet cameras), although the Unifi stuff seems to work great. Is there a good solution for this? I was trying to have just this device providing the power instead of my current solution of 3 Netgear 308P switches.
Based on the data sheet for Vivotek IB8369 this injector is compatible (802.3AF poE Class3). To make sure we get all of your devices powered on one injector, I will need to know the model of the ubiquiti access points. Please email the make/model/quantity of each device you'd like to power on the injector and we can confirm if this injector will work with all of them, or if you may need some additional adapters to go with. Service@poetexas.com Thanks!
Hello, I need use MikrotikÃÂ´s RouterBoards, this product is good for me?
Mikrotik devices require 24 volts POE, I recommend WS-GPOE-12-24V120W instead of the 48 volt kit.
Can you plug in a second power supply to get double the wattage of devices connected?
We do not recommend connected a second power supply in to the GPOE-12AB injector. The dual DC inputs are designed to provide power in to the injector on Mode A OR Mode B, not both. Our GPOE-16A and GPOE-24B injectors both have shared power budgets, allowing double wattage.
Is there a fuse-per-port on this device?
Yes. The GPOE-12AB has a fuse limit of .65 amps per port.
Does this product have fans or is it fanless?
This product is fanless. All our PoE Injectors are fanless and have an operating temperature of 0 to 60 degrees Celcius/32 to 140 Fahrenheit.
