PoE Texas Injector Single Port Gigabit Mode A PoE Injector with Integrated 48 Volt 15 Watt Power Supply

Single Port Gigabit Mode A PoE Injector with Integrated 48 Volt 15 Watt Power Supply

SKU GPOE-1A-48V15W-ONE
$13.99

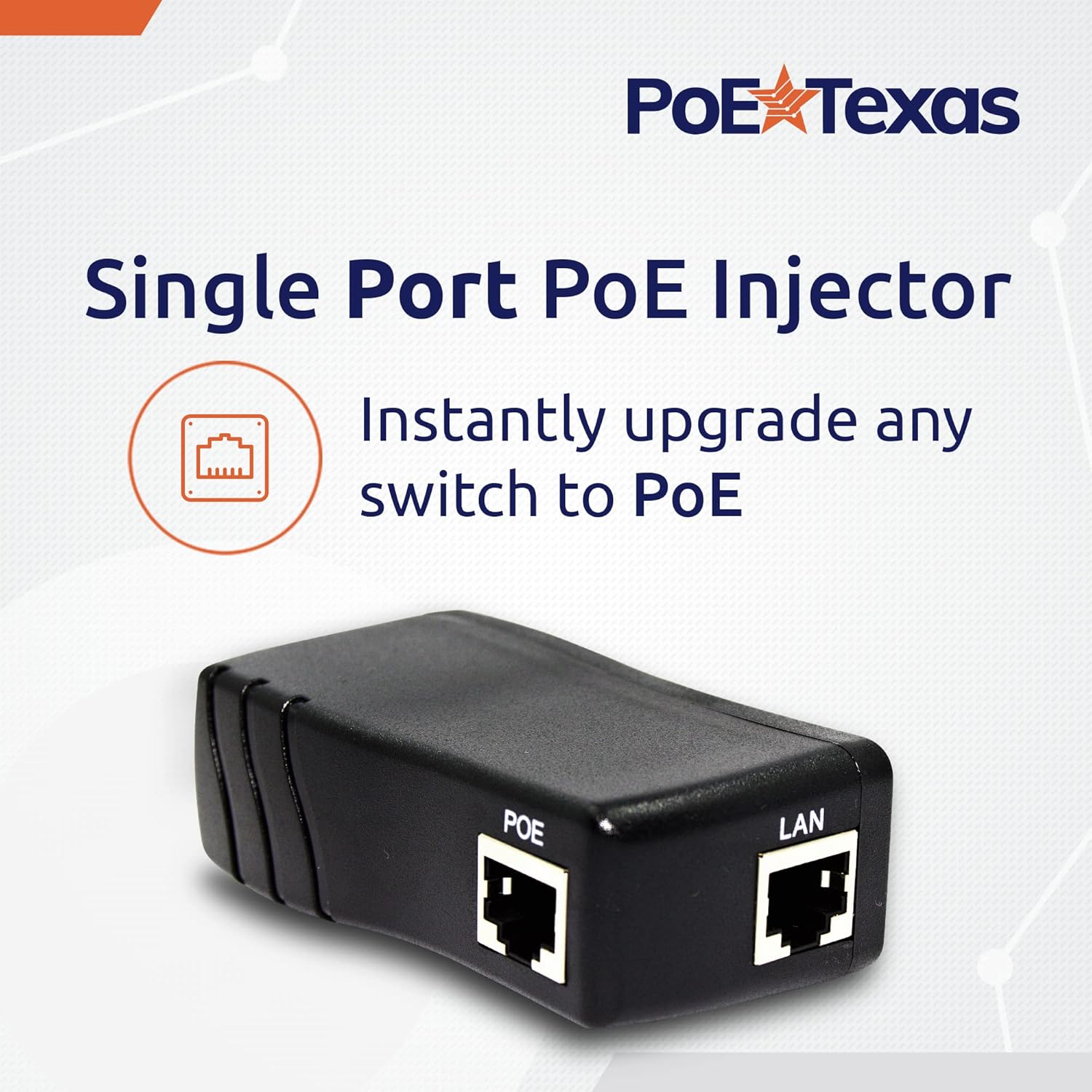

This compact single port PoE Injector for 802.3af (48 volt) devices fits into the space of a single electrical outlet to provide power for an IP Camera, VOIP Phone, or WiFi Access Point.

Product Features

  • Instantly adds power to an Ethernet cable to power one PoE device
  • Powers 802.3af devices ( no auto negotiation )

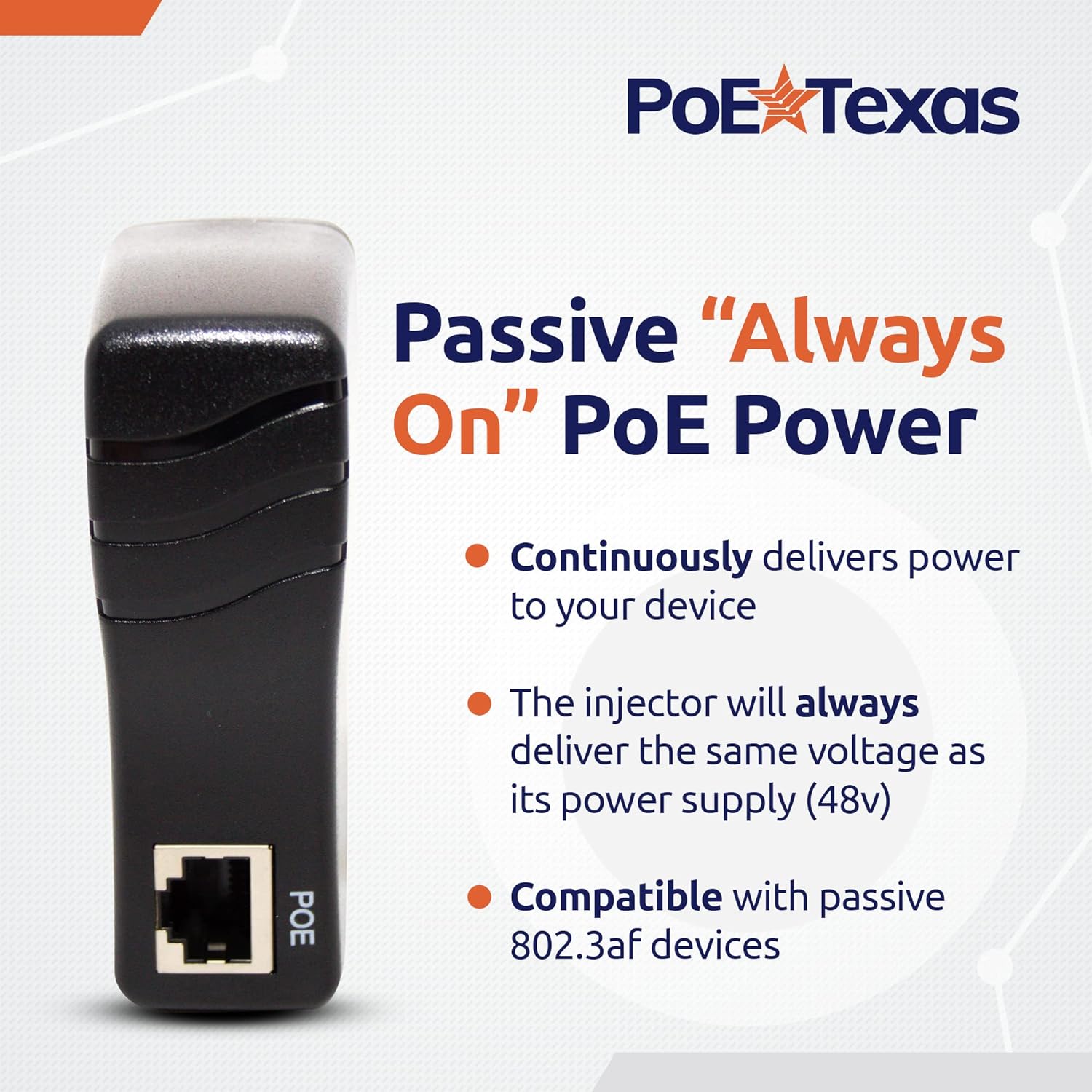

  • Passive "always on" power delivers continuous 48 volts

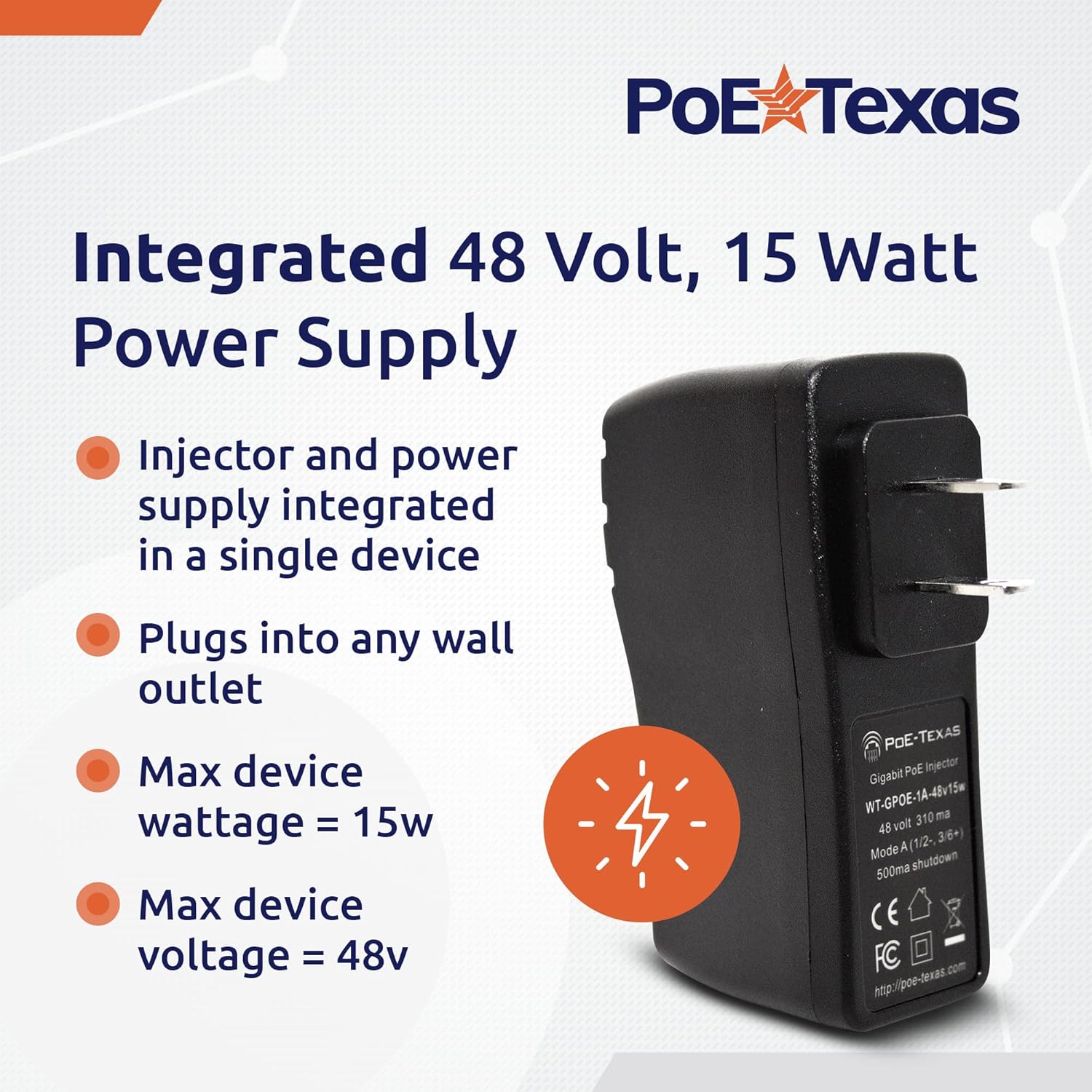

  • Power supply included is 48 volts DC, .3 amp, 15 watts

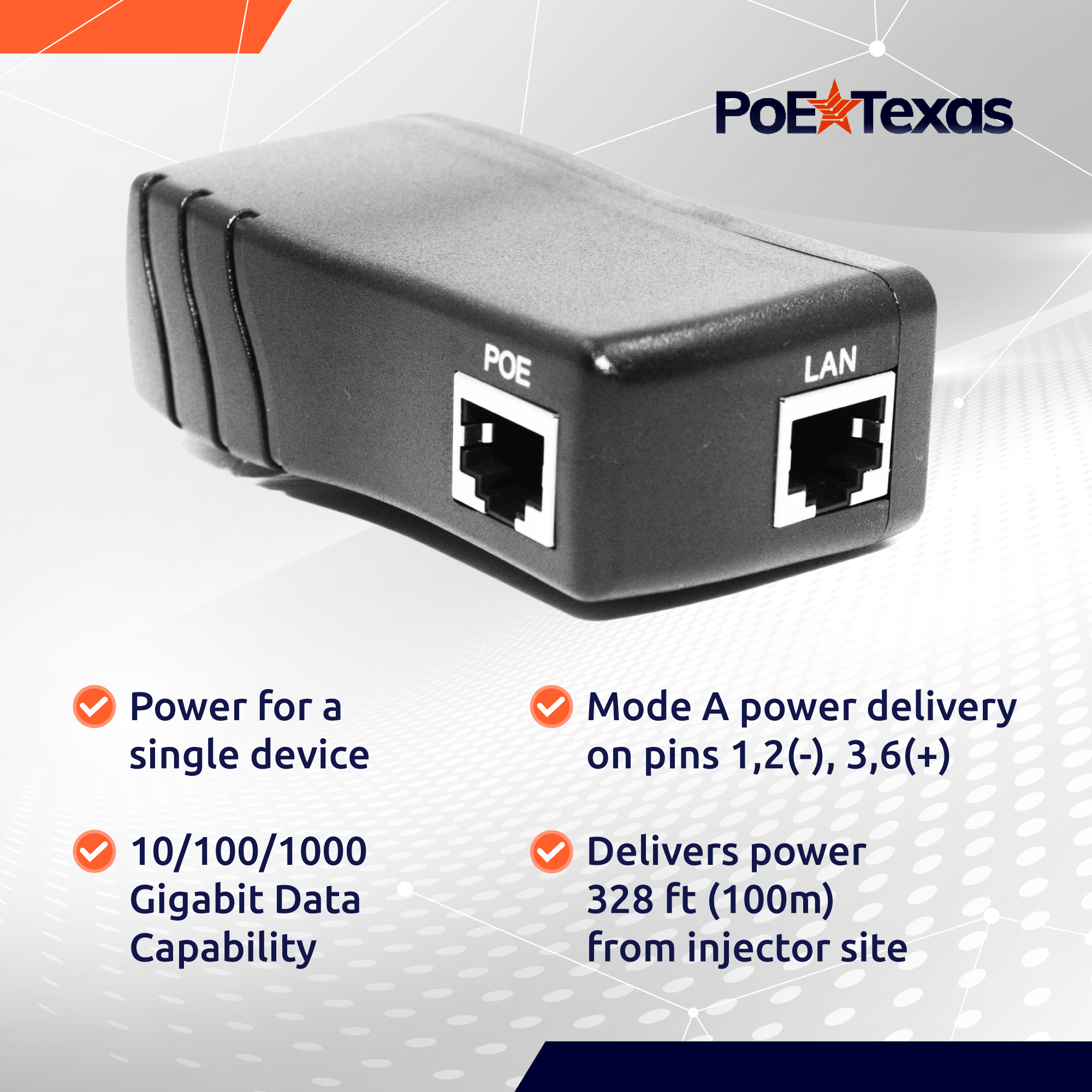

  • Mode A operation - power and data on pins 1,2- and 3,6+
  • UL,CE, DoE and FCC listings

Product Specifications

Certifications CE, FCC, RoHS, UL
Data Rate Gigabit
Dimensions 1x4x5 in.
Max Amps Per Kit 0.3 Amps
Max Power for Kit 15 Watts
Max. Amps Per Port 0.312
Operating Humidity 5% to 90%
Operating Temperature Range -10 - 60C
Output Voltage 48 volts
PoE Method Passive
PoE Mode/Pinout Mode A (-1,2 +3,6)

QUESTIONS & ANSWERS

Ask a Question

  • Would this safely power a single Ubiquiti G4 Bullet camera? Similarly, a single G4 dome? Thanks

    Yes these devices require 4 watts and 5 watts, respectively. So the GPOE-1A-48V15W-ONE should work with them.

×





×

×
