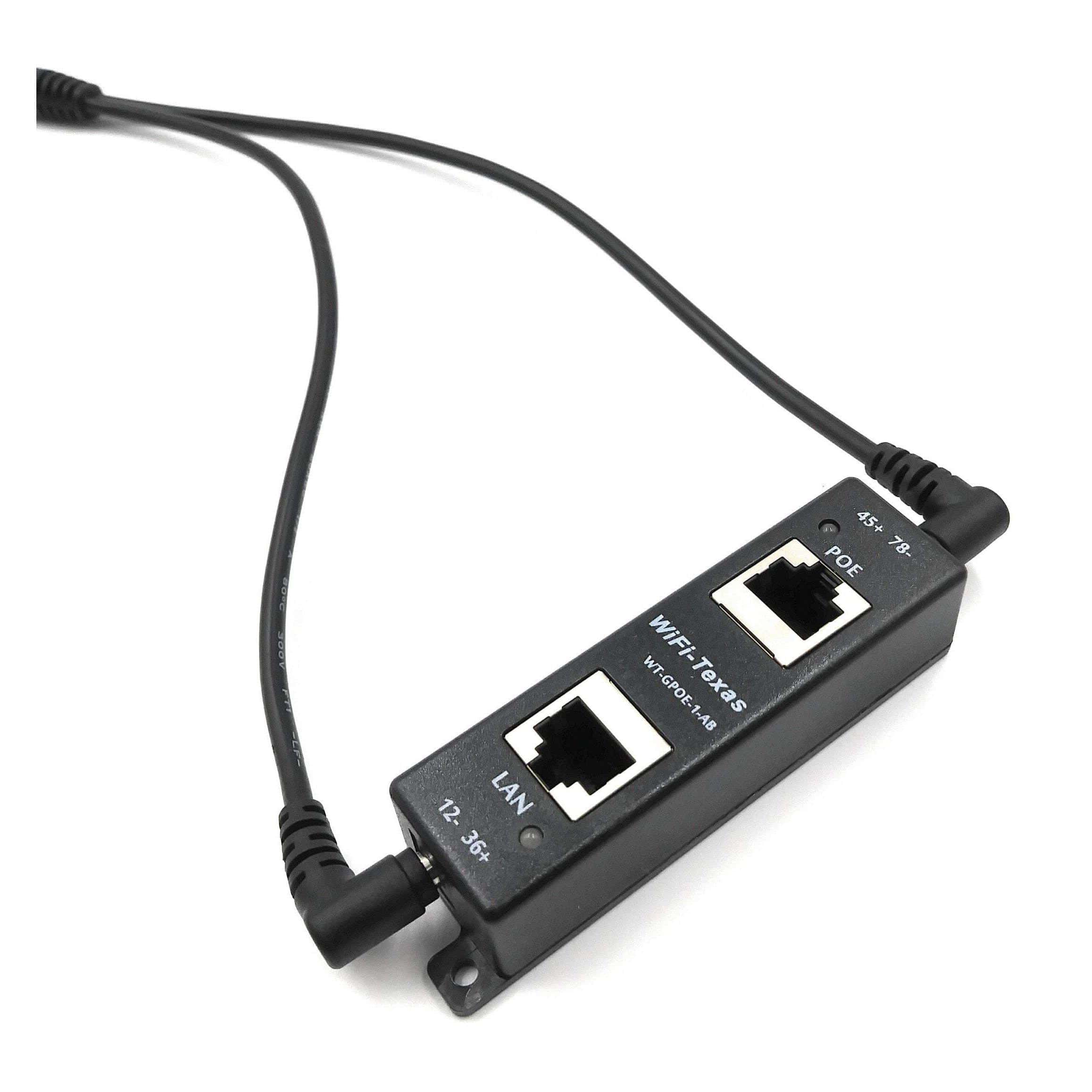

PoE Texas Injector GPOE-1AB-48V60W
PoE Texas Injector GPOE-1AB-48V60W
Sold Out
  • SKU: GPOE-1AB-48V60W

Single Port Gigabit Mode A/B PoE Injector with 48V 60W Power Supply and 2.1mm Y-Cable

$22.04 $31.49
Shipping calculated at checkout.
DESCRIPTION

Low cost solution for 4 Pair Power over Ethernet (PoE++). Instantly upgrade your infrastructure to support one 60 watt high powered device when used with the included Y-Cable and 48 volt 60 watt power supply. This method allows power to be combined with 10/100/1000 networks and supports both 802.3af and 802.3at with "always on" passive power.

Product Features:

  • Instantly upgrades your network to PoE for one device
  • Use to deliver PoE power to IP security cameras, phones, wireless access points and other devices that accept passive 802.3af or PoE+

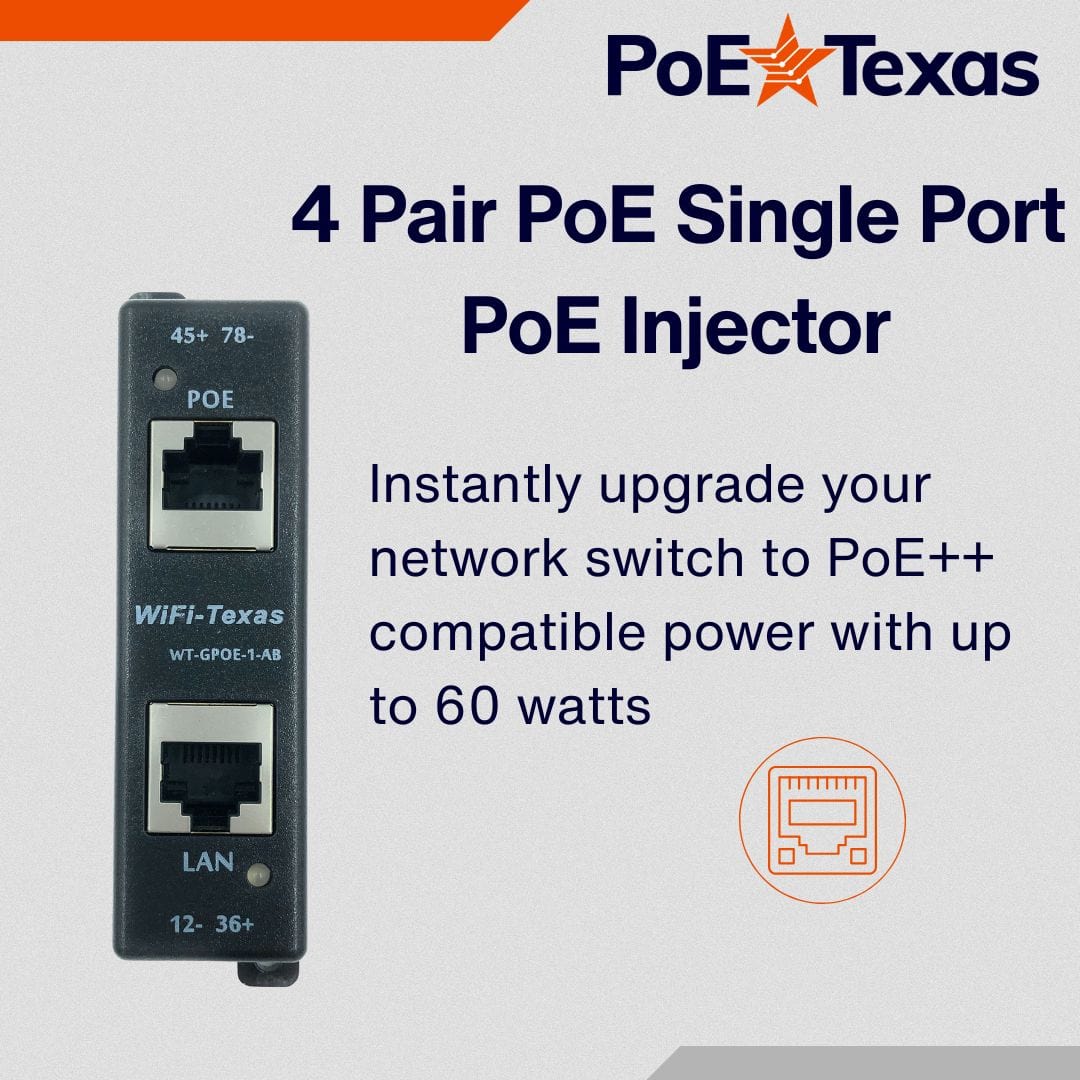

  • Offers 4 Pair PoE (4PPoE) when used with the included Y-Cable

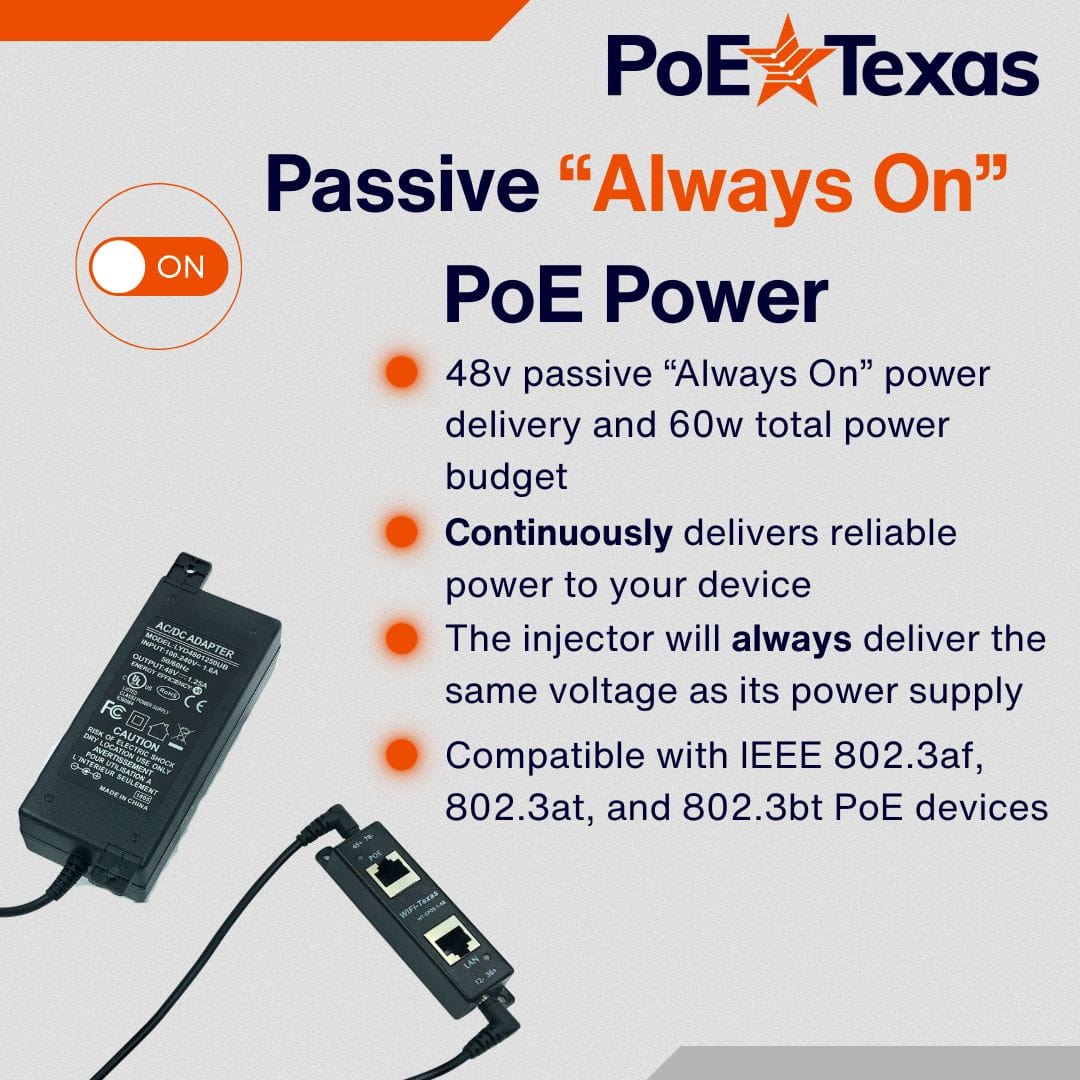

  • Passive "Always On" PoE power delivery for reliable throughput
  • Mode A / Mode B Options

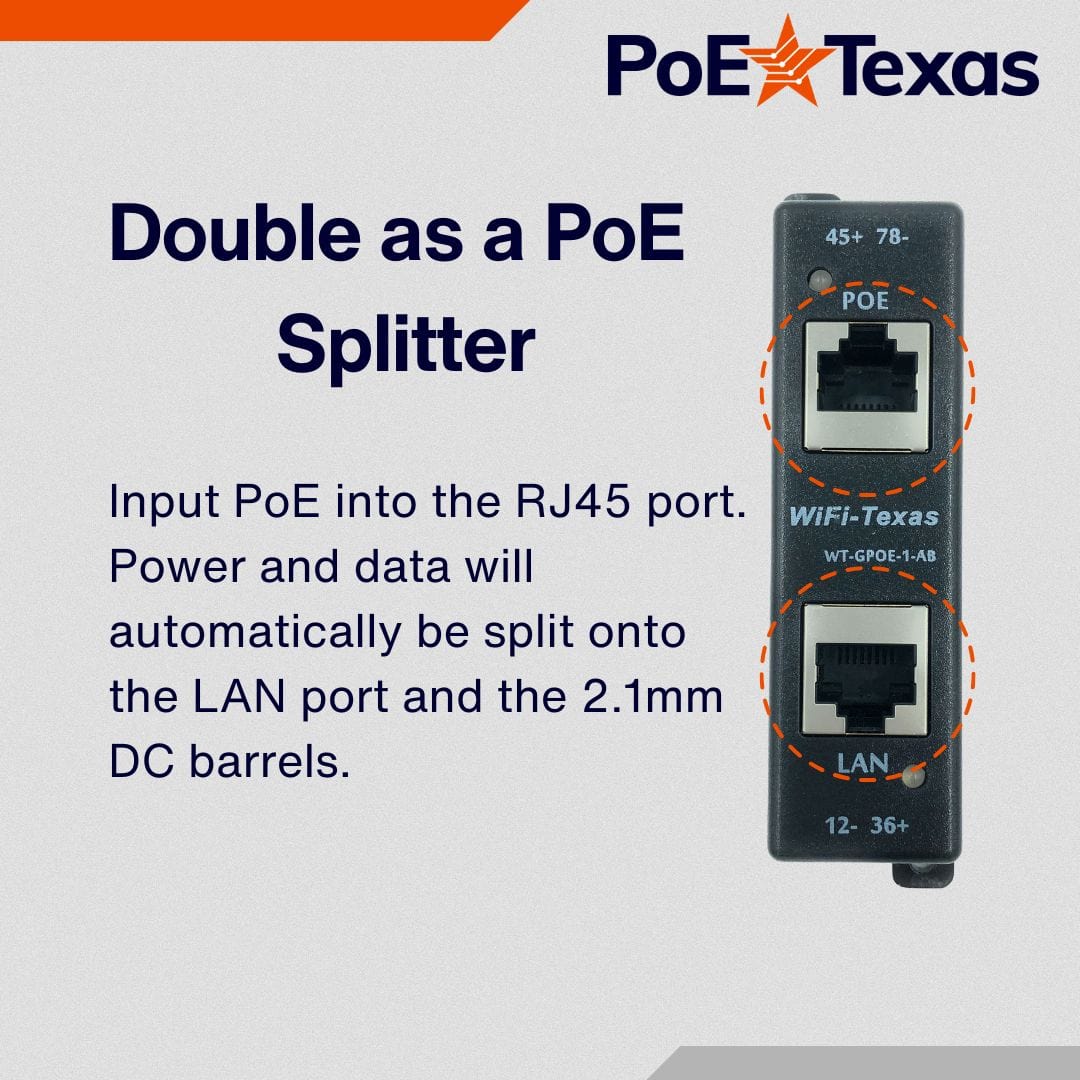

  • Doubles as a PoE splitter when used in reverse - divide PoE power onto the 2.1mm DC barrel and data onto the LAN port

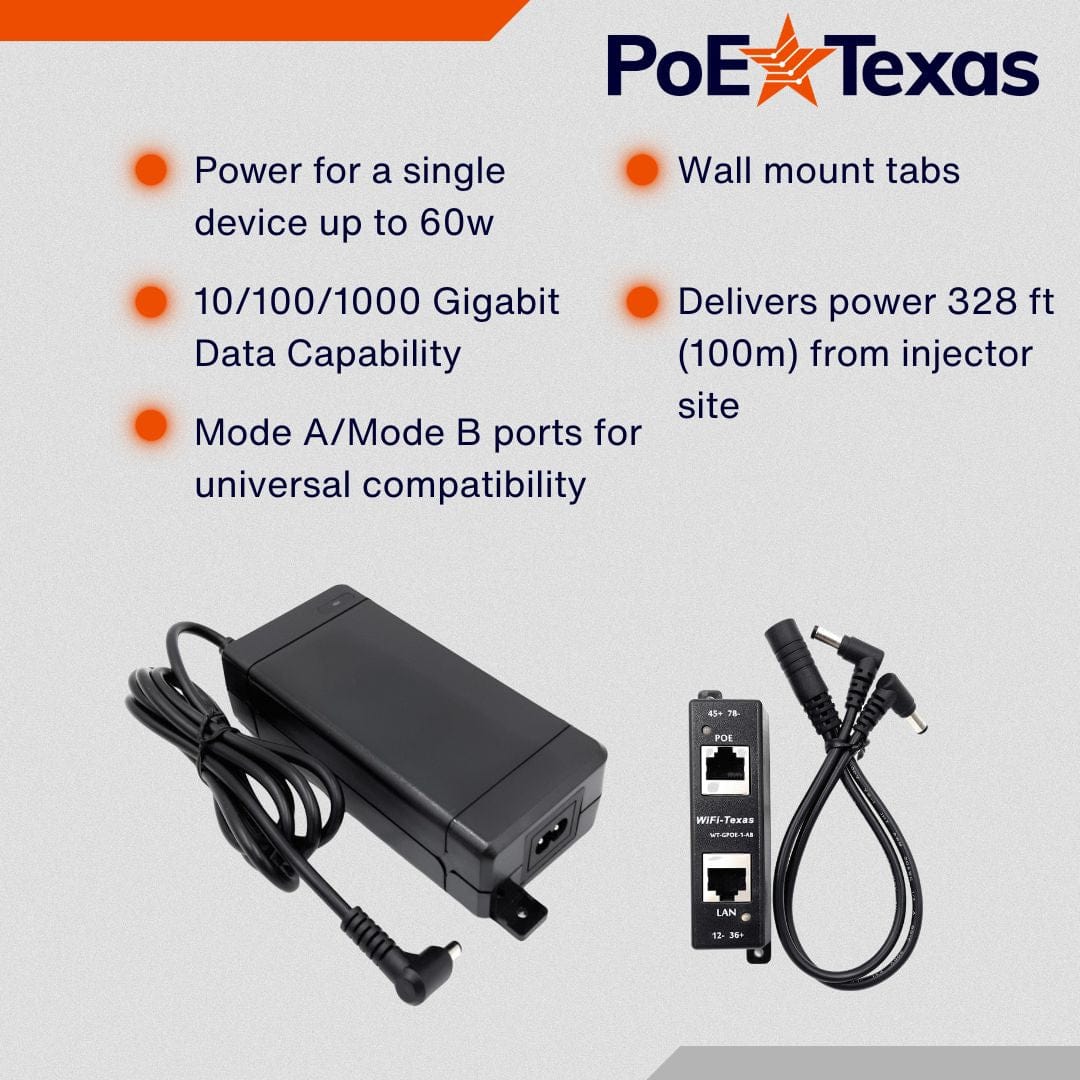

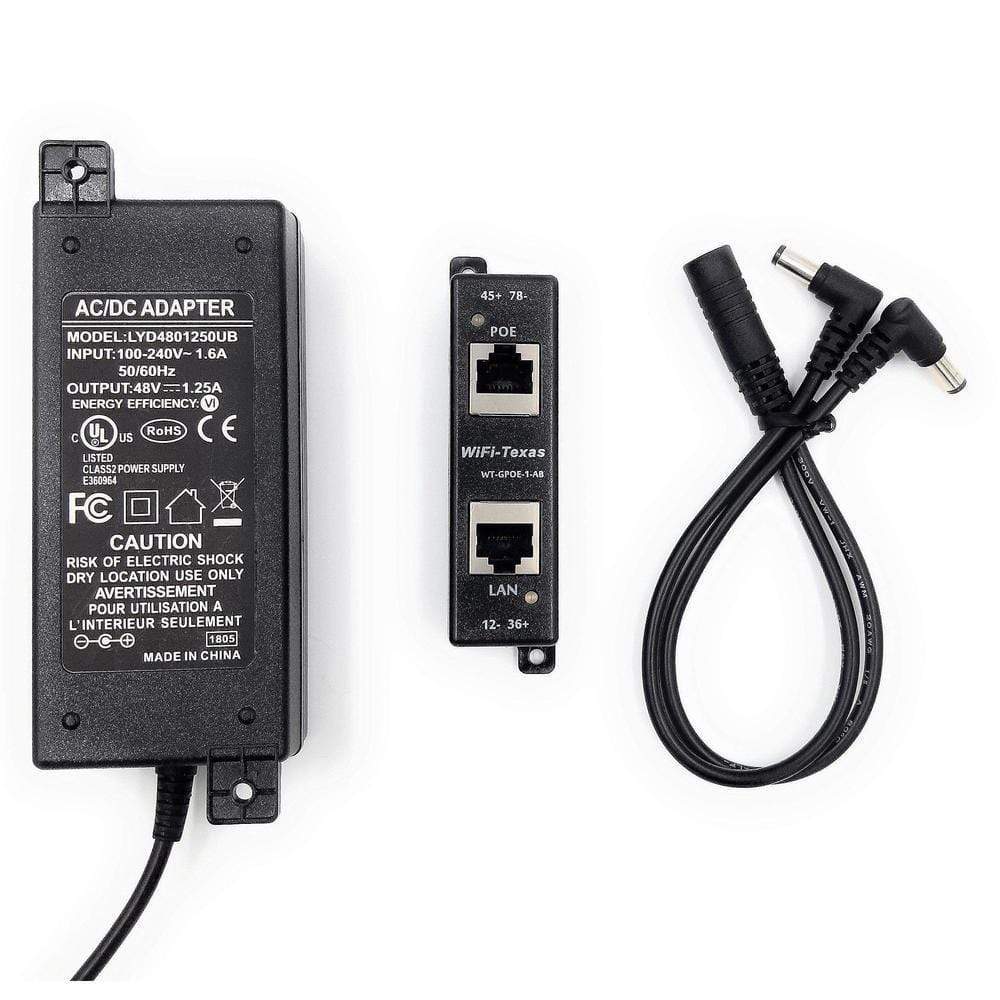

  • Includes a 48 volt 60 watt UL certified power supply

Product Specifications

Adapters included 2.1mm x 5.5mm Y-Cable
Certifications UL/CE/FCC
Data + PoE Ports 1
Data Ports 1
Data Rate Gigabit
Dimensions 1 x 1 x 4 in. (Injector)
Input voltage 48 Volts DC
Management Port No
Max Amps Per Kit 1.25 Amps
Max Power for Kit 60 Watts
Max. Amps Per Port .65 A / 1.25 A ((With Y-Cable)
Mount Type Wall Mount
Operating Humidity 5% to 90%
Operating Temperature Range -10 - 60C
Output Voltage 48 volts
PoE Method Passive
PoE Mode/Pinout Mode A (-1,2 +3,6)/Mode B (+4,5 -7,8)
Power Input 2.1mm DC x2
Power Supplies PS-48v60w; 48 Volt, 1.25 Amp, 60 Watt

QUESTIONS & ANSWERS

Ask a Question
  • Is this a passive version of ultra POE known as ( POE++ / POEbt)? Does it power both mode A and B at once?

    For a passive 4-pair PoE (60W) application we recommend the GPOE-1AB-56v60w. This kit includes a Y-cable for power power on all four pairs.
