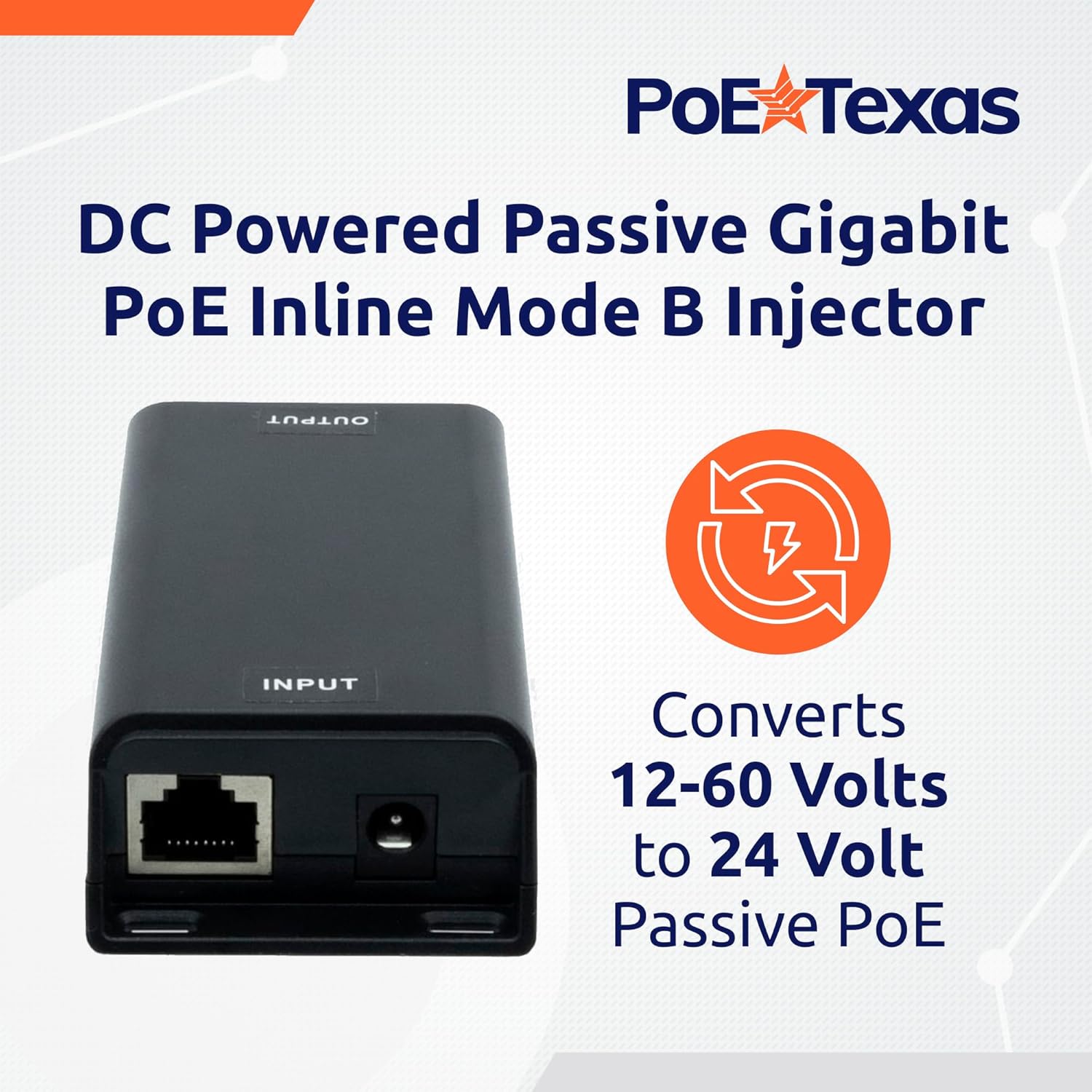

DC Powered Passive Gigabit PoE Inline Mode B Injector that Converts 12-60V Volts to 24 Volt Passive PoE

SKU GPOE-24v30w
Need Regulated 24 Volt PoE from a Battery?  The GPOE-24v30w delivers regulated 24-volt PoE from a 12-volt to 60-volt DC input up to 30 watts. Input power onto the DC or the RJ45 dongles and you will instantly get 24v PoE on the output. This device works inline for simple, convenient applications including PtP and PmP radios from Ubiquiti and Mikrotik.

Product Description:

  • Instantly modify your 12-60 volt DC source to a regulated 24 volts

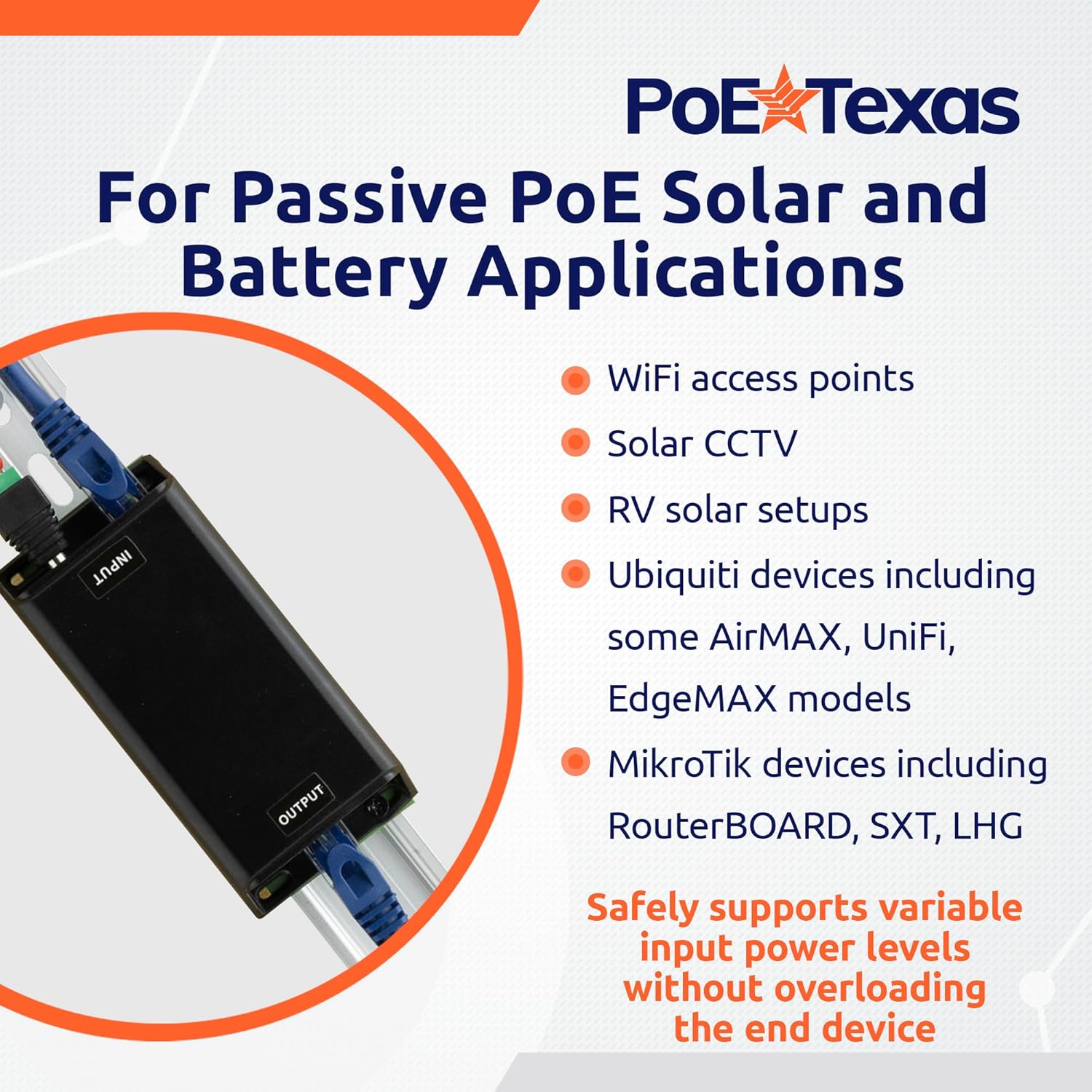

  • Convert existing battery or 12-volt power sources to PoE for use with Power over Ethernet Cameras, Phones, and WiFi access points

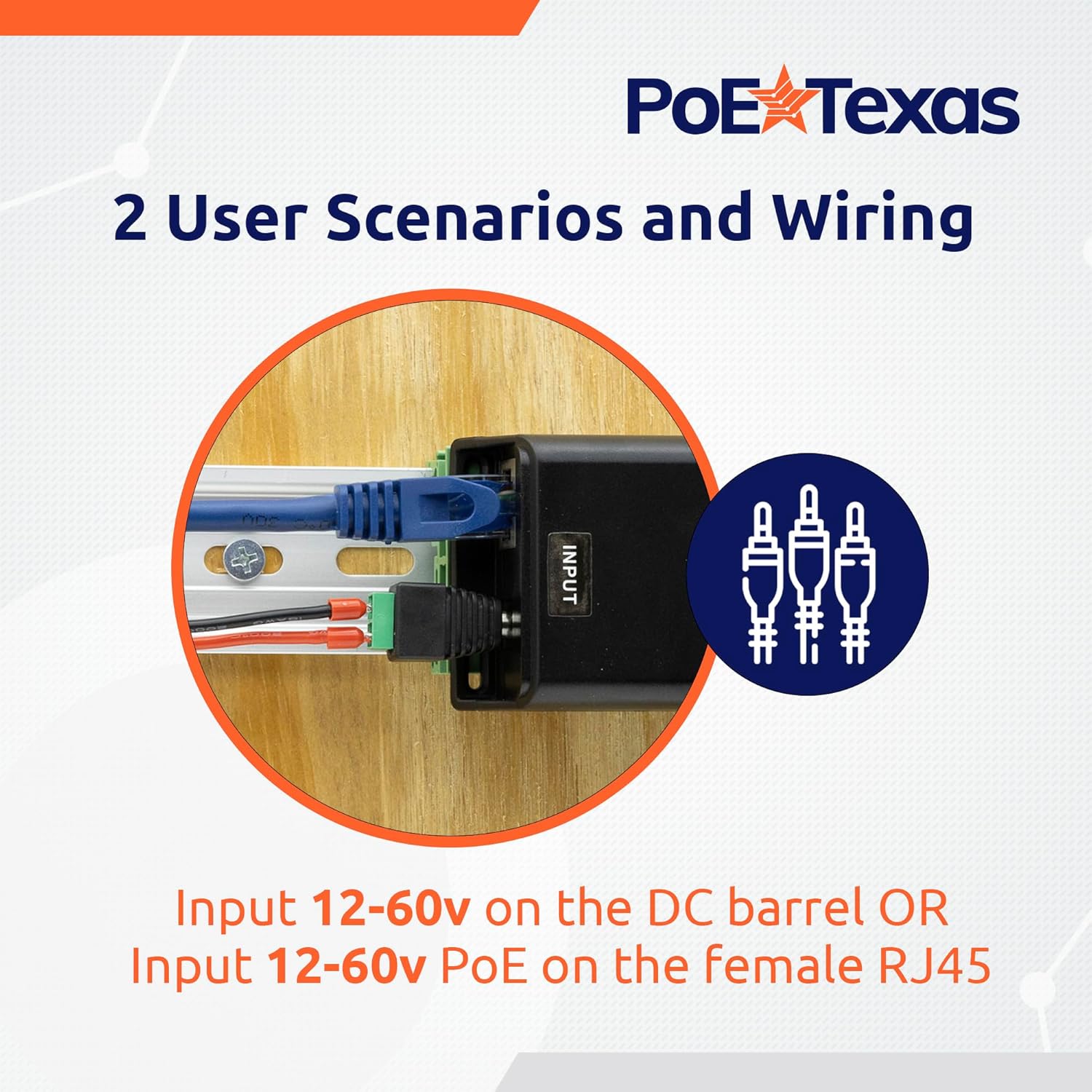

  • Two use scenarios and wiring options:
    • Input 12-60v on the DC barrel OR
    • Input 12-60v PoE on the Male RJ45
  • Standard 2.1mm x 5.5mm DC female power input
  • 30 watts output – plenty for all IP Phones and most Cameras
  • Diodes isolate the RJ45 power input from the DC power input
  • Works with your existing power source - Solar, DC, or PoE

Product Use Scenarios:

  1. Convert 12-60v PoE to Regulated 24 volts via the Male RJ45
  2. Convert 12-60v DC Power source to 24 volts Power over Ethernet. Male RJ45 for 10/100/1000 gigabit data is optional for direct data

See the Online Technical Manual

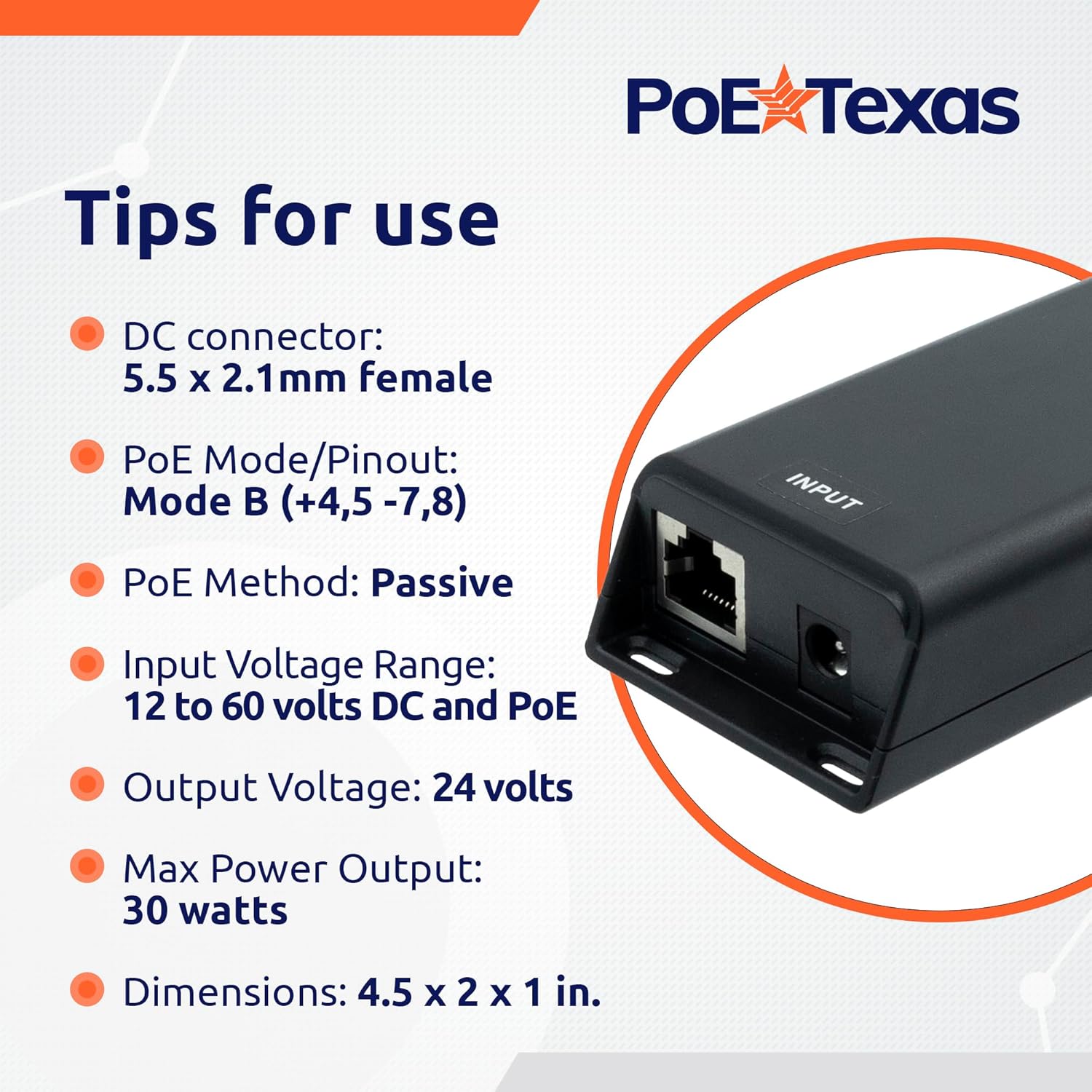

Product Specifications

Certifications CE, FCC, RoHS
Connector Types DC Barrel / RJ-45
Data Rate 10/100/1000
DC connector 5.5 x 2.1 mm DC
Dimensions 4.5x2x1 in.
Input Voltage Range 12 to 60 volts DC and PoE
Max Power for Kit 30 watts
Operating Humidity 5% to 90%
Operating Temperature Range -10 - 60C
Output Voltage 24 volts
PoE Method Passive
PoE Mode/Pinout Input: Mode B (+4,5 -7,8) / Output: Mode B (+4,5 -7,8)
Power Input 2.1 mm DC in / RJ-45 In
Weight 0.14 lb
