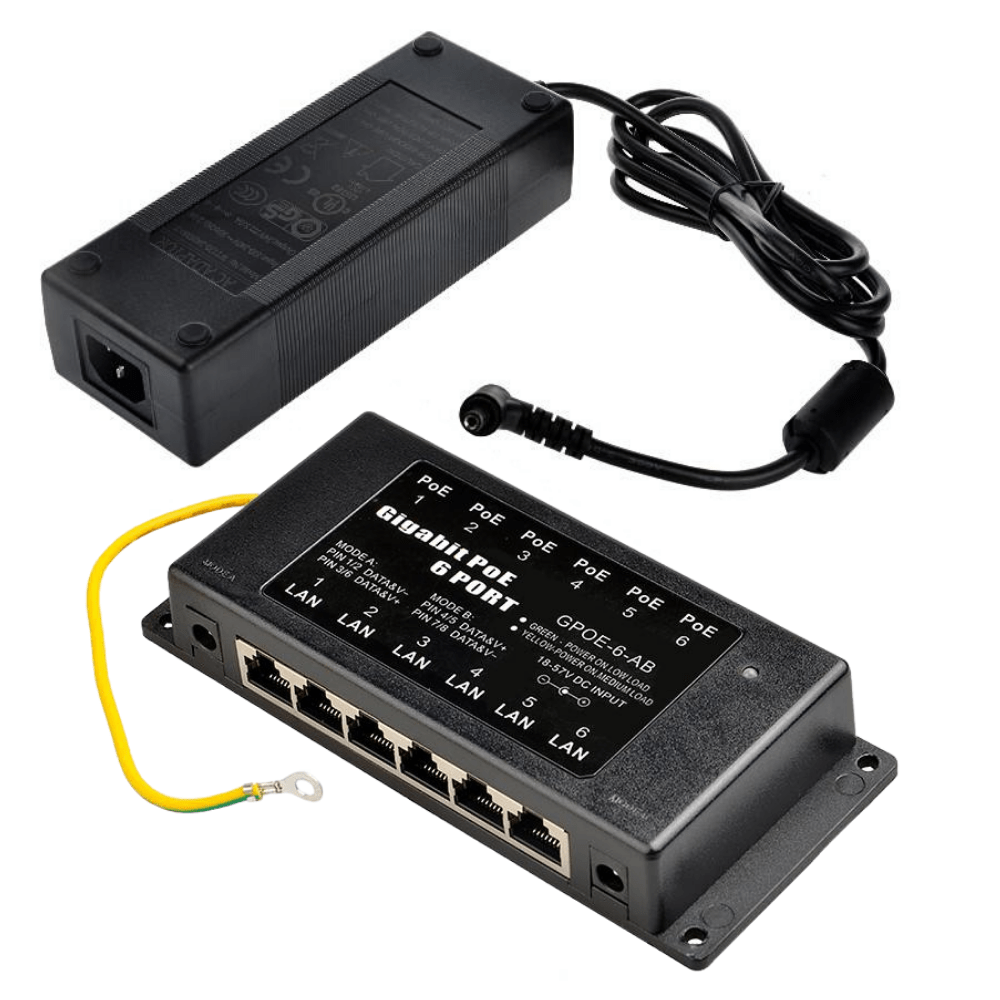

6-Port Gigabit PoE Injector with 24 Volt 120 Watt Power Supply

SKU GPOE-6AB-24v120w
Save 7%
Original Price $90.99
Current Price $84.99

Low cost solution for PoE installation. Instantly upgrade your infrastructure to support six PoE devices in one unit. Power an IP camera, desktop phone, WiFi access point, or other low voltage device through a network data cable using this Passive Power over Ethernet (PoE) injector. A Passive PoE injector always delivers the same voltage as its power source. This injector comes with a 24 volt DC power supply to power 24-volt passive PoE devices like Access Points from Mikrotik, Ubiquiti, and many more.

Product Features:

  • Instantly upgrades your network to PoE for six devices
  • Use to deliver PoE power to IP security cameras, phones, wireless access points and other devices that accept passive 24 volt PoE
  • Offers 4 Pair PoE (4PPoE) when used with a Y-Cable (sold separately)
  • Passive "Always On" PoE power delivery for reliable throughput
  • Mode A / Mode B Options
  • Ground Lead
  • Includes a 24 volt, 120 watt UL/CE/FCC power supply

Simple, Reliable, and Supported By Experts. We design our Power over Ethernet Injectors for simple installation and long life, but sometimes things go wrong. When that happens, expert help is only a phone call away. All of our PoE products are backed with a 1-year replacement warranty and 30-day “no questions asked” return policy.

Product Specifications

Certifications UL/CE/FCC
Data + PoE Ports 6
Data Ports 6
Data Rate Gigabit
Dimensions 6 x 3 x 1 in.
Input voltage 24 Volts
Max Amps Per Kit 5 Amps
Max Power for Kit 120 Watts
Max. Amps Per Port 650 mA / 1.25 Amp (With Y-Cable)
Mount Type Wall
Operating Humidity 5% to 90%
Operating Temperature Range -10 - 60C
Output Voltage 24 volts
PoE Method Passive
PoE Mode/Pinout Mode A (-1,2 +3,6) / Mode B (+4,5 -7,8)
Power Input 2.1 x 5.5 mm DC
Power Supplies PS-24v120w

QUESTIONS & ANSWERS

Ask a Question
  • Do you think this PoE injector with 48V DC input power could power Dahua cameras that are 802.3af standard?

    Yes, this injector supports mode A and mode B for power. For our 48 volt/ 802.3af kit version, please see our WS-GPOE-6-48V60W.
