PoE Texas Injector POE-1-24V12W

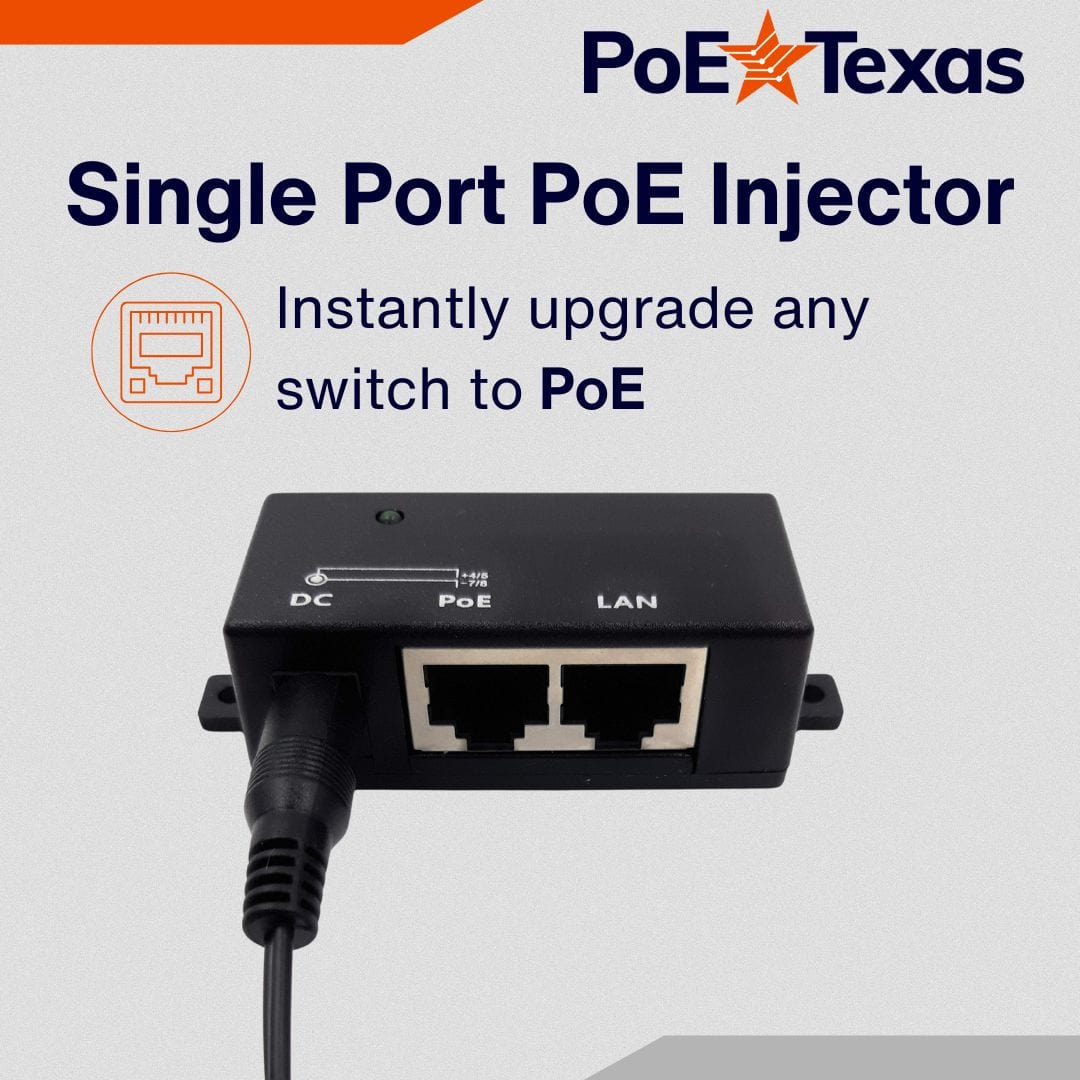

Single Port 10/100 Mbps Mode B PoE Injector with 24 Volt, .5 Amp, 12 Watt Power Supply

SKU POE-1-24V12W
Save 30%
$16.99
$11.89

Notify me when back in stock

We recommend using this single port injector kit for powering Heckler's new "Slim Mount" for iPad. Or use this passive Power over Ethernet injector to power other 24 volt devices like Ubiquiti cameras, Mikrotik WiFi access points and more. The PoE Injector takes power from the 24 volt DC power supply and adds the same voltage to your Cat 5, Cat5e or Cat6 Ethernet data cable to power your device.

Product Features:

  • Passive Mode B "Always on" PoE power
  • 24v, .5A, 12w output for powering one device
  • Simple installation for 24v Passive PoE Applications
  • Combines Power and 10/100 data onto corresponding output
  • Compatible with iPad mount models: H565-BG and H564-BG

Product Specifications

Certifications UL/CE/FCC
Data + PoE Ports 1
Data Ports 1
Data Rate 10/100 Mbps
DC Power Input 2.1mm x 5.5mm
Dimensions 3 x 1 1/8 x 1 Inches
Input voltage 24 volts
Max Amps Per Kit 500 mA
Max Power for Kit 12 Watts
Max Voltage 24 Volts
Mount Type Wall Mount
Operating Humidity 5% to 90%
Operating Temperature Range -10 to 60C
Output Voltage 24 Volts
PoE Method Passive
PoE Mode/Pinout Mode B (+4,5 -7,8)
PoE Standard Passive PoE
Power Input 2.1mm DC

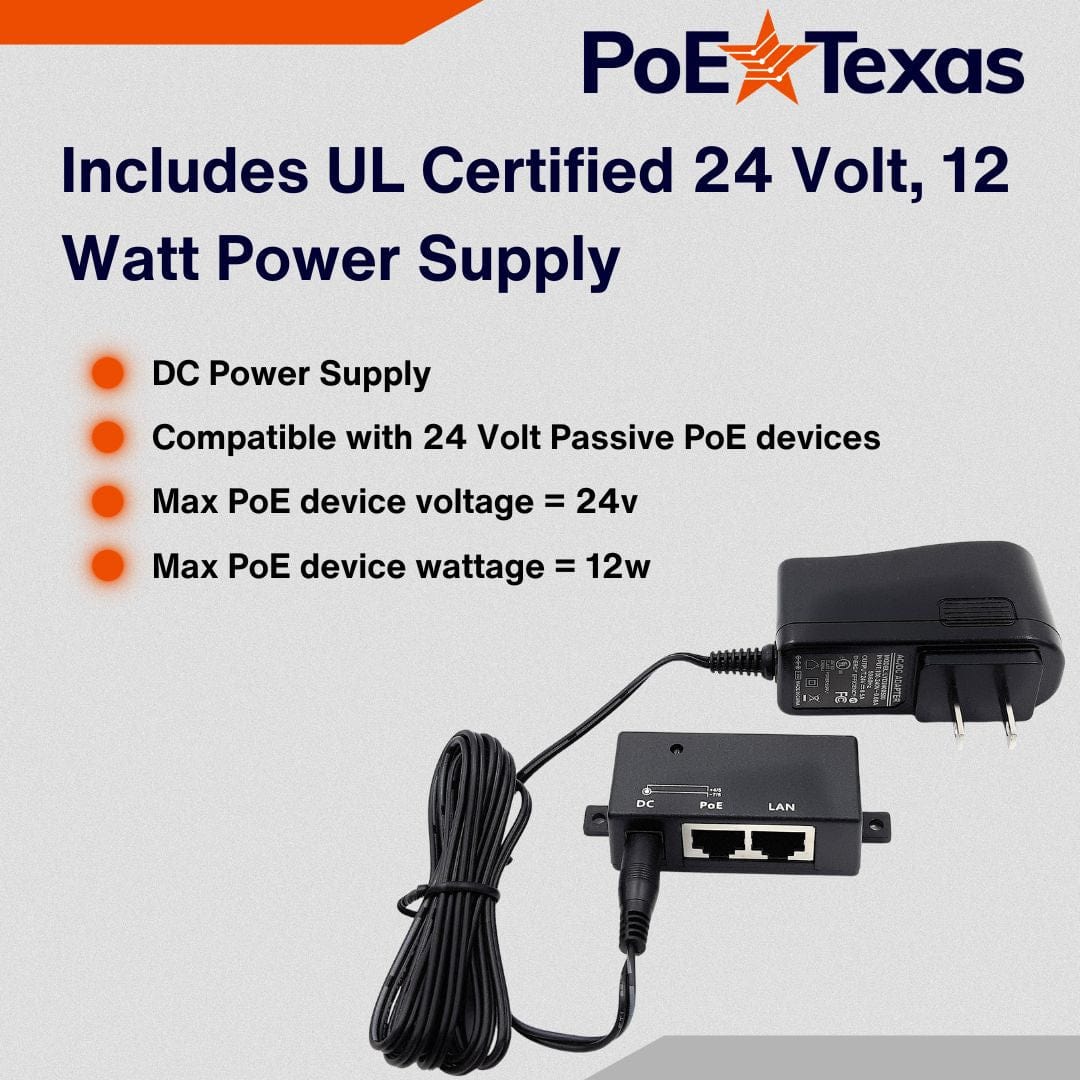

Power Supplies PS-24v12w: 24volt, .5Amp, 12watt
