POE-1-48V15W

Single Port 10/100 Mbps Mode B Injector With a 48 Volt 15 Watt Power Supply

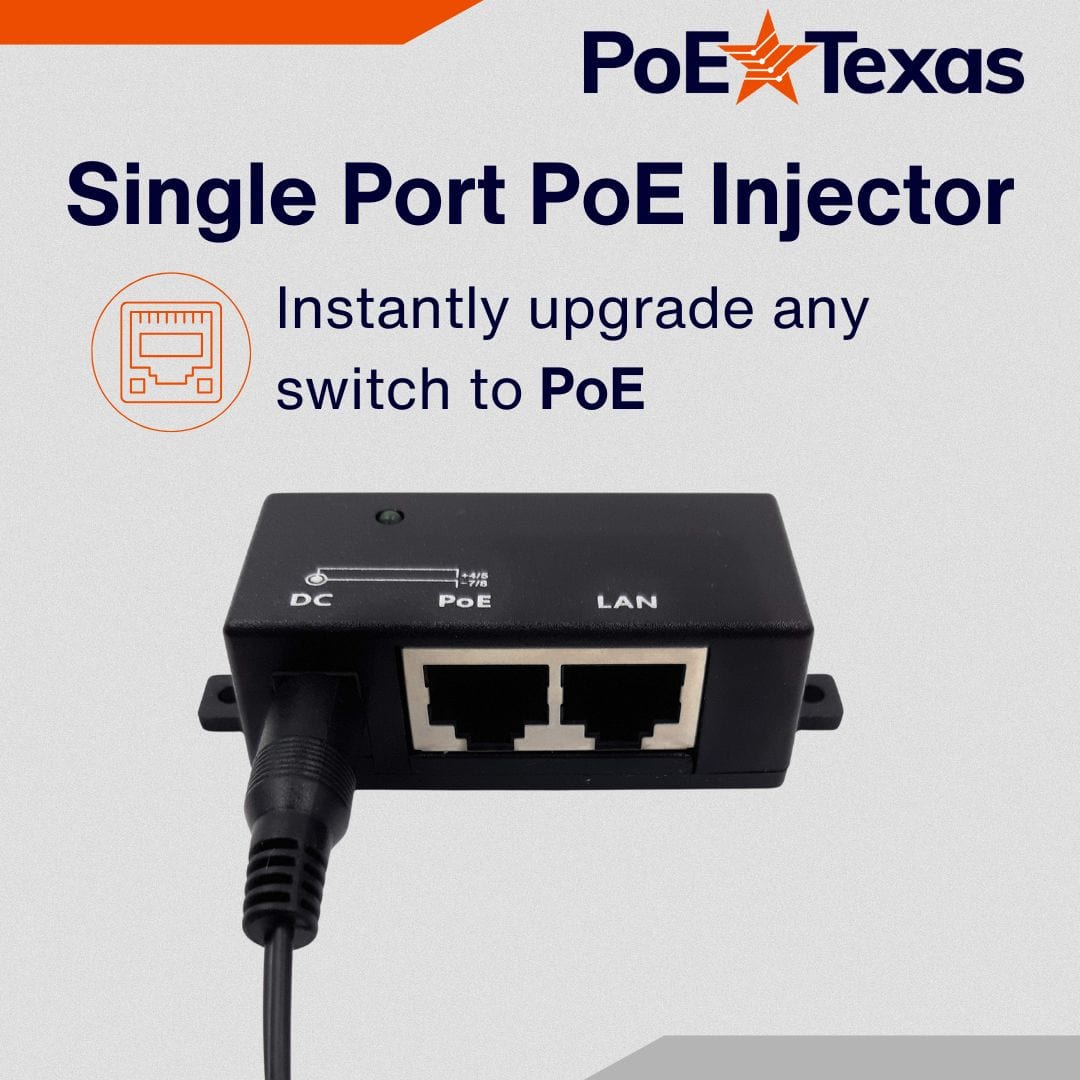

Instantly upgrade your network switch to PoE. Power an IP camera, desktop phone, WiFi access point, or other low voltage 802.3af device through a network data cable using this Passive Power over Ethernet (PoE) injector. A Passive PoE injector always delivers the same voltage as its power source. This injector comes with a 48 volt DC power supply to power devices labeled “802.3af.”

Product Features:

Instantly upgrades your network to PoE for one device
Use to deliver PoE power to IP security cameras, phones, wireless access points and other devices that accept passive 802.3af
Passive "Always On" PoE power delivery for reliable throughput
10/100 Mbps Data Capability
Mode B power delivery on pins 4,5+ / 7,8-
Includes a UL certified 48 volt 15 watt power supply

$16.99

Qty:

Single Port 10/100 Mbps Mode B Injector With a 48 Volt 15 Watt Power Supply

Product Features:

Instantly upgrades your network to PoE for one device
Use to deliver PoE power to IP security cameras, phones, wireless access points and other devices that accept passive 802.3af
Passive "Always On" PoE power delivery for reliable throughput
10/100 Mbps Data Capability
Mode B power delivery on pins 4,5+ / 7,8-
Includes a UL certified 48 volt 15 watt power supply

Tech Info

Product Specifications

Certifications	CE, FCC, RoHS, UL (power supply)
Data + PoE Ports	1
Data Ports	1
Data Rate	10/100 Mbps
Dimensions	1 x 1 x 2 in.
Input voltage	48 Volts
LED Indicator	1
Max Amps Per Kit	0.3 Amps
Max Power for Kit	15 Watts
Max. Amps Per Port	0.312
Mount Type	Wall
Operating Humidity	5% to 90%
Operating Temperature Range	-10 - 60C
Output Voltage	48 Volts
PoE Method	Passive
PoE Mode/Pinout	Mode B (+4,5 -7,8)

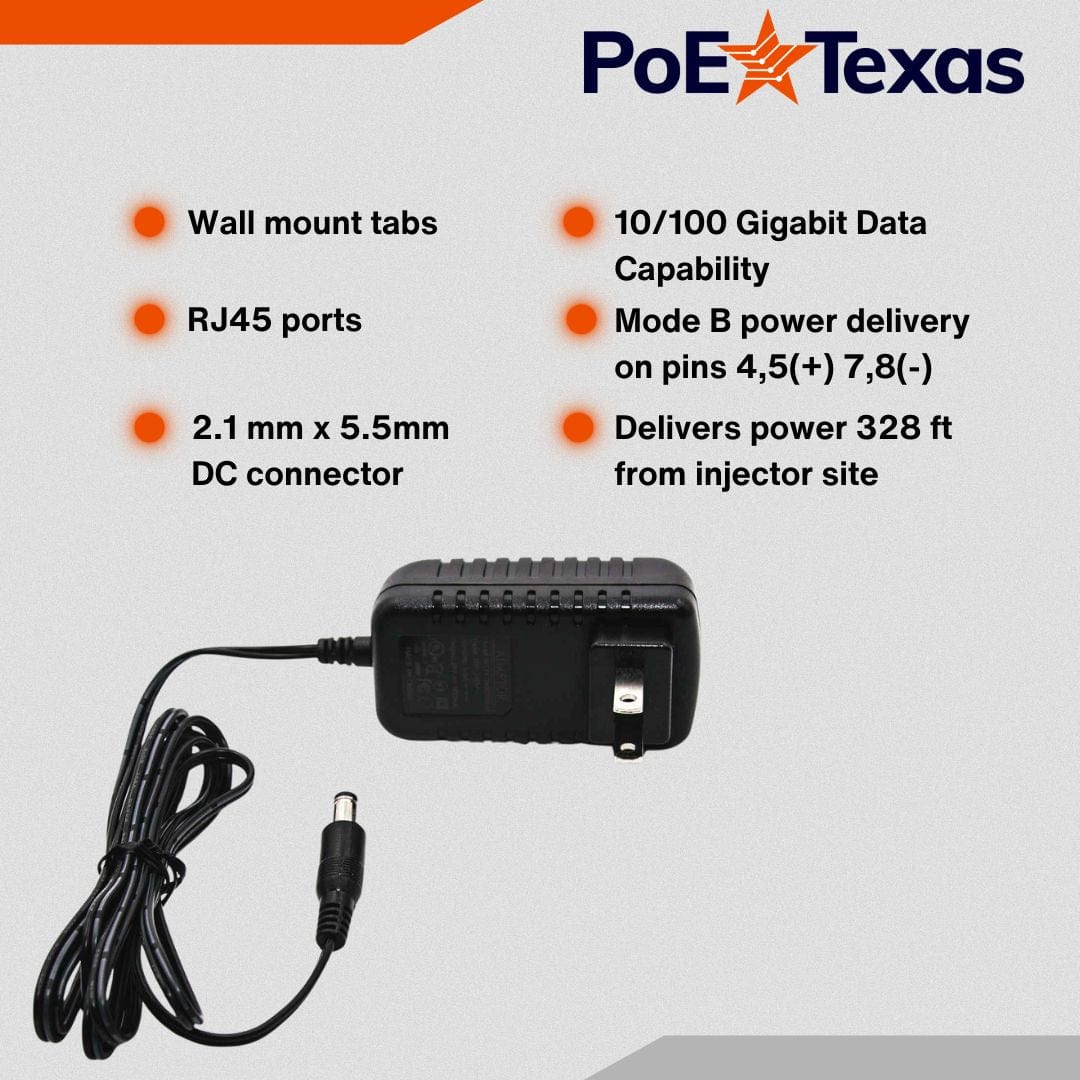

Power Input	2.1 x 5.5 mm DC
Power Supplies	PS-48v15w; 48 Volt, 15 Watt

Questions

Ask a Question

I want to remote view a camera on it's own network. If connect the POE-1-48V15W to a dedicated cable modem and the camera to the POE-1-48V15W will that work?

Yes, when the LAN port is taking data in from your modem/network source, this injector kit will allow you to see your camera view. Data on this is injector is not managed; data will be unmanaged / pass through transmission. Please note that this is a 10/100 injector. If your camera requries gigabit, please see our GPOE-1B-48v15w.
Hi, I am looking for a single to 4 port poe injector that I can use on my boat with a FLIR night vision camera. the issue is I need to connect the injector to a 12-24 vdc input source to power the injector. with this unit function with direct 12-24vdc without using the ac power adaptor?

This single port injector takes power from a DC power source (12-56 volts). If you already have a DC power source then yes, this injector will power on with 12-24VDC to convert the DC power to PoE power. Be sure to confirm the power requirements of your FLIR to ensure that it can accept PoE power.
