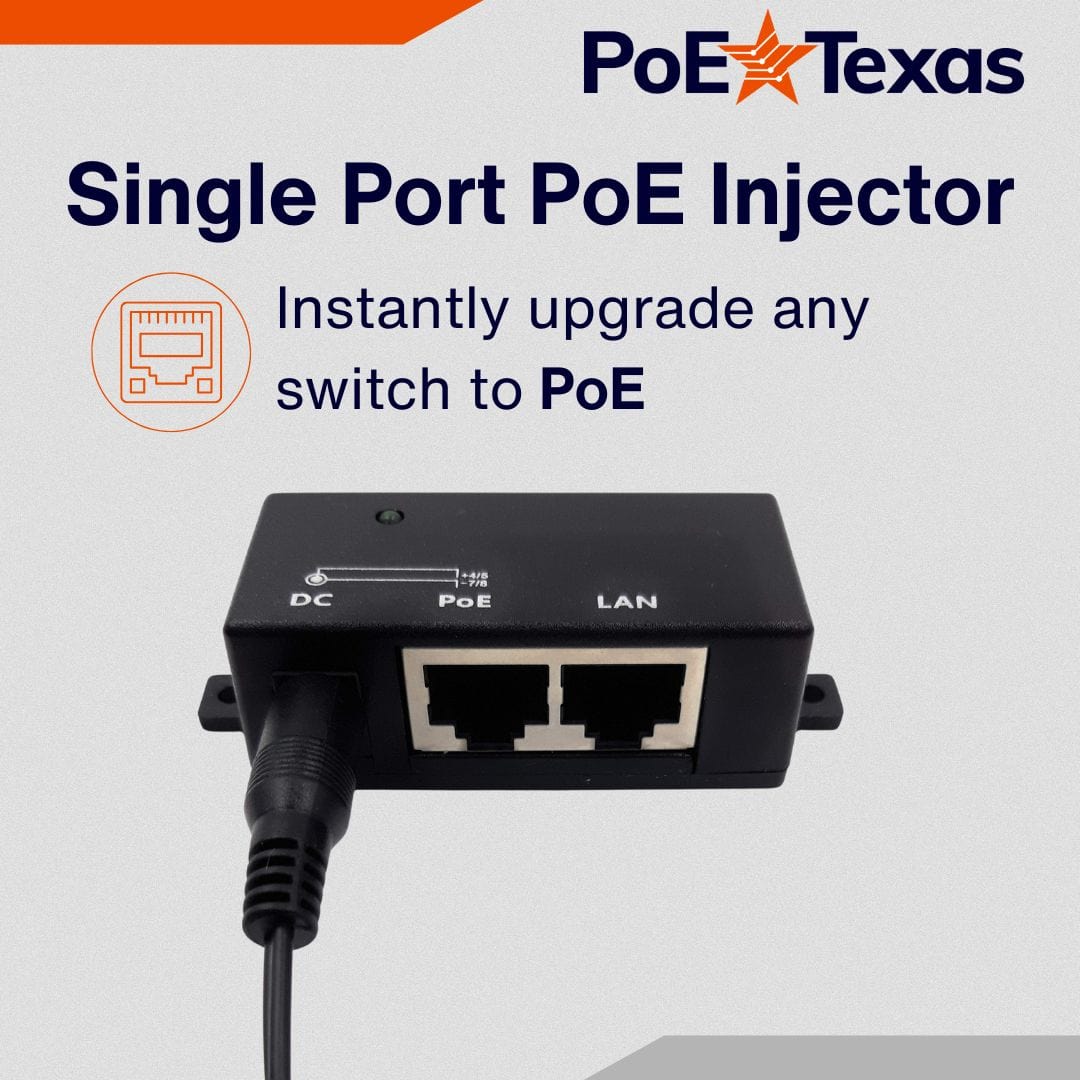

Single Port 10/100 Mode B PoE Injector without Power Supply

SKU POE-1
$5.49

Instantly upgrade your network switch to PoE. Power an IP camera, desktop phone, WiFi access point, or other low voltage device through a network data cable using this Passive Power over Ethernet (PoE) injector. A Passive PoE injector always delivers the same voltage as its power source. Pair this injector with a 48 volt DC power supply to power devices labeled “802.3af,” or you can use a 24 volt DC power supply to power 24-volt passive PoE devices like Access Points from Mikrotik, Ubiquiti, and many more.

Product Features:

  • Instantly upgrades your network to PoE for one device
  • Use to deliver PoE power to IP security cameras, phones, wireless access points and other devices that accept passive 802.3af or PoE+
  • Passive "Always On" PoE power delivery for reliable throughput
  • 10/100 Mbps Data Capability
  • Mode B power delivery on pins 4,5+ / 7,8-
  • Compatible with 12-56v DC Power supply (sold separately)

Product Specifications

Certifications CE, FCC, RoHS
Data + PoE Ports 1
Data Ports 1
Data Rate 10/100 Mbps
Dimensions 1 x 1 x 2 in.
Input Voltage Range 12-56 Volts DC
LED Indicator 1
Max. Amps Per Port .65 Amps
Mount Type Wall
Operating Humidity 5% to 90%
Operating Temperature Range -10 - 60C
PoE Method Passive
PoE Mode/Pinout Mode B (+4,5 -7,8)
PoE Standard N/A

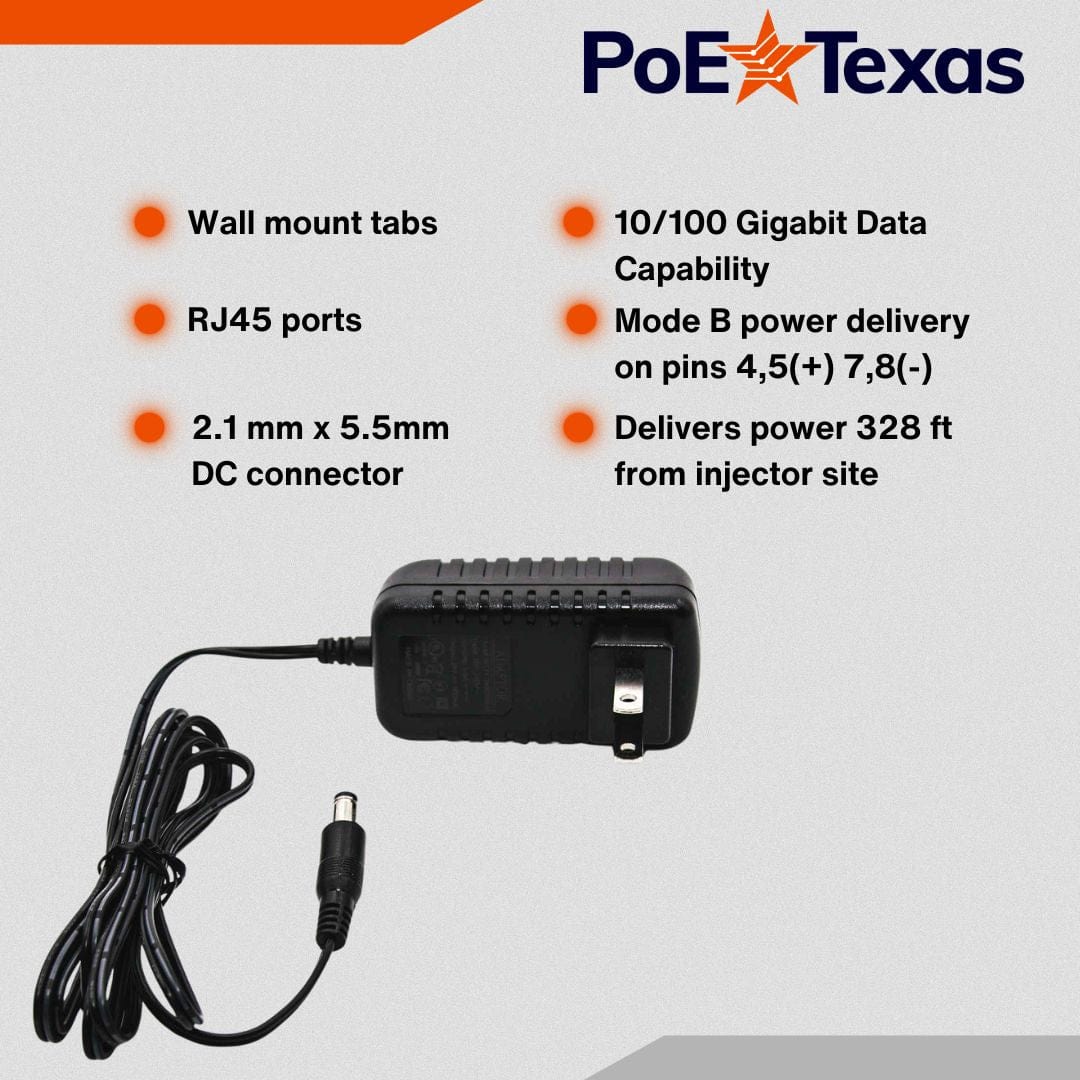

Power Input 2.1 x 5.5 mm DC

QUESTIONS & ANSWERS

Ask a Question
  • What type DC plug matches the DC power socket on the WS-POE-1-WM?

    The WS-POE-1-WM supports 2.1mm x 5.5mm DC input

  • what is the max amps per port for the WS-POE-1-wm?

    The maximum amps per port on this injector is .65A.
