12 Port 10/100 Mbps Mode B Rack Mount 12 Port Injector

SKU POE-12
$55.99

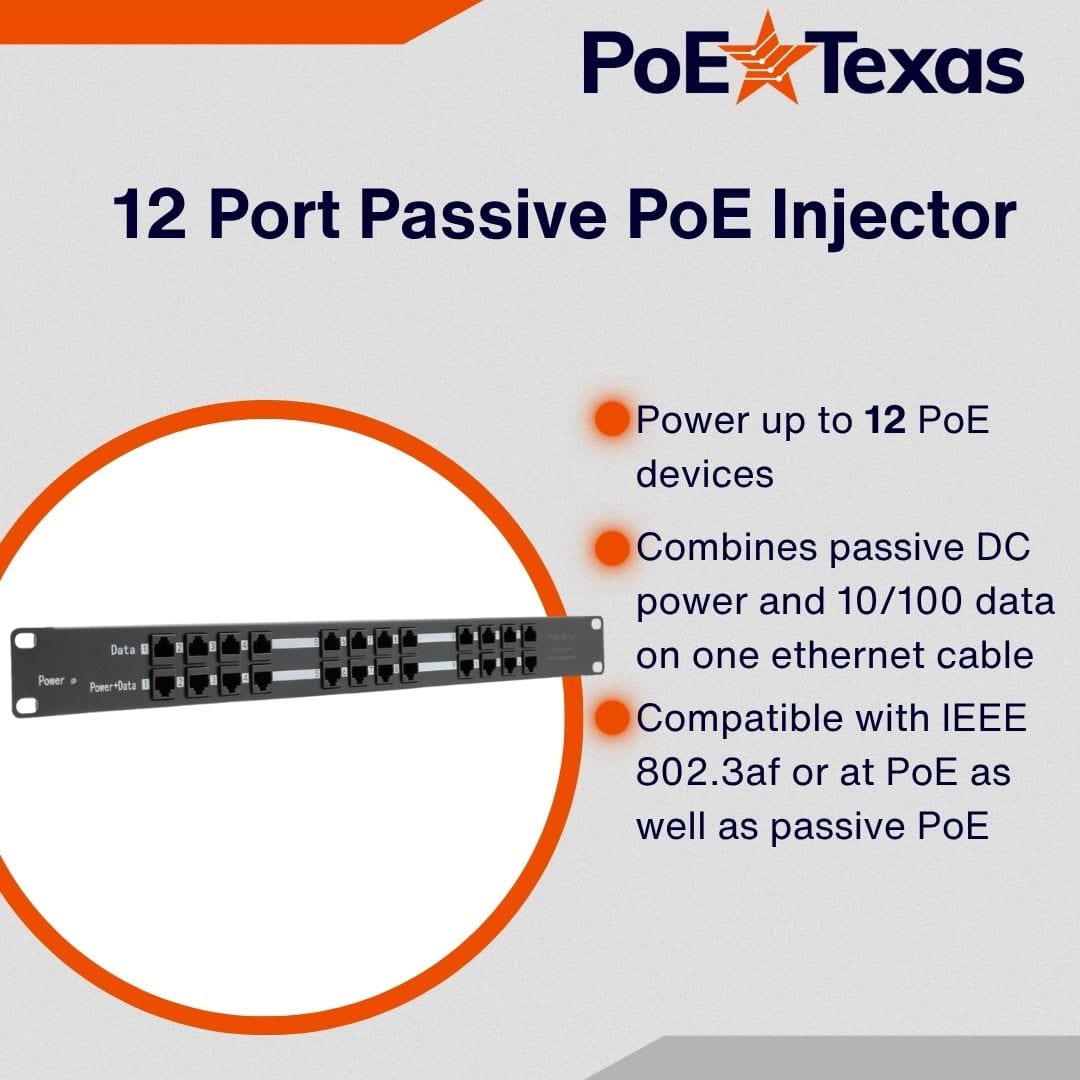

12 Port 10/100 Mbps Mode B Rack Mount 12 Port Injector

Power Supply Sold Separately

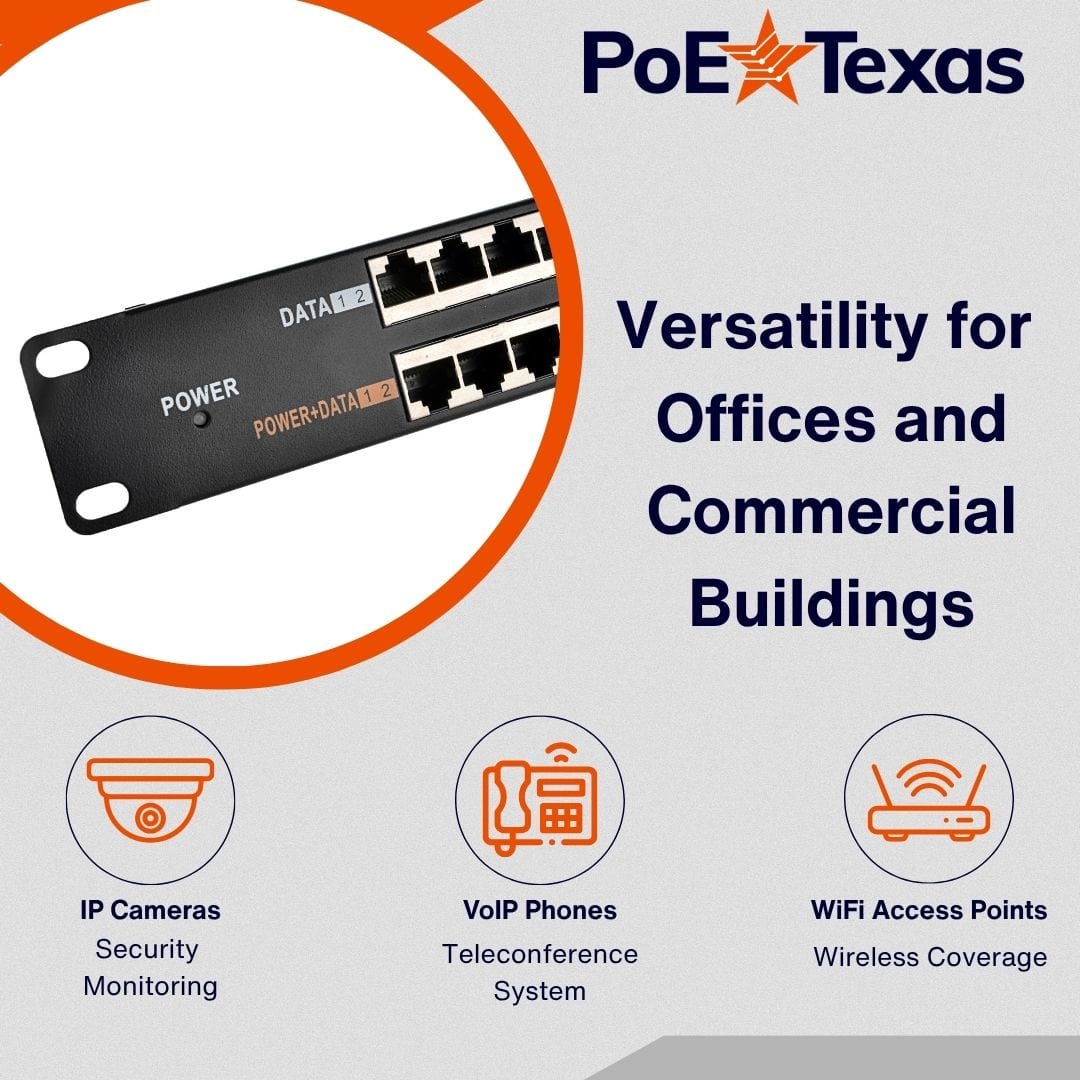

Power an IP camera, desktop phone, WiFi access point, or other low voltage devices through a network data cable using this Power over Ethernet (PoE) injector. The PoE Injector takes power from a DC power source (power supply sold separately) and adds it to your Ethernet data cable (Cat5, Cat5e, Cat6) to your device.

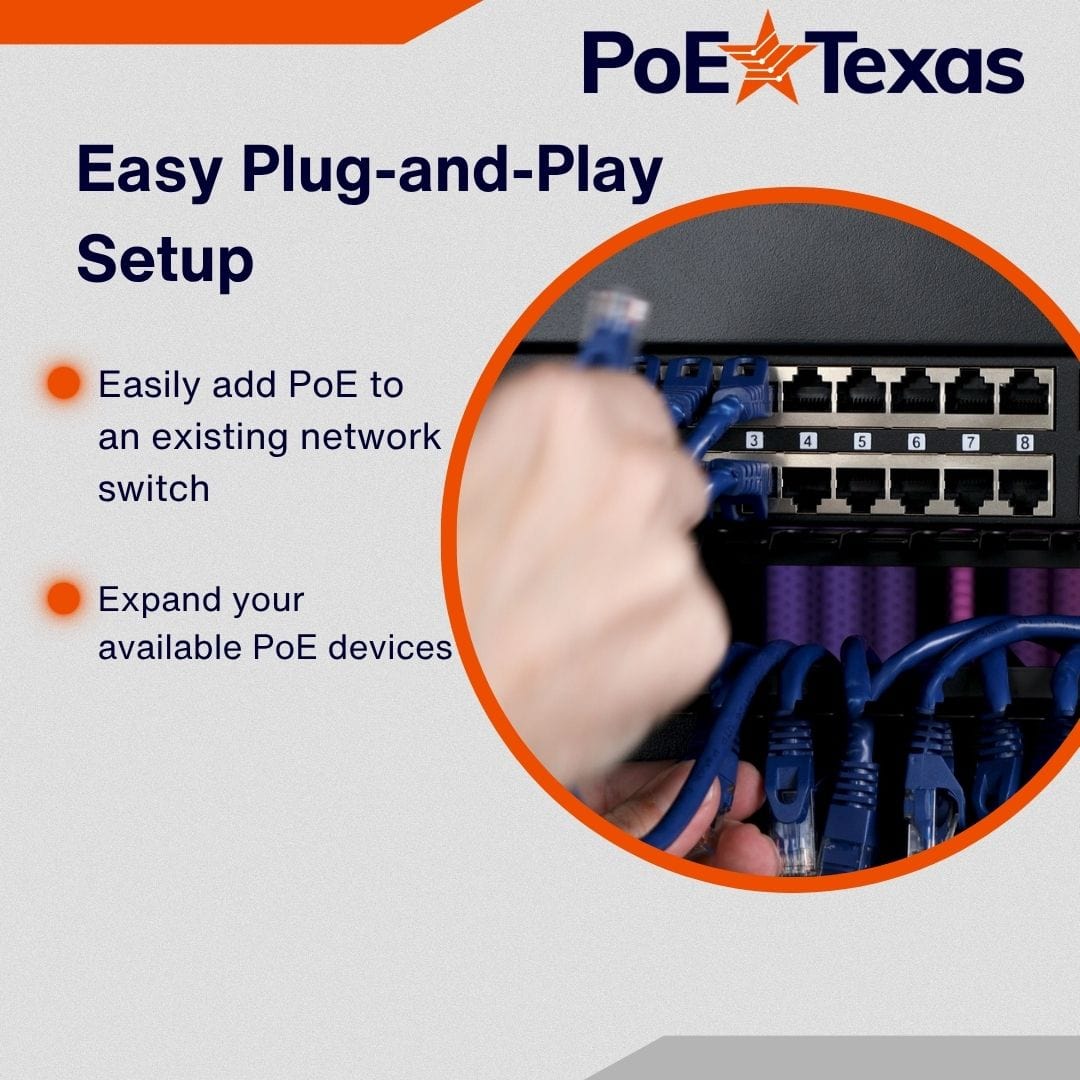

Save big on network upgrades and device installations Power over Ethernet delivers power 328 feet from the PoE Injector, eliminating the expense and hassle of installing AC power near your powered device. With this PoE Injector, you can add power to your data cable for a fraction of the cost of upgrading to a PoE capable network switch.

Passive PoE means versatility . A Passive PoE injector always delivers the same voltage as its power source. Pair this injector with a 48 volt DC power supply to power devices labeled “802.3af”, or you can use a 24 volt power supply with 24-volt passive PoE devices like Access Points from Mikrotik, Ubiquiti, and many more.

Simple, Reliable, and Supported By Experts We design our Power over Ethernet Injectors for simple installation and long life, but sometimes things go wrong. When that happens, expert help is only a phone call away, and all of our PoE products are backed with a 1-year replacement warranty and 30-day “no questions asked” return policy.



Product Specifications

Certifications CE, FCC, RoHS
Data + PoE Ports 12
Data Ports 12
Data Rate 10/100
Dimensions 19 x 1.75 x 1 in.
Input Voltage Range 12-56 Volts DC
LED Indicator 1
Max. Amps Per Port 650 mA
Mount Type Rack
Operating Humidity 5% to 90%
Operating Temperature Range -10 - 60C

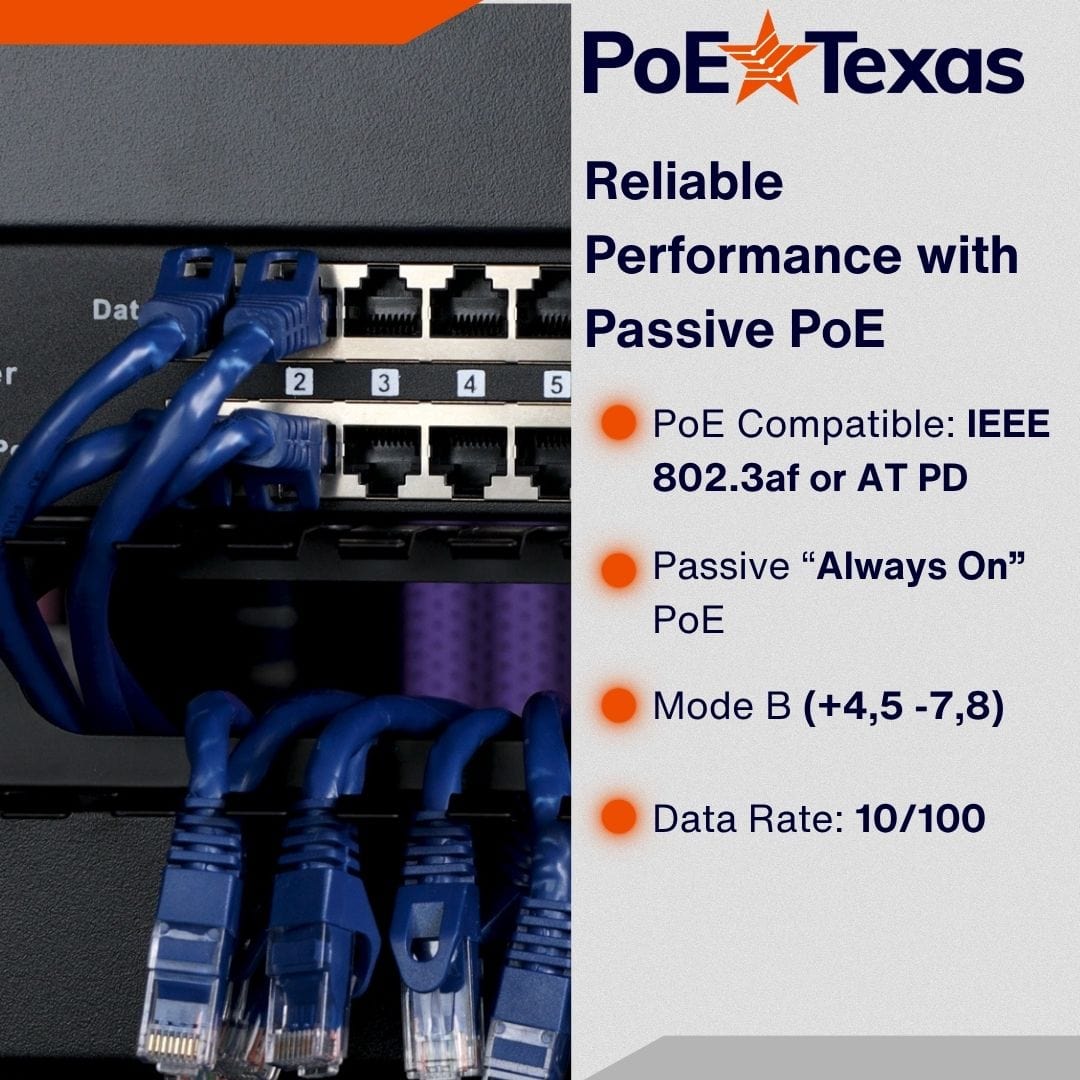

PoE Method Passive
PoE Mode/Pinout Mode B (+4,5 -7,8)
PoE Standard N/A

QUESTIONS & ANSWERS

Ask a Question
  • Hi, what is the upgrade version to model WS-POE-12-1U? Thanks.

    The upgrade will be our 1000mbps 12 port passive injector, see WS-GPOE-12-1U.  (power supply not included in this listing)

  • What is the model number for the POE-12 Power Supply (sold separately). Thank you

    The POE-12 is copmatible with any of our power supplies from 24-56 volts, depending on your application. These power supplies can be found by searching PS-24v120w, PS-48v120w, PS-48v60w, etc. This injector is also availalbe in kit versions that include a power supply such as the POE-12-48v120w, or POE-12-24v120w. Please feel free to call us at 512.479.0317 with any further questions.
