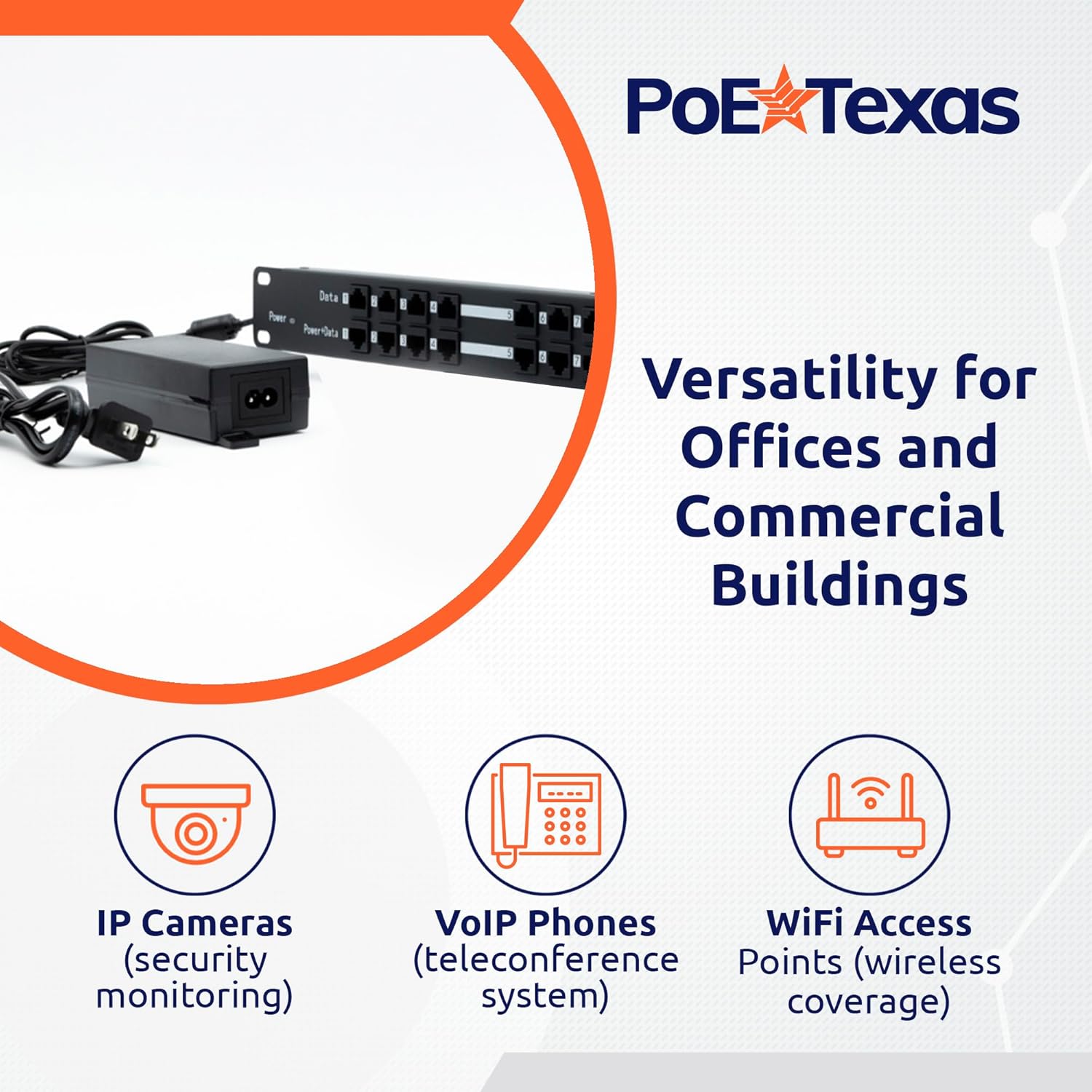

POE-12-48V120W

12 Port 10/100, Mode B, Rack Mount PoE Injector With a 48 Volt 120 Watt Power Supply

Passive PoE means versatility. Use this passive Power over Ethernet injector to power 802.3af PoE devices like cameras, IP phones, WiFi access points and more. The PoE Injector takes power from the included 48 volt DC power supply and adds the same voltage to your Cat 5, Cat5e or Cat6 Ethernet data cable to power your device.

Product Features:

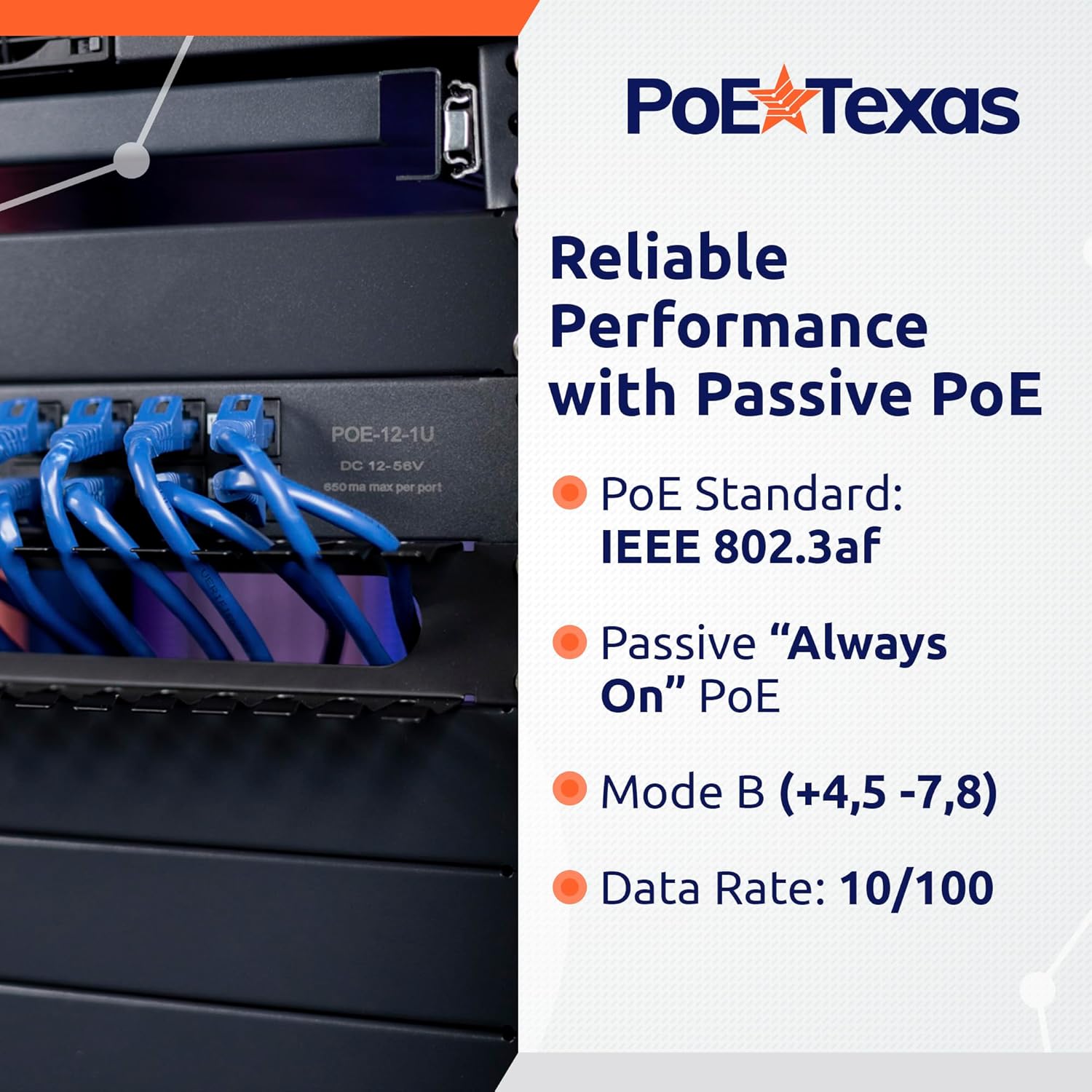

Passive Mode B "Always on" PoE power
Power up to 12 devices in one unit
Compatible with Passive IEEE 802.3af PoE devices

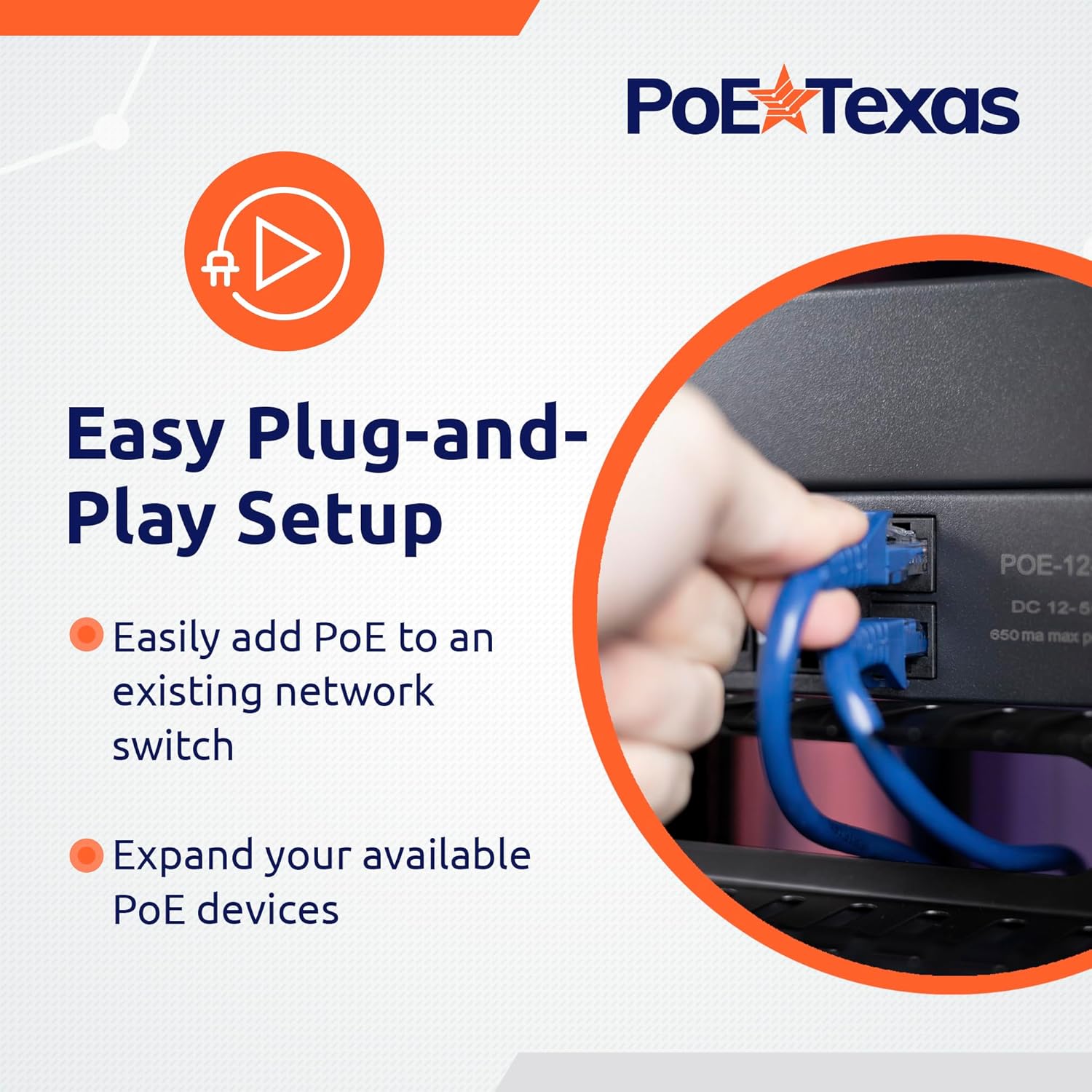

Simple installation for 48v PoE Applications
Combines Power and 10/100 data onto one Ethernet cable

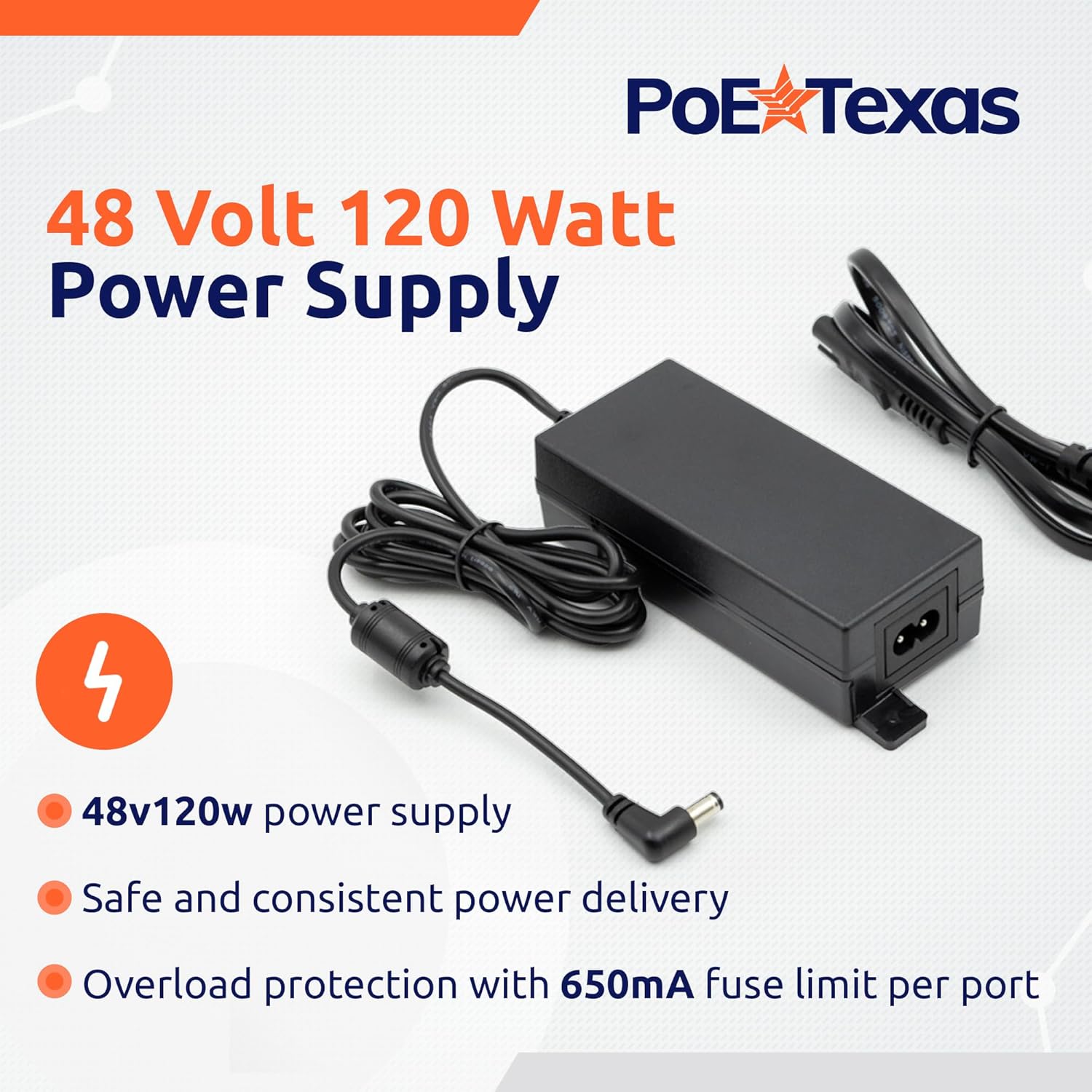

Includes a 48v, 2.5A, 120w UL/CE/FCC certified power supply

Visit Our Online Technical Manual

$112.99

Qty:

12 Port 10/100, Mode B, Rack Mount PoE Injector With a 48 Volt 120 Watt Power Supply

Product Features:

Passive Mode B "Always on" PoE power
Power up to 12 devices in one unit
Compatible with Passive IEEE 802.3af PoE devices
Simple installation for 48v PoE Applications
Combines Power and 10/100 data onto one Ethernet cable
Includes a 48v, 2.5A, 120w UL/CE/FCC certified power supply

Visit Our Online Technical Manual

Tech Info

Product Specifications

Certifications	UL/CE/FCC
Data + PoE Ports	12
Data Ports	12
Data Rate	10/100
Dimensions	19 x 1.75 x 1 in.
Input voltage	48 Volts
LEDs Per Port	1
Max Amps Per Kit	2.5 Amps
Max Power for Kit	120 Watts
Max. Amps Per Port	650 mA
Mount Type	Rack
Operating Humidity	5% to 90%
Operating Temperature Range	0-65C
Output Voltage	48 volts
PoE Method	Passive
PoE Mode/Pinout	Mode B (+4,5 -7,8)
PoE Standard	802.3af
Power Input	2.1 x 5.5 mm DC
Power Supplies	PS-48v120w
Weight	40oz

Questions

Ask a Question

Can I order the power supply only that is included with the POE-12-48V120W

The 48 volt 120 watt power supply can be found using the sku PS-48v120w in our search engine.
