PoE Texas Splitter Plug and Play Inline Mode B PoE Splitter Kit with 12 Volt 12 Watt Output and Divided 10/100 Data Capability
PoE Texas Splitter Plug and Play Inline Mode B PoE Splitter Kit with 12 Volt 12 Watt Output and Divided 10/100 Data Capability
PoE Texas Splitter Plug and Play Inline Mode B PoE Splitter Kit with 12 Volt 12 Watt Output and Divided 10/100 Data Capability
  • SKU: POE-12V10W-KIT

Plug and Play Inline Mode B PoE Splitter Kit with 12 Volt 12 Watt Output and Divided 10/100 Data Capability

$25.99
Shipping calculated at checkout.
DESCRIPTION

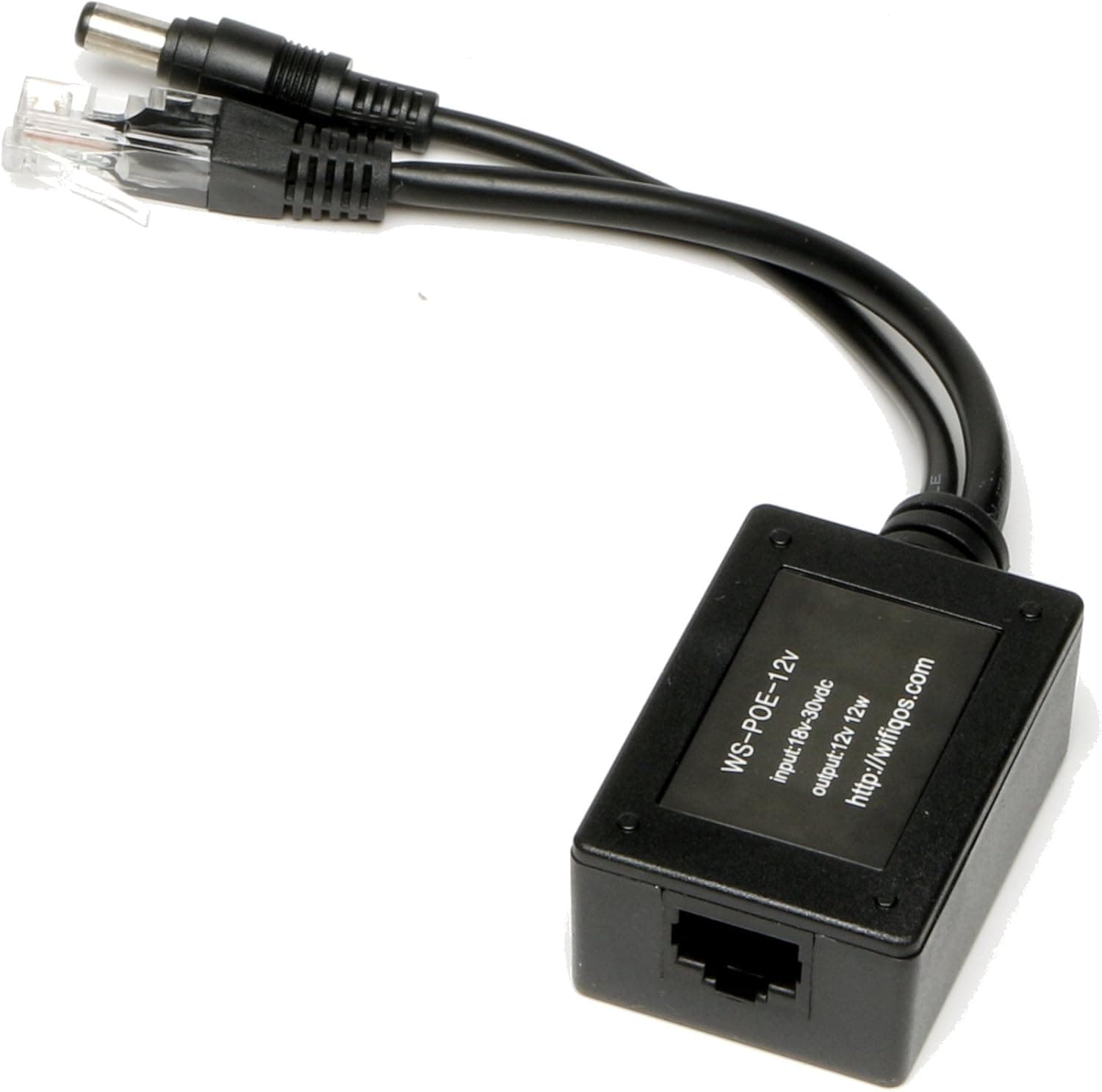

PoE Power for Non-PoE Devices.This 12 volt plug and play kit allows you to extend 24 volt PoE to the included PoE splitter/converter to power 12 volt devices remotely. Power over Ethernet technology allows you to send power and data up to 328 feet. Use for security cameras, smart hubs and more. The 2.1mm DC connector fits most 12 volt devices.

Product Features:

  • Extend 12 volts of power up to 328 feet from the source
  • Compatible with 12v devices like TRENDnet, Wansview, Foscam and more
  • Converts 24 volts PoE down to 12 volts then "Splits" Power and 10/100 Data
  • Standard 2.1mm x 5.5mm male DC barrel fits most devices
  • Output voltage 12v, 12 watts for one device

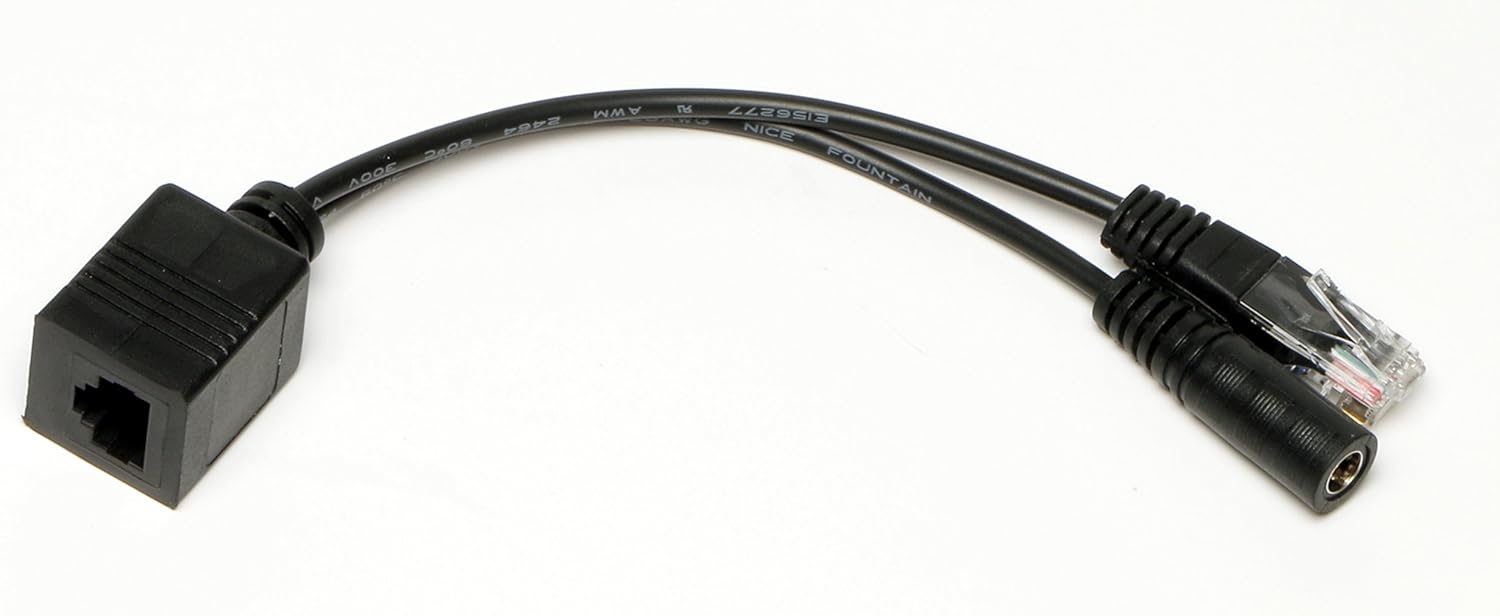

  • Plug and Play kit includes 24 volt power supply, inline PoE injector and 12v splitter/converter

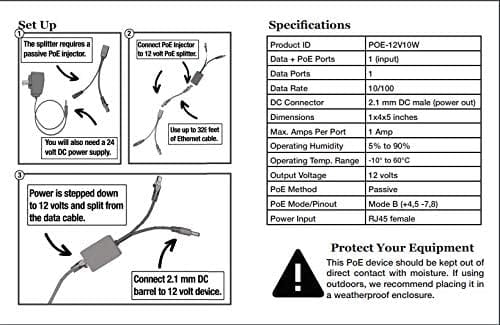

Product Specifications

Adapters included POE-I
Certifications UL/FCC/RoHS (power supply)
Data + PoE Ports 1
Data Ports 1
Data Rate 10/100
DC connector 2.1mm male (power out)
Dimensions 2 x 1.5 x 1 inches
Input voltage 24 volts
Max Power for Kit 12 Watts
Max. Amps Per Port 1
Operating Humidity 5% to 90%
Operating Temperature Range -10 to 60°C
Output Voltage 12 volts
PoE Method Passive
PoE Mode/Pinout Mode B (+4,5 -7,8)
Power Input 2.1mm DC
Power Supplies PS-24v12w
Weight 5 oz
