  • SKU: POE-16-48V120W
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

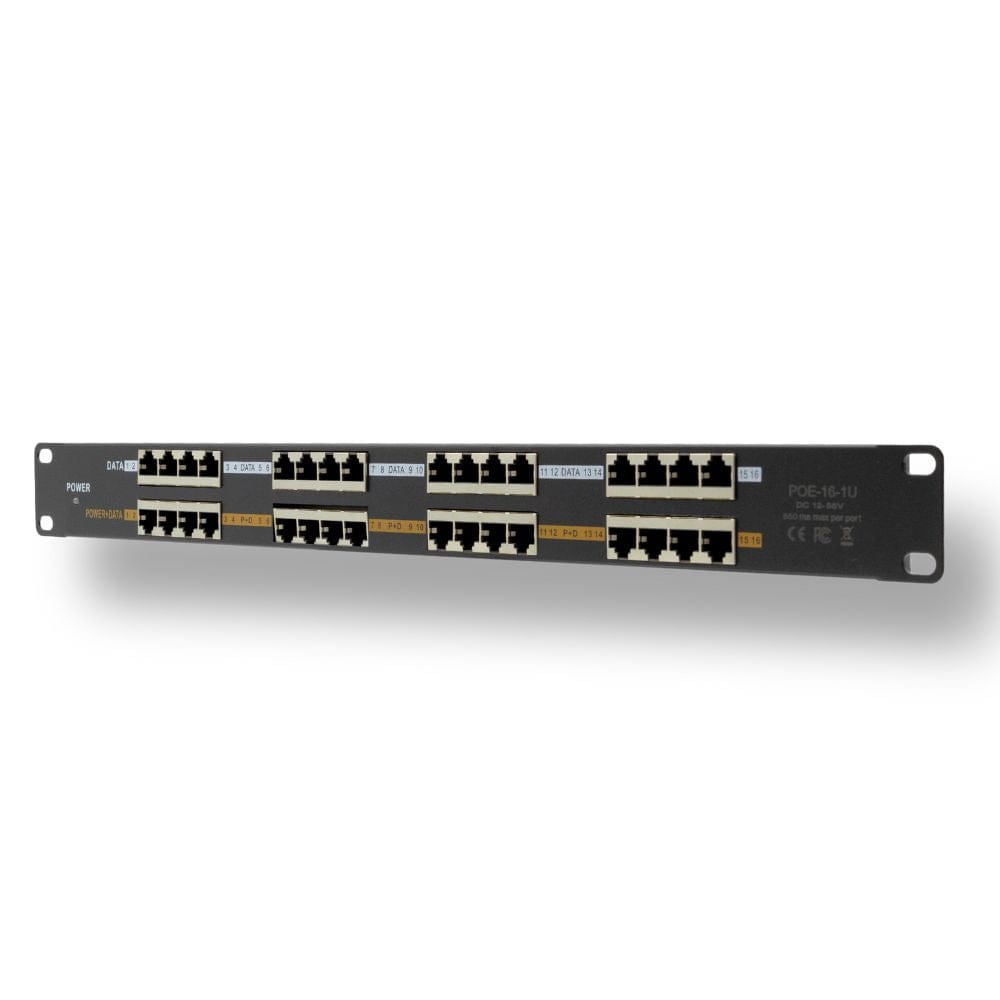

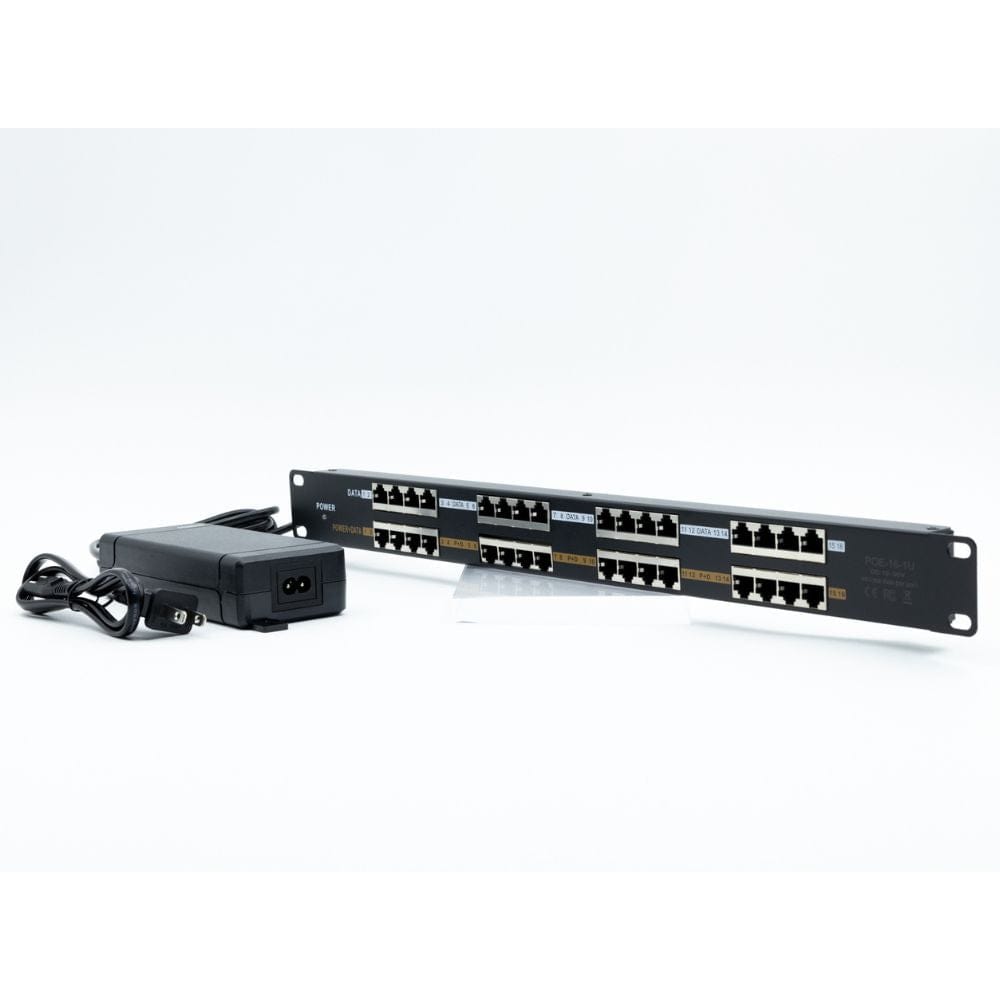

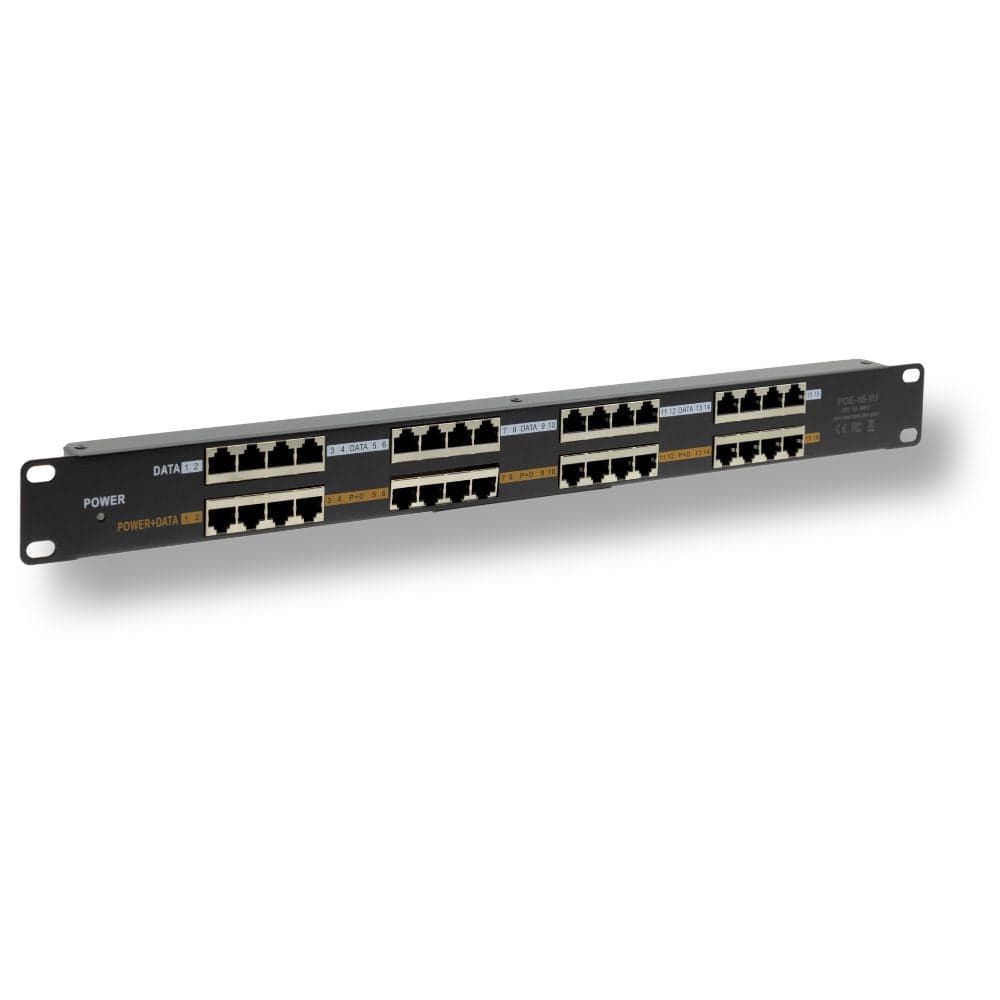

16-Port 10/100, Mode B, Rack Mount PoE Injector with 48 Volt 120 Watt Power Supply

$139.99
DESCRIPTION

Passive PoE means versatility. Use this passive Power over Ethernet injector to power 802.3af PoE devices like cameras, IP phones, WiFi access points and more. The PoE Injector takes power from the included 48 volt DC power supply and adds the same voltage to your Cat 5, Cat5e or Cat6 Ethernet data cable to power your device.

Product Features:

  • Passive Mode B "Always on" PoE power
  • Power up to 16 devices in one unit
  • Compatible with Passive IEEE 802.3af PoE devices
  • Simple installation for 48v PoE Applications
  • Combines Power and 10/100 data onto one Ethernet cable
  • 2.1 mm DC or Screw terminal input options

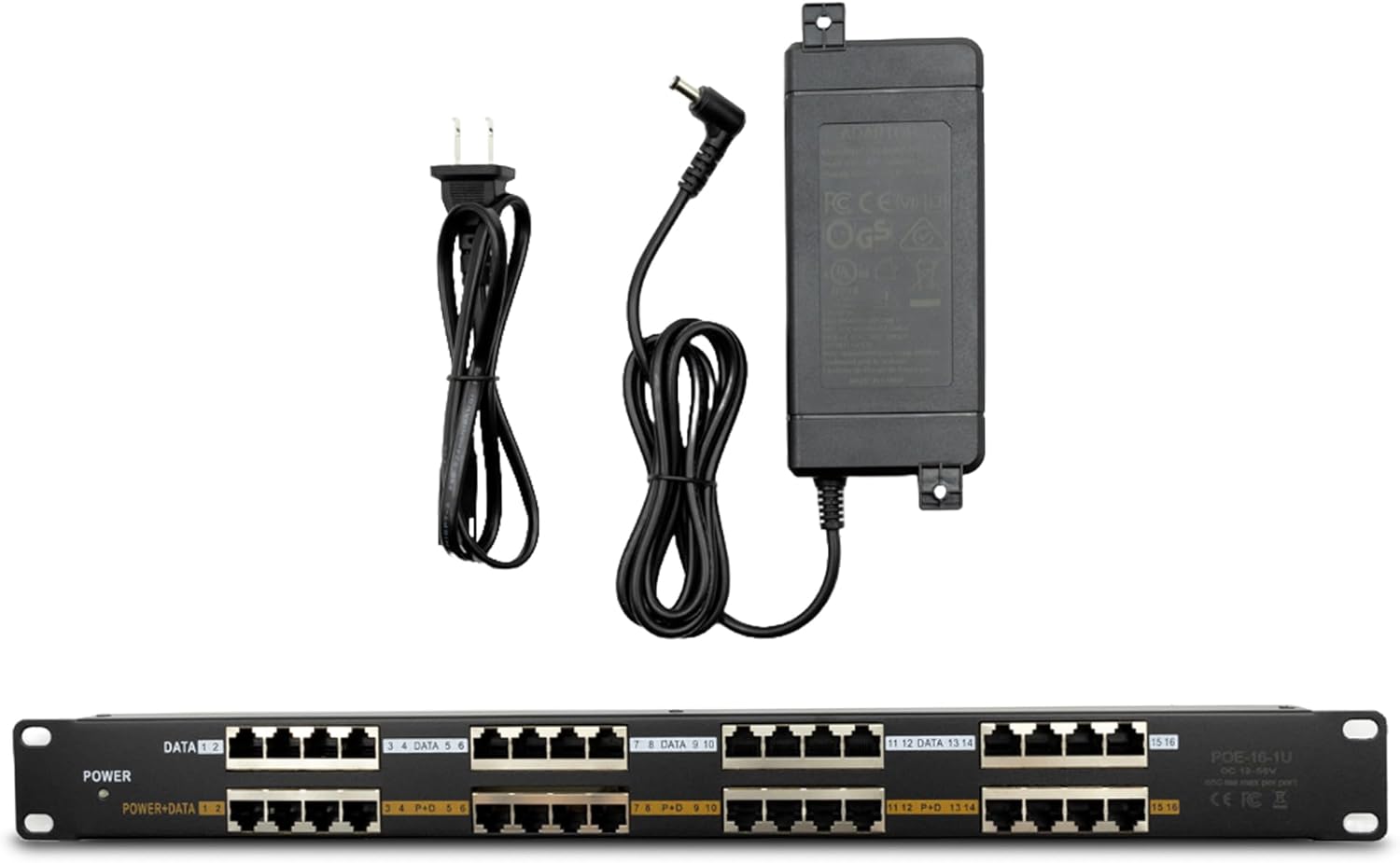

  • Includes a 48v, 2.5A, 120w UL/CE/FCC certified power supply

Visit Our Online Technical Manual

Product Specifications

Certifications CE, FCC, RoHS, UL (power supply)
Data + PoE Ports 16
Data Ports 16
Data Rate 10/100
Dimensions 19 x 1.75 x 1 in.
Input voltage 48 Volts
LED Indicator 1
Max Amps Per Kit 2.5 Amps
Max Power for Kit 120 Watts

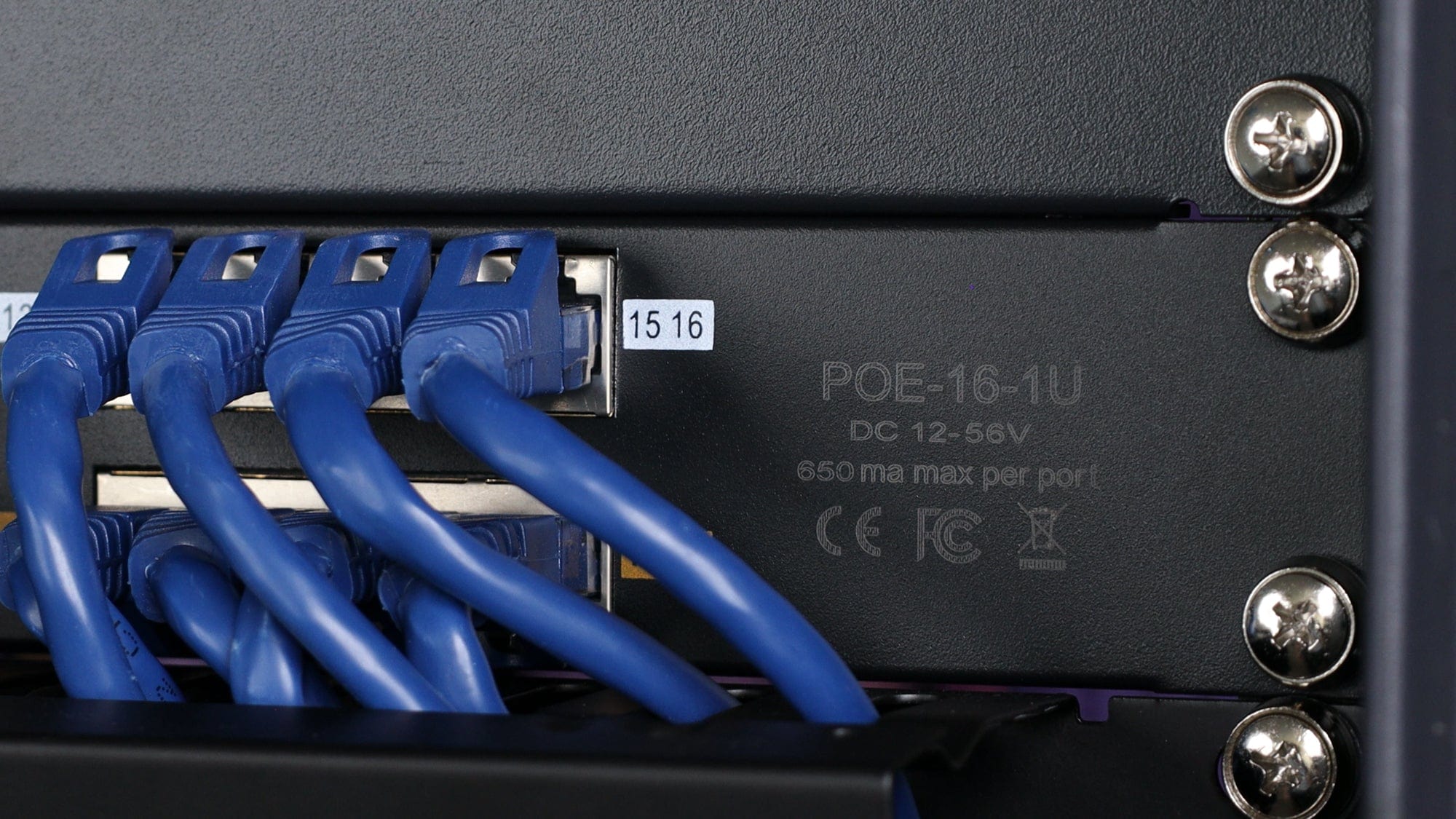

Max. Amps Per Port 650 mA

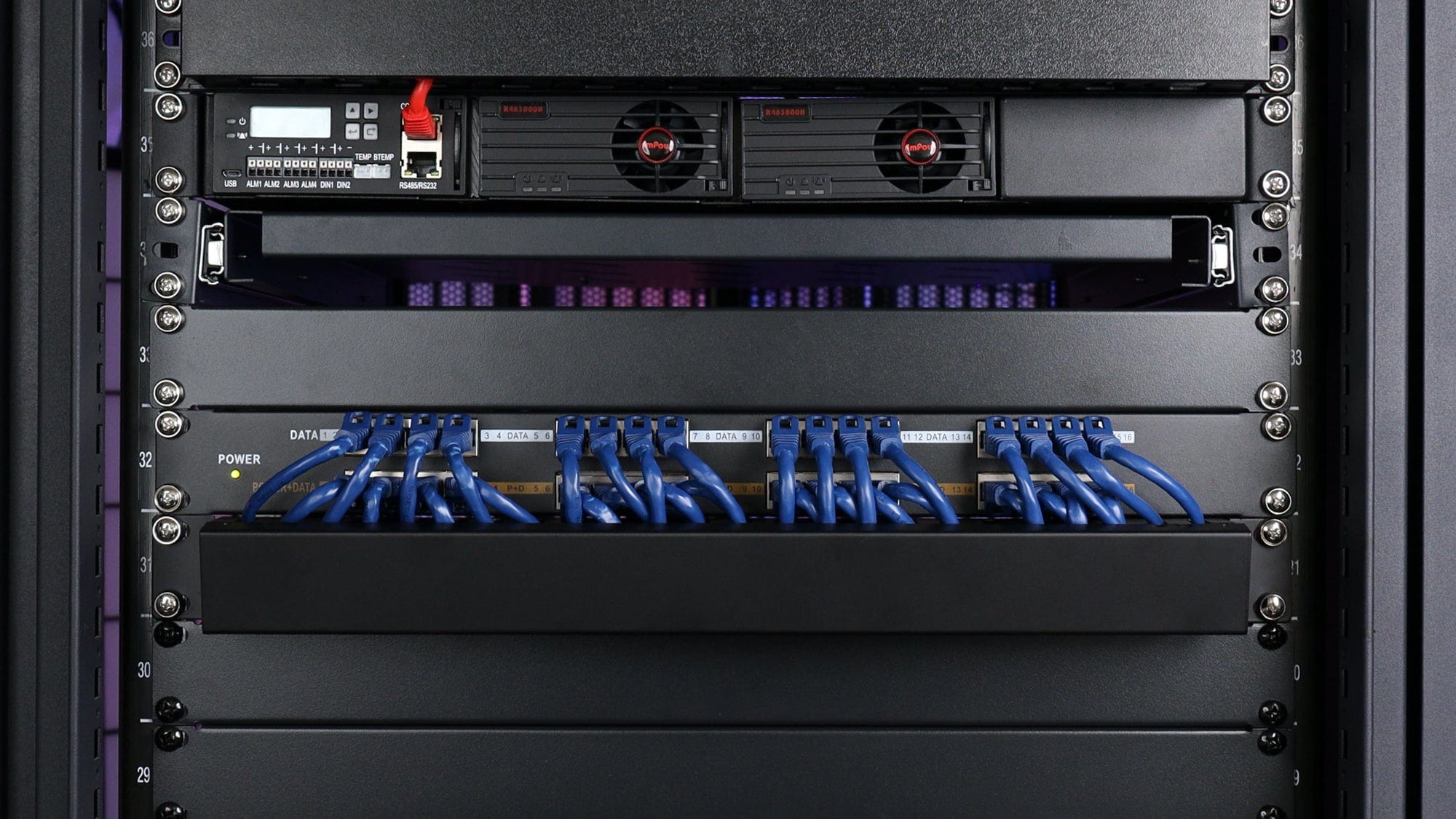

Mount Type Rack
Operating Humidity 5% to 90%
Operating Temperature Range -10 - 60C
Output Voltage 48 volts
PoE Method Passive
PoE Mode/Pinout Mode B (+4,5 -7,8)
Power Input 2.1mm DC; Screw Terminal
Power Supplies PS-48v120w

QUESTIONS & ANSWERS

Ask a Question
  • What is your pin-out for the POE RJ45 connector on this product?

    The pinout for power is Mode B (4+,5+,7-,8-)
