POE-8-24V60W

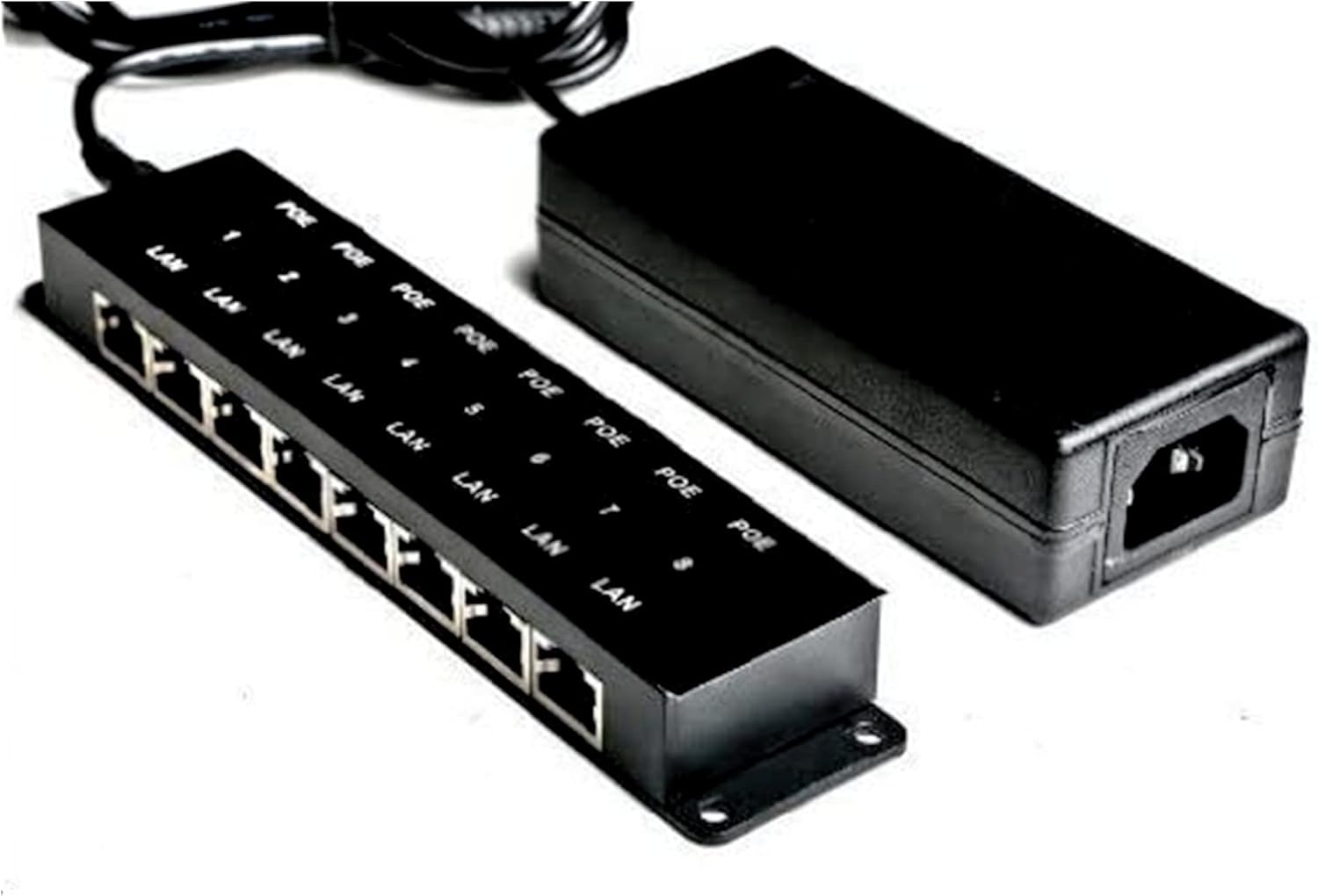

8 Port 10/100, Mode B PoE Injector With a 24 Volt 60 Watt Power Supply

Instantly upgrade your network switch to PoE. Power up to eight IP cameras, desktop phones, WiFi access points, or other low voltage devices through a network data cable using this Passive Power over Ethernet (PoE) injector. A Passive PoE injector always delivers the same voltage as its power source. This injector comes with a 24 volt DC power supply to power 24-volt passive PoE devices like Access Points from Mikrotik, Ubiquiti, and many more.

Product Features:

Instantly upgrades your network to PoE for eight devices
Use to deliver PoE power to IP security cameras, phones, wireless access points and other devices that accept passive 24v PoE
Passive "Always On" PoE power delivery for reliable throughput
10/100 Mbps Data Capability
Mode B power delivery on pins 4,5+ / 7,8-
Includes a 24 volt 60 watt UL/CE/FCC approved power supply

Visit Our Online Technical Manual

$47.99

Qty:

8 Port 10/100, Mode B PoE Injector With a 24 Volt 60 Watt Power Supply

Product Features:

Instantly upgrades your network to PoE for eight devices
Use to deliver PoE power to IP security cameras, phones, wireless access points and other devices that accept passive 24v PoE
Passive "Always On" PoE power delivery for reliable throughput
10/100 Mbps Data Capability
Mode B power delivery on pins 4,5+ / 7,8-
Includes a 24 volt 60 watt UL/CE/FCC approved power supply

Visit Our Online Technical Manual

Tech Info

Product Specifications

Certifications	UL/CE/FCC
Data + PoE Ports	8
Data Ports	8
Data Rate	10/100

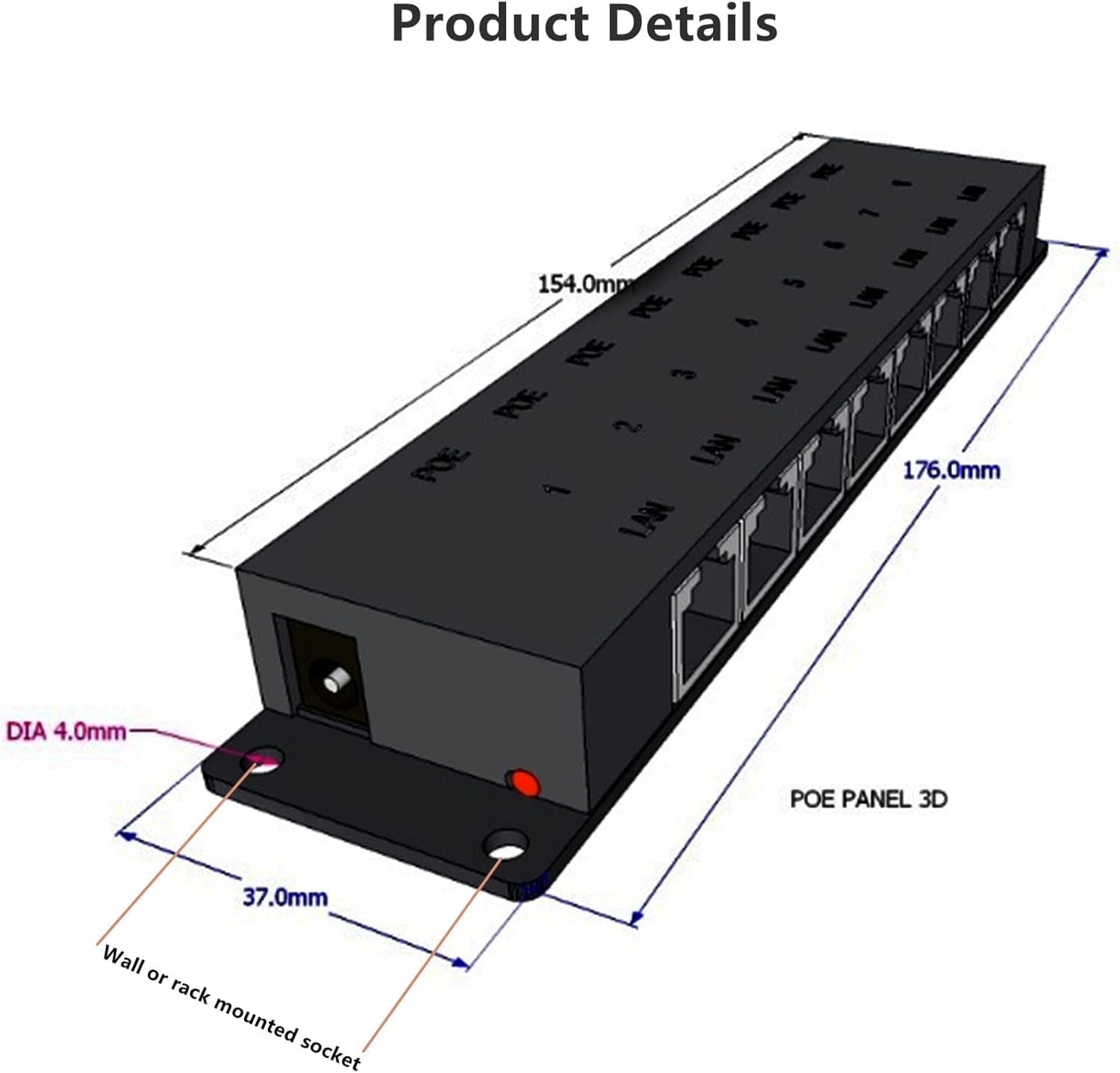

Dimensions	7x1.5x1 in.
Input voltage	24 Volts
Max Amps Per Kit	2.5 Amps
Max Power for Kit	60 Watts
Max. Amps Per Port	1.25 Amps
Mount Type	Wall
Operating Humidity	5% to 90%
Operating Temperature Range	-10 - 60C
Output Voltage	24 volts
PoE Method	Passive
PoE Mode/Pinout	Mode B (+4,5 -7,8)
Power Input	2.1 x 5.5 mm DC
Power Supplies	PS-24v60w

Questions

Ask a Question

Will this power a TP-Link EAP245 Wireless Access Point? https://www.tp-link.com/no/products/details/cat-5692_EAP245.html#overview

The TP-Link EAP245 requires IEEE802.3at PoE. This kit will not be enough POE voltage for your device and is a Passive injector. I recommend you look at our Active injector WT-AT-8-48V60W which meets the IEEE 802.3at PoE requirements.
Could I pair this with (8) WS-POE-USB to power arlo pro2 cameras?

Yes, this would work to provide power to Arlo Pro2 cameras. Since this POE-USB kit includes a 1.35-female USB adapter, you would need to use a USB (male) - microUSB to connect to the camera.
Will this power a Dahua SD50430U-HNI or do I need an active injector?

This product will not power your device. The datasheet for the Dahua SD50430U-HNI specifies the device as PoE+/802.3at compliant and requires 23 watts of power. We have found that most devices that follow the IEEE 802.3at standard, require active negotiation. In addition, you will need a DC power supply that is between 44-57 volts. I would suggest purchasing the WT-AT-8-56v120w for autonegotiation, and enough power to support up to 5 devices operating at max power consumption of 23watts.
