PoE Texas Splitter POE-IO-135
PoE Texas Splitter POE-IO-135
PoE Texas Splitter POE-IO-135
  • SKU: POE-IO-135
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

Single Inline 10/100 Mode B Splitter and Injector Kit - 1.35 mm DC Barrel

$4.19 $5.99
DESCRIPTION

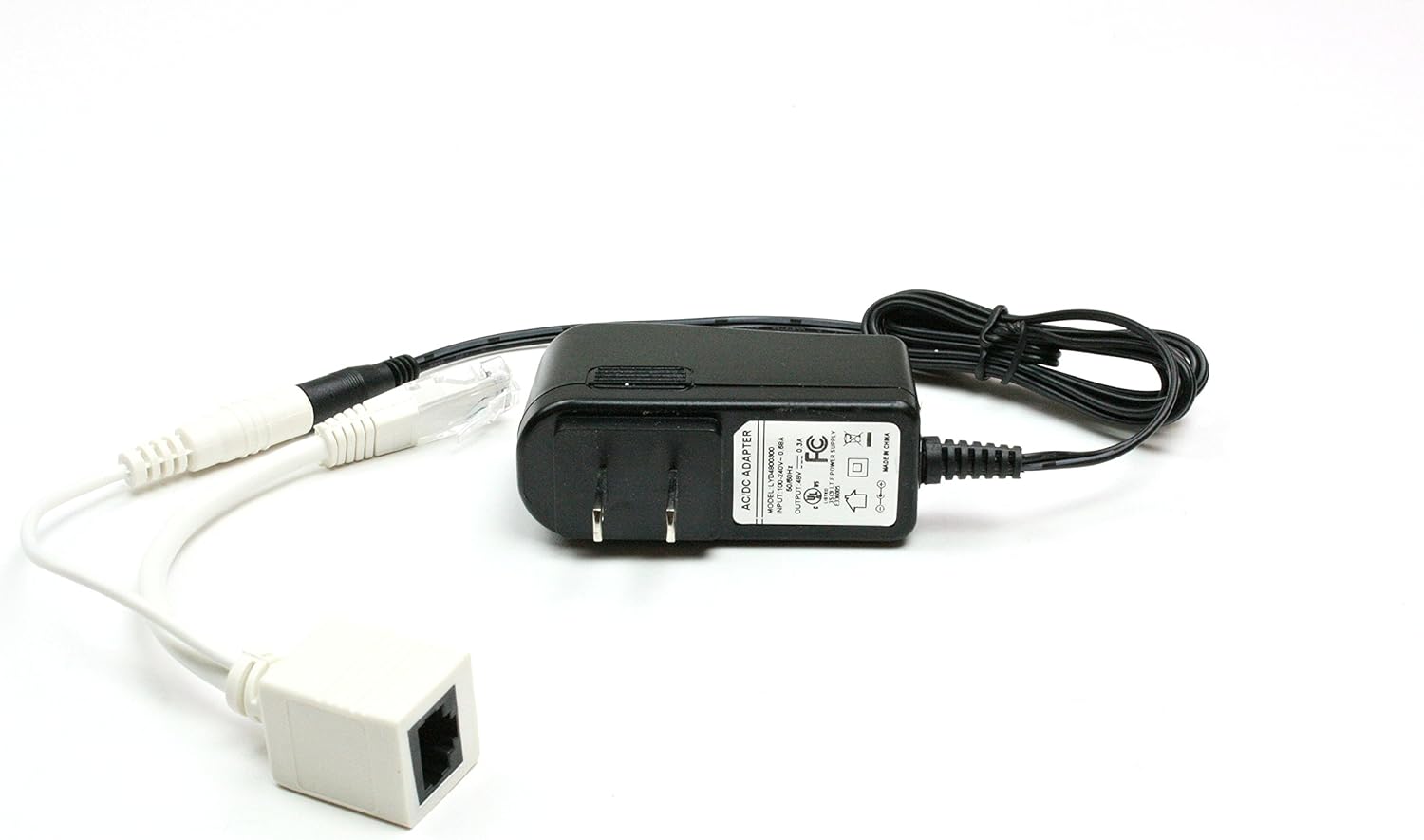

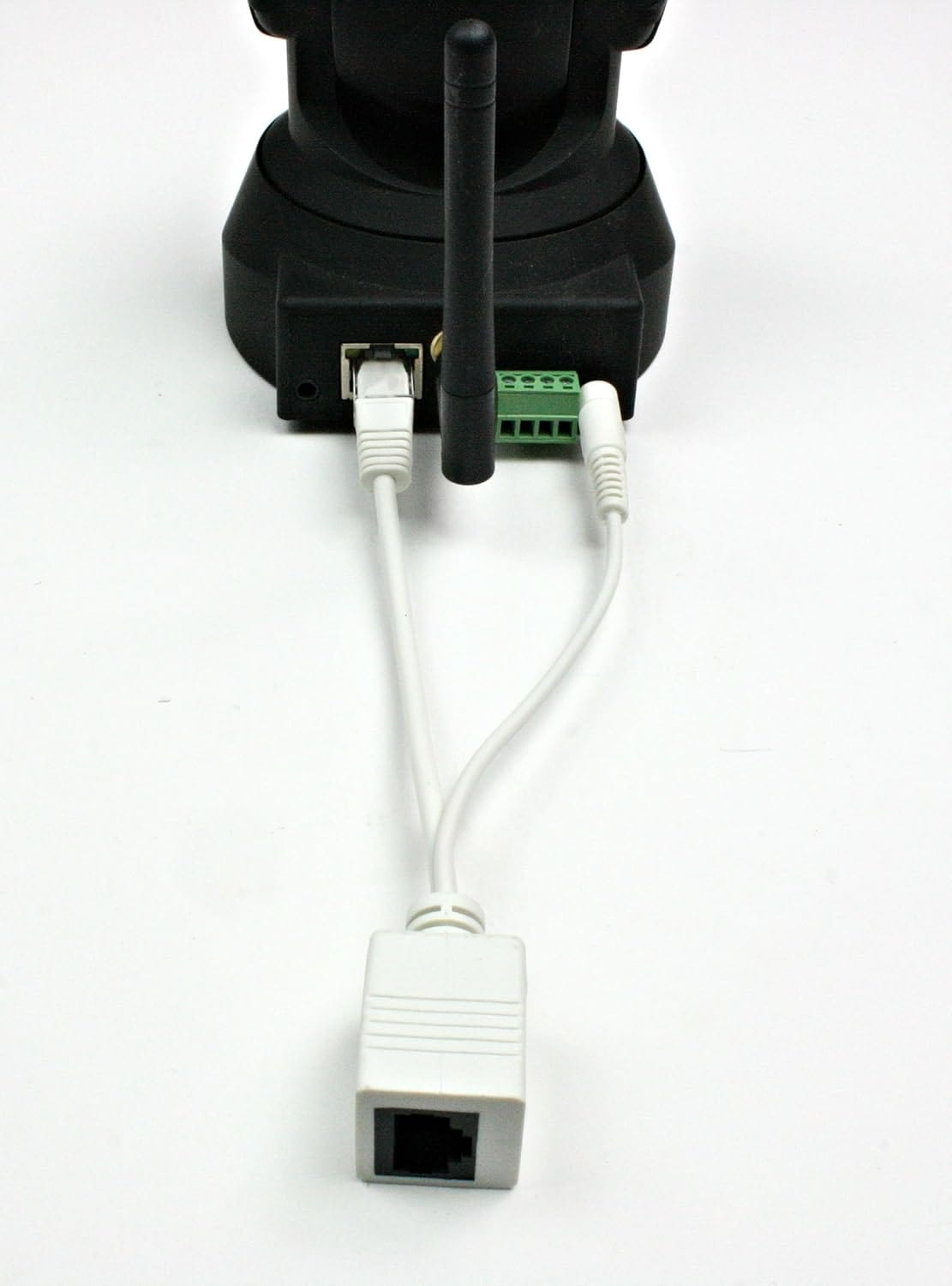

Plug and Play PoE. Use this Inline PoE Splitter/Injector Kit to instantly upgrade your network router or switch to PoE. Use with a 5 volt DC power supply to extend passive power to one device via a Cat 5, Cat 5e or Cat 6 Ethernet cable. The 1.35 x 3.5 mm DC barrel fits most 5 volt cameras.

Product Features:

  • Simple, low-cost solution for Passive PoE
  • Passive Mode B PoE is "always on" / PoE will output the same input voltage
  • Kit will combine power and data; carry over Ethernet cable; then "split" power and data off on to corresponding adapter
  • Use for 5v applications
  • Allows you to extend Power further distances via PoE to non-PoE devices
  • The 1.35mm x 3.5mm DC connector fits most device
  • Compatible with 5 volt UL approved DC power supplies (sold separately)

Product Specifications

Data + PoE Ports 1
Data Ports 1
Data Rate 10/100
Dimensions 9x2x1 in.
LEDs Per Port 1
Operating Humidity 5% to 90%
Operating Temperature Range -10 -60C
PoE Method Passive
PoE Standard N/A
Power Input 1.35mm
Weight 1oz
