POE Texas Splitter PoE to USB-C Power Delivery Kit

PoE to USB-C Power Delivery Kit

SKU POE-USBC-Kit
Sold out
$91.99
$64.39

Passive POE to USB Type C Power Delivery Kit with Max Output of 41 Watts - Separate 10/100/1000 Ethernet Data and USB-C Power

Go Beyond PoE+. Use this Passive POE to USBC Splitter kit to power USB Type C devices like Lenovo, Dell and HP Tablet computers, iPad Pro 12.9" and other high powered devices. With Max output of 41 watts, you can go above PoE+ (25 watts) to power USB-C devices that require more. The POE-USBC splitter will convert and "split" power delivery and 10/100/1000 data on to separate outputs. (This splitter does not communicate data over the USB-C port)

Product Features:

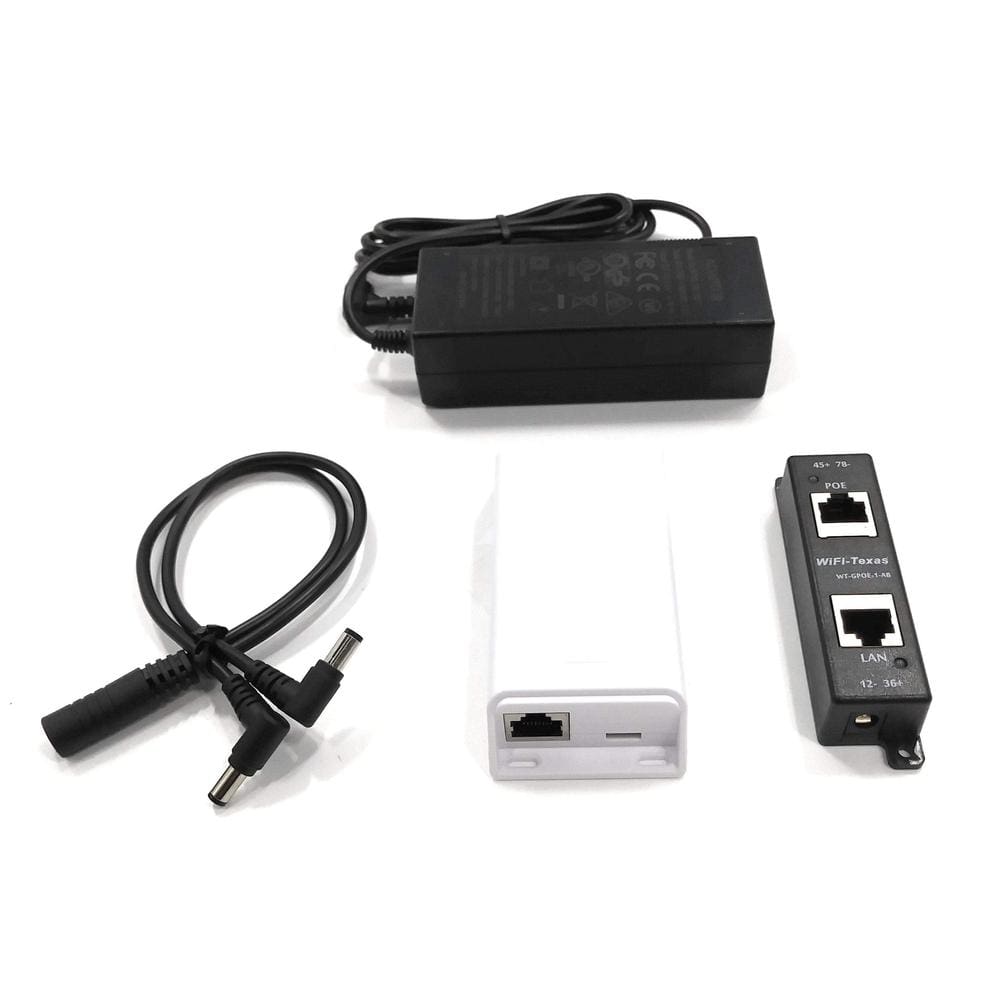

  • Plug and play kit includes a PoE to USB-C splitter, 32 volt 48 watt UL approved power supply with Y-cable and single port PoE injector for max output
  • Use to power Lenovo, HP Laptops, iPad Pro 12.9" and other USB-C Devices.
  • USB Type C output with auto-sensing power delivery (USB-C cable sold separately)

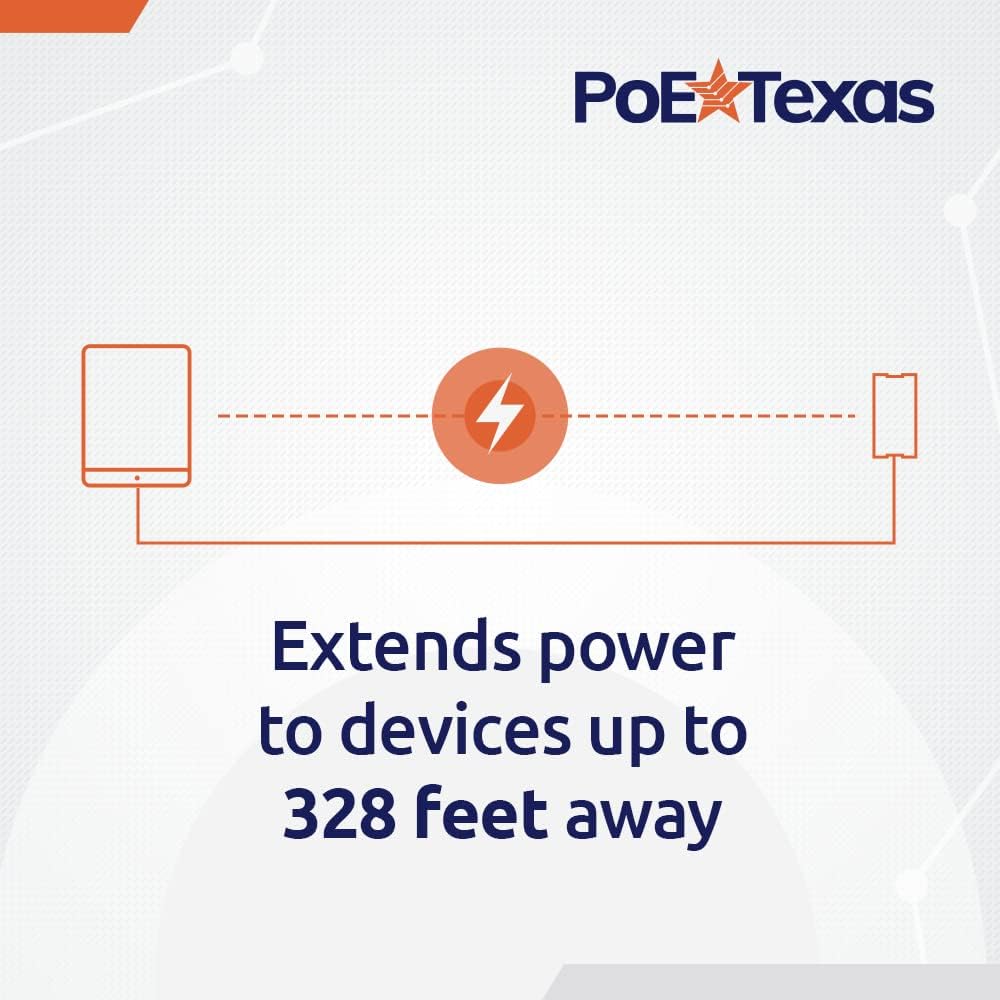

  • Extends PoE power to USB-C devices up to 328 feet away

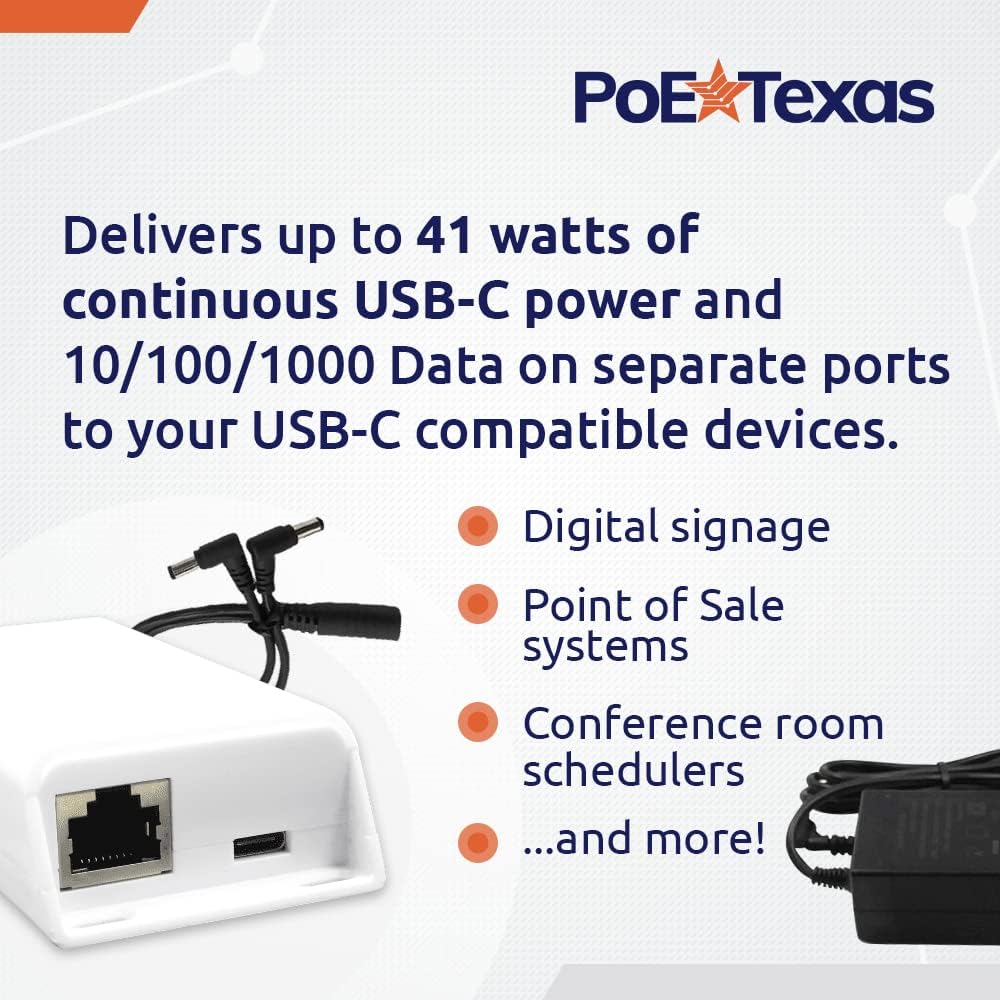

  • Max output 41 watts on the USB-C cable; Auto-Switching 5v to 20v
  • "Splits" PoE Power and 10/100/1000 Data on to the corresponding output ports
  • Input Voltage: 32v, 48w

Product Manual Online: Click Here

Product Specifications

Adapter length 3 ft AC Cable
Adapters included 2.1 mm Y-Cable; GPOE-1AB
Certifications CE, FCC, UL
Data Rate 10/100/1000
Efficiency 90%
Input Frequency Range 50/60 Hz
Input voltage 32 volts
Max Power for Kit 41 watts
Max Voltage 5v - 20v
Mount Type Wall
Operating Humidity 5% to 90%
Operating Temperature Range -10 - 60C
PoE Method Passive PoE
PoE Mode/Pinout Mode A/B
Power Supplies PS-32v48w
Weight 14 oz

QUESTIONS & ANSWERS

Ask a Question

  • What are the dimensions of the white splitter box?

    The encasing of the splitter is 4x2x1 Inches.

  • Will this unit work woith the new Ipad pro 11" unit?

    Yes, this injector/splitter kit is compatible to power the iPad Pro 11".

  • I am interested in this product: https://www.poetexas.com/collections/all-products/products/poe-usbc-kit I will need 25 of them to power Samsung Tab S4. Will this work? also, could you explain how this connects to the tablet? Thank you!

    Yes, this splitter/injector kit will work to provide power to your Samsung Galaxy Tab S4. The 32 volt power supply will power the injector on Modes A/B using the Y-cable. From the POE port on the GPOE-1AB injector, you will run a patch cable to the POE-USBC splitter. The female USB-C port on the splitter is what will connect directly into your tablet for power. Please contact our technical support team for further assitance. Thank you!

×





×

×
