Power Supply 48V 30W - UL/FCC Certified

SKU PS-48V30W
$19.49

Notify me when back in stock

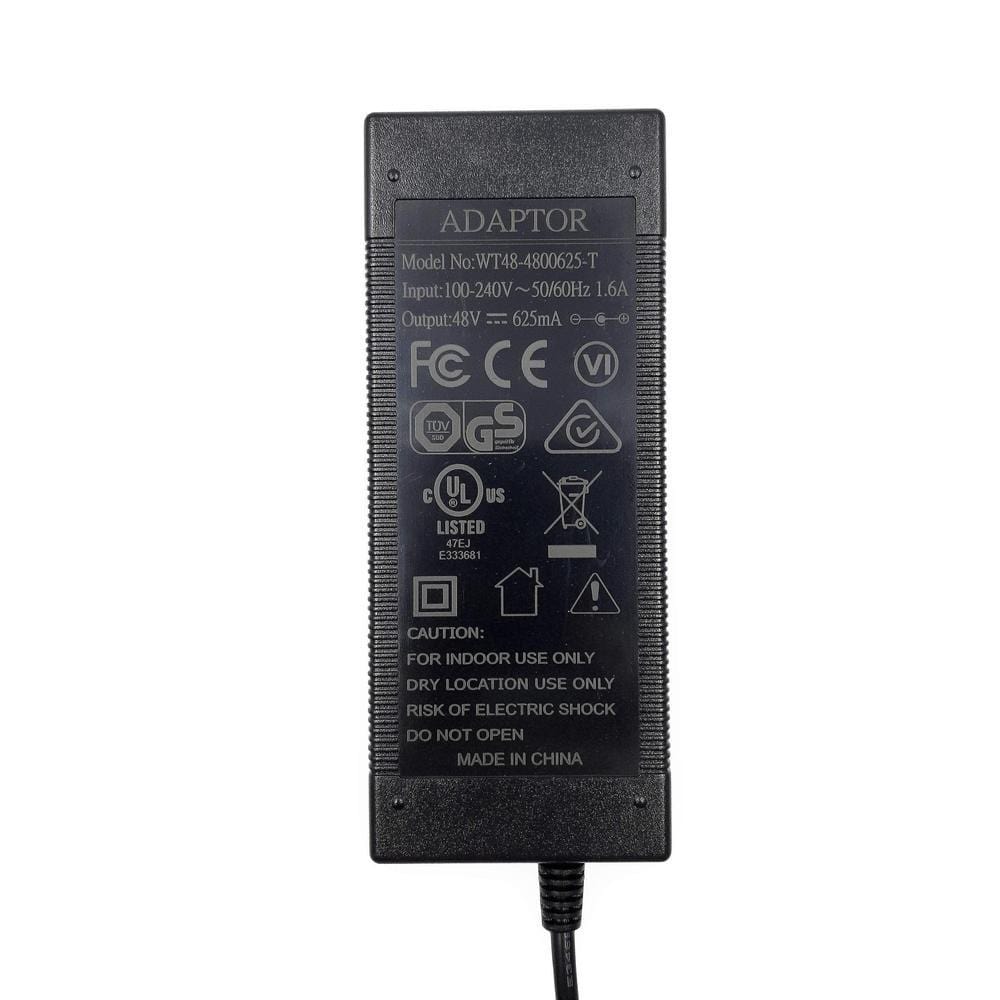

48 Volt 30 Watt DC Power Supply

Designed for perfect compatibility with our PoE injectors and switches, our DC power supplies offer safety, reliability, and efficiency for any Power over Ethernet application.

Features:

  • Output: 48 Volt, .625 Amp, 30 Watt
  • Input: 100-240V AC
  • UL, CE, FCC, and RoHS certified
  • 5.5 x 2.1 mm DC barrel adapter
  • Includes U.S. Style C8 AC cord

Quality Assured - All PoE Texas power supplies are UL, CE, FCC, and RoHS certified, so they’re safe to use in homes and businesses. Additionally, all of our power supplies meet the latest Department of Energy efficiency guidelines for Class 6 power supplies, so energy is conserved as power is converted to the lower voltages required by modern electronics.

Product Specifications

AC Plug Connector Type C8
Certifications UL/CE/FCC/RoHS
DC connector 5.5 mm x 2.1 mm DC barrel
Dimensions 3.5x1.5x6 in.
Efficiency 90+%
IEC Protection Class Class II
Input Frequency Range 47Hz to 63Hz
Input Voltage Range 100v to 240v AC
Line Regulation 0.5%(+/-)
Load Regulation 1%(+/-)
Operating Humidity 5% to 90%
Operating Temperature Range -10 to 60° C
Output Voltage 48 volts
Weight 0.3 lbs
