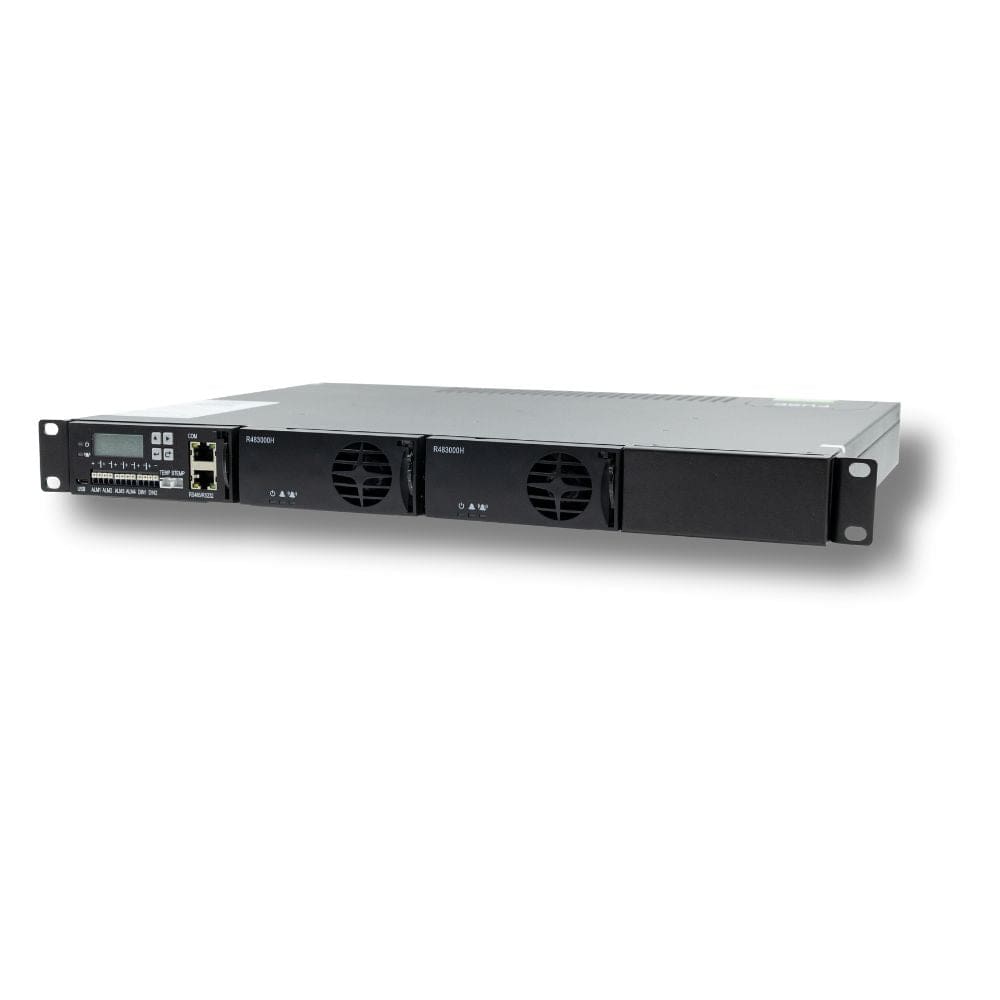

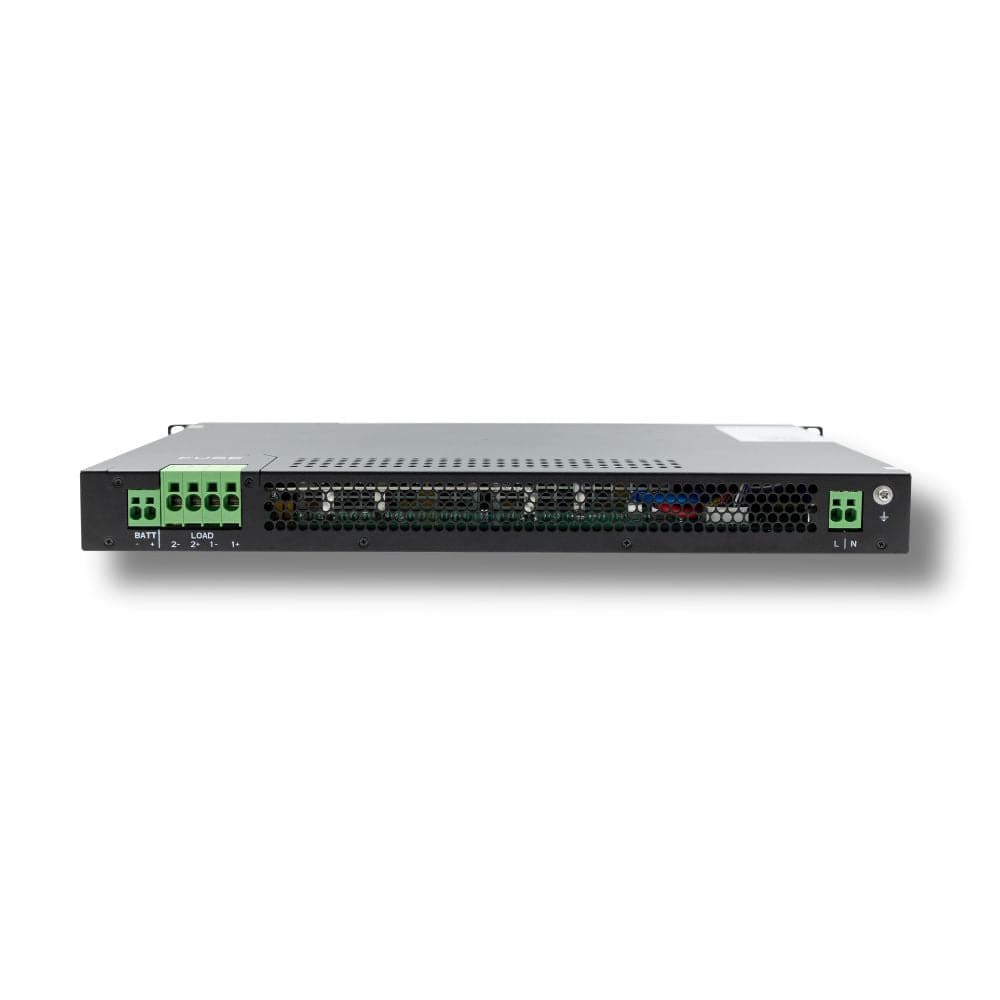

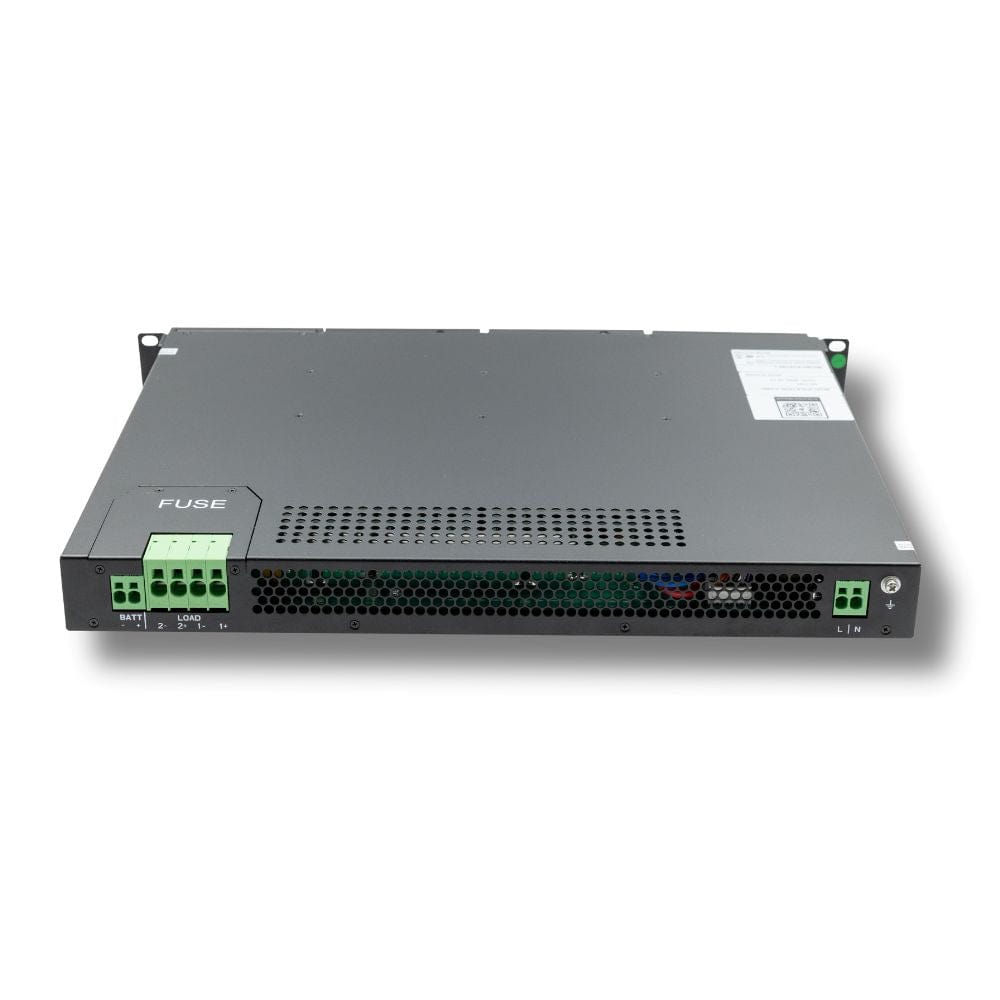

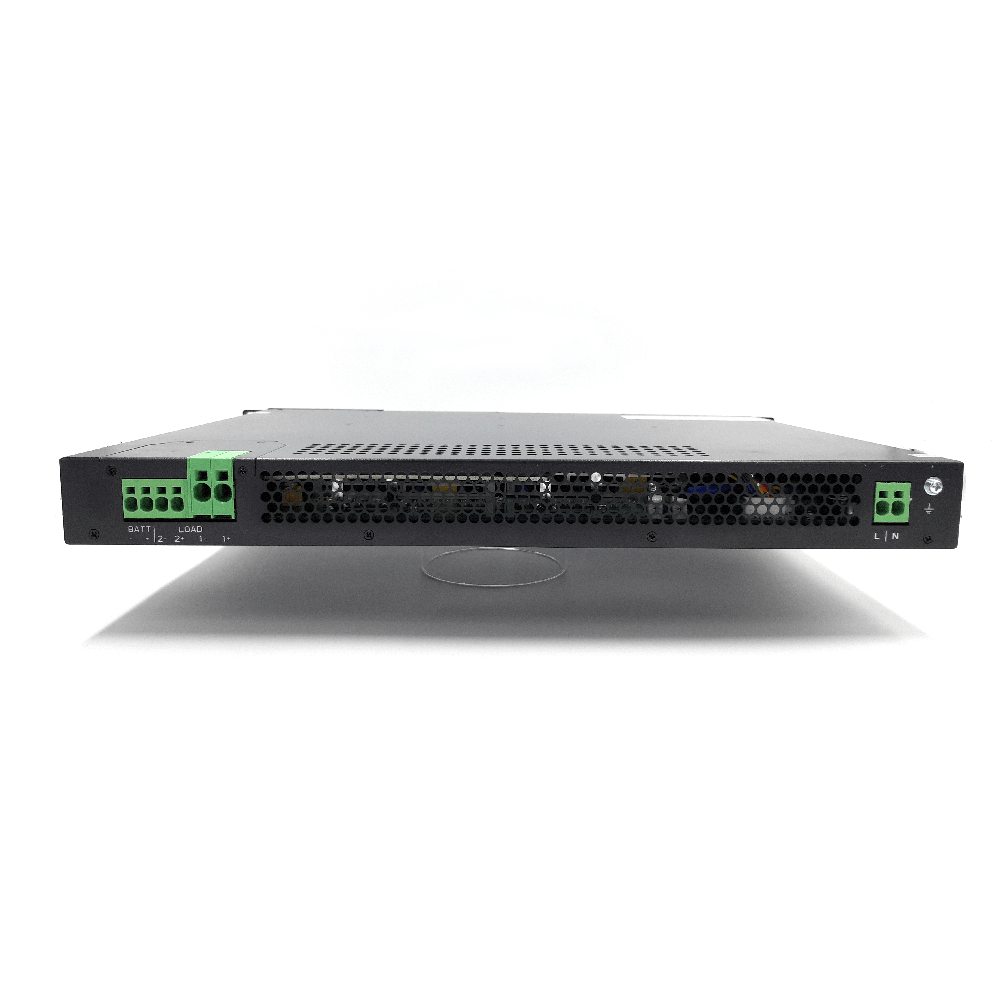

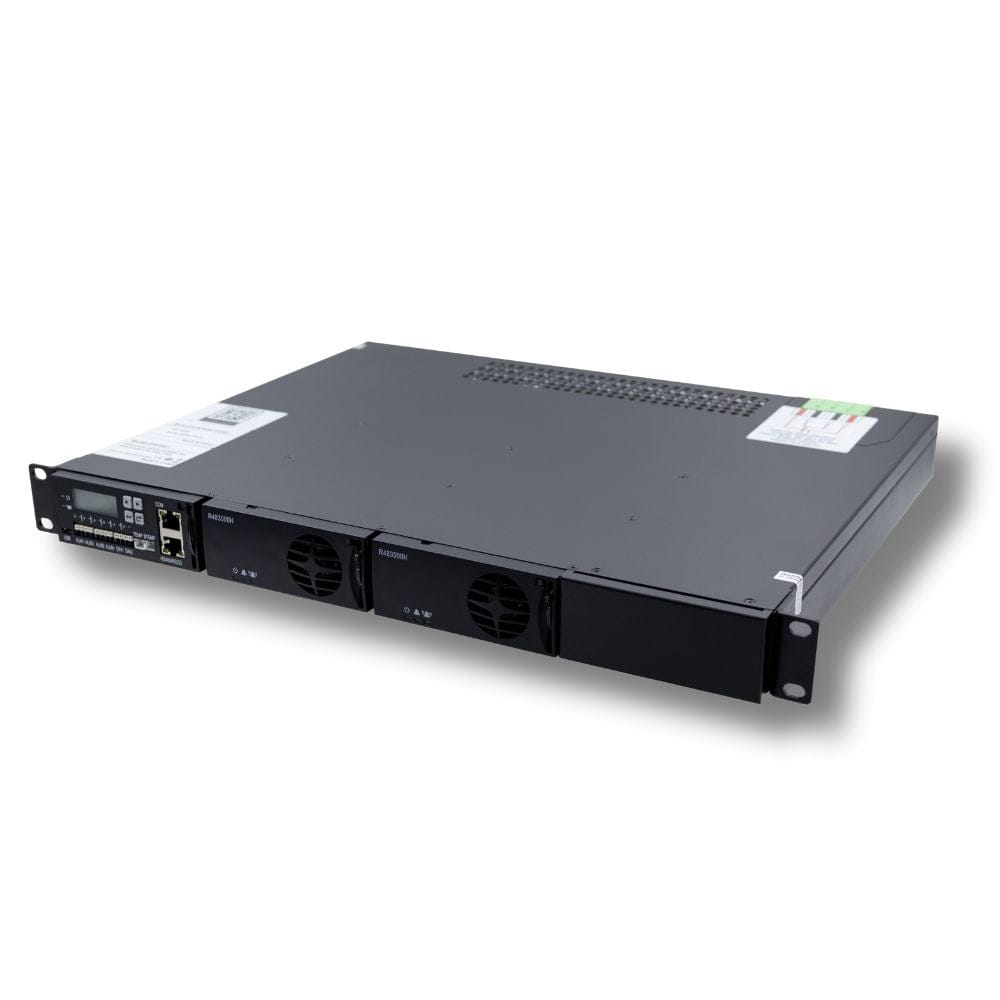

Power Supply Rectifier - 53 Volts 3000 Watts

SKU PS-53V3000W

Use this Rectifier for a full lighting or automation application. This power supply can draw more than 2,000 watts of power. The PS-53v3000w comes pre-configured to work with our managed 802.3bt midspan injector for 80 watts per port at 53 volts PoE. (See the GBT-24-M, 24 port midspan PoE injector)

Product Functions:

  • Rectifier Control, including an Energy Optimization Mode
  • System Components Monitoring and System Alarms Generation
  • Battery Management
  • Supervisory Module Monitoring
  • Maximum Current Limit Function
  • Communications Function
  • Monitor system data and configure system remotely by network
  • Web management with built-in authentication
  • Supports SNMP V1, V2C
  • 10/100 based Ethernet interface
  • Flexible network deployment

Configure the PS-53v3000w through the screen and controls on the device, though a webpage management tool, or through an SNMP interface.

Onscreen and web interface capabilities:

  • Monitor the status of the device
  • Adjust the output voltage
  • Change the device passwords
  • Change the device ID
  • Change the device Date and Time
  • Change the IP address

Find more product information in the Online Manual.

Product Specifications

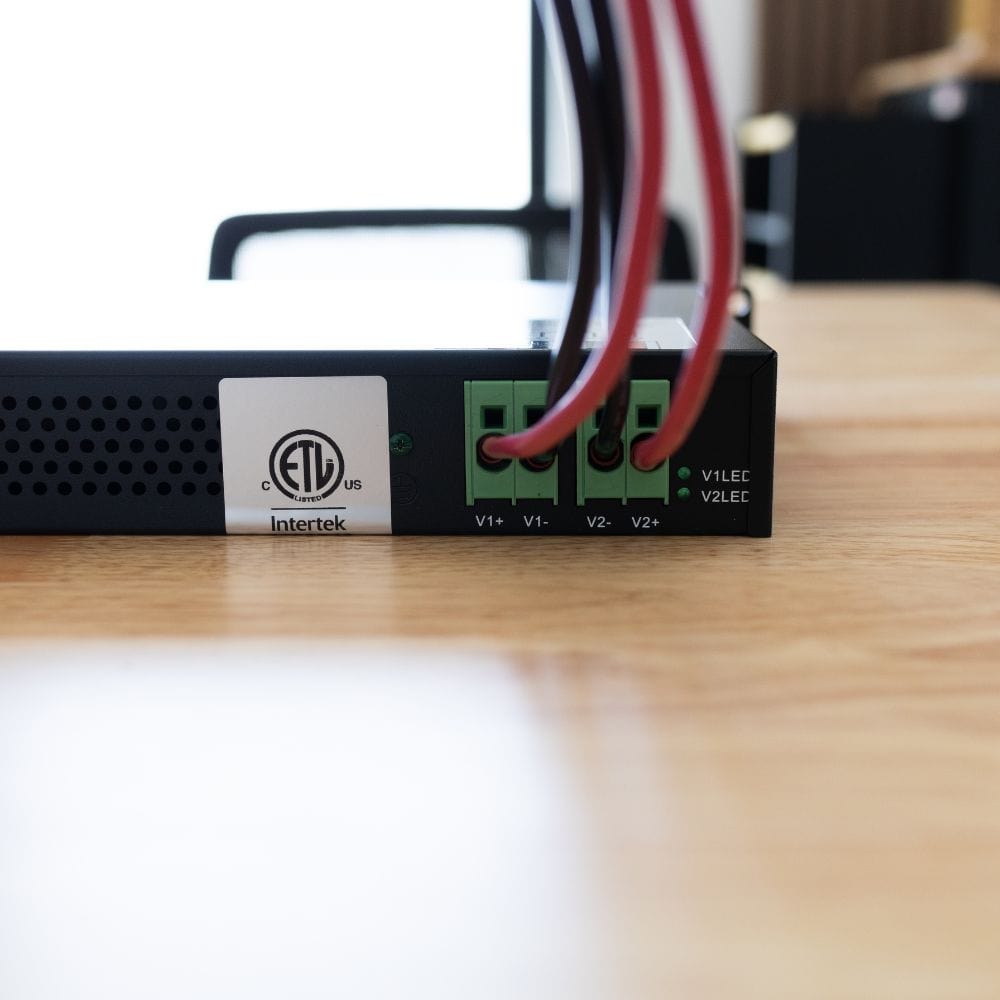

AC Plug Connector Type Spring Cage Clamp 12 AWG
Adapter length 3 ft
Cable connector length 2 ft
Certifications CE, FCC, UL
Dimensions 19 x 13 1/4 x 1 3/4 in
Display Type LCD
Efficiency >90% at full load
Input Frequency Range 45 - 65 Hz
Input Voltage Range 85-290 VAC
Management Port 1
Max Current 40 amp
Max Power for Kit 6000 watts at 200 VAC, 3000 watts at 120 VAC
Max Voltage 42-58 volt DC

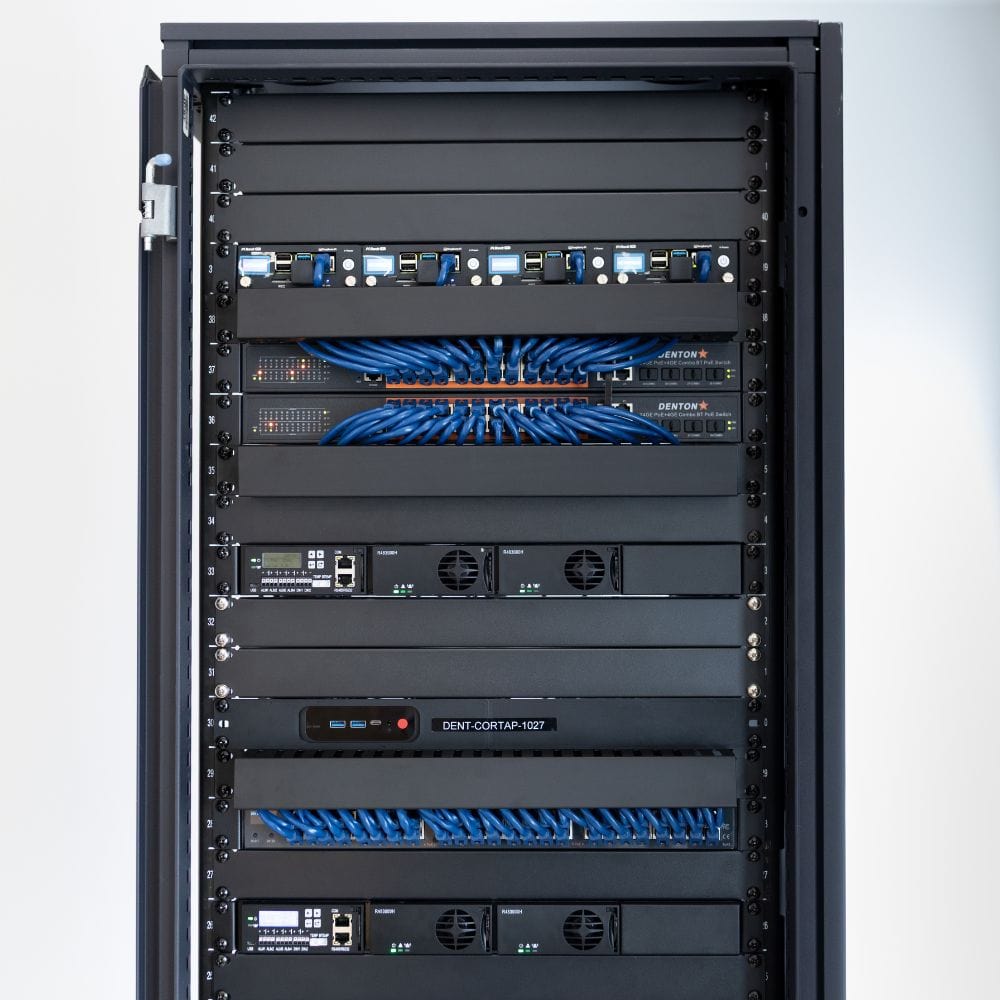

Mount Type Rack
Operating Temperature Range -40 - 55 degrees C
Output Voltage 53 Volts

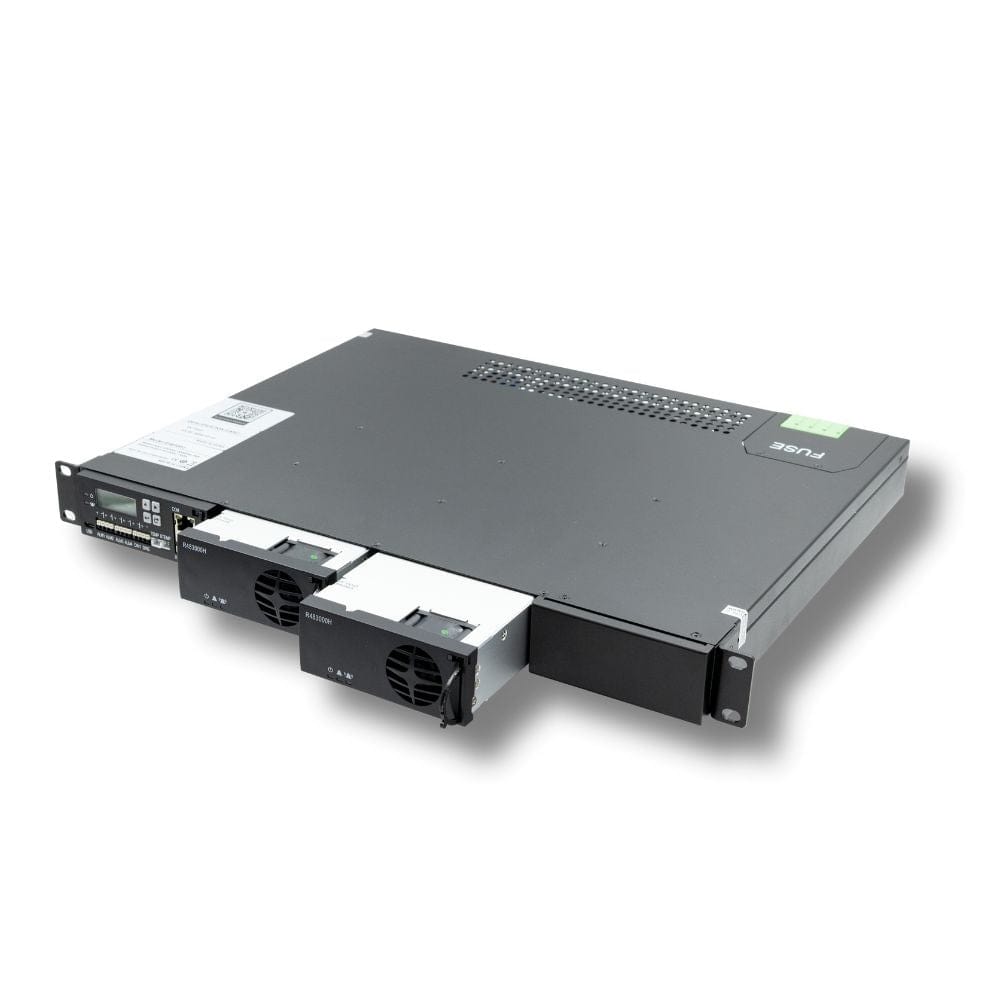

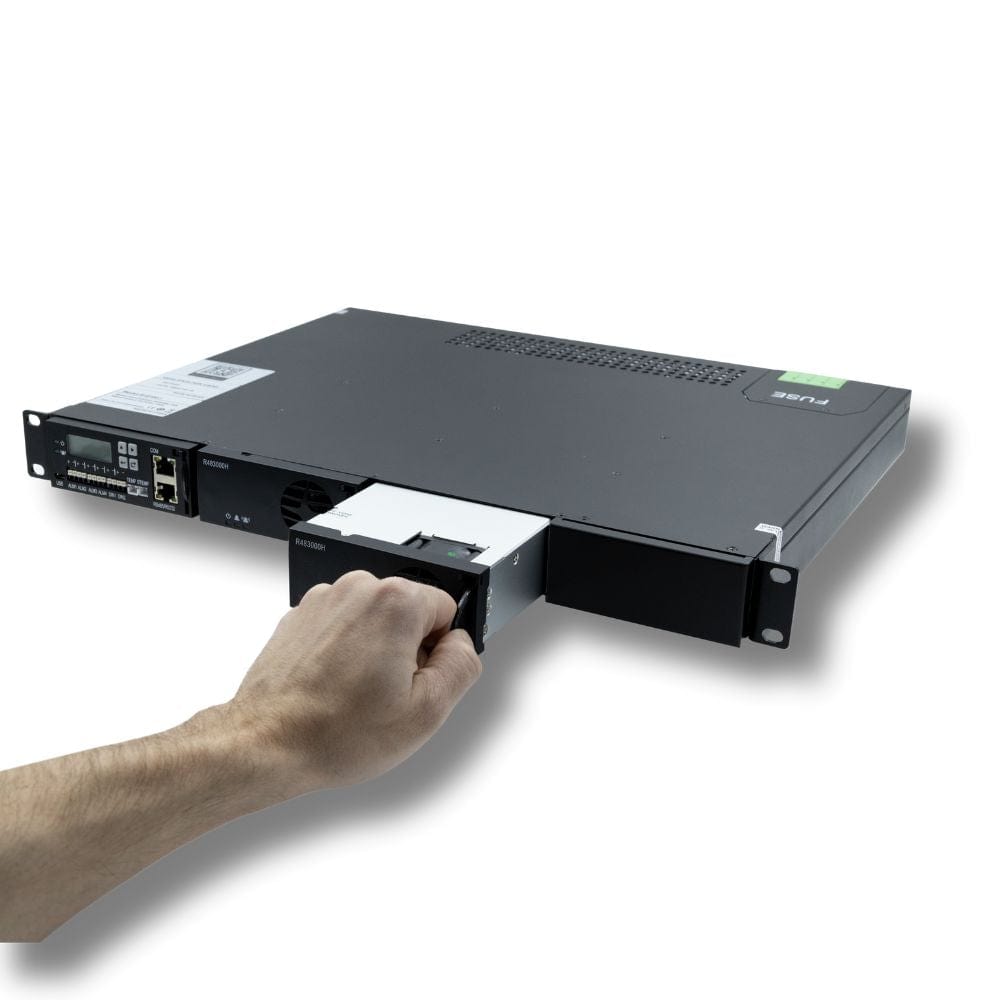

Power Supplies Hot Swappable Dual Rectifiers
Weight 13 lbs 12.2 oz
