  • SKU: PS-56V120W

Power Supply 56V 120W - UL/FCC Certified

$46.99
DESCRIPTION

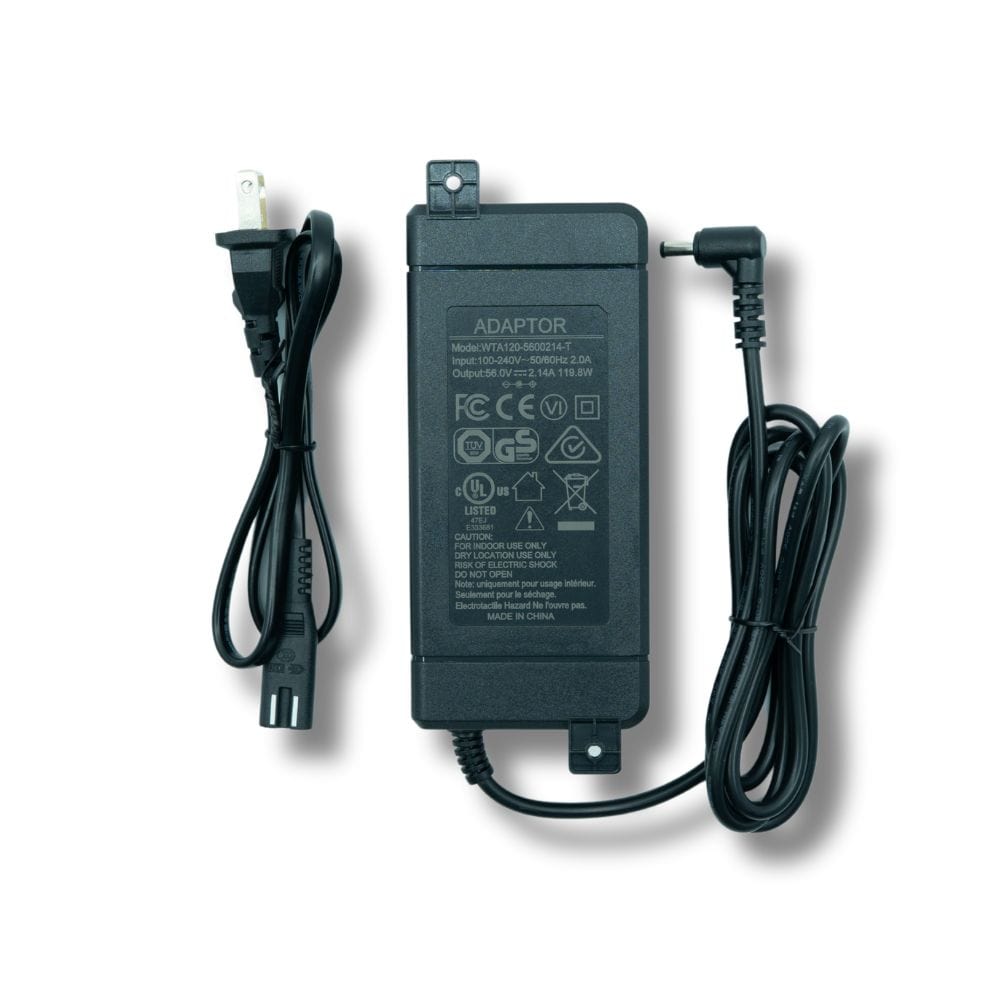

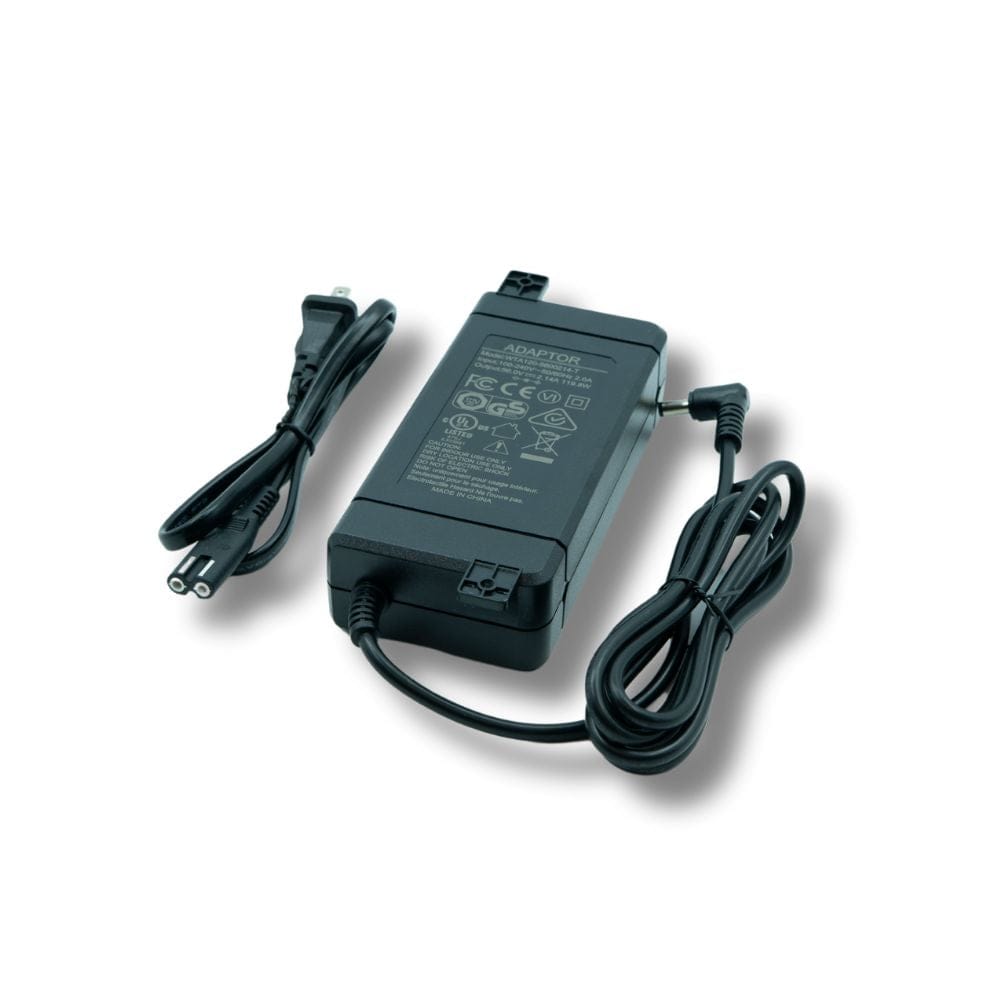

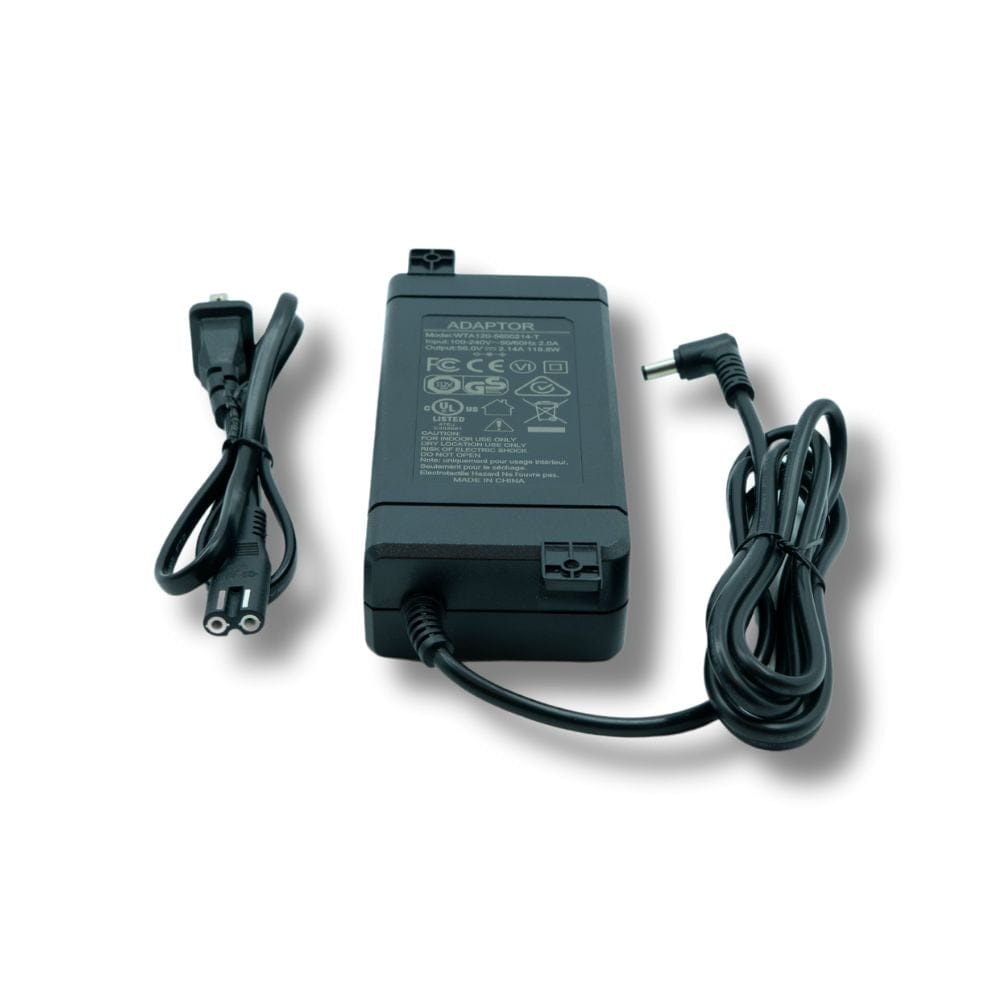

56 Volt 120 Watt Power Supply

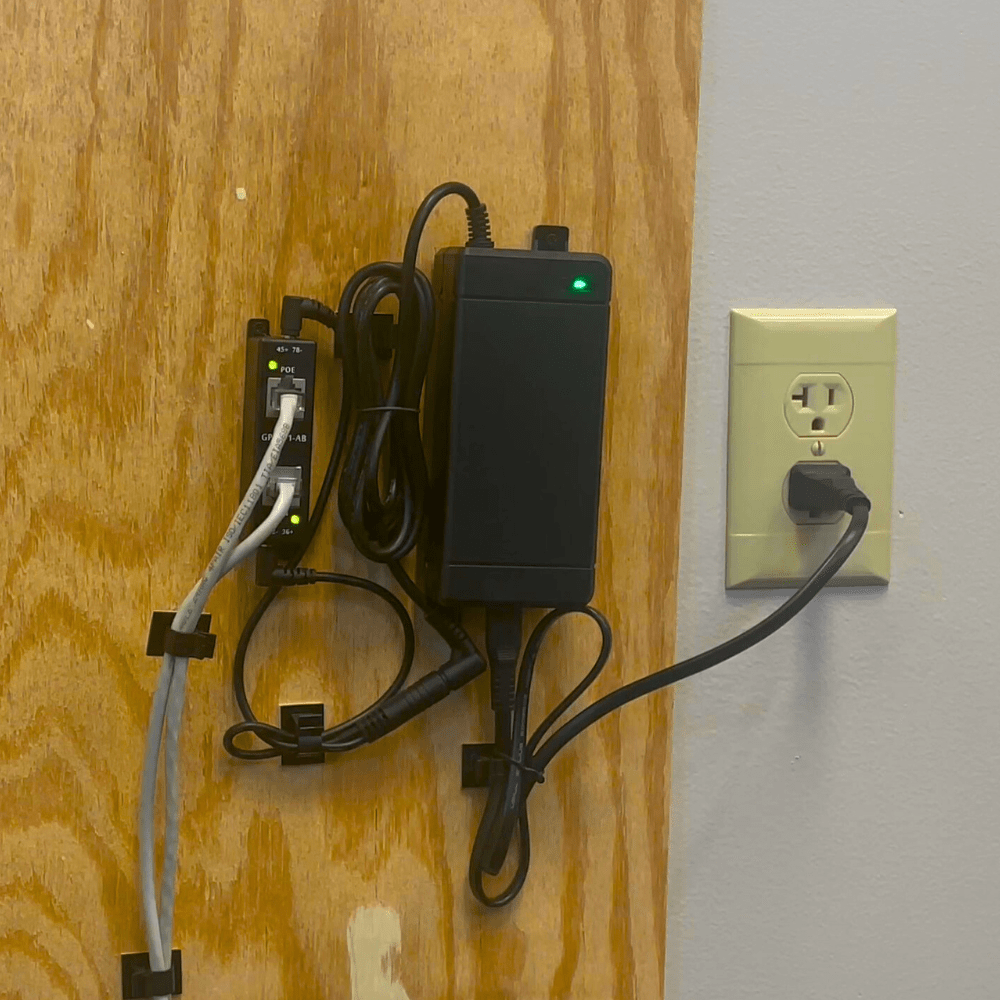

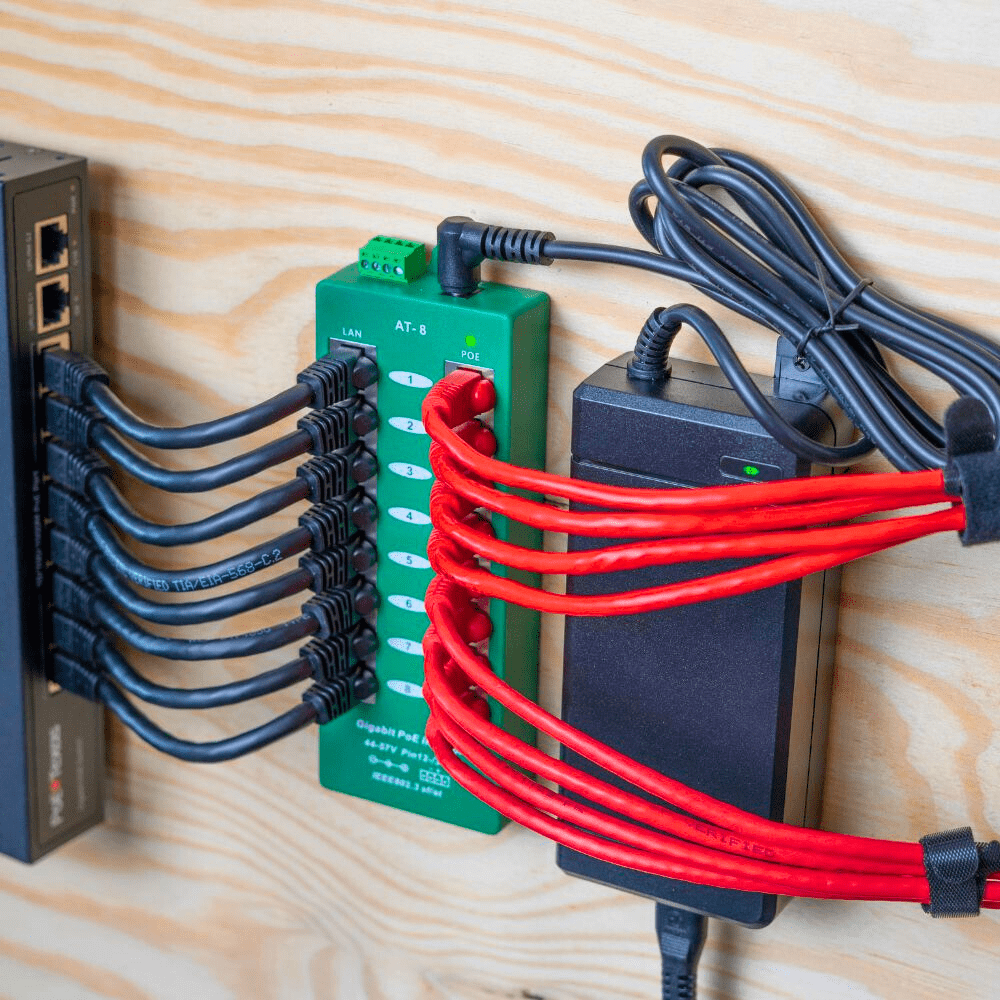

Designed for perfect compatibility with our PoE injectors and switches, our DC power supplies offer safety, reliability, and efficiency for any Power over Ethernet application.

Features:

  • Output: 56 Volt, 2.5 Amp, 120 Watt
  • Input: 100-240V AC

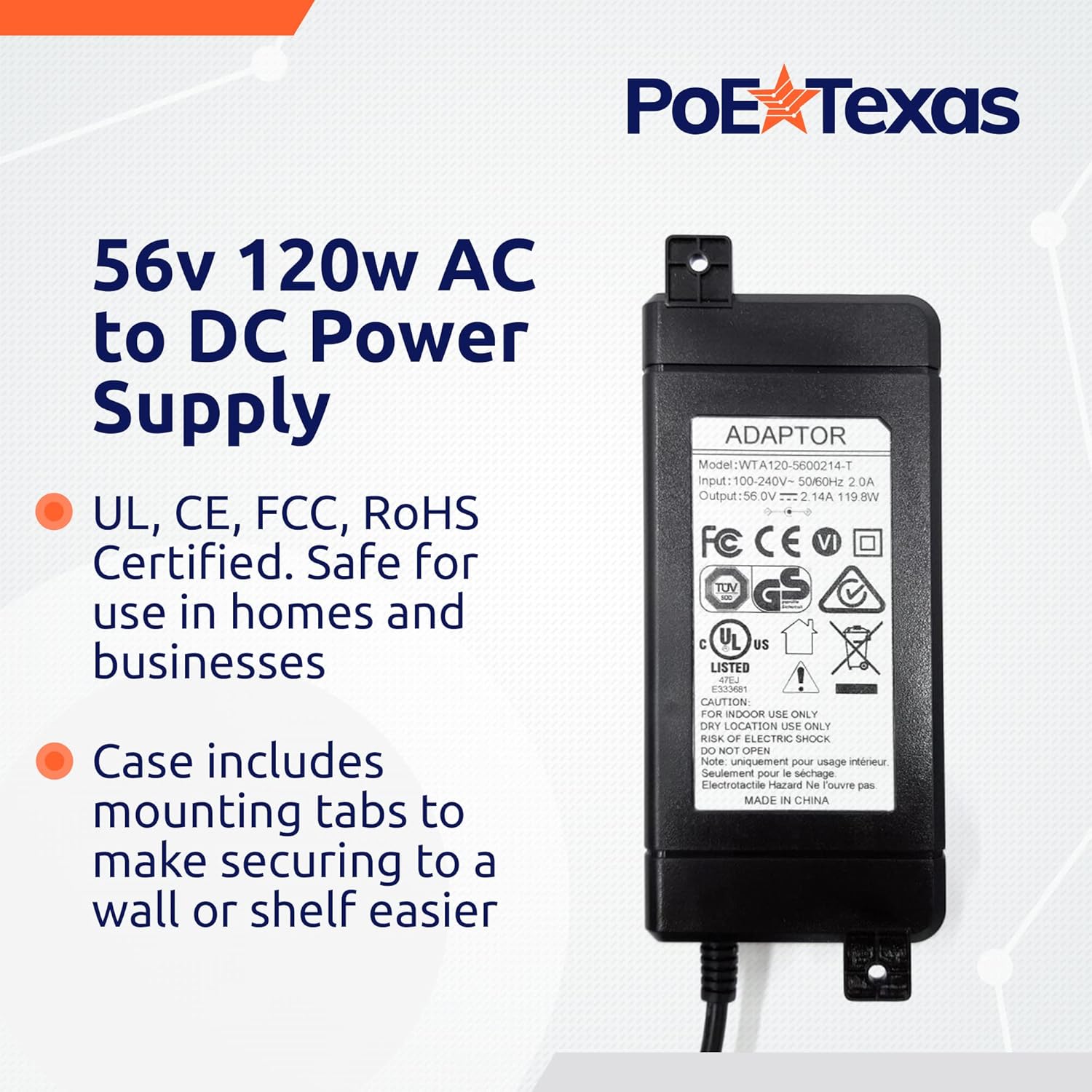

  • UL, CE, FCC, and RoHS certified
  • 5.5 x 2.1 mm DC barrel adapter
  • Includes U.S. Style C8 AC cord

Quality Assured - All PoE Texas power supplies are UL, CE, FCC, and RoHS certified, so they’re safe to use in homes and businesses. Additionally, all of our power supplies meet the latest Department of Energy efficiency guidelines for Class 6 power supplies, so energy is conserved as power is converted to the lower voltages required by modern electronics.

Product Specifications

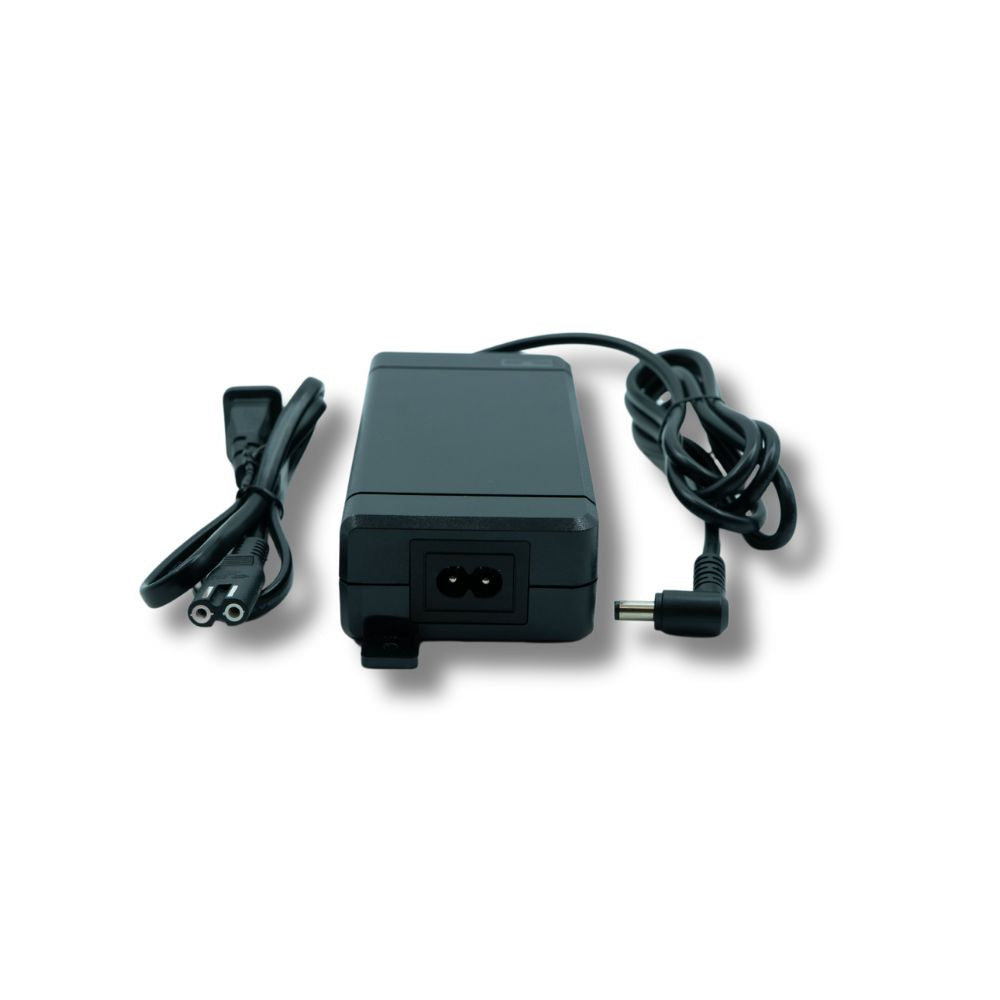

AC Plug Connector Type C8
Certifications UL/CE/FCC/RoHS
DC connector 5.5 mm x 2.1 mm DC barrel
Dimensions 8x3x1.5in.
Efficiency 90+%
IEC Protection Class Class II
Input Frequency Range 47Hz to 63Hz
Input Voltage Range 100v to 240v AC
Line Regulation 0.5%(+/-)
Load Regulation 1%(+/-)
Max Power for Kit 120 Watts
Operating Humidity 5% to 90%
Operating Temperature Range -10 to 60° C
Output Voltage 56 volts
Weight 1.3 lbs
