PT-GPOE-1B-48V15W

Single Port Gigabit Mode B PoE Injector With Integrated 48 Volt 15 Watt Output

Instantly upgrade your network switch to PoE. Power an IP camera, desktop phone, WiFi access point, or other low voltage 802.3af device through a network data cable using this Passive Power over Ethernet (PoE) injector. A Passive PoE injector always delivers the same voltage as its power source. This injector provides 48 volts, 15 watts of PoE power for devices labeled “802.3af.”

Product Features:

Instantly upgrades your network to PoE for one device
Use to deliver PoE power to IP security cameras, phones, wireless access points and other devices that accept passive 802.3af
Passive "Always On" PoE power delivery for reliable throughput
10/100/1000 Gigabit Data Capability
Mode B power delivery on pins 4,5+ / 7,8-

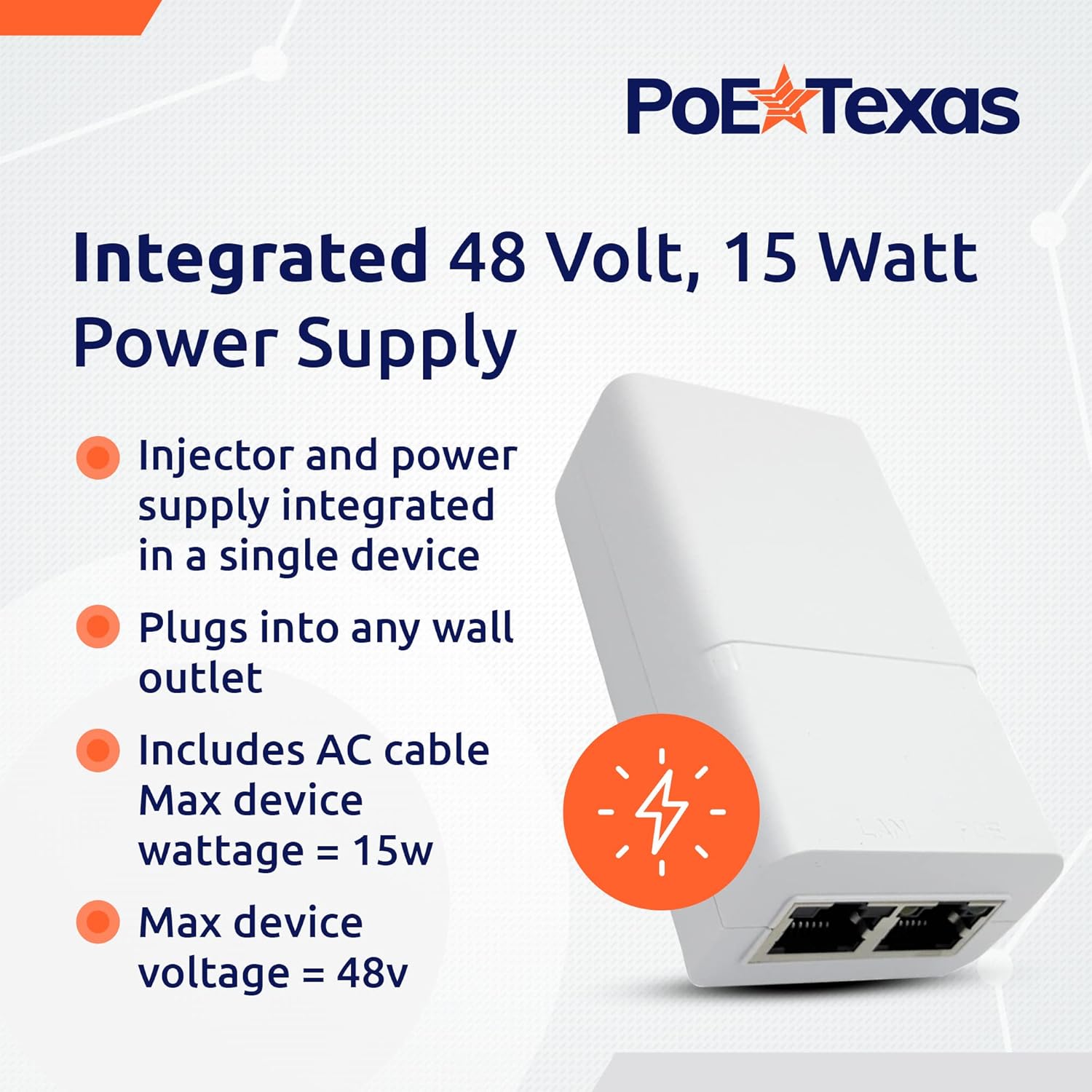

Integrated 48 volt 15 watt power supply

$15.99

Qty:

Single Port Gigabit Mode B PoE Injector With Integrated 48 Volt 15 Watt Output

Product Features:

Instantly upgrades your network to PoE for one device
Use to deliver PoE power to IP security cameras, phones, wireless access points and other devices that accept passive 802.3af
Passive "Always On" PoE power delivery for reliable throughput
10/100/1000 Gigabit Data Capability
Mode B power delivery on pins 4,5+ / 7,8-
Integrated 48 volt 15 watt power supply

Tech Info

Product Specifications

Certifications	CE/FCC
Data + PoE Ports	1
Data Ports	1
Data Rate	Gigabit
Input Voltage Range	100 - 240VAC
LEDs Per Port	2 (PoE Port)
Max Power for Kit	15 Watts
Max. Amps Per Port	320mA
Operating Humidity	20% - 80% Non-Condensing
Operating Temperature Range	0 - 40 C
Output Voltage	48 Volts
PoE Method	Passive
PoE Mode/Pinout	Mode B (+4,5 / -7,8)
PoE Standards Supported	802.3af
Storage Temperature	-20C - 70C

Questions

Ask a Question

Will this work with a GAF-PTZ Optics 12 volt 12 watt POE splitter?

Yes, the PT-GPOE-1B-48v15w is a compatible injector for the GAF-PTZOptics splitter.
