PoE Texas Injector GPOE-6AB-48V120W

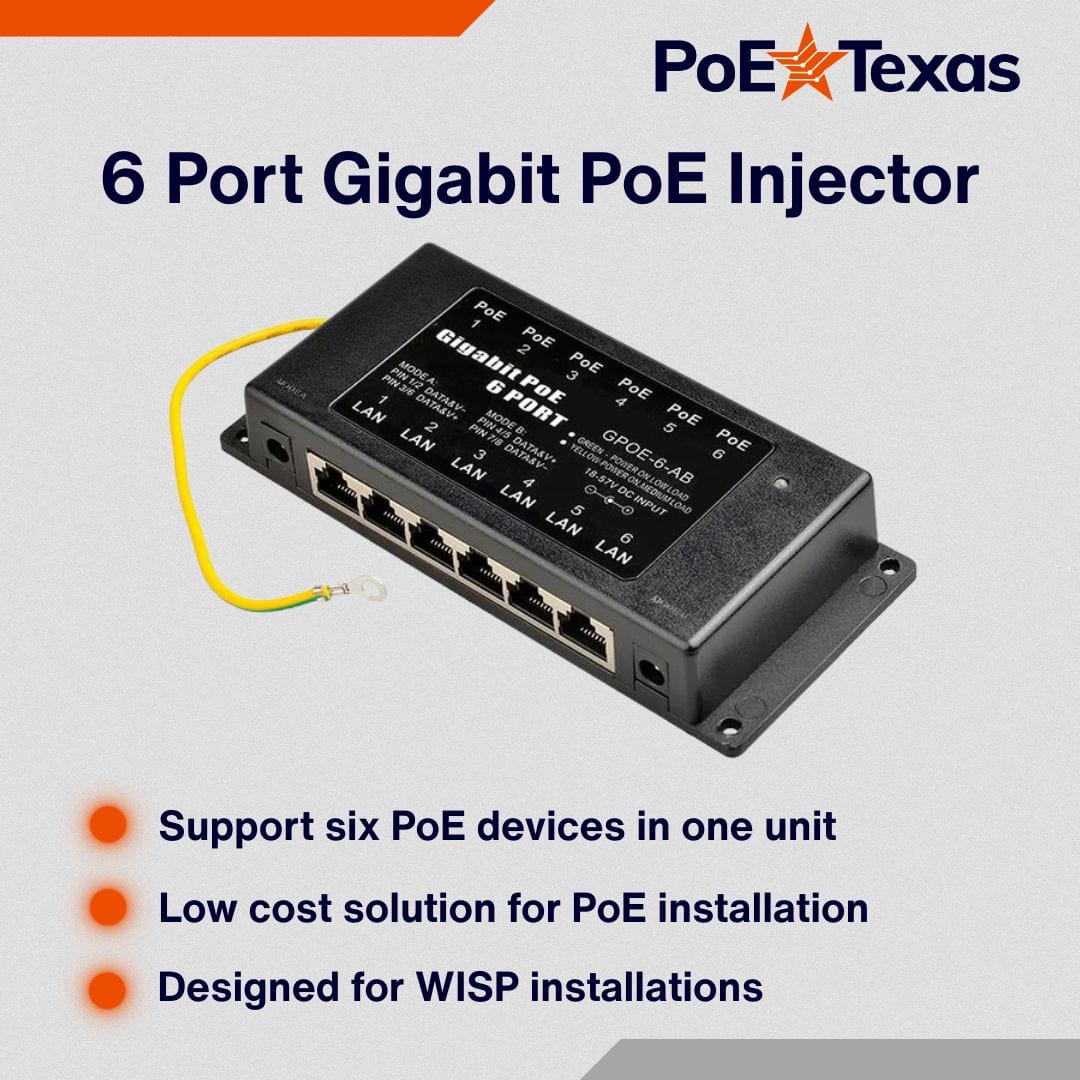

6 Port Gigabit, Mode A/B PoE Injector with 48V 120W Power Supply

SKU GPOE-6AB-48v120w
$99.99

Low cost solution for PoE installation. Instantly upgrade your infrastructure to support six PoE devices in one unit. Power an IP camera, desktop phone, WiFi access point, or other low voltage device through a network data cable using this Passive Power over Ethernet (PoE) injector. A Passive PoE injector always delivers the same voltage as its power source. This injector comes with a 48 volt DC power supply to power passive 802.3af/at PoE devices.

Product Features:

  • Instantly upgrades your network to PoE for six devices
  • Use to deliver PoE power to IP security cameras, phones, wireless access points and other devices that accept passive PoE
  • Offers 4 Pair PoE (4PPoE) when used with a Y-Cable (sold separately)
  • Passive "Always On" PoE power delivery for reliable throughput
  • Mode A / Mode B Options
  • Ground Lead

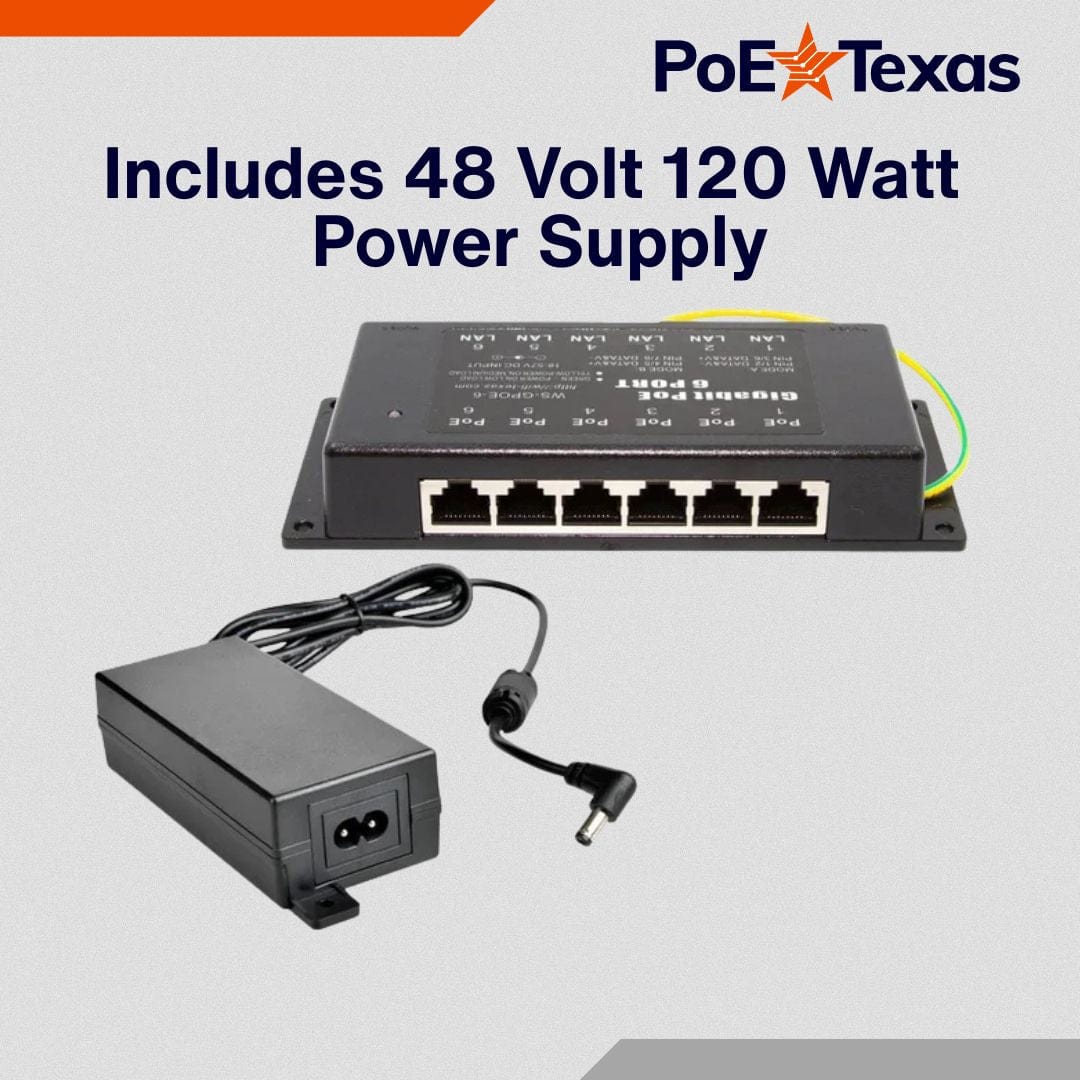

  • Includes a 48 volt, 120 watt UL/CE/FCC power supply

Simple, Reliable, and Supported By Experts. We design our Power over Ethernet Injectors for simple installation and long life, but sometimes things go wrong. When that happens, expert help is only a phone call away. All of our PoE products are backed with a 1-year replacement warranty and 30-day “no questions asked” return policy.

Product Specifications

Certifications UL/CE/FCC
Data + PoE Ports 6
Data Ports 6
Data Rate Gigabit
Dimensions 3x4x6 in.
LEDs Per Port 1
Max Amps Per Kit 2.5 Amps
Max Power for Kit 120 Watts
Max. Amps Per Port 650 mA
Mount Type wall
Operating Humidity 5% to 90%
Operating Temperature Range -10 - 60C
Output Voltage 48 volts
PoE Method Passive
PoE Mode/Pinout Mode A (-1,2 +3,6)/Mode B (+4,5 -7,8)
PoE Standard 802.3af
Power Input 2.1mm DC
Power Supplies WS-PS-48v120w
Weight 26 oz

QUESTIONS & ANSWERS

Ask a Question

  • If you have a separate 48vdc power supply that can push out 48vdc at 200 watts. Are the ports blocked to 30watts per port? Or what you put in is what it puts out.

    Each port will pass through power based on how much is drawn by the connected devices up to the maximum amps per port. The maximum amps per port on this device is 650 mA or when in use with the Y-cable, 1.25 A. So, with a 48 volt power supply you would get a maximum of 31.2 watts on the port, or with use of the Y-cable a maximum of 60 watts on the port. You do need to make sure that the total power draw of the PoE devices connected to the injector would be within 200 watts in this case.

  • Will this, as shipped, support 802.3af and 802.3at devices simultaneously? I'm currently adding my first 802.3at device, and would like to have all 6 devices I have plugged into this, as I swap each one out the individual port will auto sense/switch from af to at.

    Great question! The GPOE-6AB-48V120W is compatible with 802.3af/at power (30W port max with 48V) but it does not negotiate. The overall power budget is also 120w. If any of your devices require auto-negotiation, we recommend the AT-8-56v120w for an active injector.

×





×

×
