POES-8-7

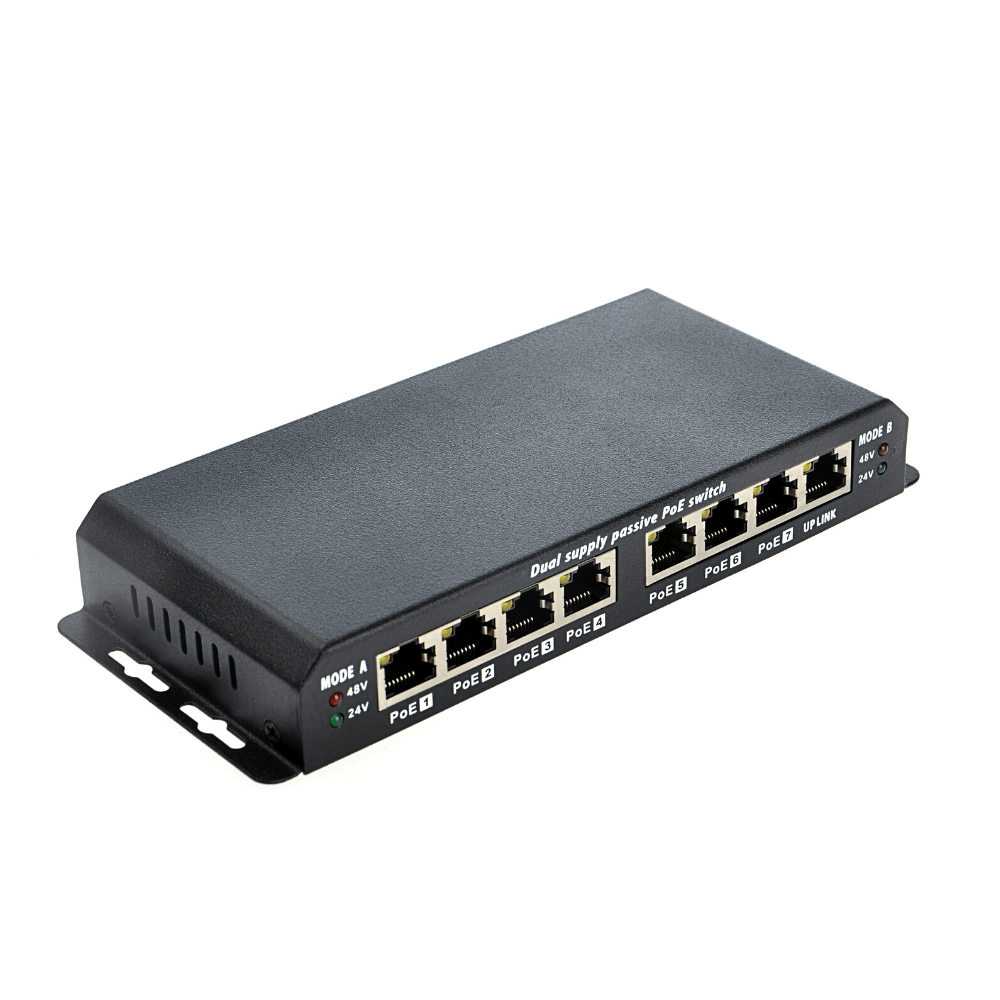

8 Port PoE Switch With 7 PoE Ports and 1 Uplink (Power Supply Sold Separately)

Add 7 ports of PoE to your network. Run a single Ethernet cable up to 328 feet (100 meters) from your existing modem or router and connect to the switch to provide power and data to as many as 7 devices. Or run two POES-8-7 switches in a series to extend your data reach to more than 600 feet.

Passive PoE means versatility. A Passive PoE injector always delivers the same voltage as its power source. Pair this switch with a 48 volt DC power supply to power devices labeled “802.3af”, or you can use a 24 volt power supply with 24-volt passive PoE devices like Access Points from Mikrotik, Ubiquiti, and many more.

Product Features:

Plug and Play - Unmanaged PoE switch with transparent VLAN throughput
Dual use voltage input - Power using a 24, 48, or 56 volt DC adapter or with Mode B PoE via the Uplink Port
Delivers passive "always on" power to the end device
Select Mode A, Mode B input for compatibility options
Daisy-chain in a series to extend power and 10/100 data up to 600 feet

Optional Accessories:

POES-RACK-MOUNT - 1U 19" Rack Mount fits two POES-8-7 switches or Switch kits

$57.99

Qty:

8 Port PoE Switch With 7 PoE Ports and 1 Uplink (Power Supply Sold Separately)

Product Features:

Plug and Play - Unmanaged PoE switch with transparent VLAN throughput
Dual use voltage input - Power using a 24, 48, or 56 volt DC adapter or with Mode B PoE via the Uplink Port
Delivers passive "always on" power to the end device
Select Mode A, Mode B input for compatibility options
Daisy-chain in a series to extend power and 10/100 data up to 600 feet

Optional Accessories:

POES-RACK-MOUNT - 1U 19" Rack Mount fits two POES-8-7 switches or Switch kits

Tech Info

Product Specifications

Data + PoE Ports	7
Data Ports	1
Data Rate	10/100
Dimensions	7.5 x 3.25 x 1.25 inches
Input Voltage Range	12-56 Volts DC / 12-56 Volts PoE (Mode B via Uplink)
Max. Amps Per Port	650 mA
Mount Type	Wall / Optional 1U Rack POES-RACK-MOUNT (sold separately)
Operating Humidity	5% to 90%
Operating Temperature Range	-10 - 60C
PoE Method	Passive
PoE Mode/Pinout	Mode A (-1,2 +3,6)/Mode B (+4,5 -7,8)
Power Input	2.1 x 5.5 mmDC

Questions

Ask a Question

Will this Poe switch work if I’m trying to power both 802.3af and 24 passive devices? If so would a 48v power supply do the both?

This device will only power 24 OR 48 volt devices. To make this switch compatible with both, we recommend pairing our converters GAT-24V25W (converts 48 -> 24 volts PoE) or GPOE-48V10W (Converts 24 -> 48 volts PoE).
