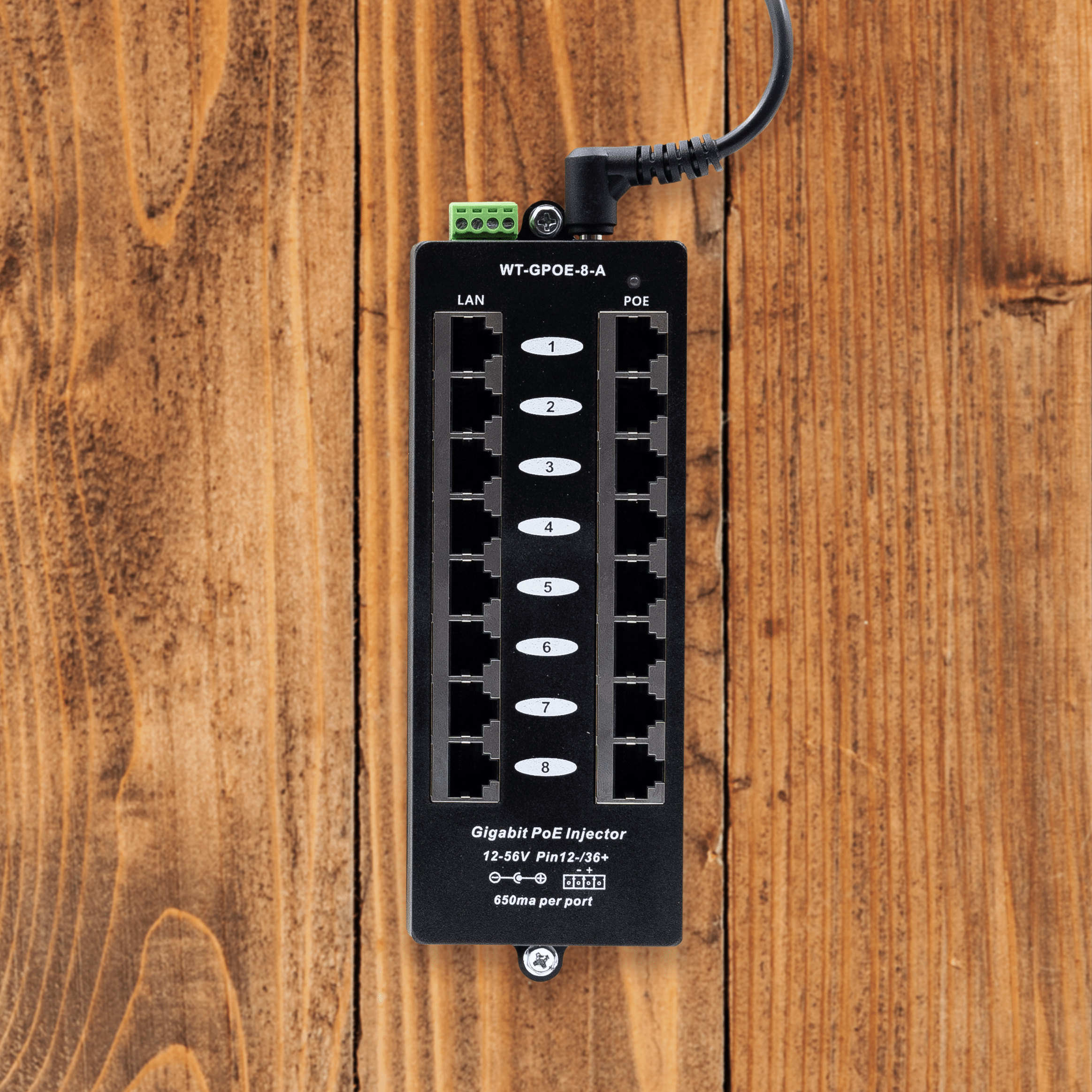

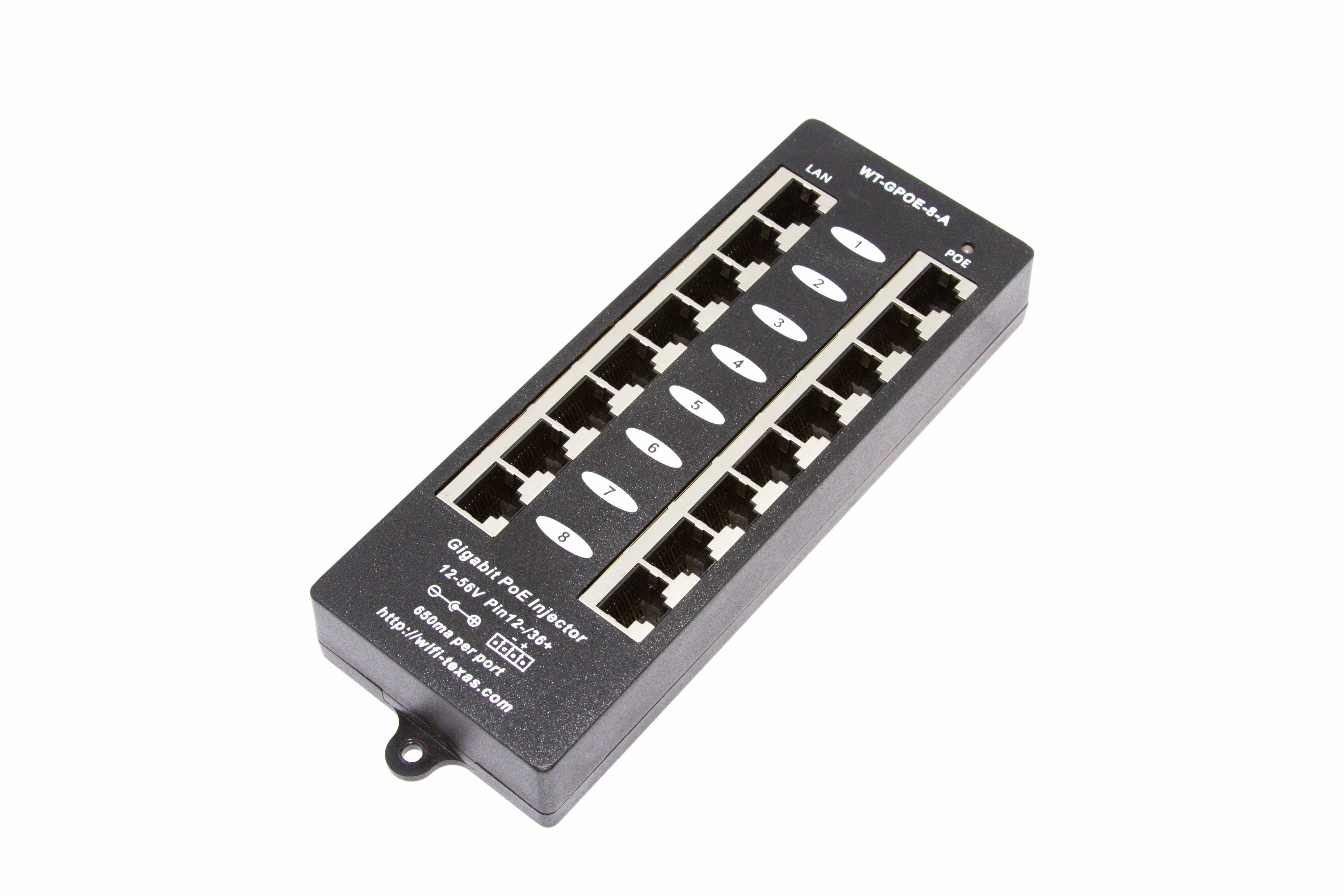

8-Port Gigabit, Mode A PoE Injector without Power Supply

SKU GPOE-8A
$43.99

Notify me when back in stock

Simplify installations with a multi-port midspan injector. Power up to eight IP cameras, desktop phones, WiFi access points, or other low voltage devices through a network data cable using this Power over Ethernet (PoE) injector. A Passive PoE injector always delivers the same voltage as its power source. Kit this injector with a 48v or 56v power supply to provide direct voltage to your IEEE 802.3af/at device.

Compatible with IEEE 802.3af with Mode A Negotiation. This midspan meets the IEEE standard negotiation using pins 1,2 / 3,6 to deliver PoE power to your device.

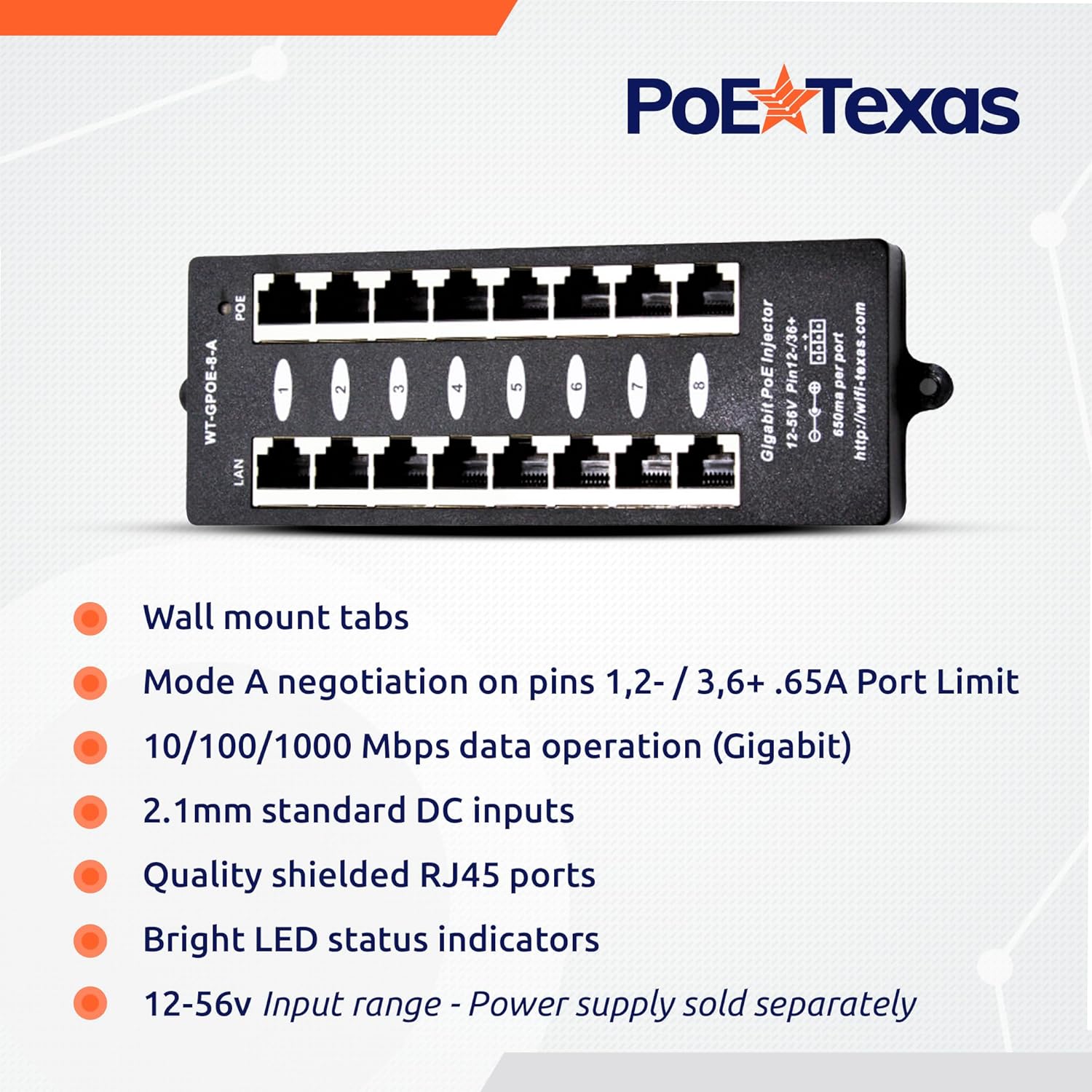

Product Features

  • Power up to 8 PoE devices in one unit - extend power up to 328 feet
  • Passive "Always On" power will continuously deliver power to your device
  • Compatible with Passive 802.3af/at PoE devices
  • Mode A negotiation on pins 1,2- / 3,6+
  • .65A Port Limit
  • 10/100/1000 Mbps data operation
  • 2.1mm standard DC inputs
  • Quality shielded RJ45 ports
  • Bright LED status indicators
  • 12-56v Input range - Power supply sold separately

Simple, Reliable, and Supported By Experts. We design our Power over Ethernet Injectors for simple installation and long life, but sometimes things go wrong. When that happens, expert help is only a phone call away. All of our PoE products are backed with a 1-year replacement warranty and 30-day “no questions asked” return policy.

See the Online Manual

Product Specifications

Data + PoE Ports 8
Data Ports 8
Data Rate Gigabit
Dimensions 7.2 x 2.5 x 1 in.
Input Voltage Range 12 - 56 Volts
Max. Amps Per Port .65 Amps

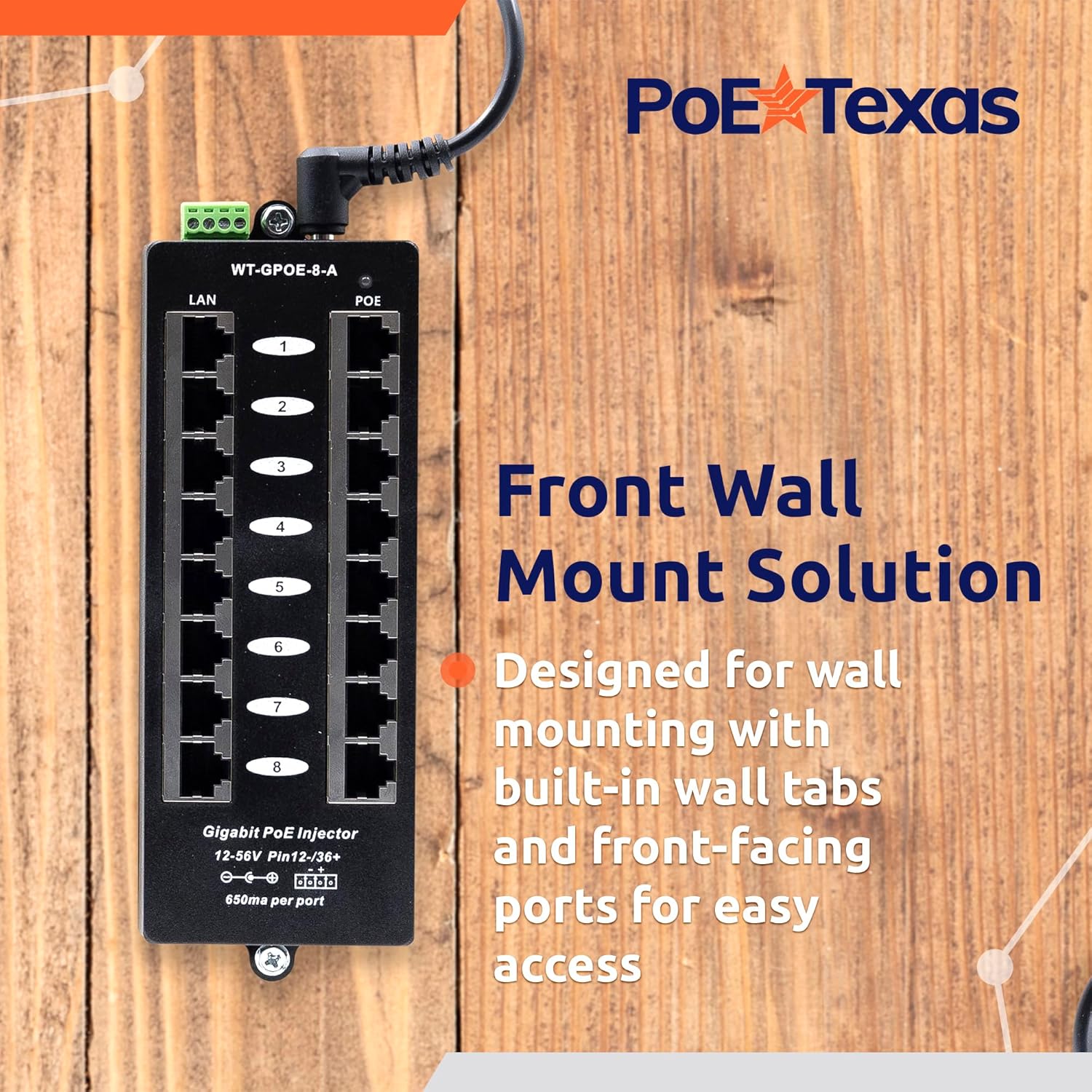

Mount Type Wall
Operating Humidity 5% to 90%
Operating Temperature Range -10 - 60C
PoE Method Passive
PoE Mode/Pinout Mode A (-1,2 +3,6)
Power Input 2.1 x 5.5 mm DC
Weight 6 oz

QUESTIONS & ANSWERS

Ask a Question
  • Will this work with PoE cameras?

    Yes, for most PoE cameras this will work with a 48 volt power supply. You can also use the 10/100 version (WS-POE-8-ENC).

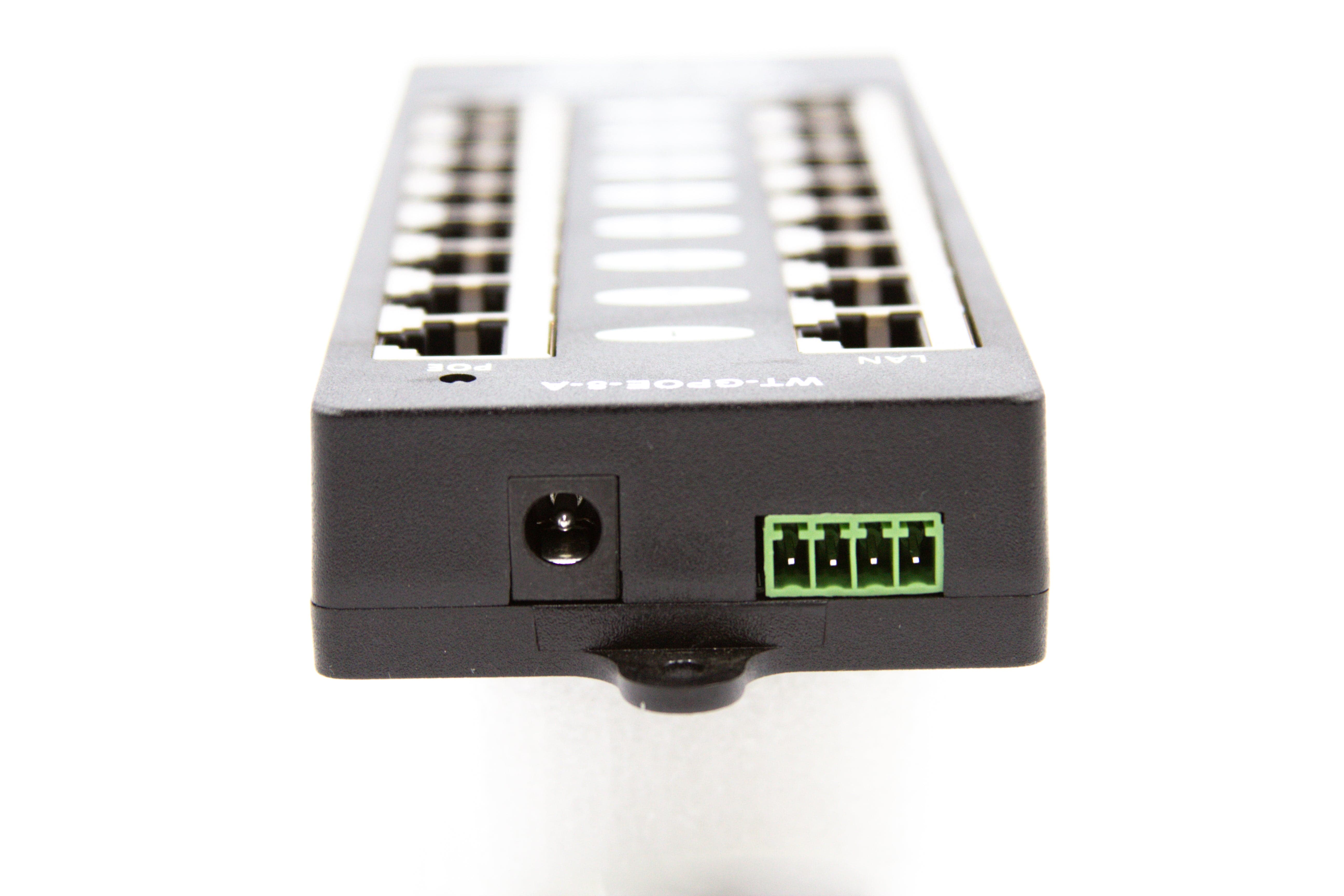

  • What is the purpose of the green connection block on the side of the unit?

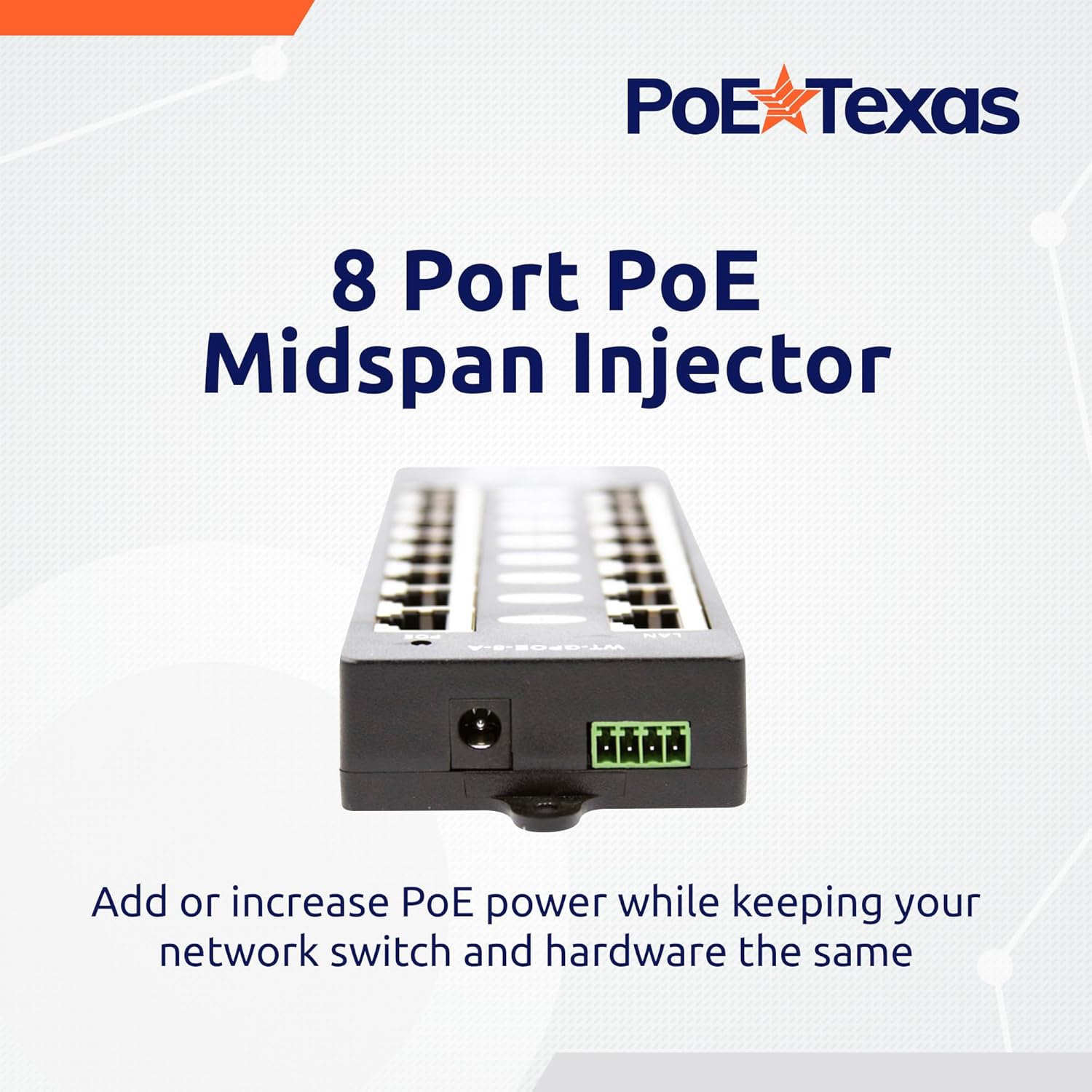

    The green Phoenix connector is an alternative way of providing power to the injector. It allows you to direct wire a power supply to the GPOE-8A.

  • How can I setup an email alert for when this product is back in stock?

    We have a few in stock today! What quantity are you looking for? We also have this product in stock on Amazon, if you need a larger quantity for the time being. Please feel free to give us a call if you have any questions. Thank you!
