GPOE-8A-48V120W

8 Port Gigabit Mode A PoE Injector With a 48 Volt 120 Watt Power Supply

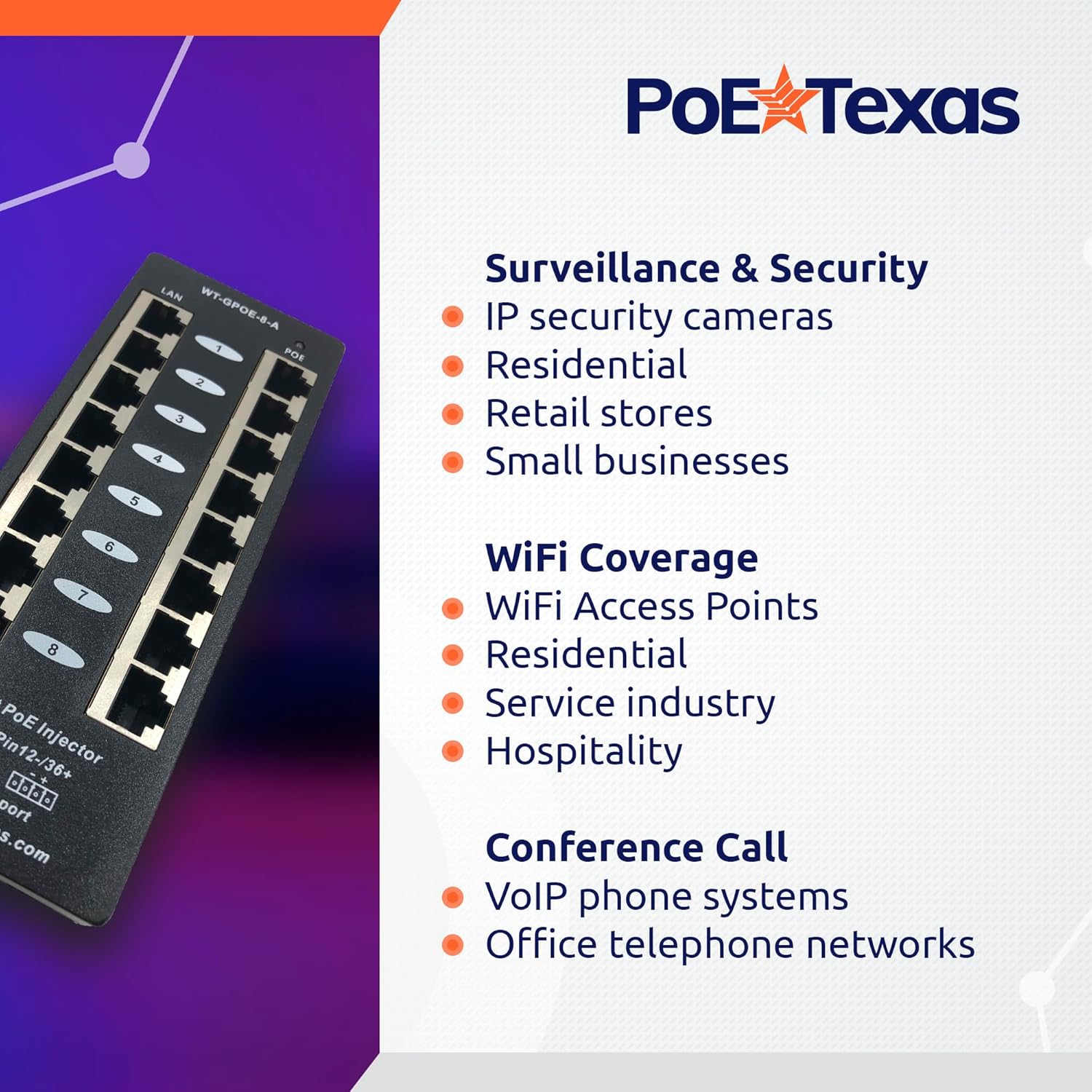

Simplify installations with a multi-port midspan injector. Power up to eight IP cameras, desktop phones, WiFi access points, or other low voltage devices through a network data cable using this Power over Ethernet (PoE) injector. A Passive PoE injector always delivers the same voltage as its power source. This injector comes with a 48v UL approved power supply to provide direct voltage to your IEEE 802.3af/at device.

Compatible with IEEE 802.3af with Mode A Negotiation. This midspan meets the IEEE standard negotiation using pins 1,2 / 3,6 to deliver PoE power to your device.

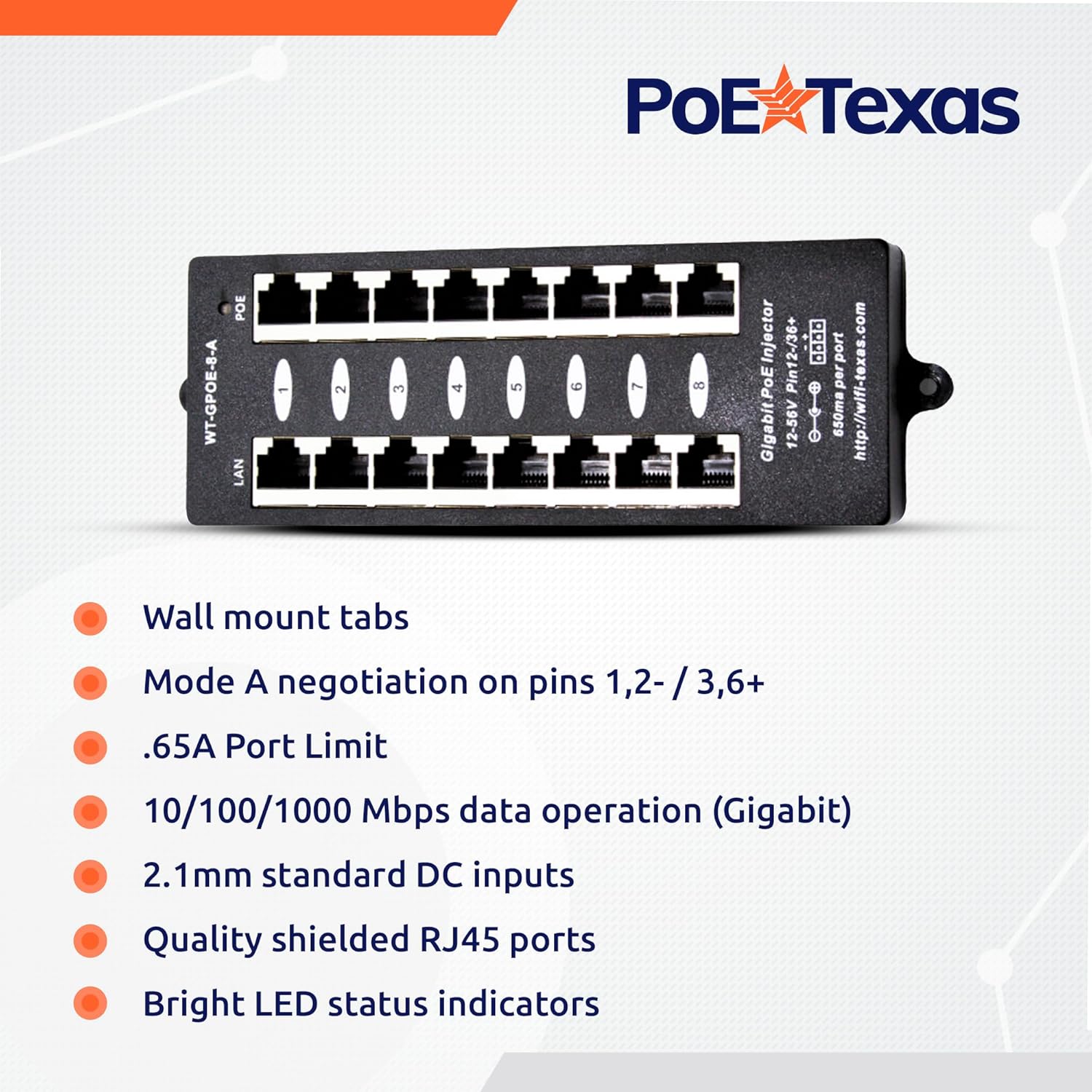

Product Features

Power up to 8 PoE devices in one unit - extend power up to 328 feet
Passive "Always On" power will continuously deliver power to your device
Compatible with Passive 802.3af/at PoE devices
Mode A negotiation on pins 1,2- / 3,6+
.65A Port Limit
10/100/1000 Mbps data operation

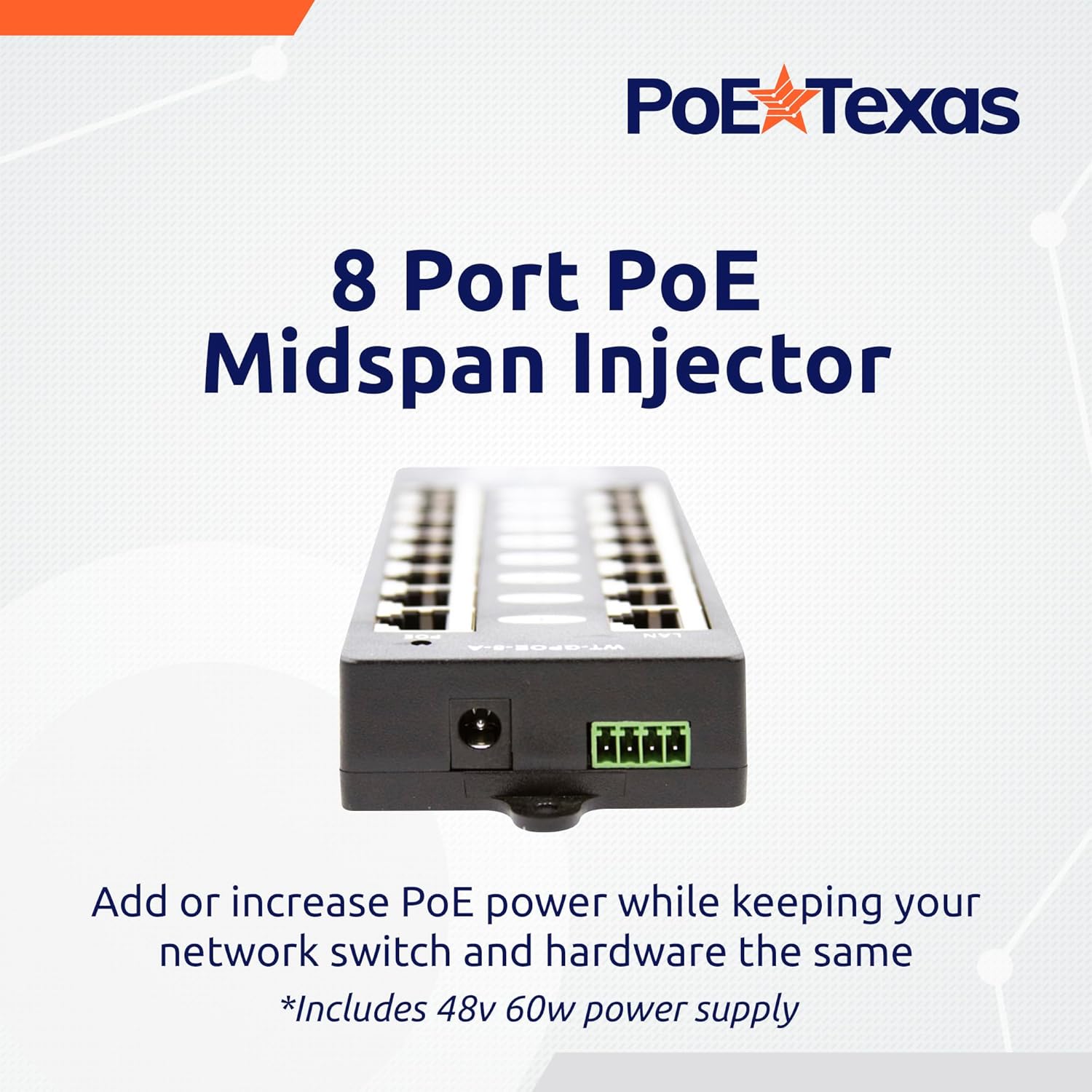

2.1mm standard DC inputs
Quality shielded RJ45 ports
Bright LED status indicators
Includes a 48 volt UL/CE/FCC Rated Power Supply - Total budget 120 watts

Simple, Reliable, and Supported By Experts. We design our Power over Ethernet Injectors for simple installation and long life, but sometimes things go wrong. When that happens, expert help is only a phone call away. All of our PoE products are backed with a 1-year replacement warranty and 30-day “no questions asked” return policy.

See the Online Manual

$92.99

Qty:

8 Port Gigabit Mode A PoE Injector With a 48 Volt 120 Watt Power Supply

Compatible with IEEE 802.3af with Mode A Negotiation. This midspan meets the IEEE standard negotiation using pins 1,2 / 3,6 to deliver PoE power to your device.

Product Features

Power up to 8 PoE devices in one unit - extend power up to 328 feet
Passive "Always On" power will continuously deliver power to your device
Compatible with Passive 802.3af/at PoE devices
Mode A negotiation on pins 1,2- / 3,6+
.65A Port Limit
10/100/1000 Mbps data operation
2.1mm standard DC inputs
Quality shielded RJ45 ports
Bright LED status indicators
Includes a 48 volt UL/CE/FCC Rated Power Supply - Total budget 120 watts

See the Online Manual

Tech Info

Product Specifications

Certifications	UL/CE/FCC
Data + PoE Ports	8
Data Ports	8
Data Rate	Gigabit
Dimensions	7.2 x 2.5 x 1 in.
Max Amps Per Kit	2.5 Amps
Max Power for Kit	120 Watts
Max. Amps Per Port	.65

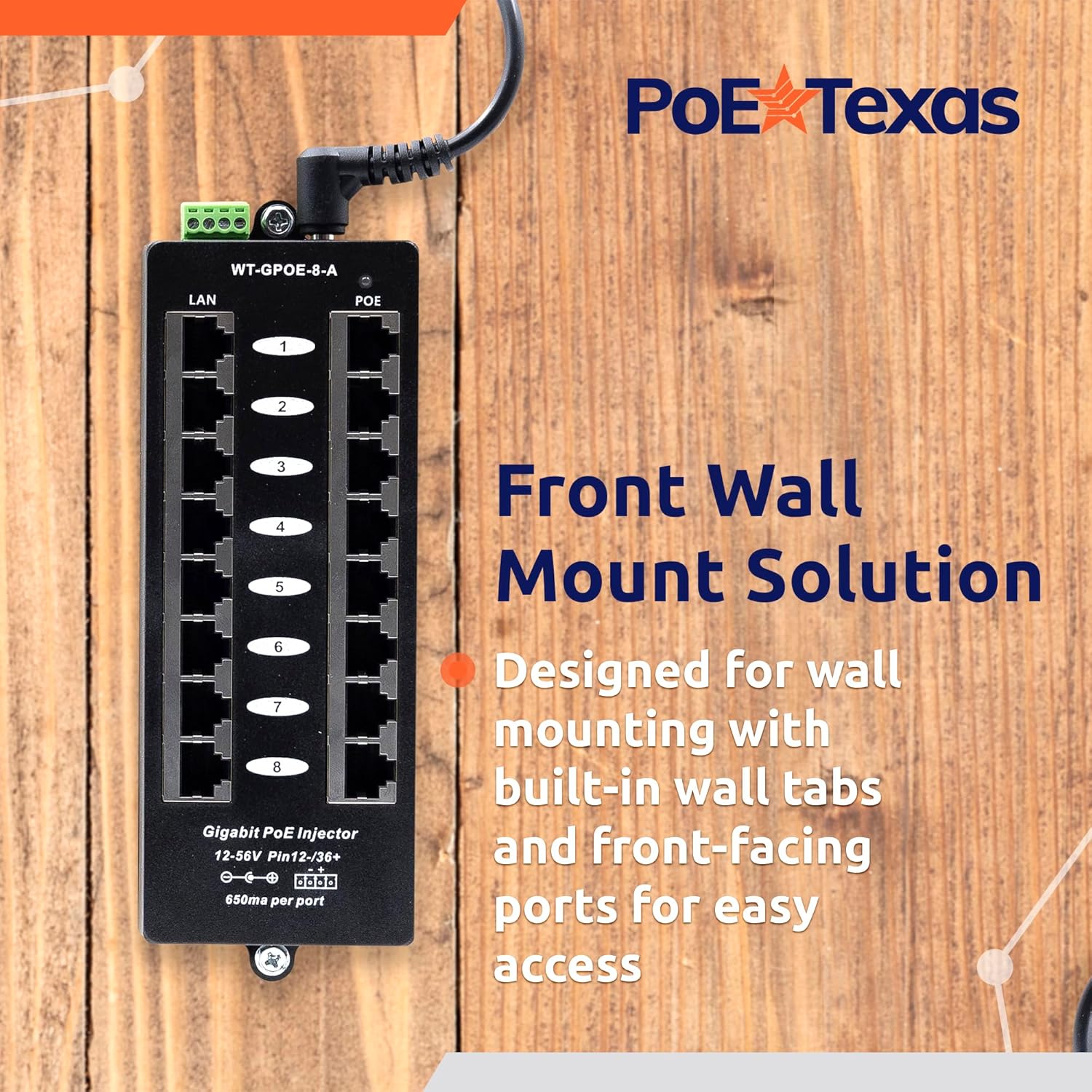

Mount Type	wall
Operating Humidity	5% to 90%
Operating Temperature Range	-10 - 60C
Output Voltage	48 volts
PoE Method	Passive
PoE Mode/Pinout	Mode A (-1,2 +3,6)
Power Input	2.1mm DC
Power Supplies	WS-PS-48v120w

Questions

Ask a Question

Can I power 4 PTZ Optics 20X with this Injector ? What else do I need ? Best

Yes you can power 4 PTZ optics with WT-GPOE-8A-48V120W, you will also need WT-GAF-PTZOPTICS splitters for each of your cameras.
What is the max output wattage per port?

Each port on this injector has a fuse limit of .65 amps. Using a 48 volt power supply would allow you to get 30 watts out of the port, with 120 watts being your power budget.
