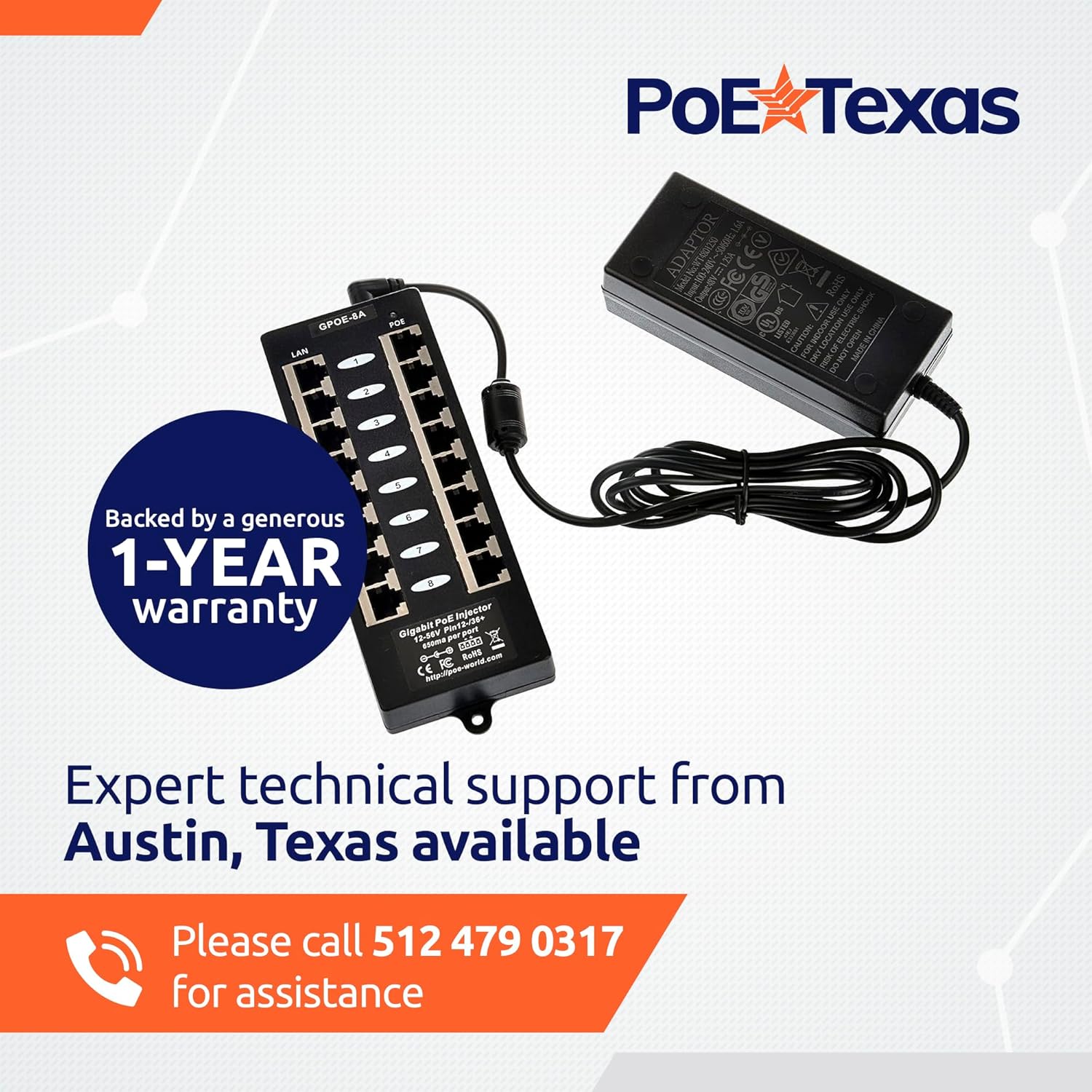

PoE Texas Injector 8 Port Gigabit, Mode A PoE Injector with 48 Volt 60 Watt Power Supply
PoE Texas Injector 8 Port Gigabit, Mode A PoE Injector with 48 Volt 60 Watt Power Supply
PoE Texas Injector 8 Port Gigabit, Mode A PoE Injector with 48 Volt 60 Watt Power Supply
Sold Out
  • SKU: GPOE-8A-48V60W

8 Port Gigabit, Mode A PoE Injector with 48 Volt 60 Watt Power Supply

8 Port Gigabit Mode A PoE Injector With a 48 Volt 60 Watt Power Supply

Simplify installations with a multi-port midspan injector. Power up to eight IP cameras, desktop phones, WiFi access points, or other low voltage devices through a network data cable using this Power over Ethernet (PoE) injector. A Passive PoE injector always delivers the same voltage as its power source. This injector comes with a 48v UL approved power supply to provide direct voltage to your IEEE 802.3af/at device.

Compatible with IEEE 802.3af with Mode A Negotiation. This midspan meets the IEEE standard negotiation using pins 1,2 / 3,6 to deliver PoE power to your device.

Product Features

  • Power up to 8 PoE devices in one unit - extend power up to 328 feet
  • Passive "Always On" power will continuously deliver power to your device
  • Compatible with Passive 802.3af/at PoE devices
  • Mode A negotiation on pins 1,2- / 3,6+
  • .65A Port Limit
  • 10/100/1000 Mbps data operation
  • 2.1mm standard DC inputs
  • Includes a 48 volt UL/CE/FCC Rated Power Supply - Total budget 60 watts
  • Quality shielded RJ45 ports
  • Bright LED status indicators

Simple, Reliable, and Supported By Experts. We design our Power over Ethernet Injectors for simple installation and long life, but sometimes things go wrong. When that happens, expert help is only a phone call away. All of our PoE products are backed with a 1-year replacement warranty and 30-day “no questions asked” return policy.

See the Online Manual

Product Specifications

Certifications UL/CE/FCC
Data + PoE Ports 8
Data Ports 8
Data Rate Gigabit
Dimensions 7.2 x 2.5 x 1 in.
Input voltage 48 Volts
Max Amps Per Kit 1.25 Amps
Max Power for Kit 60 Watts
Max. Amps Per Port 650mA
Mount Type Wall
Operating Humidity 5% to 90%
Operating Temperature Range -10 - 60C
Output Voltage 48 volts
PoE Method Passive
PoE Mode/Pinout Mode A (-1,2 +3,6)
Power Input 2.1 x 5.5 mm DC
Power Supplies PS-48v60w


Ask a Question
  • What is the actual thickness, length and width of the Unit and power pack?

    The WT-GPOE-8A is 8x4x1 in.
    The Power supply is 5x2x1.3 in

  • I have a WT-AF-5V10W splitter for an old Foscam 8910 5v camer that I have. Can I use this model injector to feed the camera poe power?

    Yes, the GPOE-8A-48v60w is compatible with the GAF-5v10w.

  • are mounting hole dimensions, size and location available?

    The size of the mounting tab is 10mm. Please contact our technical support team at service@poetexas.com if you have any additional questions. Thank you!

  • Is this Power over Ethernet: IEEE802.3at Type 1 compatible?

    Yes, this injector kit will support up to 30 watts output per port (amongst 2 ports) or up to 7.5 watts if using all 8 ports. IF you need up to 15 watts for 8 ports we recommend upgrading to our 120w version of this kit.

  • Hello, I'm looking at purchasing a POE injector to power 4-6 Dahua security cameras and the documentation says it requires DC12V, PoE (802.3af, Class 0). Will the WT-GPOE-8A-48V60W or WT-GPOE-8B-24V60W work best for my application. I don't want to harm the camera. Thanks

    The WT-GPOE-8A-48V60W will be complatible and our best recommendation for your Dahua 802.3af Cameras. An alternative product that is compatible with your cameras is WS-GPOE-6-48V60W in comparison it only has 6 ports.
