GAT-5v20w - With Micro-USB or USB Type C Adapter Options

Gigabit Inline PoE Splitter/Converter With 5 Volt 20 Watt Output

Power 5 Volt Single Board Computers, smart sensors, tablets and more with Power Over Ethernet at 5 Volts

Use the GAT-5v20w with your existing 802.3at PoE+ Switch or 48v PoE Injector to power 5-volt non-PoE devices. Try it with our GPOE-1AB-48v60w injector to provide 25 watts of continuous 5-volt power to any device.

Product Features:

Perfect for mounted powering Non-PoE devices at up to 328 feet away

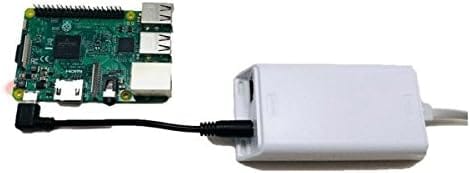

Compatible with Raspberry Pi 3, BeagleBoard, Google Wifi, Nestcam, and more with the right cable accessory (See the variations for Micro-USB and Legacy USB-C adapter options)
Provides continuous 5 volts, 20 watts of power
Offers a more secure network via direct Ethernet
"Splits" PoE Power and Gigabit data onto corresponding output ports
Compatible with an IEEE 802.3at PoE Switch or injector (sold separately)
Mode A/B compatible
2.1mm x 5.5mm DC power plug standard output

*For USB-C power + data, see our GAT-USBC-PD-REV2 Splitter

Variation Options:

GAT-5v20w (No Adapter) - Does not include adapter cable
GAT-MICROUSB (MicroUSB Adapters) - Includes two 2.1mm - MicroUSB Right/Left Angle adapters
GAT-5v20w-USBCLegacy (USBC Adapter) - Includes a 2.1mm - USB-C (2.0) Cable adapter for power transfer only

See the Online Technical Manual

$25.19

Qty:

Gigabit Inline PoE Splitter/Converter With 5 Volt 20 Watt Output

Power 5 Volt Single Board Computers, smart sensors, tablets and more with Power Over Ethernet at 5 Volts

Product Features:

Perfect for mounted powering Non-PoE devices at up to 328 feet away
Compatible with Raspberry Pi 3, BeagleBoard, Google Wifi, Nestcam, and more with the right cable accessory (See the variations for Micro-USB and Legacy USB-C adapter options)
Provides continuous 5 volts, 20 watts of power
Offers a more secure network via direct Ethernet
"Splits" PoE Power and Gigabit data onto corresponding output ports
Compatible with an IEEE 802.3at PoE Switch or injector (sold separately)
Mode A/B compatible
2.1mm x 5.5mm DC power plug standard output

*For USB-C power + data, see our GAT-USBC-PD-REV2 Splitter

Variation Options:

GAT-5v20w (No Adapter) - Does not include adapter cable
GAT-MICROUSB (MicroUSB Adapters) - Includes two 2.1mm - MicroUSB Right/Left Angle adapters
GAT-5v20w-USBCLegacy (USBC Adapter) - Includes a 2.1mm - USB-C (2.0) Cable adapter for power transfer only

See the Online Technical Manual

Tech Info

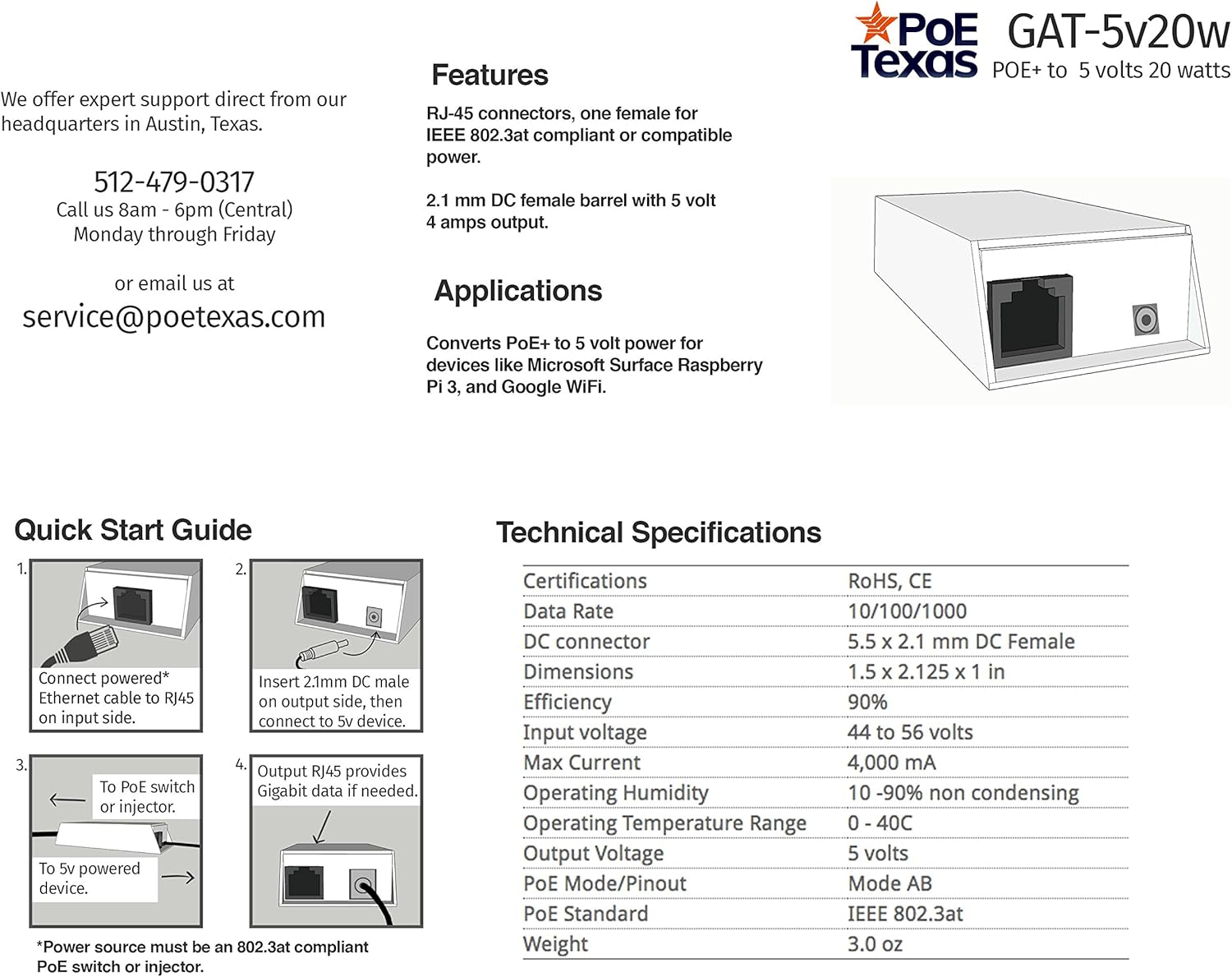

Product Specifications

Adapters included	See Variation Options
Certifications	RoHS, CE

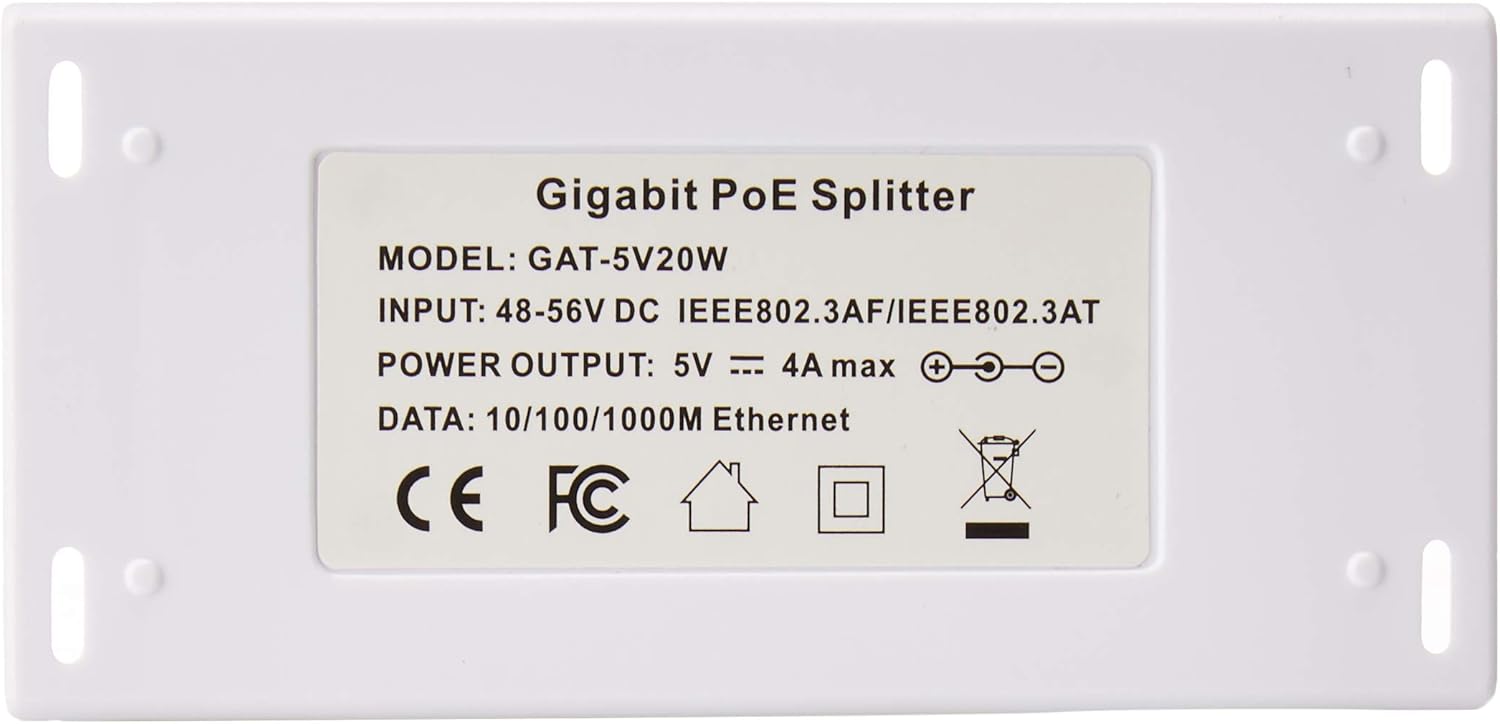

Data + PoE Ports	1 (Input)
Data Ports	1 (Output)
Data Rate	10/100/1000
DC connector	5.5 x 2.1 mm DC Female
Dimensions	4.5 x 2 x 1 in
Efficiency	90%
Input voltage	44 to 56 volts
Max Current	4,000 mA
Max Power for Kit	20 Watts
Operating Humidity	10 -90% non condensing
Operating Temperature Range	0 - 40C
Output Voltage	5 volts
PoE Mode/Pinout	Mode A/B
PoE Standard	IEEE 802.3at
Weight	3.0 oz

Questions

Ask a Question

I just ordered one of these cables. I am interested in the PoE + Data. However, I see the cables are listed as power only. Is there a different cable we will need for data?

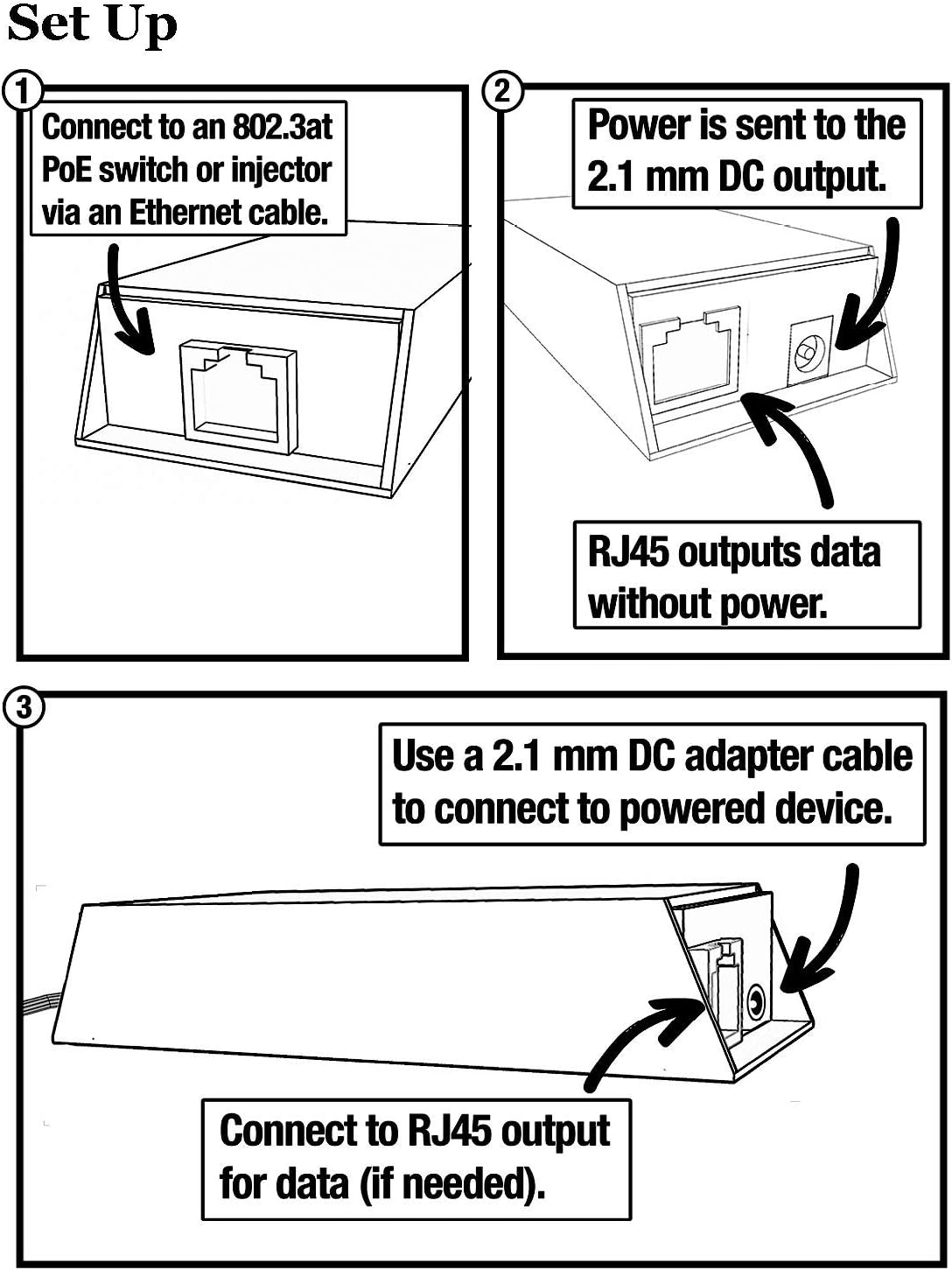

The GAT-5v20w is a splitter that converts PoE+ into 5v20w on the female 2.1mm DC connection. Separate data out is on the female RJ45. Most of our PoE to 5 volt solutions are going to split the output power and data. The exceptions being iPad lightning specific adapters. Please feel free to call our technical support team at 512-479-0317 with any further questions. Thanks you!

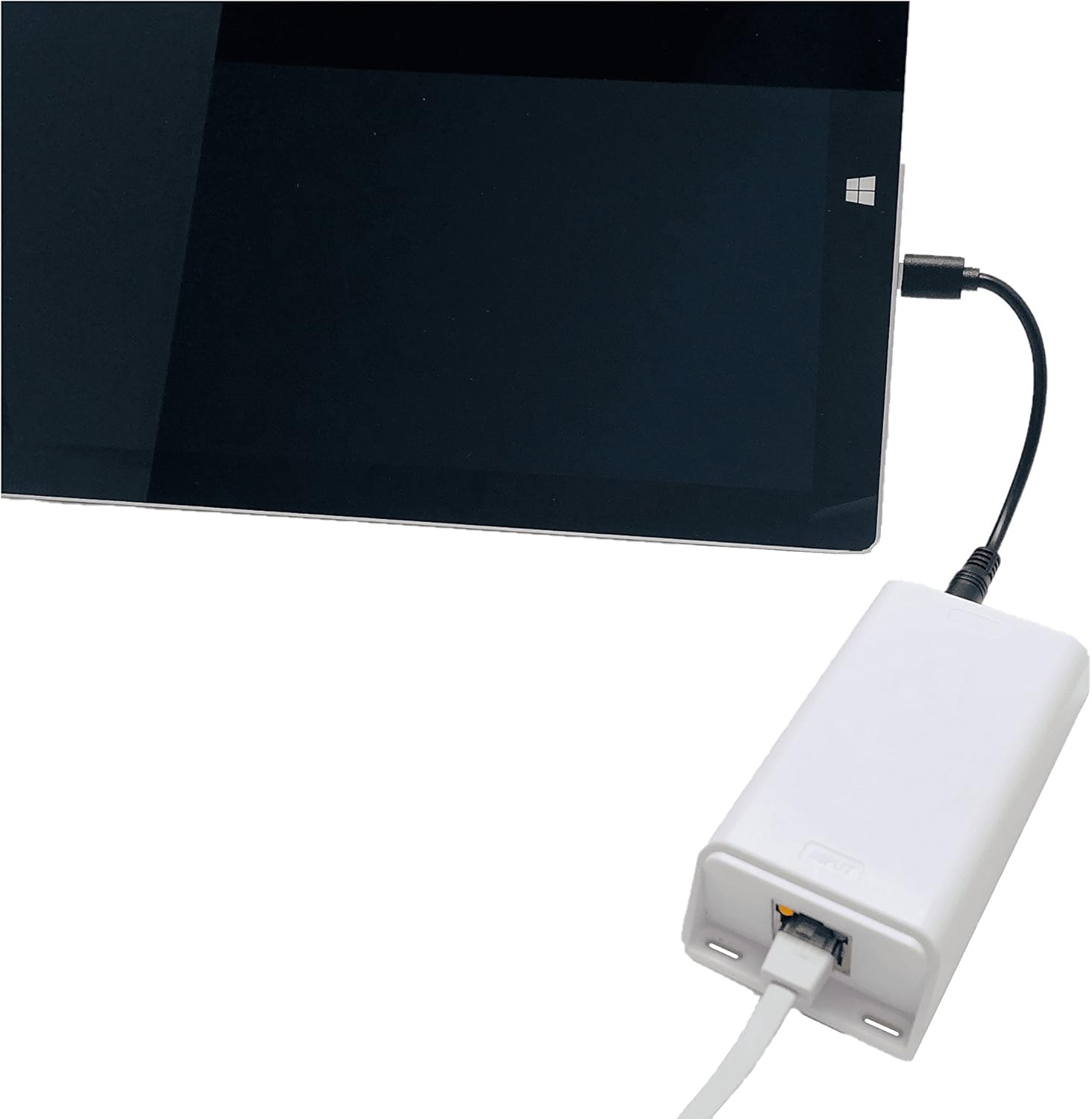

Hello, I'm searching a solution to plug a tablet on my RJ45 (with PoE) and receive the power AND the date (I don't have the Wifi to provide to the tablet). Do you have this specific product ? Thanks

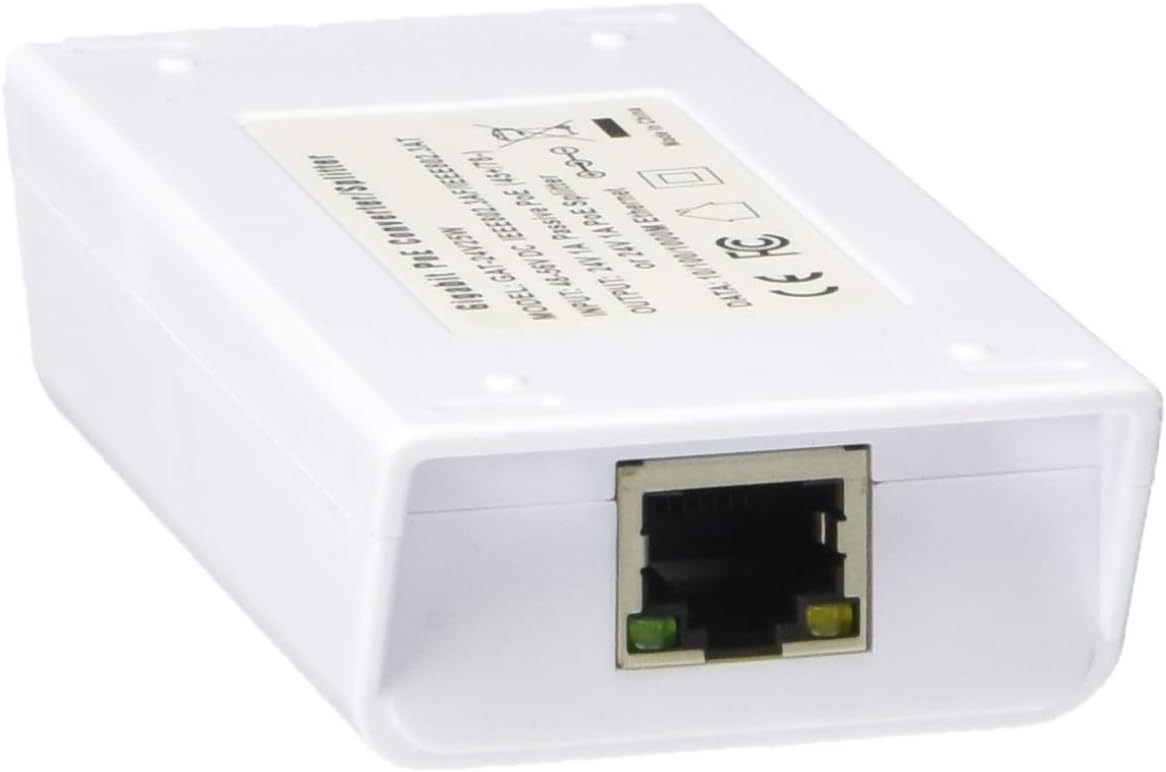

Our GAT-5v20w splitter has two RJ-45 connectors: one female for POE power plus data, one data out without power. Depending on the connection your tablet has, you may need an additional adapter in order to receive the data. Please feel free to call our technical support team for more information, 512-479-0317.
